Highlights
- 720P HD IP camera:better picture quality, further vision
- Support WiFi802.11b/g/n
- Built-in microphone and speaker; two way audio
- Support iOS, Androide and windows
- Universal protocol, enhanced product interoperability

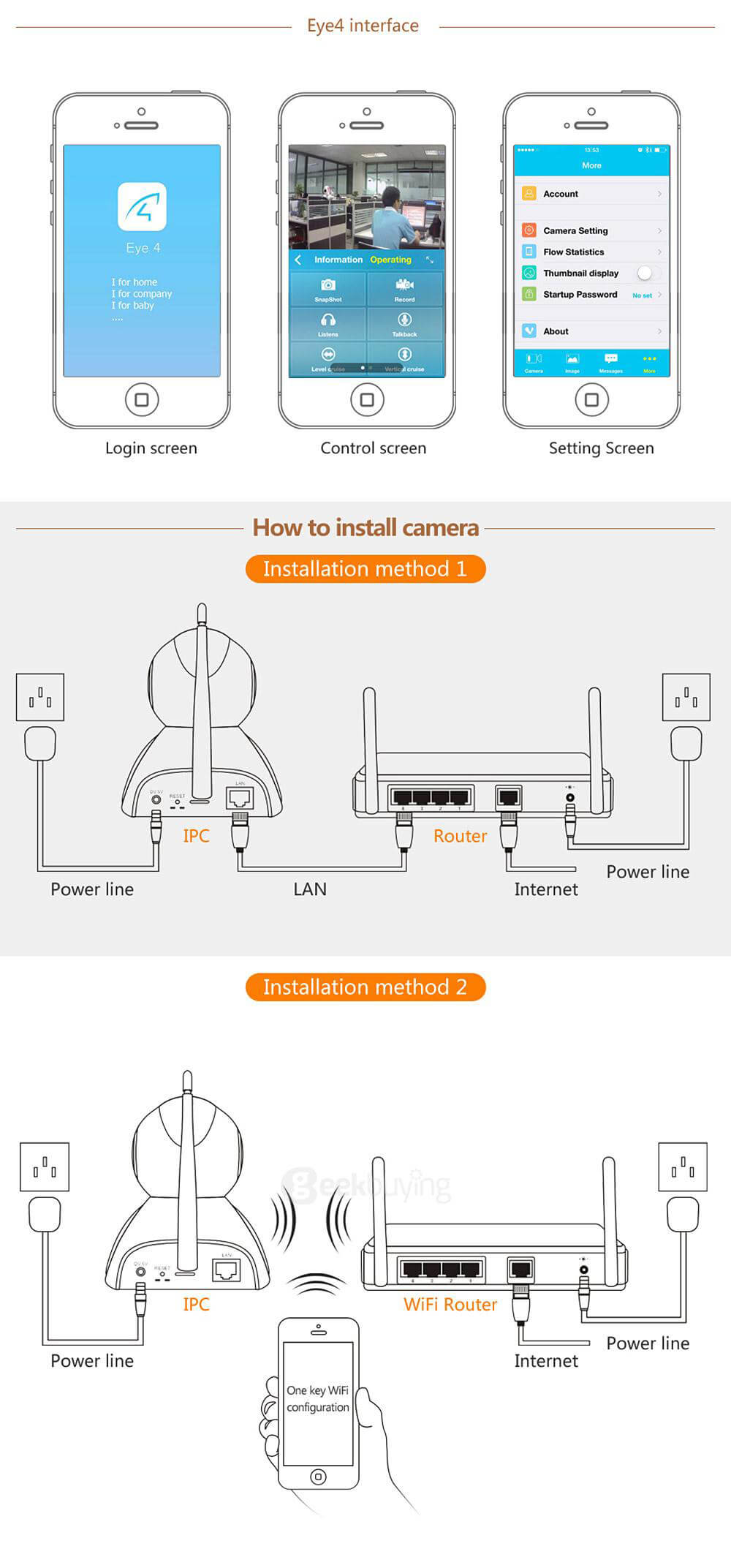

- Easy to install and operate: no wiring
- Support up to 64G micro SD card storage
- 24-hour surveillance and 15m night vision distance
- Exquisite design: ABS flame retardant material, smooth furface

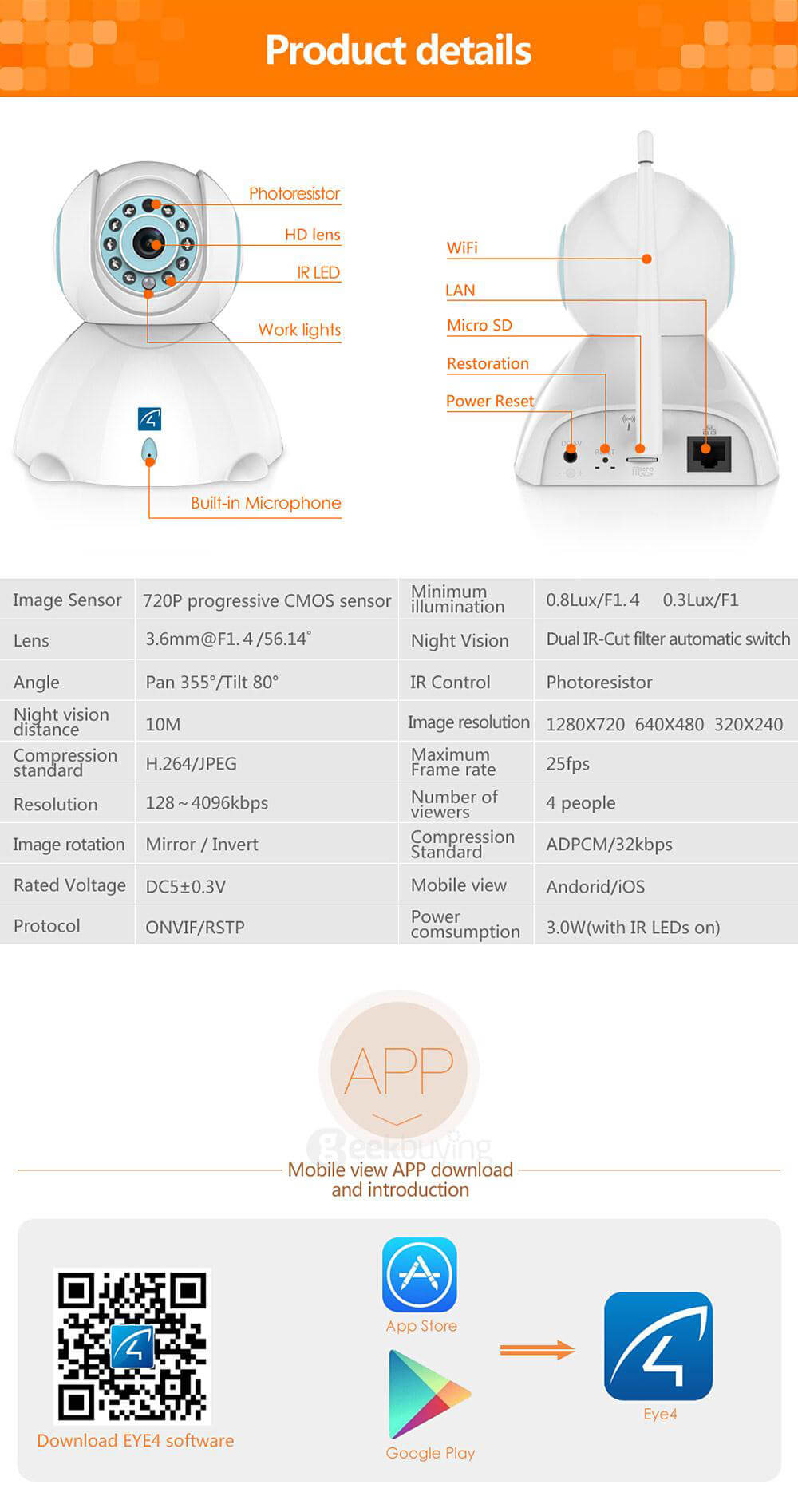

Specification
| General | |||||||
|---|---|---|---|---|---|---|---|
| System | Operation System | Embedded Linux | |||||
| System Security | Three level user authority management | ||||||
| Online Visitor | supports 4 online visitors simultaneously | ||||||
| DDNS | Free DDNS | ||||||
| Protocol | ONVIF 2.4, high interoperability | ||||||

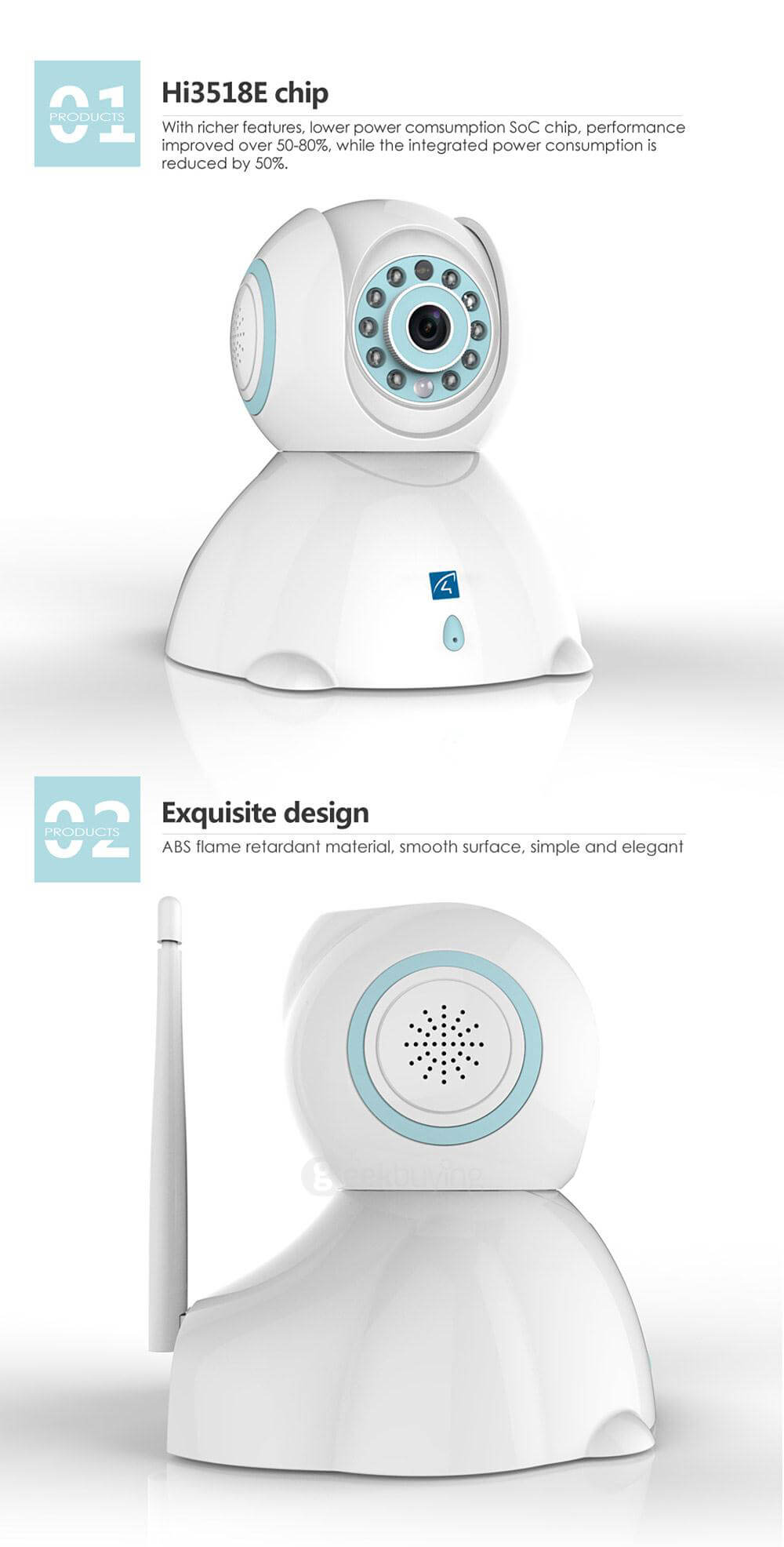

| Processor | Hisilicon processor, integrated ARM926 @Max. 440MHz and high-speed video co-processor. | ||||||
| Reset | Long press for 15 seconds to restore back to factory settings | ||||||
| Image Capturing | Image Sensor | 1/4 inch 720P progressive CMOS sensor | |||||
| Sensor Function | AWB, AGC, BLC supported | ||||||
| Imaging Area | 4.40mm×2.52mm | ||||||
| SNR | ≥41dB | ||||||
| Minimum illumination | 0.8Lux/F1.4 (full color mode), 0.3Lux/F1 (black white mode) | ||||||
| Lens/viewing angle | 3.6mm@F1.4/56.14˚ | ||||||
| Night Vision | dual IR-Cut filter automatic switch, 11pcs 850nm IR LEDs, 10m night vision distance | ||||||
| IR Control | IR turned on: night vision view enabled, infrared Ray, ICR auto detect. IR turned off: night vision disabled, infrared ray off, ICR stay in day view mode. |
||||||
| Video | Compression standard | H.264 Main Profile/H.264 Baseline Profile/MJPEG/JPEG Baseline | |||||

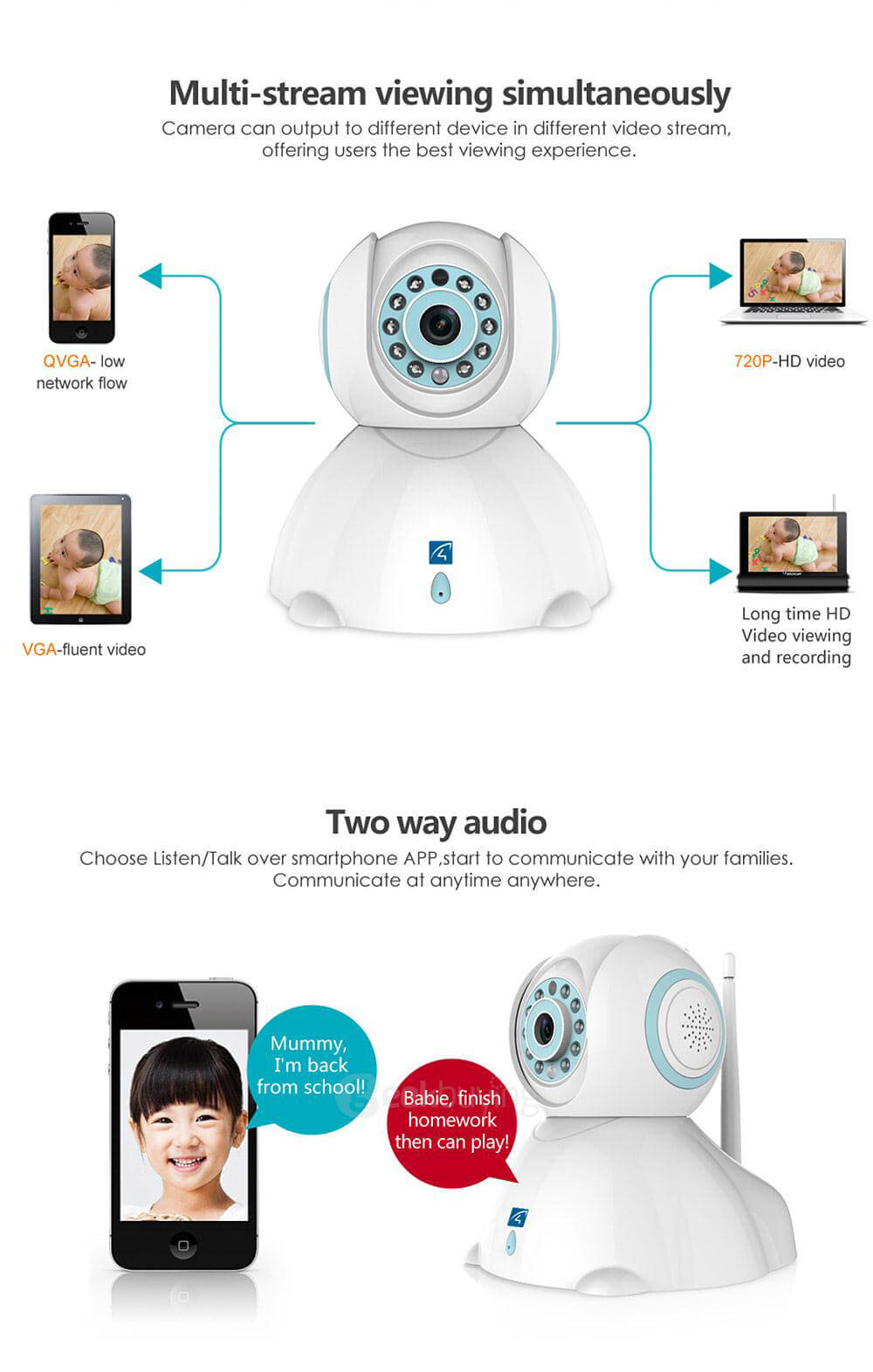

| Video Coding | multiple video stream: 720P/24fps+VGA/30fps+QVGA/30fps+720P @1fsJPEG screenshot | ||||||

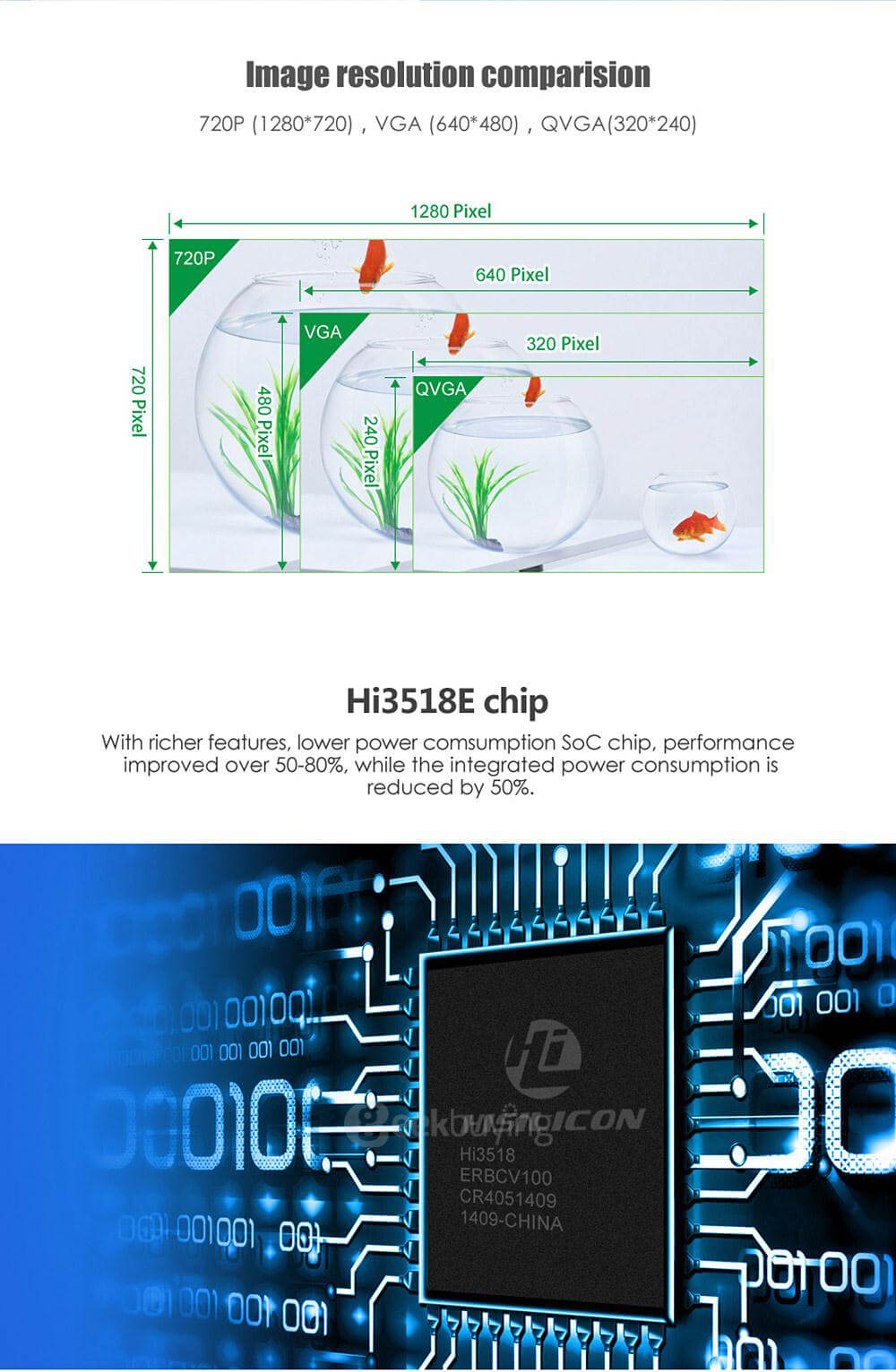

| Resolution | 720p/VGA/QVGA | ||||||
| Bit Rate | CBR/VBR,output bit rate is 128~4096kbps | ||||||
| Maximum Frame rate | 25fps | ||||||
| Image Adjustment | brightness, contrast, saturation, chroma are adjustable | ||||||
| Audio | Input | built-in 48db microphone | |||||
| Output | built-in speaker (8Ω1W) | ||||||
| Sampling Frequency | 8KHz/16bit | ||||||
| Compression Standard/Bit Rate | ADPCM/32kbps | ||||||
| Network | Ethernet Socket | 10Mbps/100Mbps self adaptable/RJ45 interface | |||||
| Internet Protocol | TCP/IP,HTTP,TCP,UDP,SMTP,FTP,DHCP,DNS,DDNS,NTP,UPnP,RTSP,P2P etc. | ||||||
| Wireless Internet | WiFi802.11b/g/n | ||||||
| Antenna | 3dBi antenna, stronger signal, more stable | ||||||
| Protocol | one key Wifi confugration, no network cable ever needed | ||||||

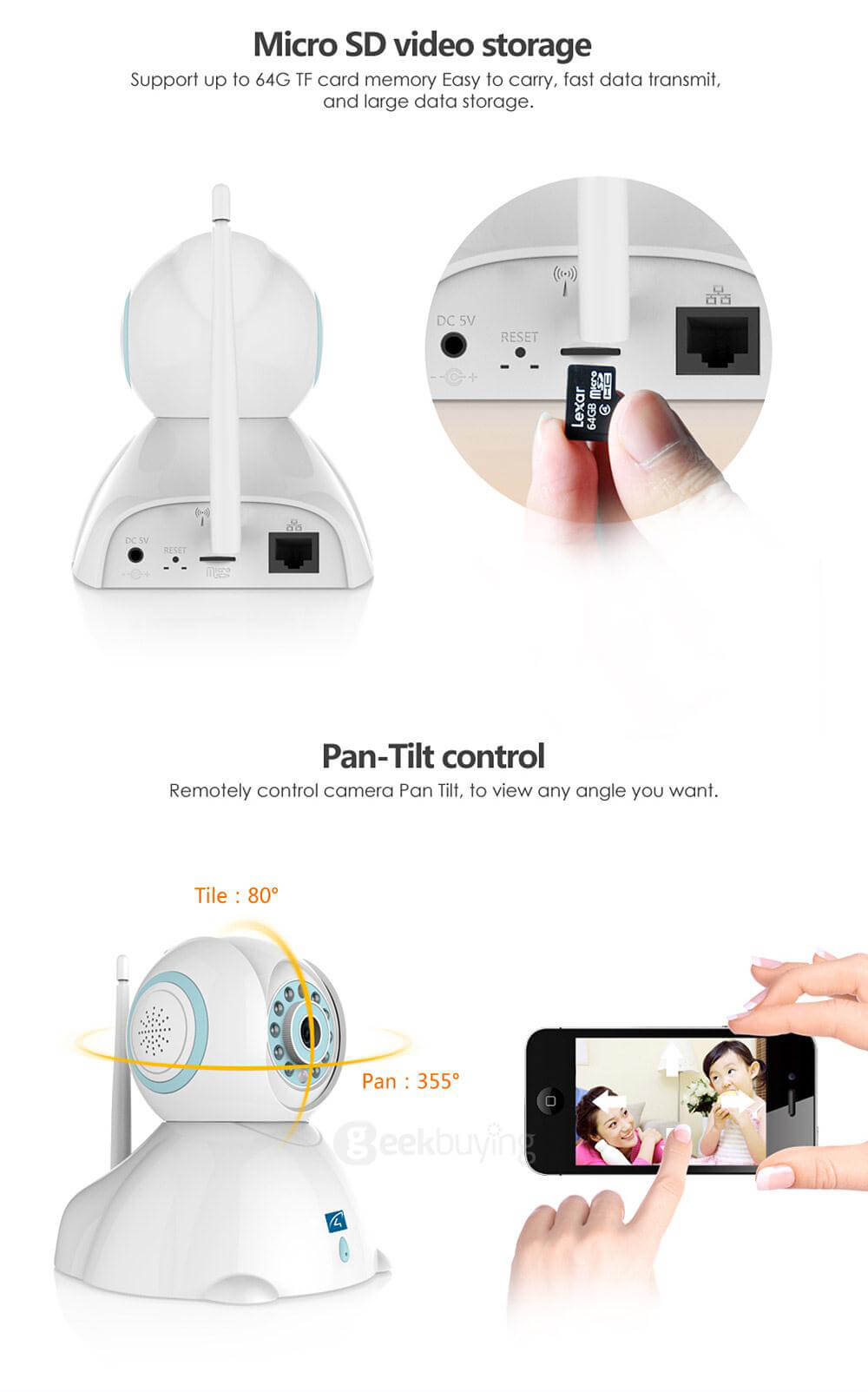

| Storage | Storage | local storage/client terminal storage, maximum 64G storage | |||||
| Interface | Micro SD | ||||||
| Pan/Tilt Rotation | Angle | Pan 355°/Tilt 80° | |||||
| Pre-set Position | 15 pre-set positions | ||||||
| Limit Position | software limited controlled rotator ensures more accurate pre-set positions and lower malfunction. | ||||||
| Alarm | Alarm Detection | motion detection | |||||
| Alarm Action | E-mail image /FTP videos upload/smart phone APP action | ||||||
| Physical Parameters | Rated Voltage | DC5/2A±0.3V | |||||
| Power comsumption | 3.0W(with IR LEDs on) | ||||||
| Working Environment | Working Environment: -20~70ºC, working humidity: 90% | ||||||
| Gross Weight | 330g(subject to final products) | ||||||
| Housing Material | ABS plastic | ||||||
| Camera Size | 110mm*130mm | ||||||
| Installation | wall mounting, ceiling mounting | ||||||
What's in the box?
- 1 x Security Camera
- 1 x Power Supply
- 1 x English Manual
