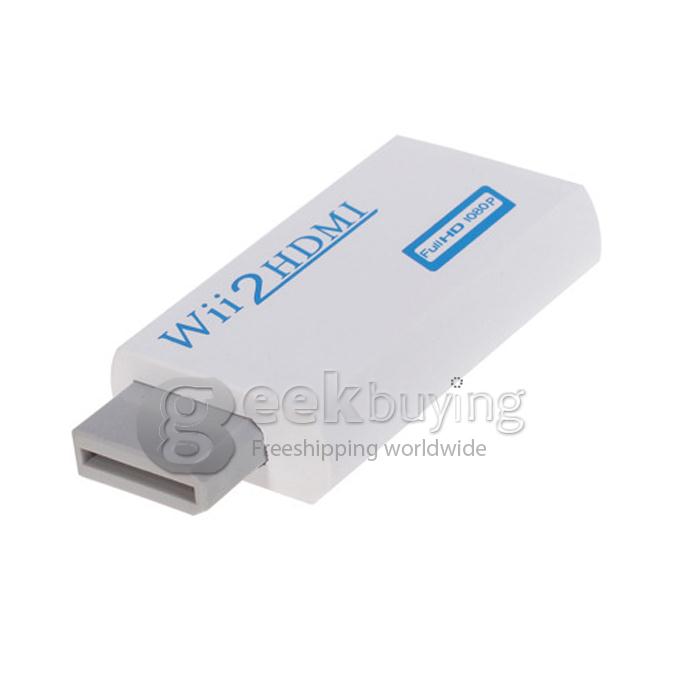

Wii to HDMI Converter 1080P HD Output Upscaling Adapter

Highlights

• Wii to HDMI, a converter for the Wii console, outputs video and audio in full digital HDMI format and supports all Wii display modes (NTSC 480i 480p, PAL 576i). Plug and play for true-to-life video/audio effects on your TV/monitor.

Specification

Dimensions:34 x 73 x 14 mm

Weight:15g

Power Consumption:

below 2W

Supported Video input Mode:

Includes all the display modes of the Wii console (480i, 480p, 576i)

Supported HDMI output Mode:

 720P@60Hz, 1080P@60Hz

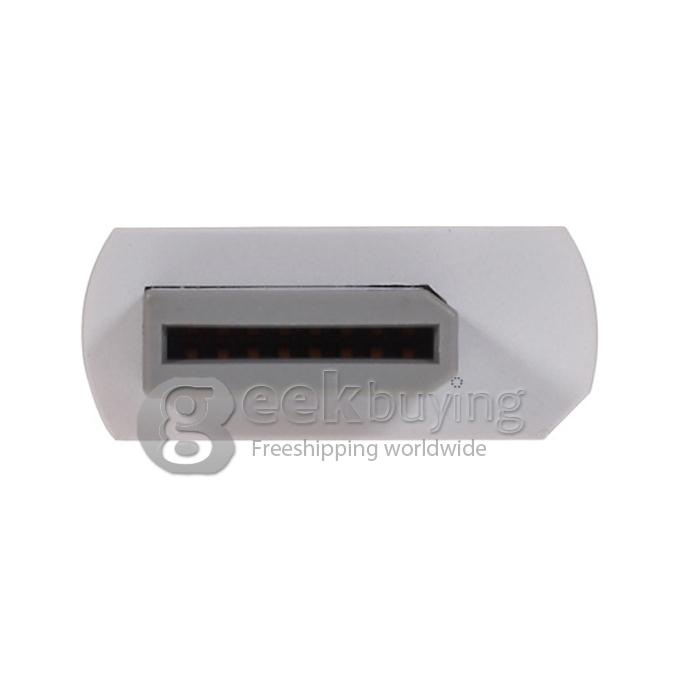

Input Connector:

 Wii AV Multi out Plug x 1

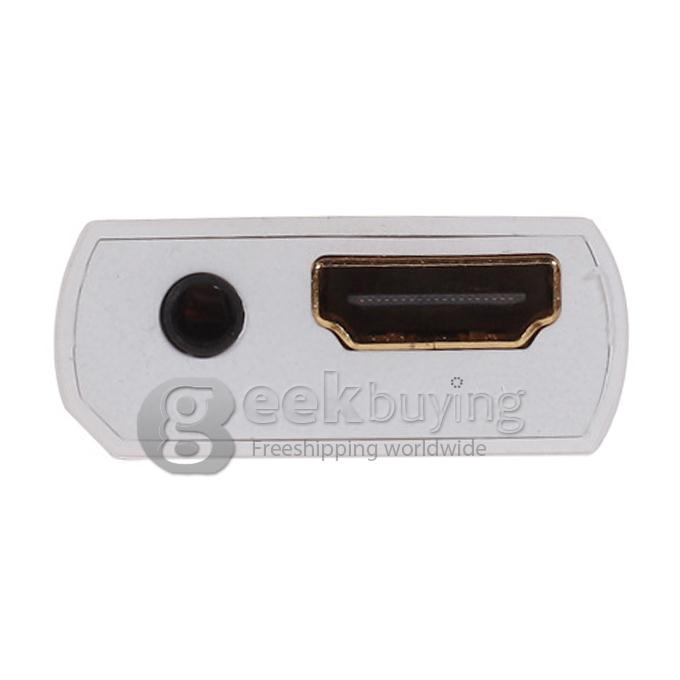

Output Connectors:

 HDMI Connector x 1

3.5mm Stereo Audio Jack x 1

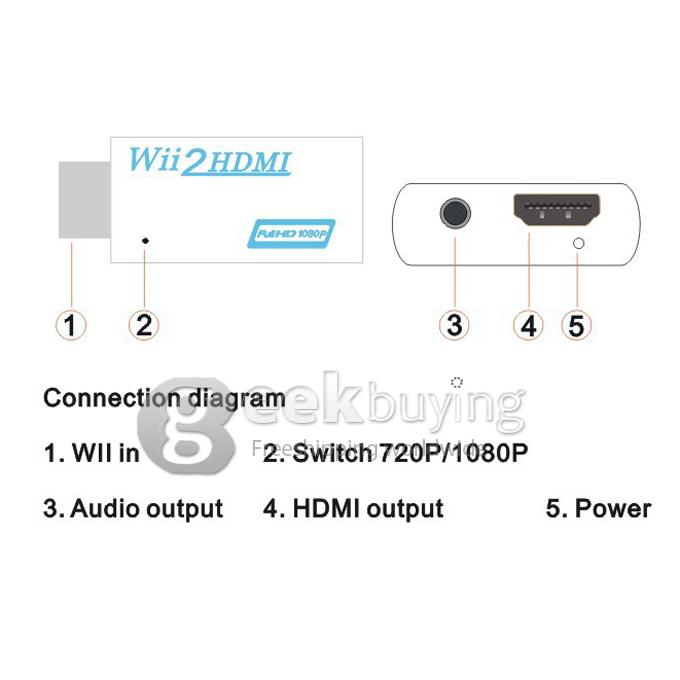

Setups for Connecting to a TV/Monitor with HDMI Input

1. Make sure that the Wii console is powered off. Then insert the AV Multi out Plug of

the Wii2HDMI into the AV Multi out connector in the back of the Wii console.

2. Plug one end of the HDMI cable into the Wii2HDMI  HDMI output, and plug the other end to the HDMI  input on the TV/monitor.

3. Turn on the TV/monitor and

switch the video input of the TV to

 match the HDMI input connector used by the Wii2HDMI. Then you should be able to see the Wii screen after you turn on the Wii console.

4. Selection 720P/1080P
