Highlights
- Exclusive Face Image+ V4.0 algorithm, bound with “multiple light face recognition technology” and high performance
- First outdoor workable face recognition product on earth, superb adaptability for changing illumination
- Human-harmless non-visible auxiliary light technologies, good performance regardless of day or night environment
- TFT touch screen, user friendly GUI and WEB management software, local operation supported, real-time display
- Face recognition only; password + face recognition; card + face recognition（equip with card reader）
- Large storage SD card embedded，USB massive storage device data import/export supported
Specification
|
Type / name |
YA802 |
|
|
Project |
Function |
Description |
|
Recognition |
Video Input |
Dedicated dual camera |
|
|
Recognition method |
Face;Face+Work number |
|
|
Recognition speed |
<= 1s |
|
|
User capacity |
200 |
|
|
Operate without software |
Support(operate on the machine directly) |
|
|
Record Capacity |
100,000 |
|
Access control function |
Simple switch to open the door |
Support |
|
Data storage |
NAND Flash |
512MB |
|
|
USB data import and export \ network data synchronization |
Support |
|
Device management |
Embedded WebServer \ built-in administrator |
Support \ Support |
|
|
Storage capacity alarm |
When the storage capacity of more than 85%, the alarm indicator display information, LCD display information |
|
|
Tamper \ timing \ License Control |
Support \ built-in RTC, the network automatically \ Support |
|
Communication Interface |
Power Interface |
Rated voltage and current DC12V, 1A |
|
|
USB interface |
Support |
|
|

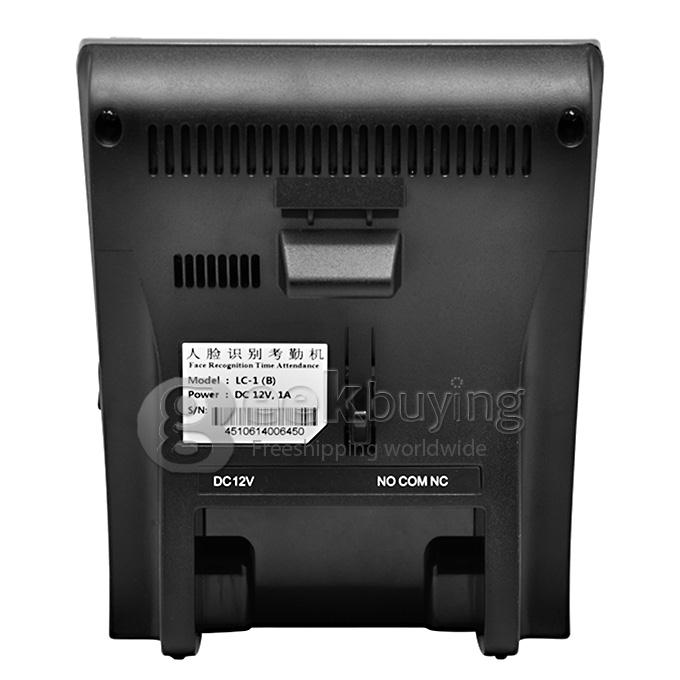

I/O interface |
Reserved relay (which can be accessed electric locks, access control power supply, etc.) |
|
Human-Computer Interaction |
LCD \ Operation Tips |
TFT, 2.8 ", 320 * 240 support (voice, lights) |
|
|
Touch keypad |
Support |
|
|
Indicator |
Red (warning / fail), green (work / success), yellow (power) |
|
|
Buzz |
Support |
|
|
Human sensor |
Support |
|
|
Timing-bell |
Support 5 set of ring at most |
|
|
Doorbell |
Support |
|
|
Reset Function |
Hardware reset,the system reboot |
|
|
Voice features \ language |
Voice newspaper tone \ support in English |
|
Other |
material |
ABS+PC |
|
|
Weight |
Terminal:0.45KG Package:0.8KG |
|
|
Dimensions |
Terminal:126*109*167mm Package:210*150*140mm |
What's in the box?
- 1 x Face Recognition
- 1 x Power Adapter(US Plug)
- 1 x Tents
- 1 x CD
- 1 x User Manual
