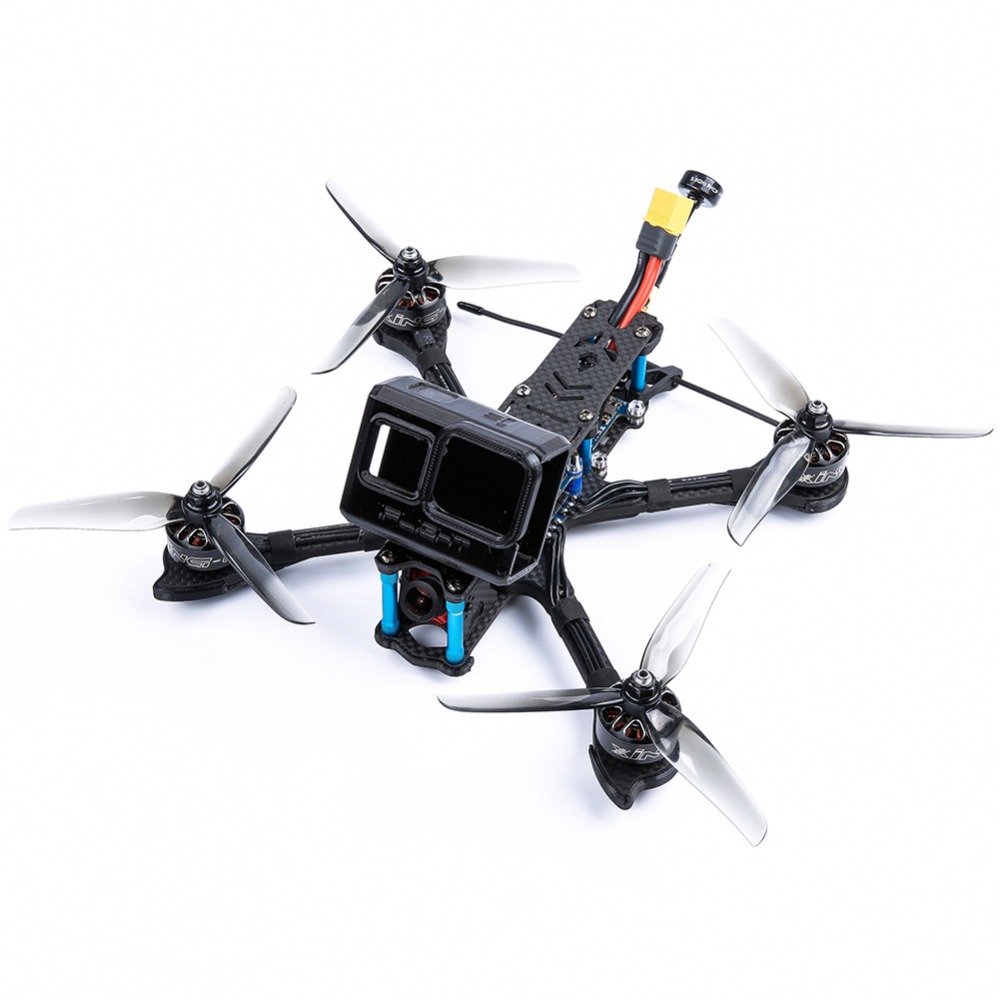

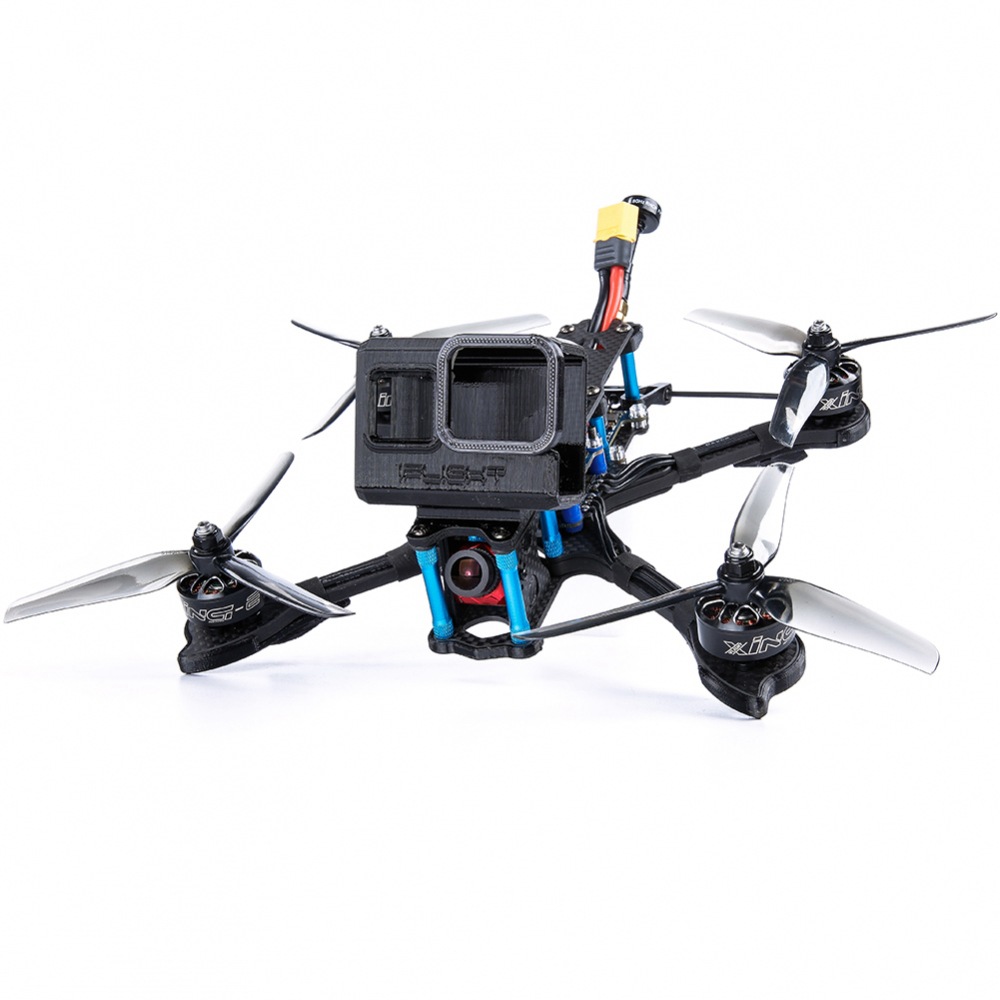

iFLIGHT Cidora SL5-E 5Inch 4S FPV Racing Drone With SucceX-E F4 FC 45A BLHELI_32 ESC 600mW VTX Caddx Ratel Cam BNF - Frsky XM+ Receiver

General

Brand: iFLIGHT
Item Name: Cidora SL5-E
Version: BNF
Receiver: With Frsky XM+

Specification

Total Dimensions: 165*138mm (body dimension)
Frame Wheelbase: 215mm
Flight controller: SucceX-E F4
ESC: SucceX-E 45A 2-6s 4-in-1 ESC Dshot1200
Motor: XING-E 2207 2450KV(4S)
Camera: Caddx Ratel 2.1mm
Prop: Nazgul 5140 propellers grey
Weight: 384.2 (without GoPro TPU mount)

SucceX-E F4 Flight controller

MCU: STM32F405
IMU: MPU6000
Betaflight OSD: YES
Blackbox: 8MB
4 x Uarts(1 2 3 6 )
8 x Dshot/Proshot/Oneshot output
8 x individual ESC power/ signal pads
1 x Group of Gnd/Vbat/M1/M2/M3/M4/Cur/TX
VTX Protocol: YES(IRC Tramp)
WS2812 led Strip: YES
Baro: No
Beeper: YES
Input: 2-6S(Max 8S)
BEC: 5V/2.5A cont
Firmware: betaflight_4.0.5_BETAFLIGHTF4.hex

Physical

Mounting: 30.5*30.5mm,φ4mm with Grommets φ3mm
Dimensions: 36*36mm
Weight: 7.6g

SucceX-E 45A 4in1 ESC

Dimension: 40*43mm
Mounting Holes: 30.5*30.5mm/Φ3mm
Weight:14.4g
Supports 2-6S Lipo input
STM32F051 MCU,48Mhz Runs BLHELI 32.X Firmware
Current sensor: YES
BEC: NO
Supports: DShot DShot150/300/600/MultiShot/ OneShot etc.
Target: G-H-30 BLS 16.7
BLHeliSuite Download: //www.mediafire.com/file/1tn449x6815upat/BLHeliSuite16714901.zip/file

5.8G 0/25/100/200/400/600mW VTX
Input Voltage: 5V
Channel: 48
Power Transmission: 0mW(Pit mode) / 25mW / 100mW / 200mW / 400mW/ 500mW

Caddx.us Ratel 2.1mm lens FPV cam

Package Contents

1 x Cidora SL5-E 4S FPV Racing Drone
2 x Nazgul 5140 Propellers(Set)
