Specification
|
General |
Brand Name: iFlight |
|
Specification |
Wheelbase: 75mm
Bottom & Top Plate Thickness: 1mm
Inner Standoff Height: 22mm
Protective Guard Diameter: 42mm ( Outer 45mm)
Camera Mounting Width: 19mm
Build Weight: 63.1g
Flight Time: above 3min.
SucceX Micro 16x16mm Stack
- F4 OSD Flight Controller
Brand Name: iFlight
Model: SucceX Micro F4
Item Name: F4 OSD Flight Controller
STM32F411
Input Voltage 2-4S LIPO
Gyroscope: MPU6000
2x UART ports
4x motor outputs
Built-in OSD
No Blackbox FLASH
BEC 5V 2A cont.
BF target: MATEKF411
Size: 21x21mm
Mounting Hole: 16x16mm
Weight: 2.5g
SucceX Micro 16x16mm Stack
- 12A BLheli_S 4in1 ESC
Brand Name: iFlight
Model: SucceX Micro 12A
Item Name: 12A BLheli_S 4in1 ESC
Firmware: Blheli_S
Input Voltage: 2-4S LIPO
Continuous Current: 12A
MCU: BB21F16G
BEC: None
ESC protocol: PWM, oneshot125, multishot, dshot150, 300, 600, etc.
Size: 23mm*21mm
Mounting hole 16*16mm
Weight: 2.7g
SucceX Micro 16x16mm Stack
- 5.8G 48CH PIT/25/100/200mW VTX
Brand Name: iFlight
Model: SucceX Micro VTX
Power: PIT/25/100/200mW
Antenna interface: IPEX (UFL)
Telemetry: IRC Tramp
Size: 17mm*27mm
Mounting holes: 16*16mm
Weight: 1.6g
iFlight 1103 10000KV Motor
Brand Name: iFlight
Item Name: 1103 10000KV 2-3S Brushless Motor
KV: 10000KV
Configu-tation: 9N12P
No.of Cells(Lipo): 2-3S
Stator Length: 5.5mm
Shaft Diameter: 1.5mm
Top screws size: 5mm
Screw hole at the bottom of the motor: 8.5mm diagonal
Motor Dimension(Dia.*Len): 13.6x10.2mm
Weight: 3.5g
HQ 40mm 1.6 Inch 4-Blade Propeller
Item Name: HQ 40mm 1.6 Inch 4-Blade Propeller
Quantity: 2 CW & 2 CCW
Color: Black
-HQ for video recording, JELLOFREE, better throttle management, NOT crash resistant
Runcam Split 3 Nano 1080P HD Camera
Brand Name: Runcam
Model: Split 3 Nano
Color: Black
Field of View(FOV) : Recording FOV: 165°; FPV FOV: 165°@16:9, 130°@4:3
Video Resolution: 1080@60fps / 1080@50fps / 1080@30fps / 720@60fps
Video File Format: MOV
Image Resolution: 2 MP
TV Mode: NTSC (720*480) / PAL (720*576) Switchable
Interface: JST 1.25mm / UART
Max Micro SD Card Supported: 64G(need Class 6 or above,
Recommend Class 10 / UHS-I / UHS-II / UHS-III)
Hole Distance of Installation: 20*20mm
Dimensions: PCB 29*29mm / Lens Module 14*14mm
Power Input: DC 5-20V(Non-direct power supply from battery.
Powered directly with the battery will generate surges and burn the camera.)
Working Current: 650mA @5V / 270mA @12V
Weight: 10.5g
Recommend Lipo Battery( All Version are NOT Included): Recommend 2S 420mAh Lipo Battery
|
|
Package Contents |

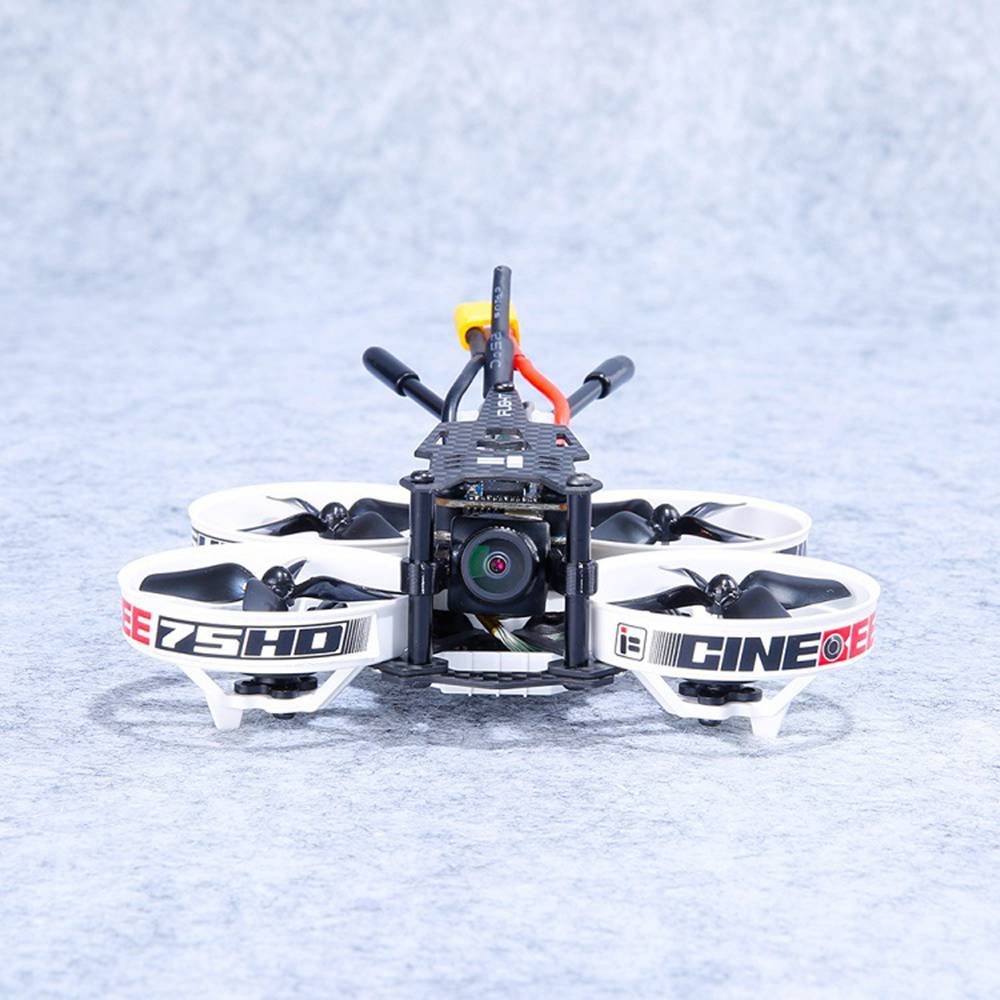

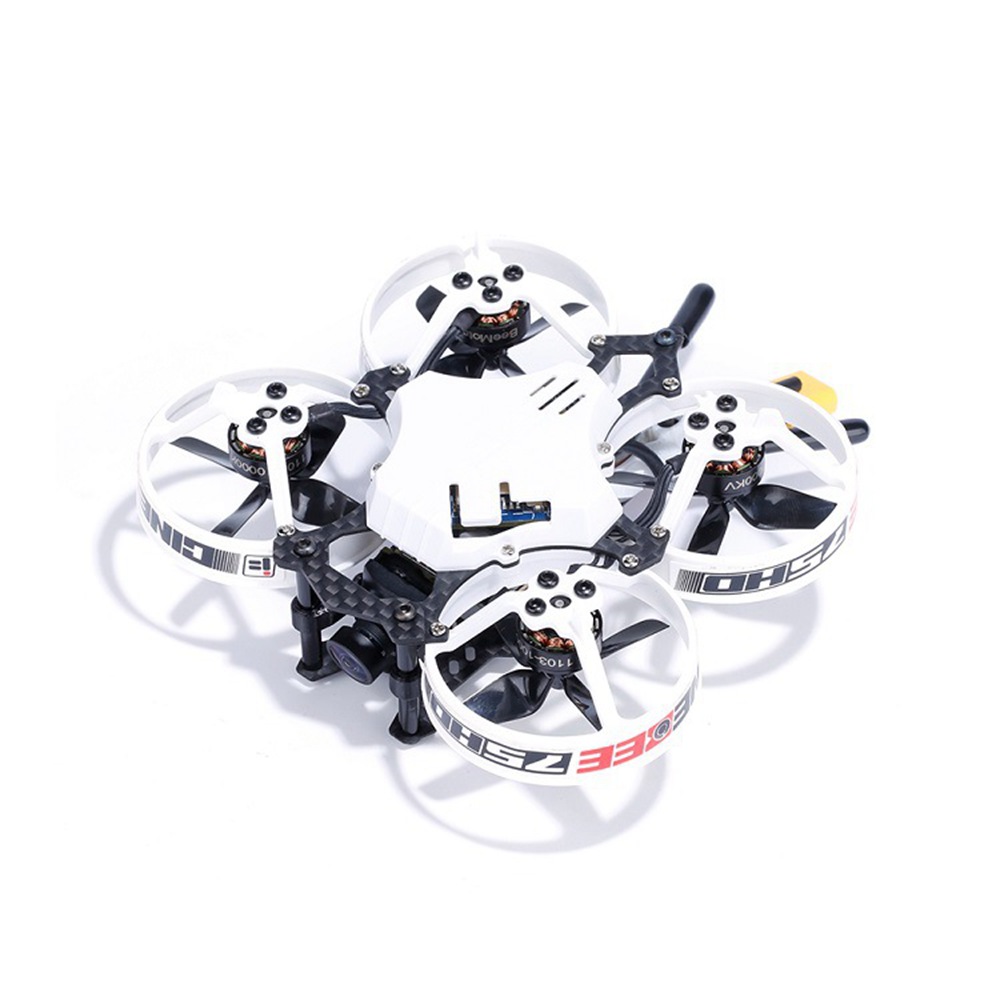

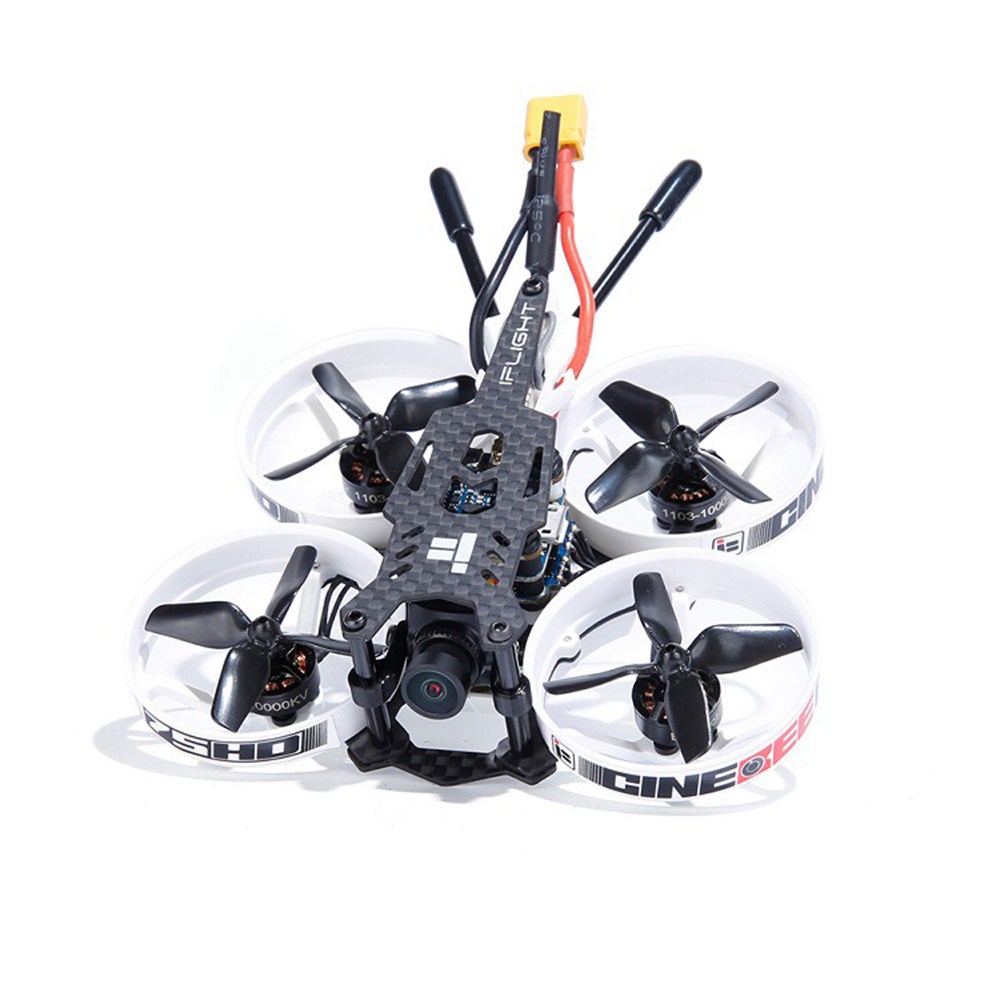

1 x iFlight Cinebee 75HD FPV Racing Drone |
