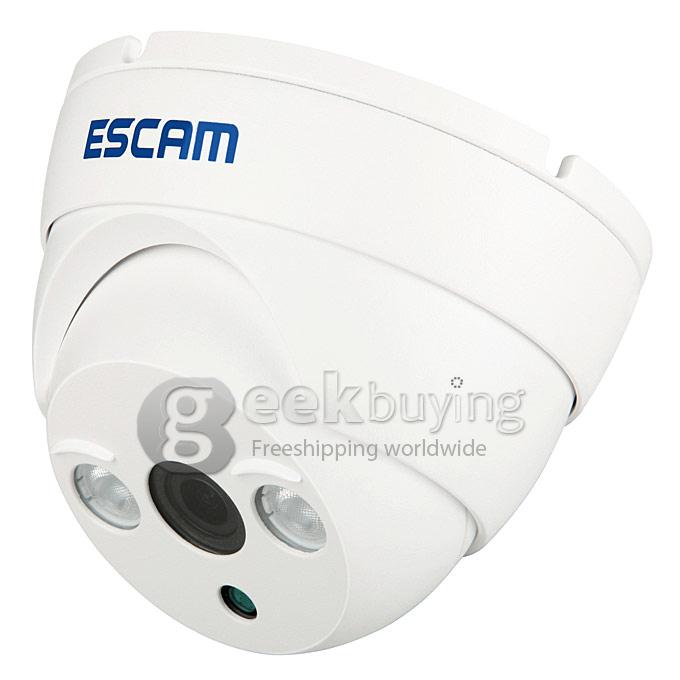

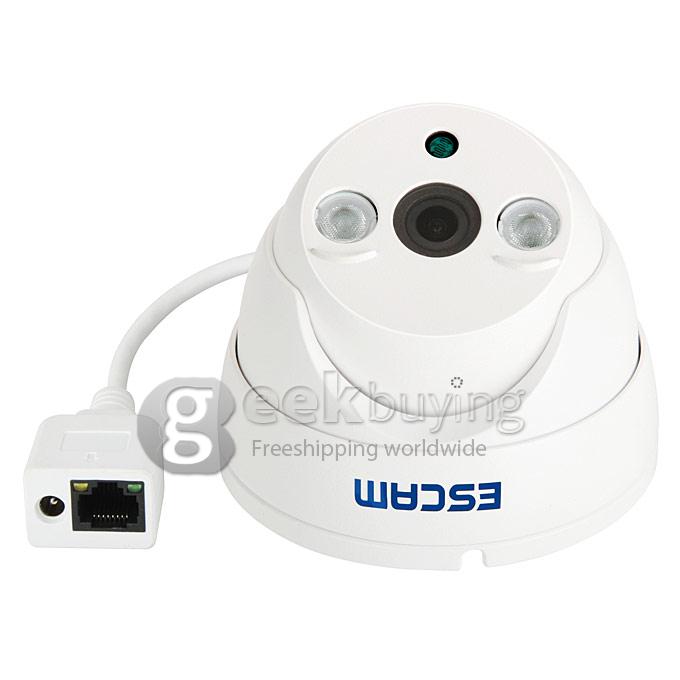

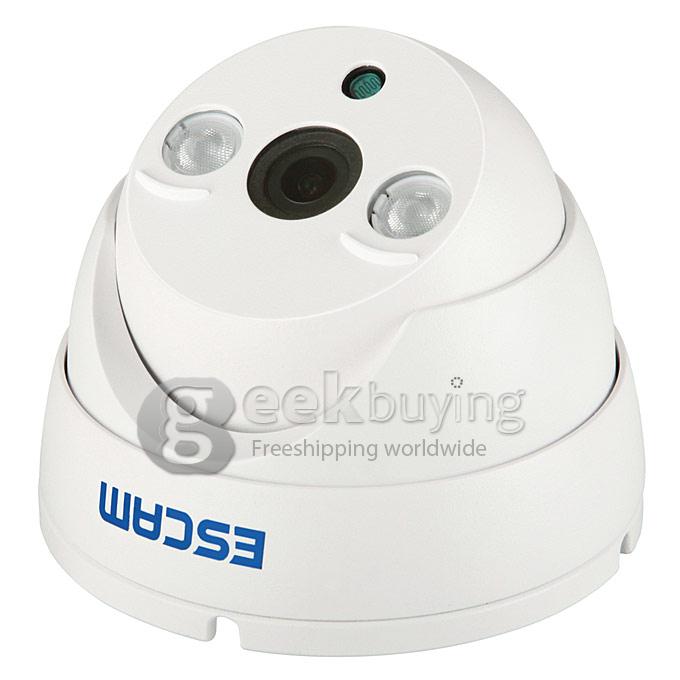

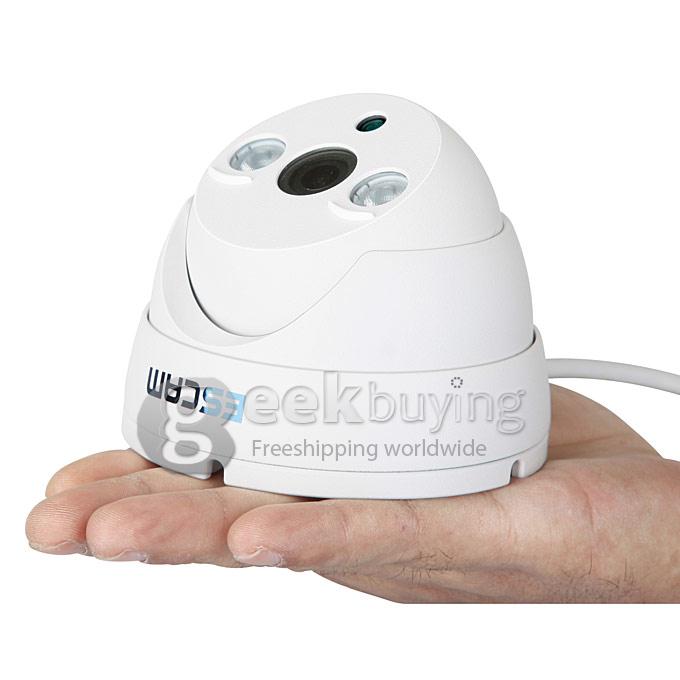

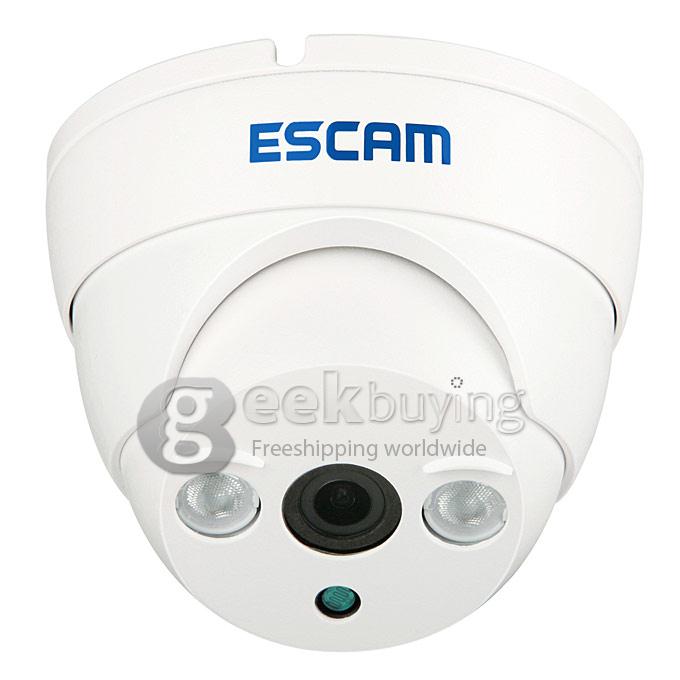

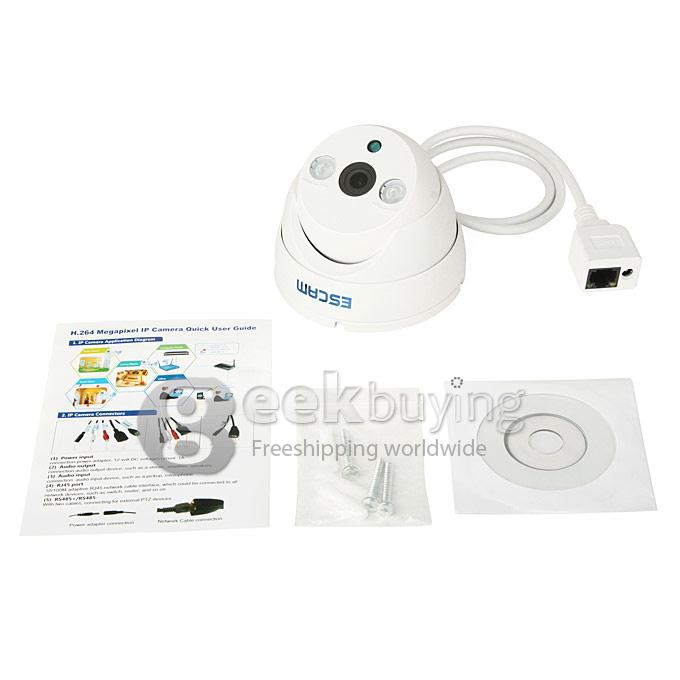

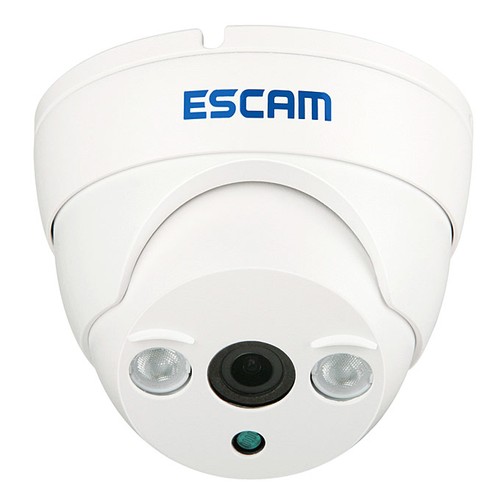

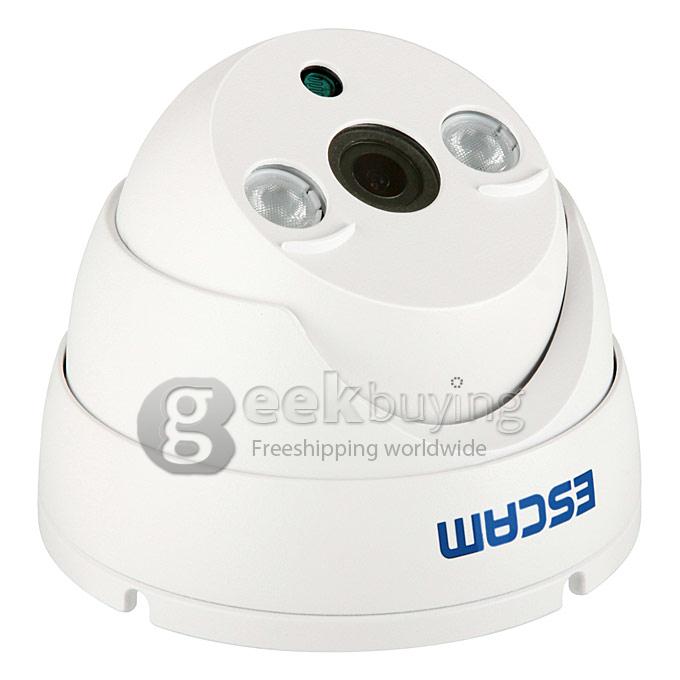

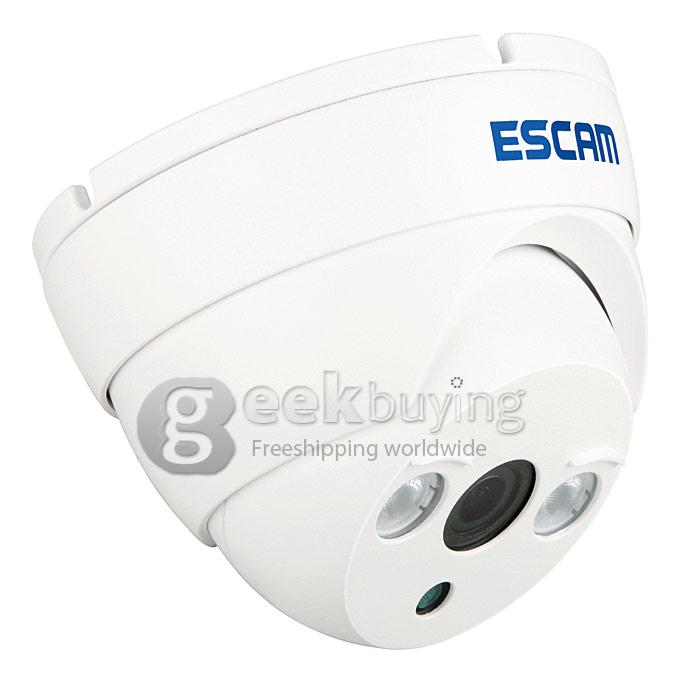

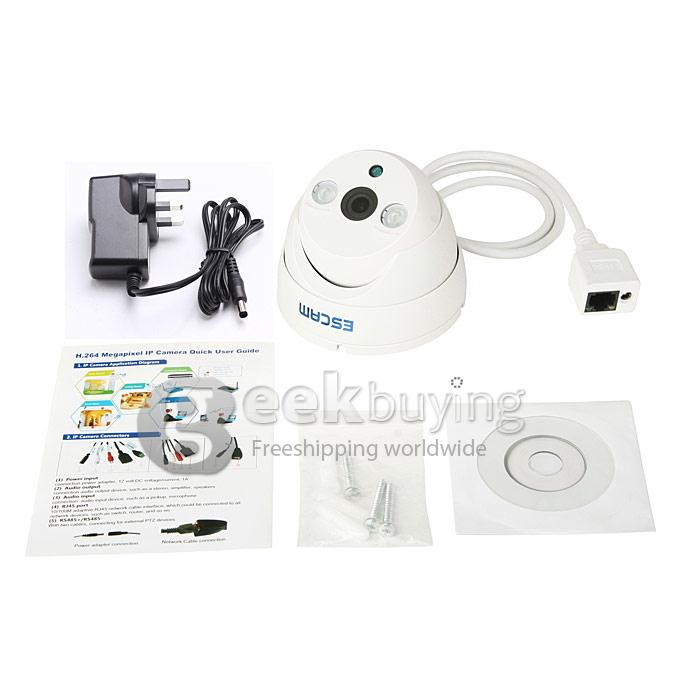

ESCAM QD530 HD 720P P2P ET Type Dome IP Camera ONIVF Smart Phone View 2 Array IR Nightvision

Share to

Ship to:

France

Select the desired shipping method

*Please note: the shipping costs are only estimates; the actual shipping price will be shown on the order page.

Trusted Shipping Partners: and more

0 item(s) added

View CartContinue Shopping

Sold Out

Highlights

Model		QD530
Camera

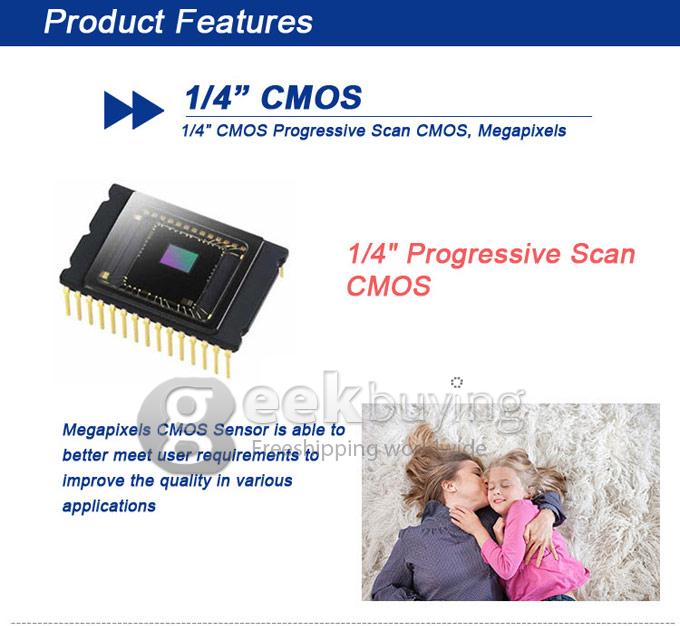

Image Sensor		1/4” 1Megapixel progressive scan CMOS
Effective Pixels		1280(H)x720(V)
Scanning System		Progressive
Electronic Shutter Speed		Auto/Manual 1/3(4)~1/10000
Min. Illumination		Color: 0. 1Lux/F1.2, B/W: 0.01Lux/F1.2,0Lux (IR on)
S/N Ratio		More than 50dB
Video Output		N/A
Camera Features

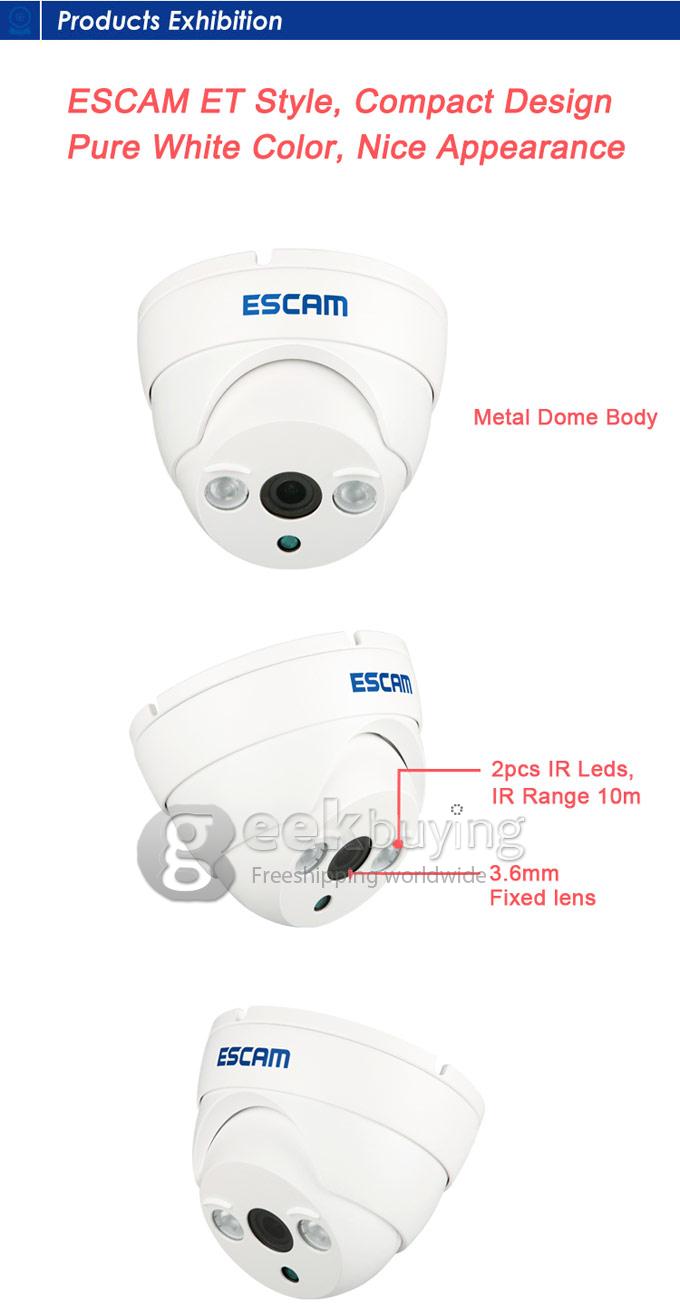

Max. IR LEDs Length		10m
Day/Night		Auto(ICR) / Color / B/W
Backlight Compensation		BLC/ HLC/ DWDR
White Balance		Auto/Manual
Gain Control		Auto/Manual
Noise Reduction		3D

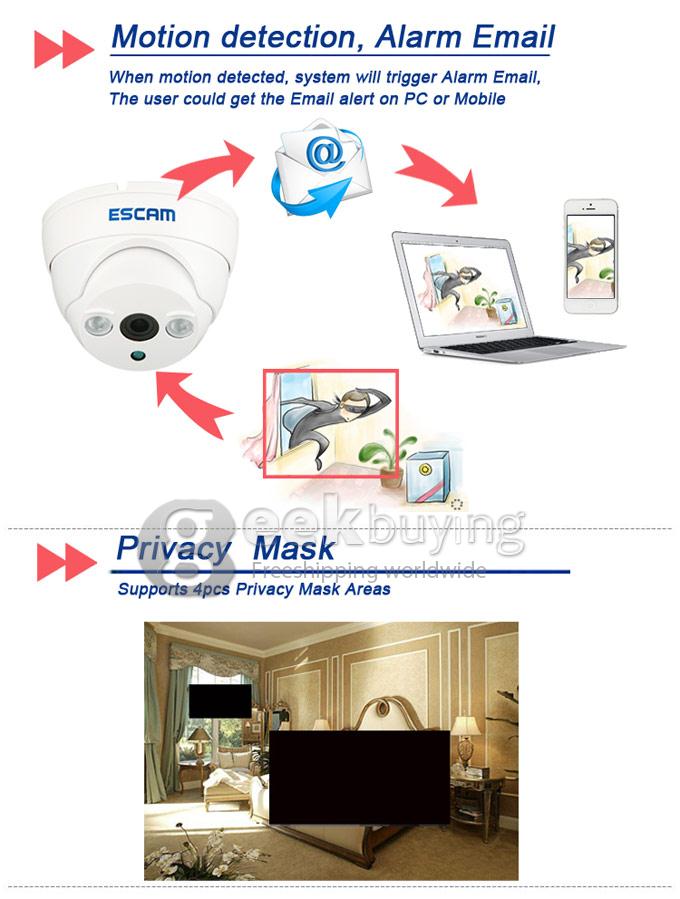

Privacy Masking		Up to 4 areas
Lens
Focal Length		3.6mm
Max Aperture		F1.8
Focus Control		Manual
Angle of View		H: 70°
Lens Type		Fixed lens
Mount Type		Board-in Type
Video
Compression		H.264
Resolution		720P(1280×720)/ D1(704×576/704×480) /CIF(352×288/352×240)
Frame Rate	Main Stream	720P(1 ~ 25/30fps)
	Sub Stream	D1/CIF(1 ~ 25/30fps)
Bit Rate		H.264: 16K ~ 8192Kbps
Audio
Compression		N/A
Interface		N/A
Network
Ethernet		RJ-45 (10/100Base-T)
Wi-Fi		N/A
Protocol		IPv4, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP
ONVIF		ONVIF Profile S
Max. User Access		10 users

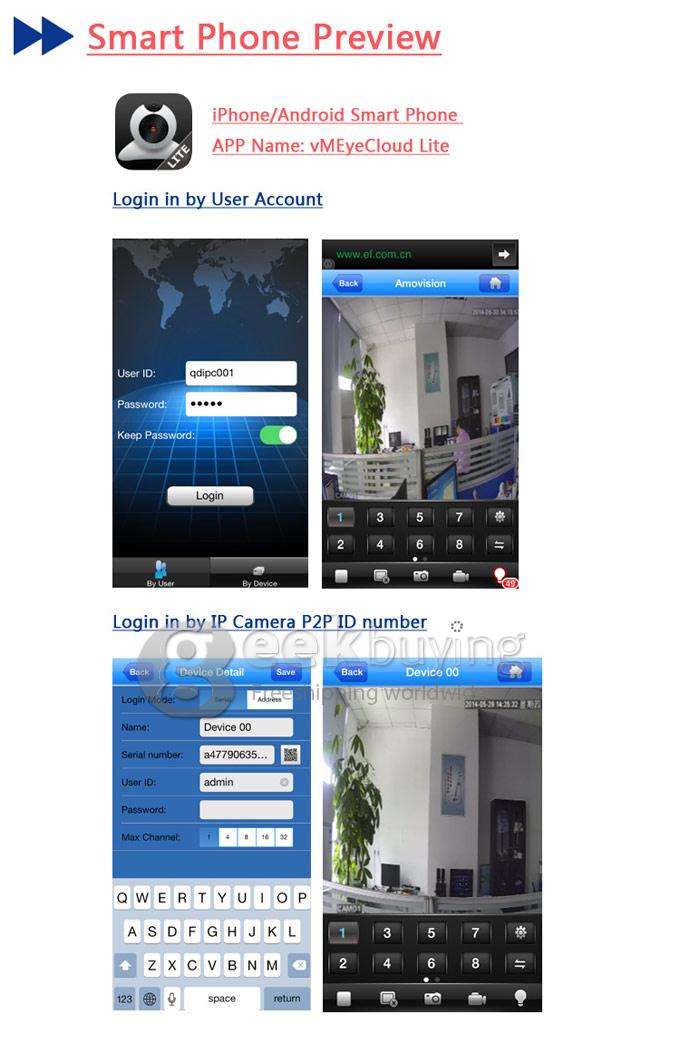

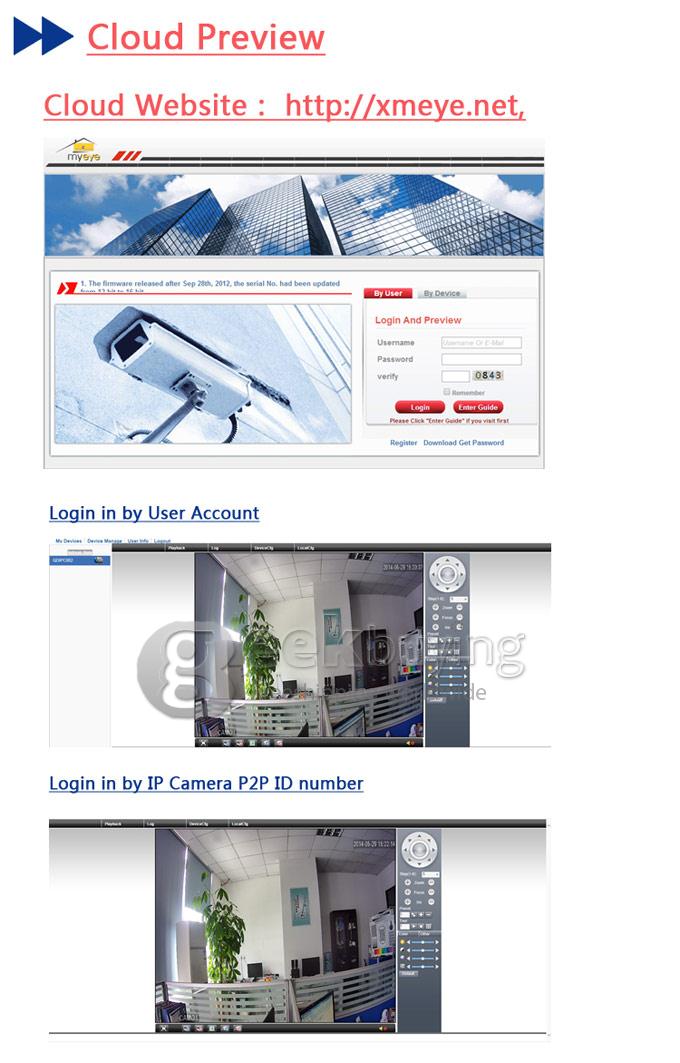

Smart Phone		iPhone, iPad, Android

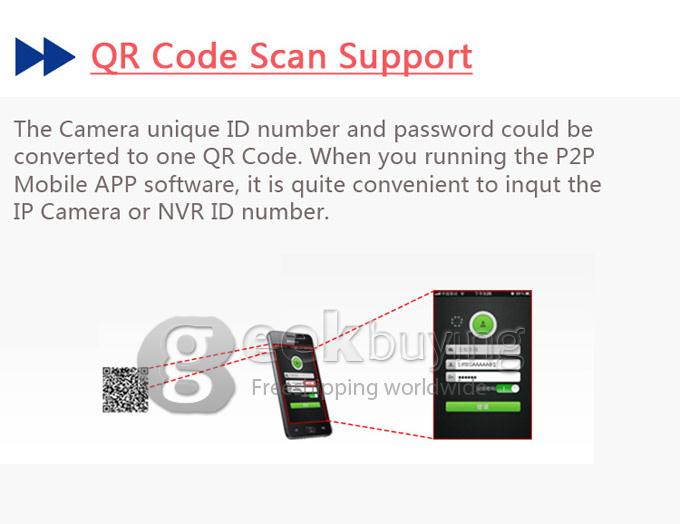

P2P		iPhone, Android Mobile App
Auxiliary Interface
Memory Slot		N/A
RS485		N/A
Alarm		N/A
PIR Sensor Range		N/A
General

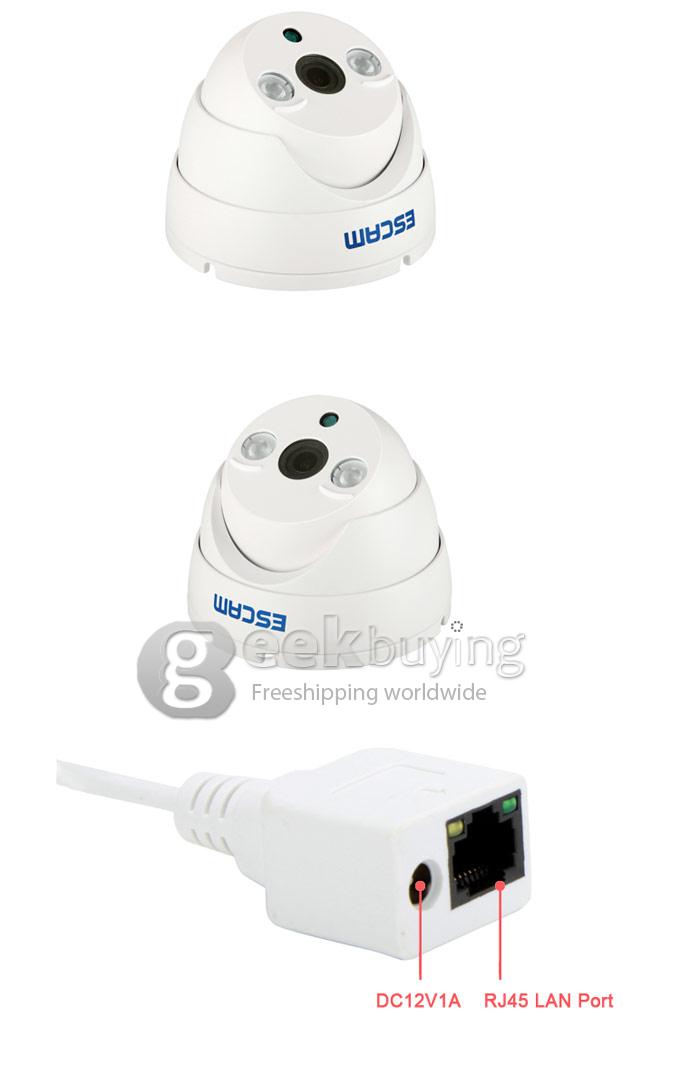

Power Supply		DC12V 1A
POE		N/A
Power Consumption		<4W
Working Environment		-30°C~+60°C, Less than 95%RH
Ingress Protection		N/A
Vandal Resistance		N/A
Dimensions		Φ95mm x80mm
Weight		0.35Kg
Package Dimensions		120mm x120mm x95mm
Package Weight		0.41Kg
Approvals		CE FCC RoHS
