Highlights
- Flight Control interation design, concentrated with gyroscope, balance meter, pressure meter
- 3 flght modes, 5 flying functions(attitude, hight, GPS, returning, AOC)
- High precision GPS support, high precision fixed-point, constant speed, and with good resistance to wind.
- High precision high, climbing at a constant speed, automatic landing , and with good resistance to wind.
- Effectively enhance the flight safety and reduce drop probability by self-course reversal and hover when losing control.
- Intelligent landing test, the power output will stop once landing --provide a perfect landing.
- Low voltage protection, low voltage automatic landing, significantly prolong the service life of battery.
- Automatical couse control, in spite the aeroplane heading.
- Calibrating and starting flying with no use to contact the computer.

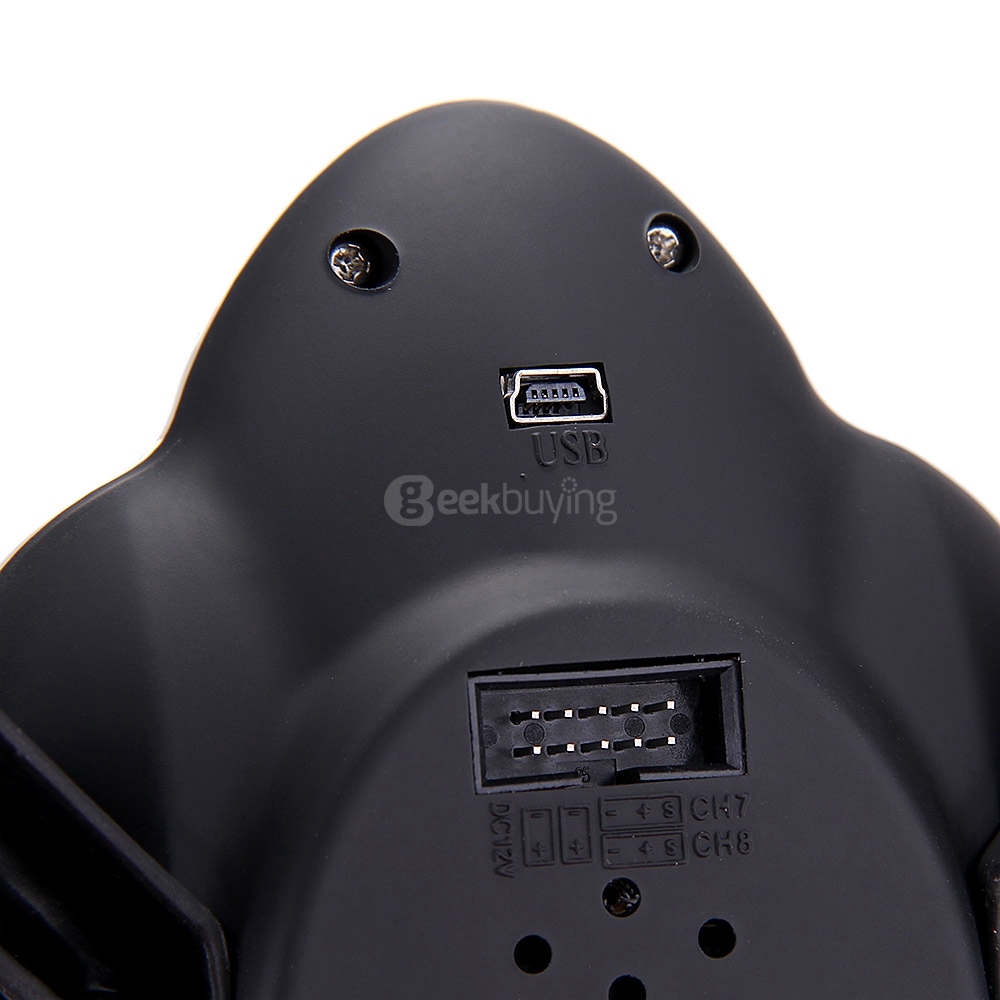

- USB hub available, no diver required.
- Flying log recording and playback, massive SD card ensured long data record.
- Automatical firmware upgrading online
- System one key recover
- Flying area restrict, height and distance can be auto controllerd.
-
- Versions below V1.4 can't be connected to PC for updating.
- When it is upgraded to V1.48, level calibration is required: push the Elevator stick from left to right rapidly and repeatedly till the Green LED flashes. Then, you can start to play it. Without level calibration, it will lose control. Operators ought to do it every time before playing.
- Headless mode operation has been changed. When pushing forward, it will fly far away from the take off place. Conversely, whhen pushing backward, it will close.
Video From Fans
Specification
Notice: This is the new version FY-X8, the firmireware of the transmmiter is 25-Aug 2014.
Multifunction quadrocopter Perfect support for multiple PTZ
Precise and stable hover flight 20 minutes flying time
Automatic return & Landing Intelligent Power Management
Intelligent direction control (AOC) Real-time flight data monitoring (OSD)
Can install various sports camera Support for external image transmission
Weight (with battery and paddle): 860g
Hover precision (GPS mode): ± 0.2m / S
The maximum angular velocity of rotation: 30 degrees
Maximum pitch angle: 45 degrees
The maximum rise / fall speed: 5M / S
The maximum flight speed: GPS mode 5m / s in normal mode 10m / s
Wheelbase: 350mm Aircraft height: 240mm Blade width: 80 45
Motor diameter 22mm Motor Model 2213
ESC Model: 12A
Aircraft Power consumption: 5V / 2A
Flight time: 7-10 minutes or 26 minutes (5000mah battery)
Takeoff Weight: less than 1300g
Operating temperature: -10 to +50 degrees
Support Battery: 11.1V 2200mah ----- 5000mah
Type: Lithium Battery Capacity: 11.1V 2200mah
Charging temperature: 0-40 degrees
Discharge temperature: -20 to 60 degrees
2.4GHz remote control
Operating frequency 2405--2475HMZ
Communication distance (open outdoor) greater than 500m
Receiver sensitivity (1% PER) -105dbm
Operating current / voltage 120ma
Battery 1.5VAA * 4
Number of Channels 141
Packaging Information
540mm * 140mm * 350mm
Weight 2.21kg package
X8 contained within a single, remote control, charger, manual, screws package
Carton Size 580mm * 550mm * h380mm GW 10.06kg NW 8.84kg
Each box contains four sets

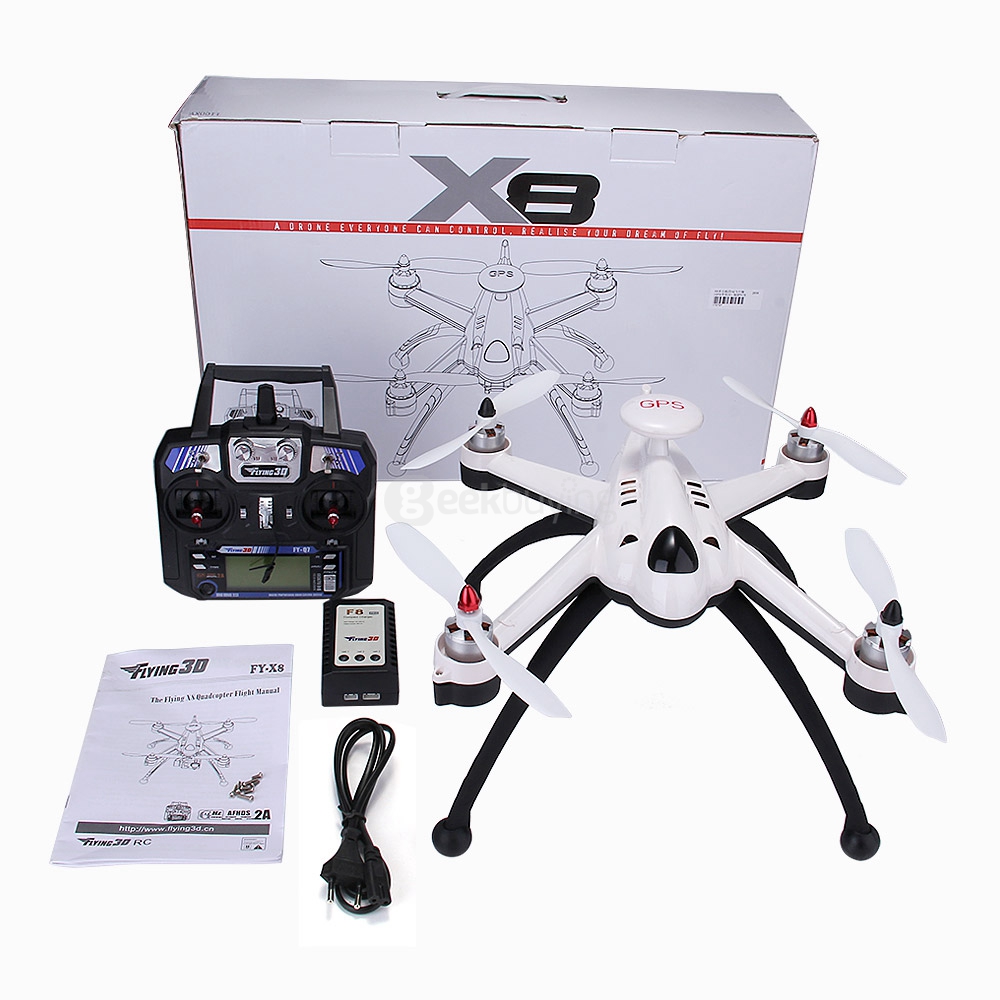

What's in the box?
- 1 x Flying3D X8 (with a 161g 2200mAh 3S LiPo using a T-dean connector (no rated))
- 1 x Transmitter (using 4xAA batteries not included)
- 1 x Charger (using the balancer plug)
- 4 x Props (2 CW, 2 CCW)
- 1 x Instruction manual (English/chinese)
