MINIX MINI HD PC Barebone System Intel D2550 CPU HDMI VGA No Memory No Hard Disk (US Adapter)

Item Code: 317041 (1 Reviews)
  • 116.49
Reg. Price:

Pleass choice your product: X close

A new item has been added to your Shopping Cart.

View Shopping Cart Continue Shopping
QTY :
Bulk order rebate
Add to wish list (4480)
Hate to part with your own money?
Ask someone to buy it for you


Shipping:   Normally ships in 2 - 7 days.

Safe Shopping:One Year Warranty Return Policy

  • Description
  • Reviews
  • Q&A

The MiniX Mini Barebone HD PC is a low-power, energy efficient, easily affordable desktop computer. MiniX Mini HD PC is designed to accomplish all daily computing tasks such as web browsing, watching HD movies, listening to your favourite music and sharing digital content with friends via the internet.

Powered by the built-in-high-definition (HD) video decoder, it is capable of performing full HD-decoding for MPEG2, VC1, AVC and H.246 videos. In addition, MiniX Mini HD PC is capable of supporting Blu-ray 2.0 movies. It comes with D-Sub VGA Port and a HDMI port, so dual display is capable when connecting to both video outputs. Thanks to the low-power processor and chipset. MiniX Mini HD PC is based on an ultra-silent and durable cooling solution and it is an ideal PC solution for noise-sensitive users.


MiniX Mini HD PC provides two Broadcom Gigabit LAN ports so it can be utilized as a mini-server and also comes with the next-generation-low-power Renesas USB 3.0 chip, providing 2 x USB 3.0 high-speed connections. Inside the PC there is space for a 2.5-inch hard drive and two 204-pin DDR3-1066 SODIMM slots, thus allowing different storage and memory configurations according to your budget and needs.


This item don't include HDD and Ram.




 Built in with an Intel Dualcore Atom:trademark: D2550 (1.86GHz) processor
 1M L2 cache
 Support Intel HyperThreading technology (2 cores, 4 threads)
Chipset  Intel NM10
Memory  2 x 1.5V DDR3 DIMM sockets supporting up to 4GB* of system memory
 Support for DDR3 1066/800 MHz memory modules
Expansion Slot  1 x PCI Express x1 slot
Video Output  1 x HDMI port
 1 x DSub VGA port
Storage  2 x SATA II 3Gb/s connectors
Networking  2 x Broadcom 57788 gigabit ethernet
USB  2 x USB 3.0 ports powered by Renesas (NEC) chip (optional)
 Up to 8 USB 2.0/1.1 ports (4 on the back panel, 4 via internal USB headers)
Audio  Realtek ALC661 codec
 5.1 channel high definition audio
 Support for S/PDIF Out through onboard header

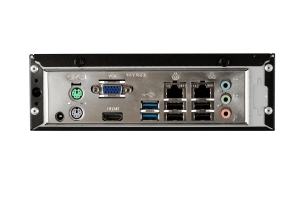

Back Panel  1 x DCIN power jack
I/O Ports  1 x PS/2 mouse port
   1 x PS/2 keyboard port
   1 x DSub VGA port
   1 x HDMI port
   2 x USB 3.0 ports (optional)
   4 x USB 2.0 ports
   2 x RJ45 LAN ports (dual gigabit LAN is optional)
   3 x audio jacks (Line In/Line out/Microphone)
Internal I/O Connectors  2 x SATA II 3Gb/s connectors
   1 x 4pin power out jack
   1 x LVDS pin header
   1 x printer port header
   1 x serial port header
   1 x CPU fan header
   1 x System fan header
   1 x front panel header
   1 x front panel audio header
   2 x USB 2.0 headers (for 4 ports)
   1 x S/PDIF Out header
   1 x speaker header
BIOS  1 x 16 Mbit flash ROM
 Use of licensed AMI BIOS
Form Factor  MiniITX form factor; 170mm x 170mm

 Dimensions :205x64x193mm


What's in the box?

  • 1*AC-DC Adapter
  • 1*Power Cord
  • 1*user's manual
  • 1*Driver and utility DVD
