Highlights
- Google Android 5.1
- Rockchip R3368 Octa Core up to 1.6GHz (Cortex-A53 64bit)
- SGX6110; support 4K*2K H.265/H.264
- DDR3 2GB Onboard eMMC Flash 8GB
- IEEE 802.11a/b/g/n/mimo, WiFi compliant; 4.900 GHz ~ 5.845 GHz (5.0 GHz ISM Band) AP6330
- 10/100/1000M LAN
- Bluetooth 4.0
- HDMI 2.0
Specification
| General | |
|---|---|
| Model | R8 |
| Color | Black |
| System | |
| Operating System | Google Android 5.1 |
| CPU | Rockchip R3368 Octa Core up to 1.6GHz (Cortex-A53 64bit) |
| GPU | SGX6110; support 4K*2K H.265/H.264 |
| RAM | DDR3 2GB |
| ROM | Onboard eMMC Flash 8GB |
| Extended Storage | Micro SD Card (Maximum support 32GB) |
| Communication | |
| Wifi Connectivity |
IEEE 802.11a/b/g/n/mimo, WiFi compliant; 4.900 GHz ~ 5.845 GHz (5.0 GHz ISM Band) AP6330 |
| Ethernet | 10/100/1000M LAN |
| Bluetooth | BT 4.0 |
| Media | |
| Video/Picture Supported | Main/Main10 HEVC/H.265 decoder by 4k@60FPS Support up to 4096x2304 resolution Support up to 100Mbps bit rate Embedded memory management unit(MMU) Stream error detector (28 IDs) Internal 128k cache for bandwidth reduction Multi-clock domains and auto clock-gating design for power saving Real-time video decoder of MPEG-1, MPEG-2, MPEG-4, H.263, H.264, AVS, VC-1, RV, VP6/VP8, Sorenson Spark, MVC Error detection and concealment support for all video formats Output data format is YUV420 semi-planar, and YUV400(monochrome) is also supported for H.264 H.264 up to HP level 5.2:4Kx2K@30fps (4096x2304) MPEG-4 up to ASP level 5:1080p@60fps (1920x1088) MPEG-2 up to MP:2160p@30fps (3840x2160) MPEG-1 up to MP:1080p@60fps (1920x1088) H.263:576p@60fps (720x576) Sorenson Spark:1080p@60fps (1920x1088) VC-1 up to AP level 3:1080p@30fps (1920x1088) RV8/RV9/RV10:1080p@60fps (1920x1088) VP6/VP8:2160p@24fps (3840x2160) AVS:1080p@60fps (1920x1088) MVC:2160p@30fps (3840x2160) For AVS, 4:4:4 sampling not supported For H.264, image cropping not supported For MPEG-4, GMC(global motion compensation) not supported For VC-1, upscaling and range mapping are supported in image post-processor For MPEG-4 SP/H.263/Sorenson spark, using a modified H.264 in-loop filter to implement deblocking filter in post-processor unit |
| Resolution | 4K*2K |
| Interfaces | |
| HDMI Port | HDMI 2.0 |

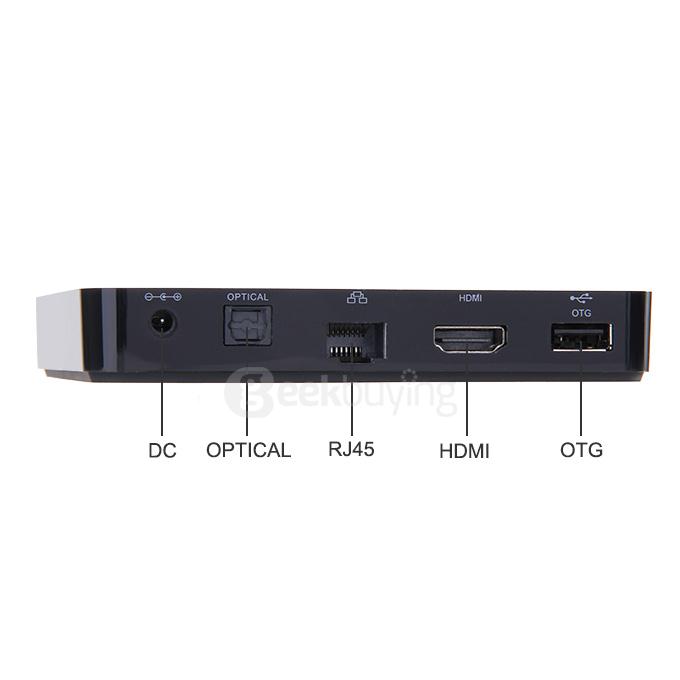

| Other Interfaces | 2* Standard USB; 1*DC in Jack; 1*HDMI IN Port; 1*S/SPDIF (2CH, 5.1CH); 1*RJ45; 1* SD card slot |
| Power | Adapter 5V 2A |
| Other Features | |
| Other Function |
Antenna: Built-in antenna for WIFI |
| Work Environment | 5- 35 Degrees, 30%--90% Humidity |
| Storage Environment | -20 - 60 Degrees, 10%--90% Humidity |
| Language | Multilanguage |
| Dimension & Weight (Main Product) | |
| Dimension | 116*116*18mm |
| Package Contents | |
| 1 x TV box | |

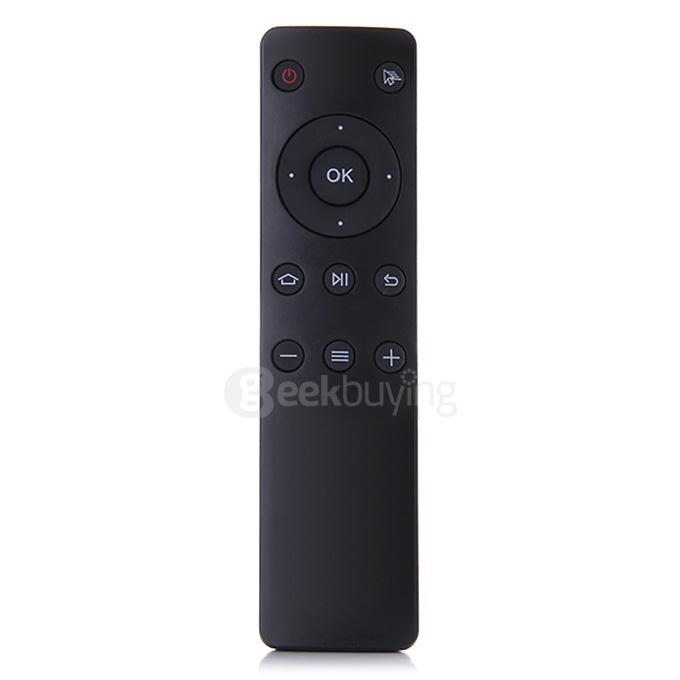

| 1 x IR remote control | |
| 1 x HDMI cable | |
| 1 x Power adapter (A right AC Adapter will be sent as your shipping country) | |
| 1 x User manual | |
