Highlights
TV BOX & WIFI Router 2 In 1

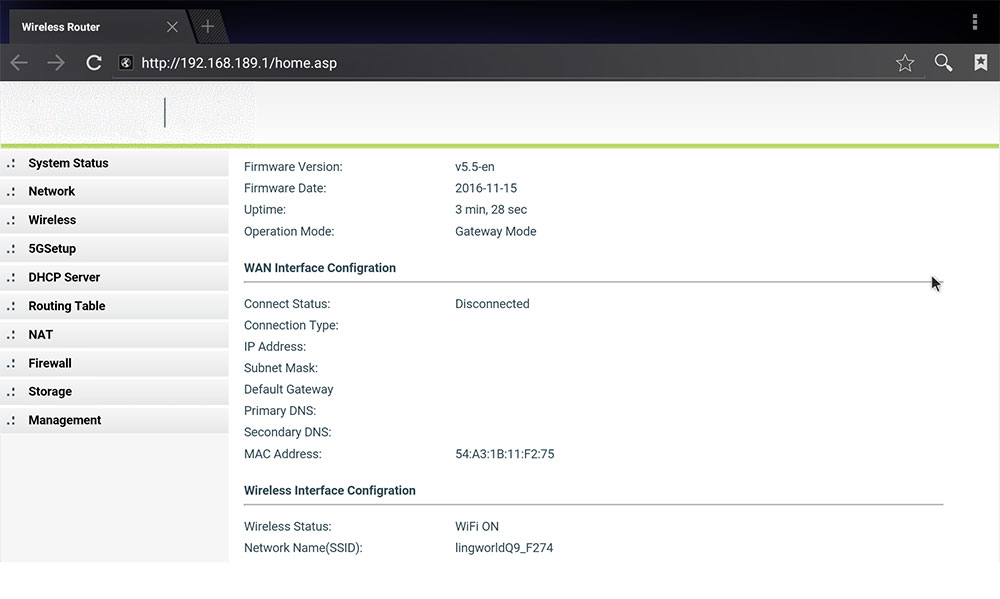

Imagine yourself in a situation where there is Ethernet but with very poor Wi-Fi signal or even no signal at all due to the high internet speed required by the 4K video you are streaming. All of a sudden, you need to surf online from your smartphone via Wi-Fi but you don’t have a Wi-Fi router in hand. No worries. WD-RB01 comes in handy, just configure it into a secured Wi-Fi router.
Amlogic S905X
Amlogic S905X is a low cost version of Amlogic S905 with a lower operating frequency, built-in stereo DAC, integrated Ethernet PHY, 4K VP9 and HDR10 & HLG support.
Android 6.0
Android Marshmallow is a refinement and extension of the core features and functionality of Android Lollipop. Marshmallow primarily focuses on improving the overall user experience of Lollipop, introducing a new permissions architecture, new APIs for contextual assistants, a new power management system that reduces background activity.
DDR3 2GB RAM, eMMC 8GB Flash
It boasts DDR3 2GB RAM, and eMMC 8GB Flash, advantageous in performance, security and reliability, ascribing to the eMMC memory, ultimately delivering a richer end-user experience.
Specification
| General |
Model: WD-RB01 |
| Hardware | Operating System: Android 6.0 Marshmallow CPU: Amlogic S905X Cortex A53 Processor 1.5GHz GPU: Penta-Core ARM Mali-450 RAM: 2GB DDR3 ROM: 8GB EMMC |
| Communication | Wifi Connectivity: IEEE 802.11b/g/n Ethernet: 10/100M Bluetooth: 4.0 Language: English/French/German/Spanish/Italian/ etc multilateral languages |
| Router | 2.4G: Standard 802.11b/g/n Data Transfer 11b: 1,2,5.5,11 Mbps 11g: 6,9,12,18,22,24,30,36,48,54 Mbps 11n:MCS0,MCS1,MCS2,MCS3,MCS4,MCS5,MCS6,MCS7,MCS8, MCS9,MCS10,MCS11, MCS12,MCS13,MCS14, MCS15 Modulation Method: BPSK/ QPSK/ 16-QAM/ 64-QAM Frequency Band: 2.4~2.4835 GHz ISM Band Spread Spectrum IEEE 802.11b: (Direct Sequence Spread Spectrum) IEEE 802.11g/n: (Orthogonal Frequency Division Multiplexing) RF Output Power: 161.5dBm@11b; 151.5dBm@11g; 151.5dBm@11n Max RF input power: <-10 dBm Receiver 11g: 54Mbps -67dBm@10% Sensitivity 11n HT20 MCS7: -66dBm@10% 11n HT40 MCS15: -63dBm@10% Frequence Tolerance: ±20ppm Security WEP, TKIP, AES, WPA, WPA2, WAPI Router 5.8G: Standard 802.11a/n/ac |
| Media | Video Supported: UHD 4K 60fps HW decoding, supports multiple formats including H.265 10-bit, H.264 and AVS+ FHD 1080p 60fps HW encoding, supports H.264 Video Decoding: VP9 Profile-2 up to 4Kx2K@60fps H.265 HEVC MP-10@L5.1 up to 4Kx2K@60fps H.264 AVC HP@L5.1 up to 4Kx2K@30fps H.264 MVC up to 1080P@60fps MPEG-4 ASP@L5 up to 1080P@60fps WMV/VC-1 SP/MP/AP up to 1080P@60fps AVS-P16(AVS+)/AVS-P2 JiZhun Profile up to l080P@60fps MPEG-2 MP/HL up to 1080P@60fps(ISO-13818) MPEG-1 MP/HL up to 1080P@60fps(ISO-11172) RealVideo 8/9/10 up to 080P@60fps WebM up to VGA Multiple language and multiple format sub-title video support Video Post-Processing Engine: Supports HDR10 and HLG HDR processing Motion adaptive 3D noise reduction filter Advanced motion adaptive edge enhancing de-interlacing engine 3:2 pull-down support Programmable poly-phase scalar for both horizontal and vertical dimension for zoom and windowing Programmable color management filter(to enhance blue,green,red,face and other colors) Dynamic Non-Linear Luma filter Deblocking filters Programmable color matrix pipeline Video mixer: 2 video planes and 2 graphics planes per video output Video Output Built-in HD 2.0b transmitter including both controller and PHY with CEC,HDR and HDCP 2.2,4Kx2K@60 max resolution output CVBS 480i/576i standard definition output Supports and standard SD/HD/FHD video output formats: 480i/p,576i/p,720p,1080i/p and 4Kx2K Audio Supported Audio Decoder and Input/Output Supports MP3,AAC,WMA,RM,FLAC,Ogg and programmable with 7.1/5.1 down-mixing 12S audio interface supporting 2-channel input and 8-channel(7.1) output Built-in serial digital audio SPDIF/IEC958 output and PCM input/output Built-in stereo audio DAC Stereo digital microphone PDM input Supports concurrent dual audio stereo channel output with combination of analog+PCM or I2S+PCM Picture: MJPEG and JPEG unlimited pixel resolution decoding(ISO/IEC-10918); Supports JPEG thumbnail,scaling,rotation and transition effects |
| Interface | HDMI Port: Standard HDMI 2.0 Other Interfaces: 3*RJ45;2*USB;1*HDMI;1*AV;1*DC;1*TF;1*Reset;1*Recover |
| Other Features | Pre-installed Apps: ES File Explorer, Google Search, Google Maps, Browser, Gallery, Clock, Play Store, Calculator, Calendar, Video, Email, Gmail Other Functions Network Function: VUDU,Miracast,XBMC,Airplay,Skype chatting,Picasa,Youtube,Flicker,Facebook,Online movies,etc. Other feature: Free Internet searching,thousands of android applications,many kinds of games,etc. Power: DC5V 2A(100-240V,50/60Hz) |
| Package Contents | 1 x TV box 1 x IR Remote control 1 x HDMI cable 1 x Power adapter (A right AC Adapter will be sent as your shipping country) 1 x User manual |
