Racing Indoors Supported
Rodeo 110 size is only 110mm,as small as a palm,net weight is 97g,143g including the battery,equivalents to a iphone 6s. it is a fexible and light,agility racing drone,it is a good choice for indoor entertainment and indoor competition.
F3 Flight Controller
The F3 is the most functonal flight controller for racing drone. It is featured by comprehensive functions,stabilized flight performance and responseive actions.
Compact and Simple
The Rodeo 110 uses PCB circuit board with the integration of Flight controller,receiver and video transmitter etc;its size is only 33(mm)x68(mm) which save lot of spaces and weights so that could obtain an extremely tiny body.
It is a closed modular design of core parts;ESCs and video transmitter are installed detachably which leads to easy to repair and maintain.
HD Camera Image Transmission
Equiped with 600TVL HD wide-angle camera,clear view and comprising everything in sight camera adiustable angle 0°- 45°,can adjust corresponding camera angle according to flying speed.

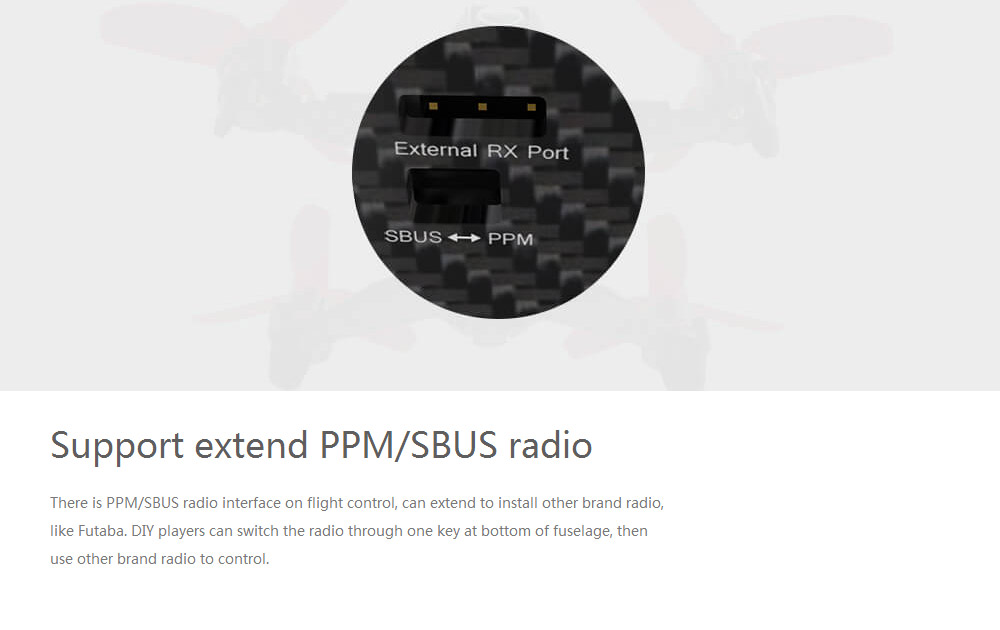

Support Extend PPM/SBUS Radio
There is PPM/SBUS radio interface on flight control,can extend to install other brand radio,like Futaba. DIY players can switch the radio through one key at bottom of fuselage,then use other brand radio to control.
Model: Rodeo 110
Quantity: 1 Piece
|Quadcopter||Flight Control: Rodeo 110 F3
Receiver: Rodeo 110
Brushless Motor: WK-WS-13-002A
Brushless ESC: Rodeo 110
Quacopter Battery: 2S 7.4V 850mAh 25C Li-Po
Flying Time: About 7 - 8 minutes
600TVL HD Sony Resolution
1.0Vp-p/75 Video Output
DC 12V Power Input
2.4GHz DSSS Frequency Hopping
≤100mW Output Power
≤230mA(100mW) Current Consumption
5# battery 8x1.5V or NiMH 8x1.2V 1600-2000mAh
1000-2000mS (the neutral point is 1500) Output pulse
25mW(CE)~100mW(FCC)~600mW (Can be Upgradeable) Transmission power
500M (600mW)Transmission Distance
|Dimensions & Weight||Wheelbase: 110mm
Quacopter Size: 101 X 117 X 55mm
Quacopter Weight: 101g (not include the battery)

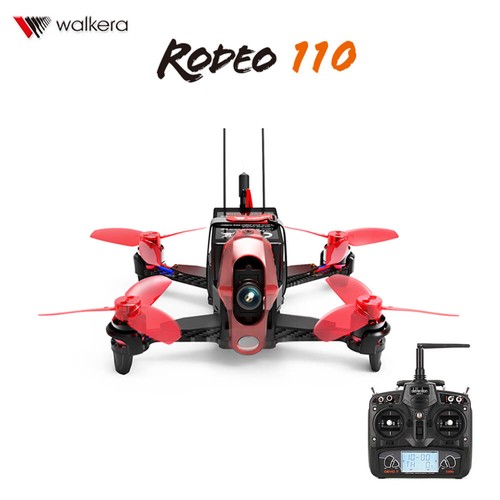

|Package Contents||1 x Walkera Rodeo 110 Racing Drone
1 x DEVO 7 Remote Control
1 x 600 TVL Camera
1 x Transmission
1 x Battery
1 x Charger
1 x English Manual
Walkera Rodeo 110 English Manual: Click here
