Highlights
3DMakerpro Mole - precise and seamless tracking
3DMakerpro Mole features high precision, 3D scanning objects with an accuracy of up to 0.05mm to capture fine details. With a single capture range of 200*100mm and a scanning speed of up to 10FPS, it can quickly scan a medium-sized object. All of this can be output in the most widely used 3D file formats OBJ/STL/PLY, supporting immediate application or further creativity.
The scanning process is straightforward! To start, you can pick between easy scan, where you can manually move around the scanner, or table scan, where the object is turned around on a turntable.
- 0.05mm accuracy
- 0.1mm resolution
- multispectral technology
- Dedicated mobile APP
Capture Even the Finest Details
The Mole 3D scanner we bring can acutely capture the finest detail with a whopping accuracy of up to 0.05mm.
Optical Anti-shake Modules
Equipped with optical anti-shake modules, Mole ensures smooth and stable scanning, even in handheld mode, with high frame rates and minimal distortion.
No-marker Scanning
The intelligent algorithm makes 3D scanning as easy as shooting a video. Stick markers are no longer needed, even for big parts like engine hood, car door, front or rear bumpers and so on.
Scan Black Objects
Near Infrared (NIR) has excellent optical compatibility, so even black objects are clearly visible. Mole now includes NIR in its configuration list, enabling it to produce excellent scanning results for objects of different colors.

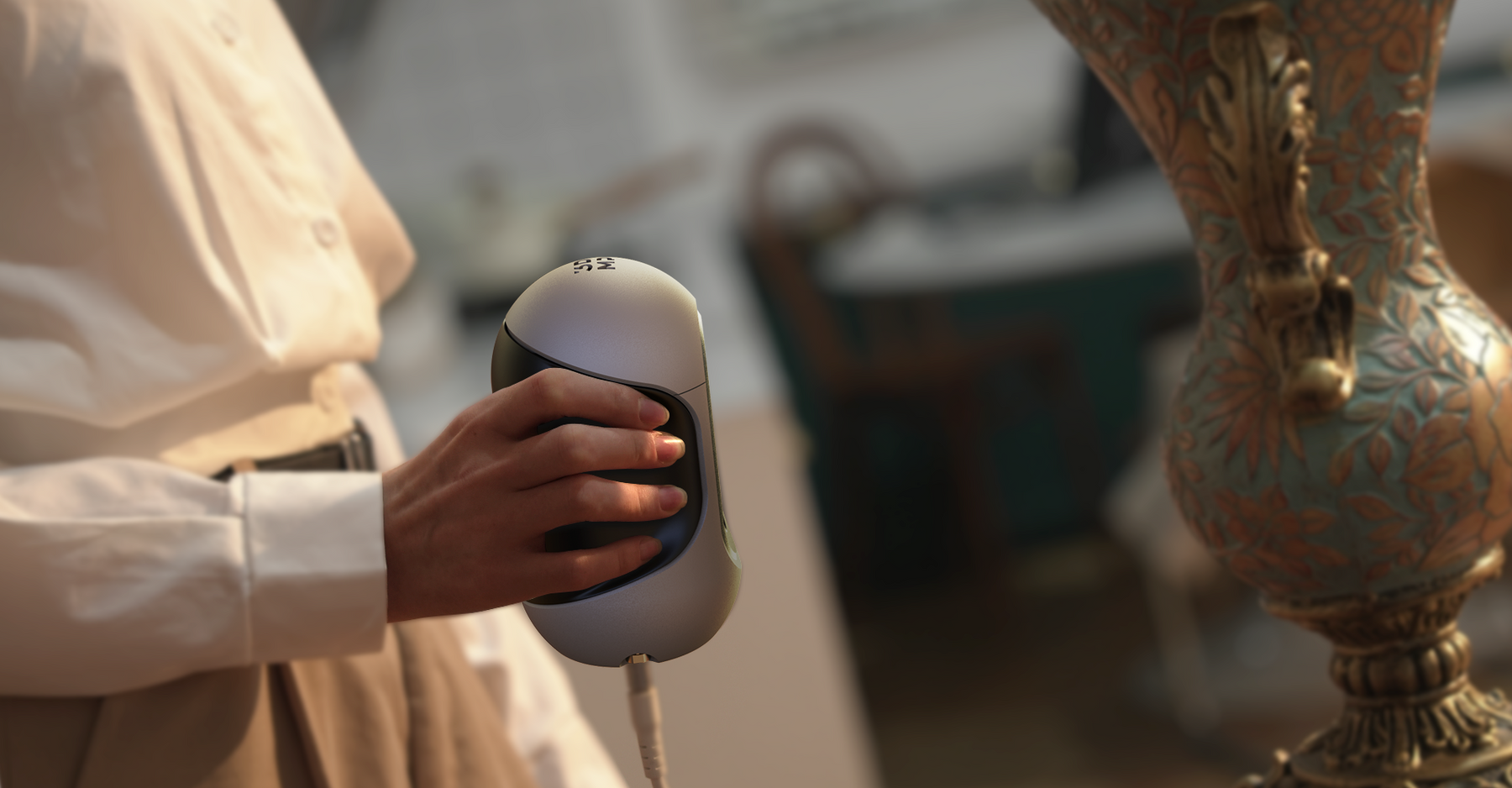

Comfortable to Use
Mole's compact and ergonomic design makes scanning effortless, whether in handheld or turntable mode. Its internal cooling fan operates quietly yet significantly reduces the temperature, ensuring that Mole can operate for extended periods.

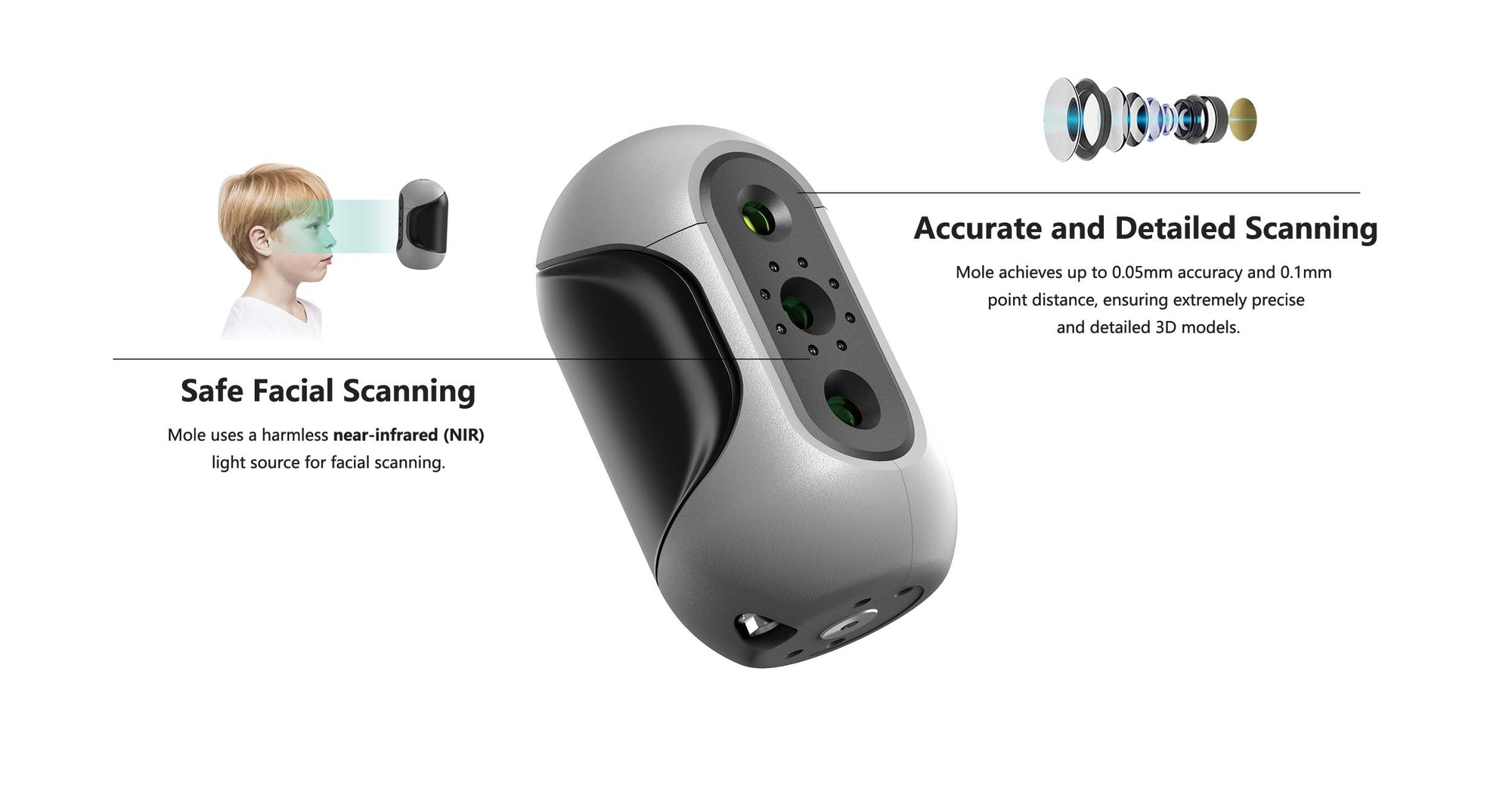

Accurate and Detailed Scanning
Mole achieves up to 0.05mm accuracy and 0.1mm point distance, ensuring extremely precise and detailed 3D models.
Safe Facial Scanning
Mole uses a harmless near-infrared (NIR) light source for facial scanning.
0.05mm Accuracy, 0.1mm Resolution
With high-precision and high-resolution lenses, Mole can accurately recreate the size of scanned objects and capture more intricate details.

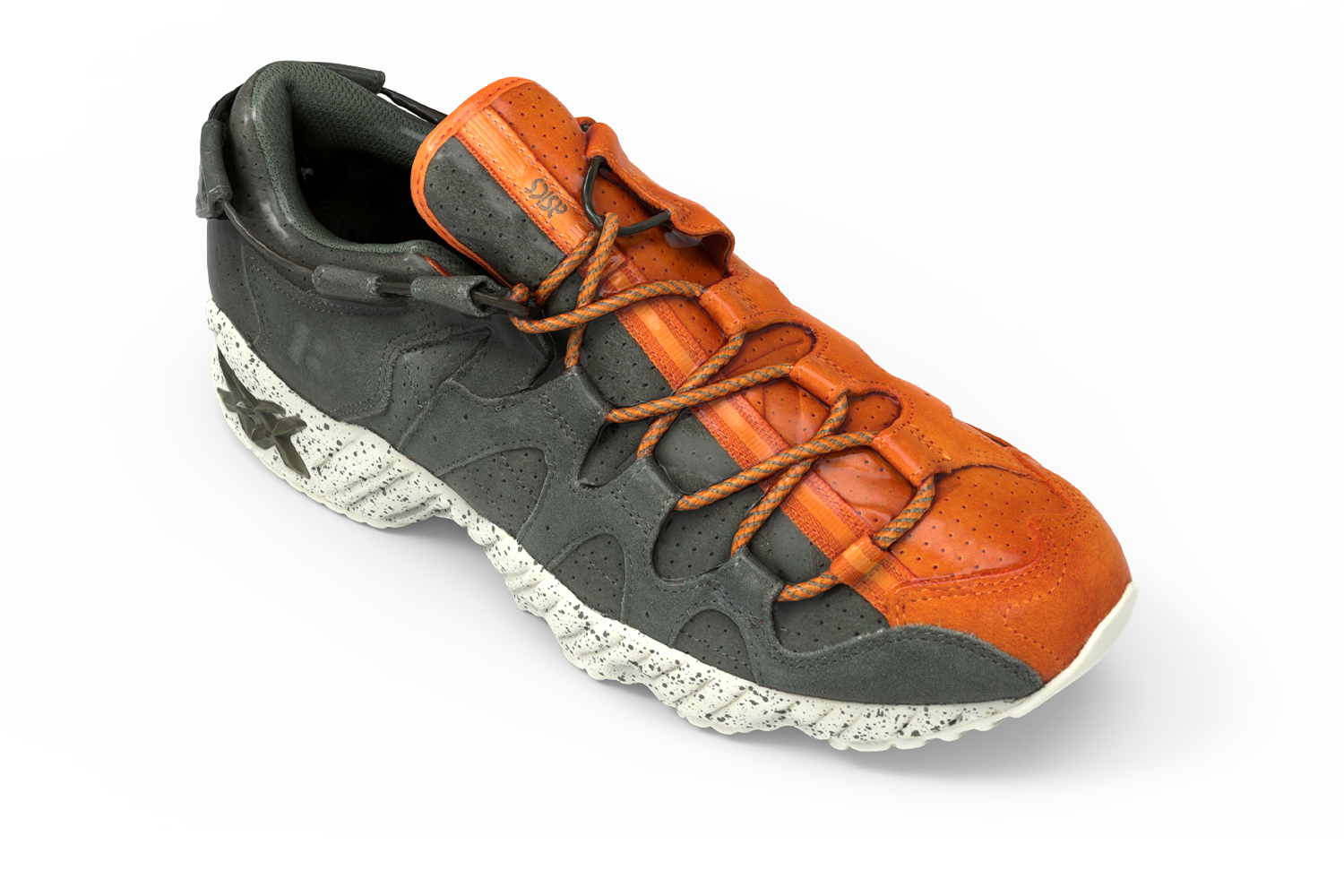

Ultra-Clear Texture Mode
Accurately reproduce the color and texture of your sneakers with high-fidelity texture mapping.
Tips: Color models require the color kit (included in the luxury combo).

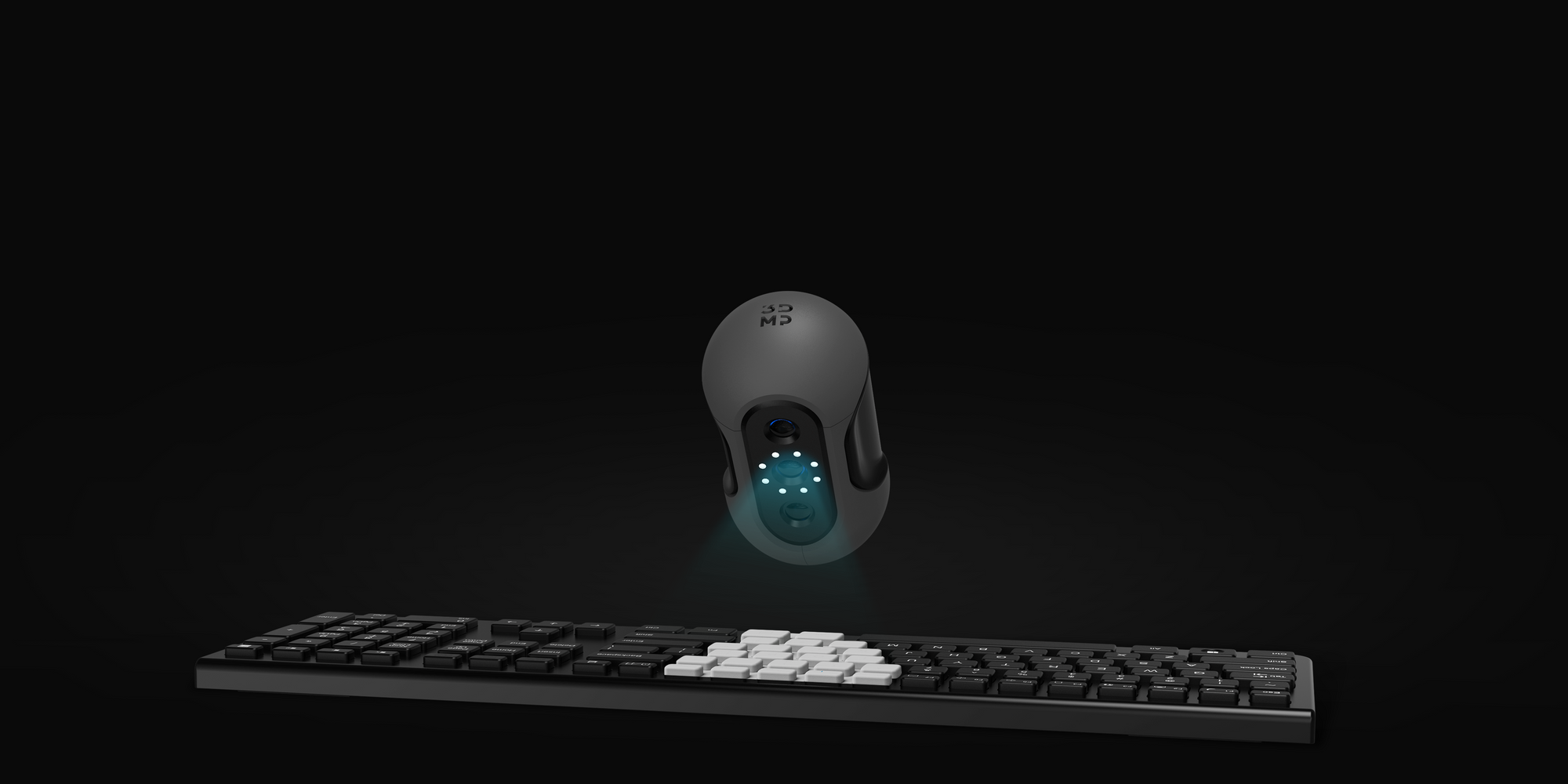

Black Objects? No Problem
Near Infrared (NIR) has excellent optical compatibility, so even black objects are clearly visible. Mole now includes NIR in its configuration list, enabling it to produce excellent scanning results for objects of different colors.
Incredible Scan Success Rate
Optical anti-shake modules and visual tracking algorithms ensure you get a complete and accurate model with every scan.

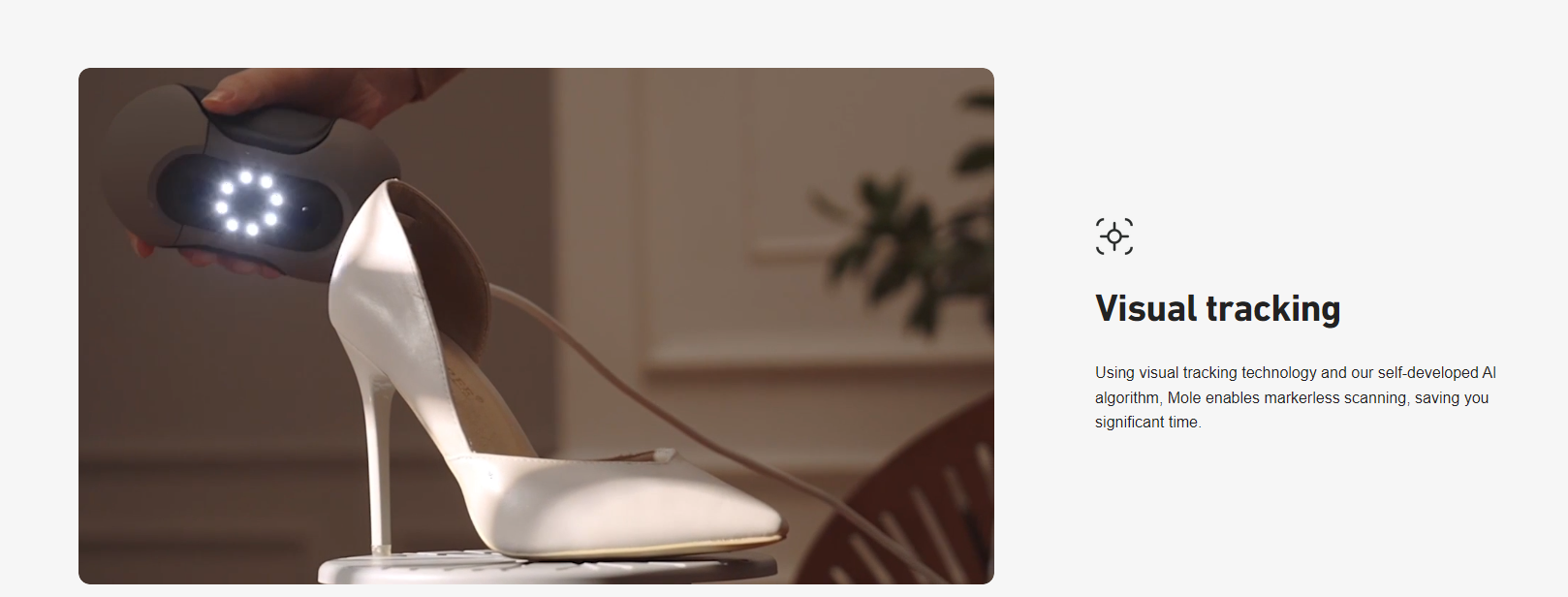

Visual Tracking
Using visual tracking technology and our self-developed AI algorithm, Mole enables markerless scanning, saving you significant time.

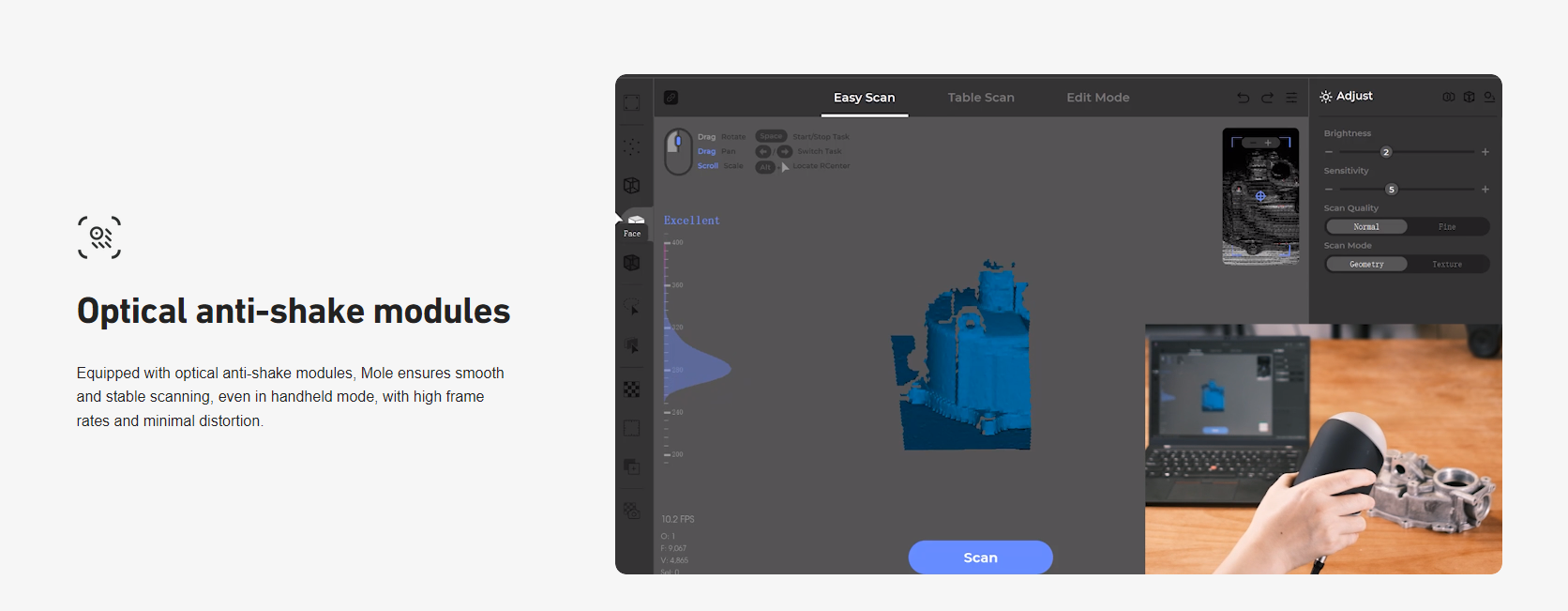

Optical Anti-shake Modules
Equipped with optical anti-shake modules, Mole ensures smooth and stable scanning, even in handheld mode, with high frame rates and minimal distortion.
Comfortable to Use
Mole's compact and ergonomic design makes scanning effortless, whether in handheld or turntable mode. Its internal cooling fan operates quietly yet significantly reduces the temperature, ensuring that Mole can operate for extended periods of time.
Powerful Graphics Chip
The 3DMakerpro Connect image processing chip connects the Mole to your mobile phone, ensuring high-quality scans even when scanning outdoors.
Simple and Reliable
3DMakerpro Connet quickly connects the Mole, tripod, phone, and power supply, ready to go anytime.
Specification
| General | Brand: 3DMakerpro Type: 3D Scanner Model: Mole Premium Edition Color: Grey |
| Specification | Accuracy: 0.05mm Resolution: 0.1mm Frame rate: 10fps Tracking mode: Visual tracking Work distance: 150-400mm Single capture range: 200x100mm Typical object sizes: 15-1500mm Light source: NIR Color texture: Extended support USB interface: USB2.0 Output format: OBJ/STL/PLY Compatible system: Windows10/11 64bit, MacOS12/13 Compatible mobile: Android 10.0 or later, iOS 15.0 or later (Extended support) Minimum computer requirements: Intel Core i5 8th, 16GB RAM, MX250 GPU with 2GB VRAM Recommended computer requirements: Intel Core i7 8th, 16GB RAM, NVDIA1060 GPU with 4GB VRAM |
| Weight & Size | Product Weight: 0.39 kg Package Weight: 2.5 kg Product Size(L x W x H): 14.1 x 8 x 8 cm Package Size(L x W x H): 34.5 x 25.8 x 11.3 cm |
| Package Contents | 1 x Mole 3D Scanner 1 x Date Cable 1 x Power Adapter 1 x Turntable 1 x Turntable Control Line 1 x Tripod 1 x Carrying Case 1 x User Manual |
Videos
Customer Photos
Customer Videos
Customer Reviews
| 5 star | 27 | |
| 4 star | 3 | |
| 3 star | 0 | |
| 2 star | 0 | |
| 1 star | 0 |
- All (30)
- Images (6)
- Videos (0)
Questions & Answers
FAQ
Q: Does the Mole have a size limitation of what it can scan?
A: Mole can scan objects from 15mm to 1500 mm, but you can always challenge yourself to scan larger ones when you get the hang of it.
Q: What's the function of a color kit? What's included in it?
A: The color kit is for mapping the realistic colors onto the 3D model. It consists of a white camera controller, a lightbox, and some cables for connection.
Q: Can Mole scan black objects?
A: Yes, it can scan black objects, while for some highly reflective and transparent things, you may need to spray on them.
Q: What kind of power source do I need to operate Mole with the Connect?
A: The power bank is required to have a minimum power output of 22.5W with a USB C port, and supports PD 12V charging.
Q: What are the system requirements for using Connect (mobile scanning) on Android and iOS?
A: For Android devices, the mobile application requires Android 10.0 or later. It is recommended to use mobile phones with 8GB of RAM or above and ensure that there is at least 2GB of available storage space.
For iOS devices, the mobile application requires iOS 15.0 or later. It is recommended to use an iPhone 12 or a higher model to download and use this application.
