Highlights
- CW/CCW/short brake/stop motor control modes.
- Built-in thermal shutdown circuit and low voltage detecting circuit.
- All pins broken out to 2.54mm spaced pins, and it can be plugged onto the breadboard.
- Filtering capacitors on both supply lines.
- Great for DIY and smart car projects.
- The motor driver can control up to two DC motors at a constant current of 600mA (1.2A peak). Two input signals (IN1 and IN2) can be used to control the motor in one of four function modes - CW, CCW, short-brake, and stop. The two motor outputs (A and B) can be separately controlled, the speed of each motor is controlled via a PWM input signal with a frequency up to 5kHz.
Specification
| General | |
|---|---|

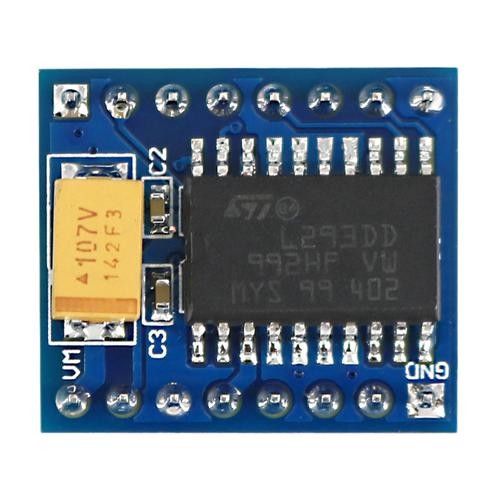

| Type | Motor Driver Module |
| Driver Chip | L293DD |
| Logic voltage | VCC=4.5-30V |
| Power supply voltage | VM=30V max |
| Output current | Iout=0.6A(average) / 1.2A (peak) |
| Compatible | Arduino |
| Package Contents | |
| 1 x Motor Driver module | |
