Highlights
- Perform measurements of AC/DC voltage and current, resistance, frequency, duty, capacitance, as well as continuity and diode test. Display: 4000 counts with analog bar LCD display Maximum voltage between terminals and earth ground: DC 1000V or AC 750V Over range protection for all ranges
- Reading hold function
- Square value measuring function (at AC A and AC V range)
- Maximum and minimum value measuring function
- Converte rate: 3 times/sec
- Bar graph: 30 times/sec
- Auto power off
- Continuity test
- Diode test
- MAX. diameter for conductor: diameter 26mm
- Secondary injection molding case
- Conform to the IEC1010-1 AND IEC1010-1-032 standards
Specification
AC DC Current Clamp Meter backlight
Auto power, Frequency test w/ clamp, capacitance up to 4000uF new +14 days return policy

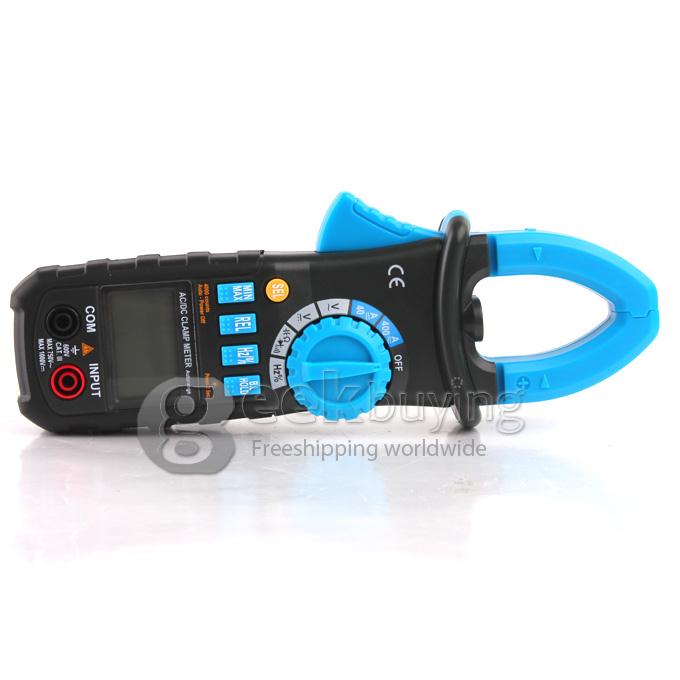

This meter is a portable professional measuring instrument with LCD and back light easily reading. The 'single-hand operation’ design for the range switch makes measurement simple and easy. Overload protection and low battery indication are provided. It is an ideal multi-function Instrument with scores of practical applications for professional, workshop, school, hobby and home use.
Double Insulation Protection class CAT III 600V and pollution degree 2
Display 4000 counts
DC Voltage Accuracy 400mV/4V/40V/400V/1000V +/- 0.8%
AC Voltage Accuracy 4V/40V/400V/750V +/-1.0%
DC Current Accuracy 40A/400A +/-2%
AC Current Accuracy 40A/400A +/-2%
Resistance Accuracy 400 Ohm/4k Ohm/40k Ohm/400k Ohm +/-0.8%, 4M Ohm/40M Ohm +/-1.2%
Capacitance 40nF/400nF/4μF/40μF/400μF/4000μF+/-4%
Frequency Accuracy 10Hz/100Hz/1KHz/10kHz/100kHz/1MHz/10MHz+/-1%, 10~10KHz+/-2%
Duty cycle 0.1% ~ 99.9% +/-3%
Operating Temperature 0 Celsius degree ~ 40 Celsius degree (32 Fahrenheit ~ 104 Fahrenheit)
Storage Temperture -10 Celsius degree ~ 50 Celsius degree(10 Fahrenheit ~ 122 Fahrenheit)

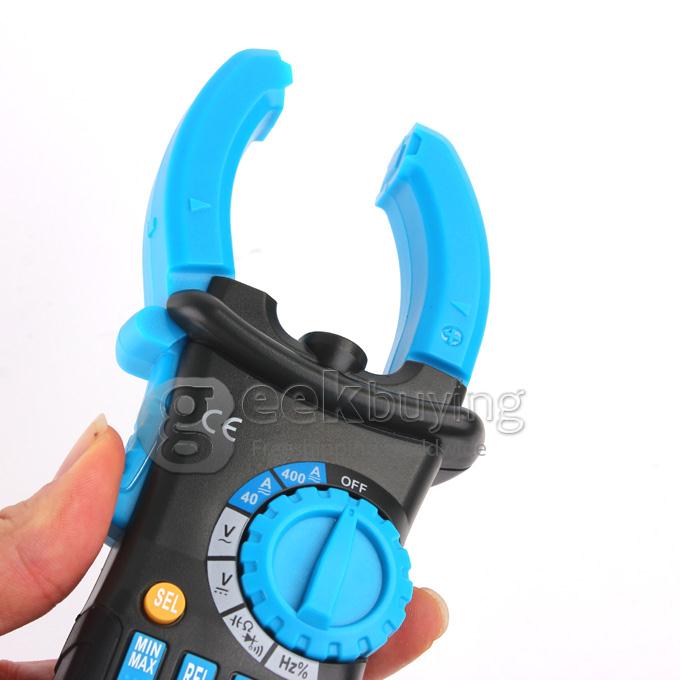

MAX. diameter for Jaw diameter 26mm
Dimension 208mm x 78mm x 35mm

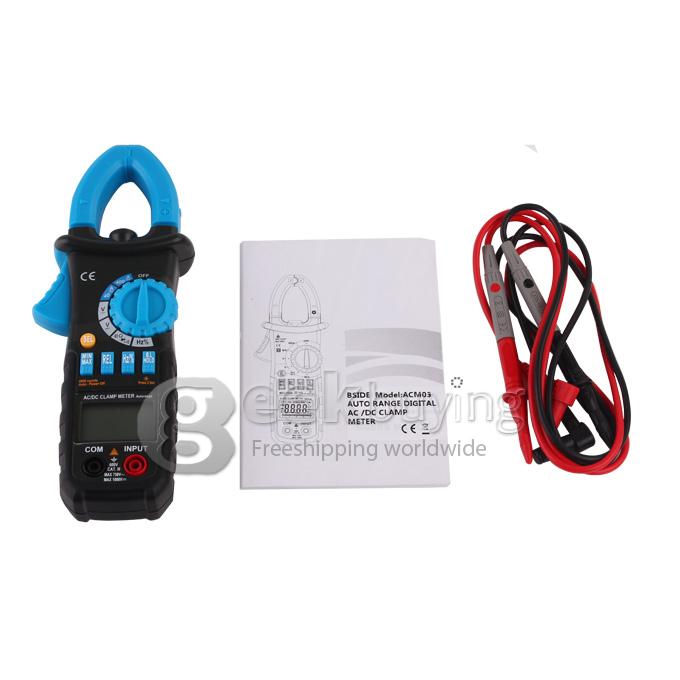

What's in the box?
- 1 Clamp Meter
- 1 Set of Test Leads

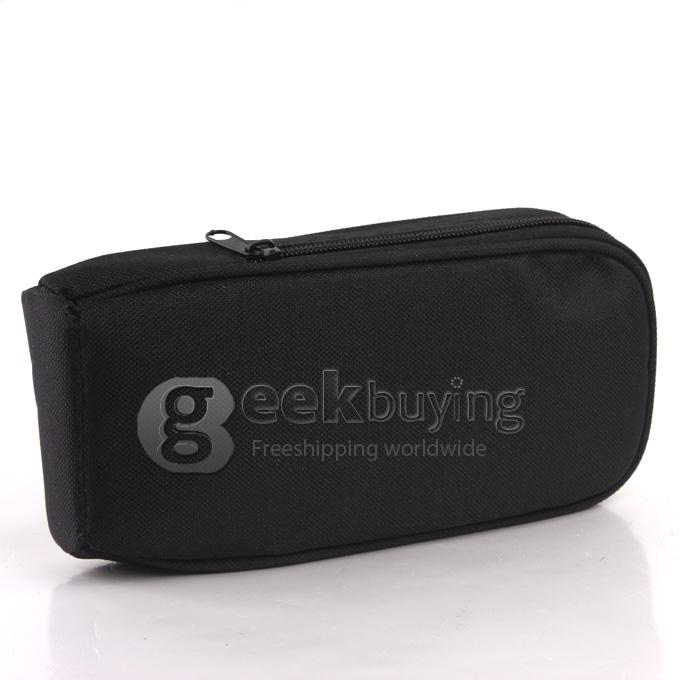

- 1 Carry Bag
