    ATOMSTACK 5.5W Laser Module, Fixed Focus Laser, Ultra-Fine Compressed Spot, Eye Protection

    Ship to:
    United States
    Select the desired shipping method
    Shipping Company Estimated Delivery Time Shipping Cost
    *Please note: the shipping costs are only estimates; the actual shipping price will be shown on the order page.
    0 item(s) added
    View CartContinue Shopping
    • Description
    • Reviews
    • Q&A
    • Sold Out

    Highlights

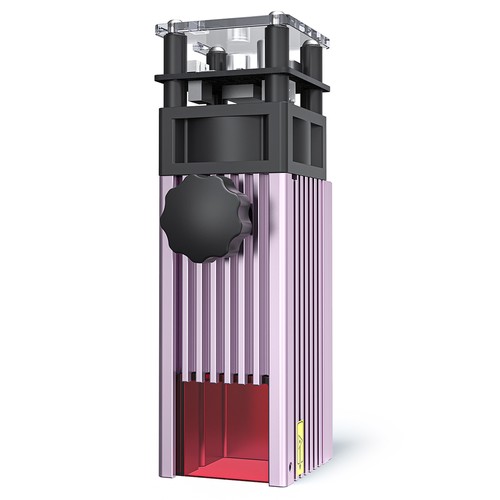

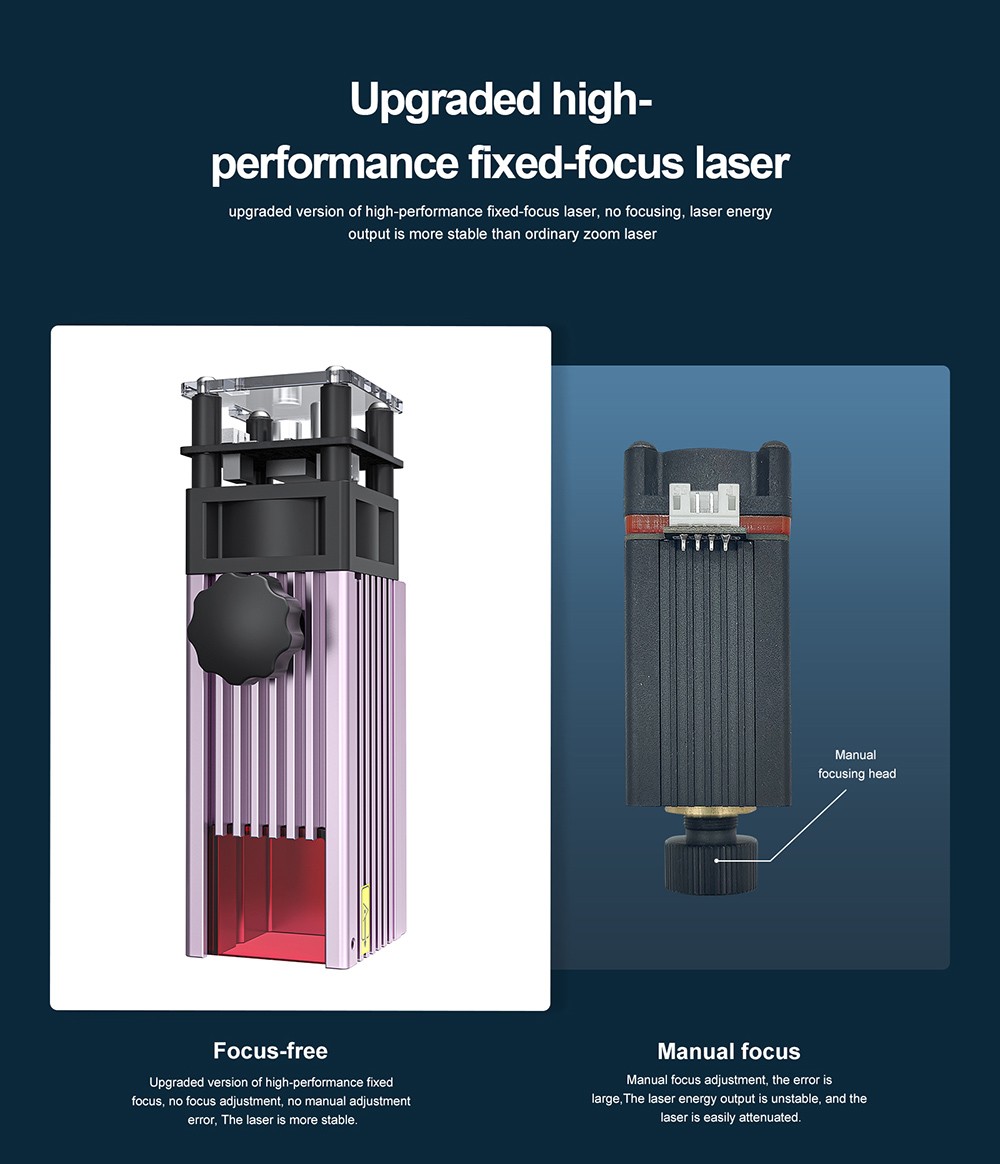

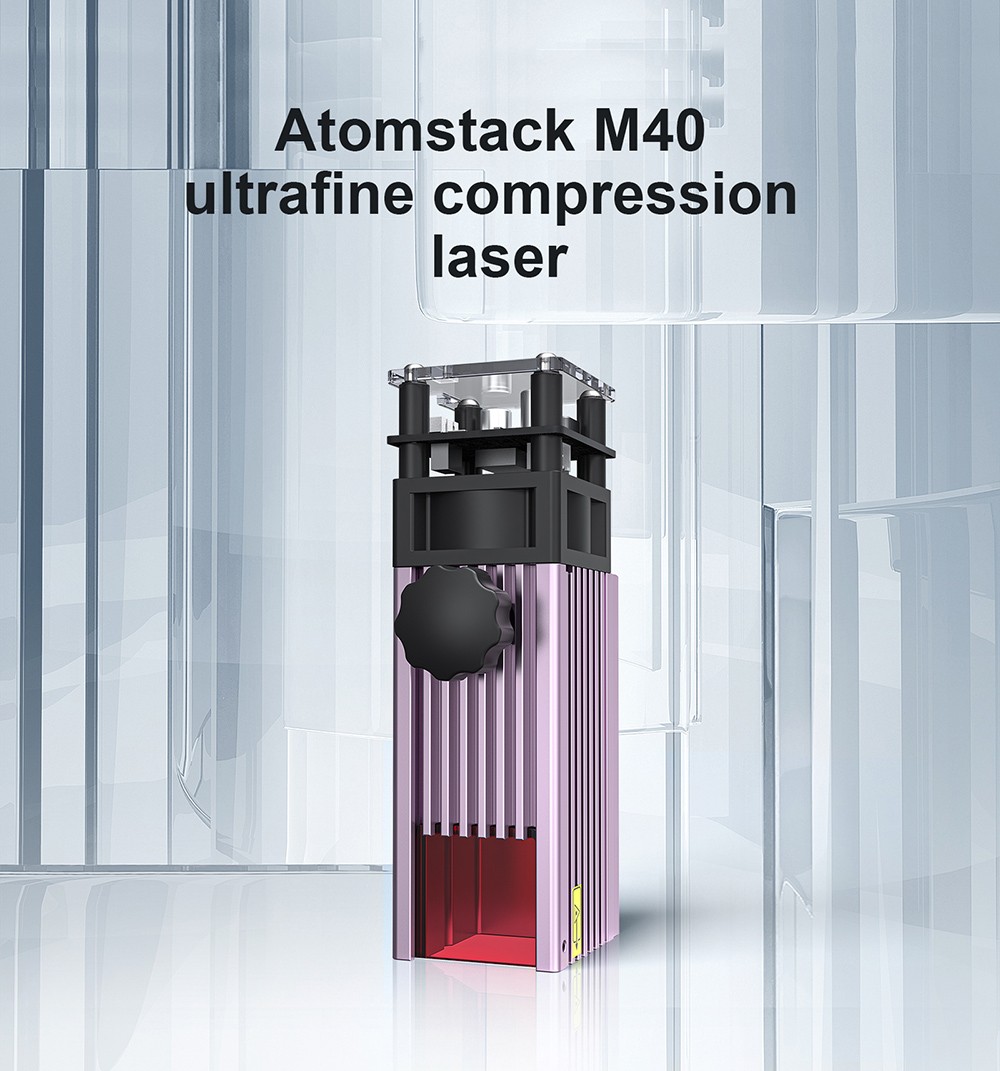

    ATOMSTACK M40 Laser Module

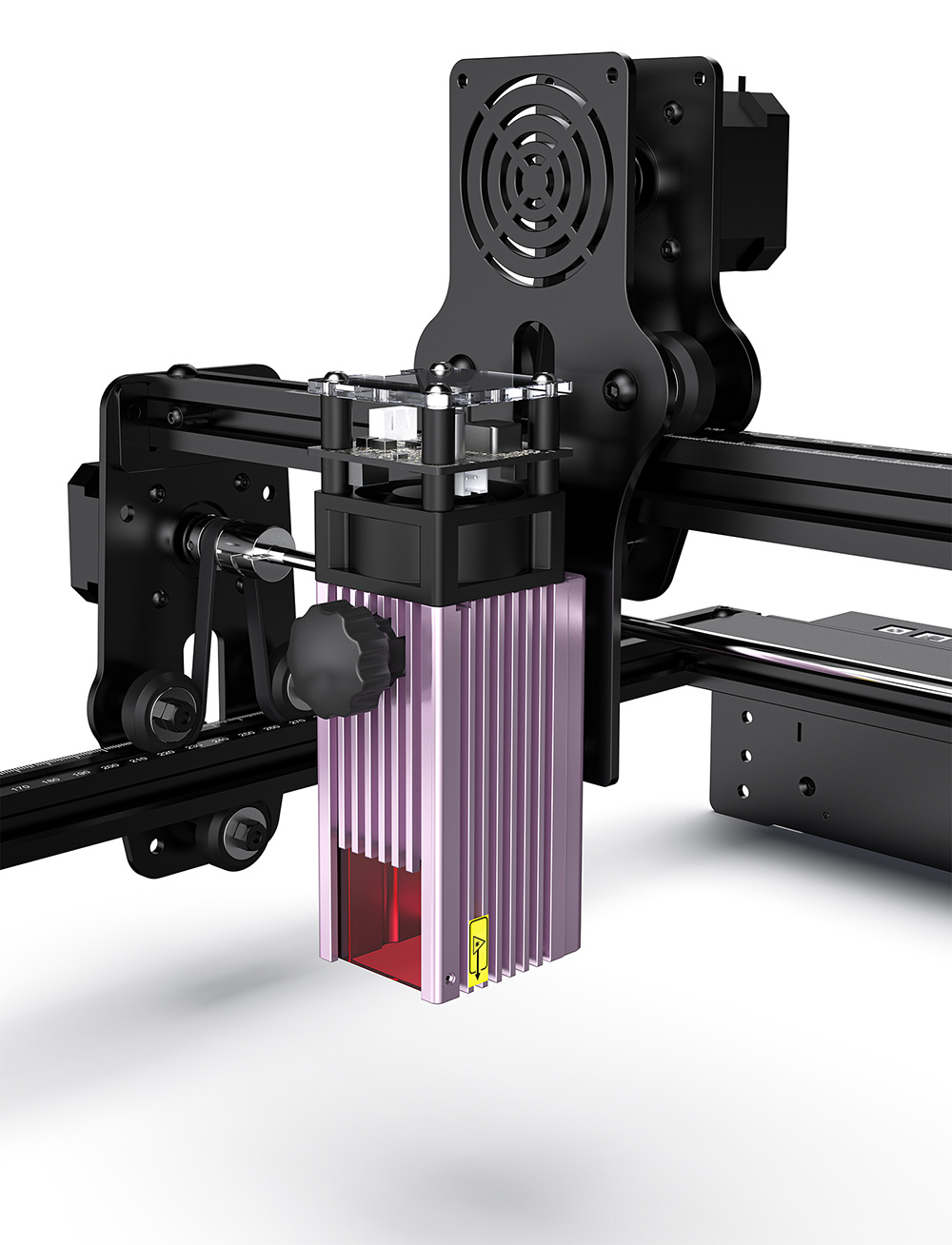

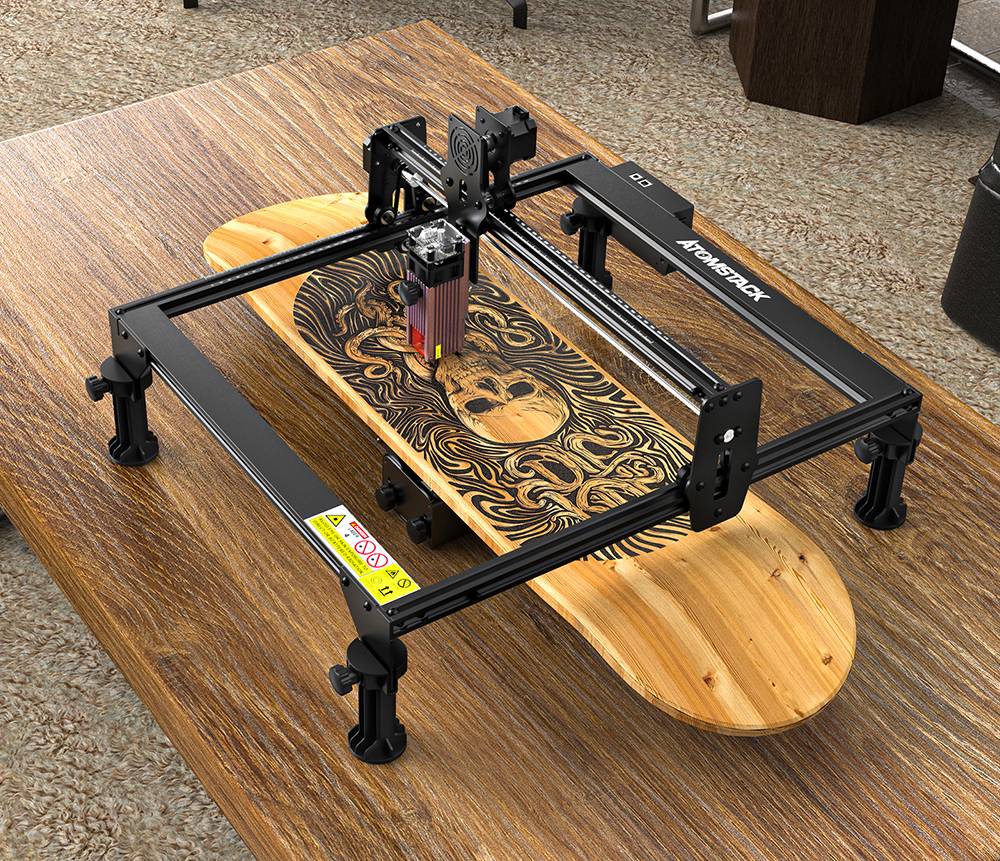

    This 40W laser engraver module features a high-performance fixed focus function, and the aviation aluminum TTL driver board with a cooling fan can ensure continuous long-time work. It can be used for laser cutting machines, laser engraving machines, CNC, and DIY lasers.

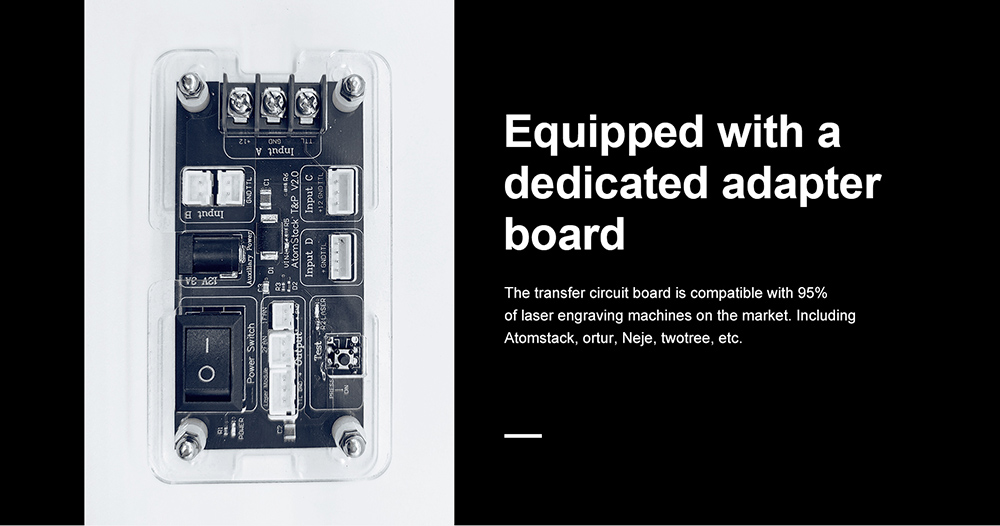

    Dedicated Adapter Board

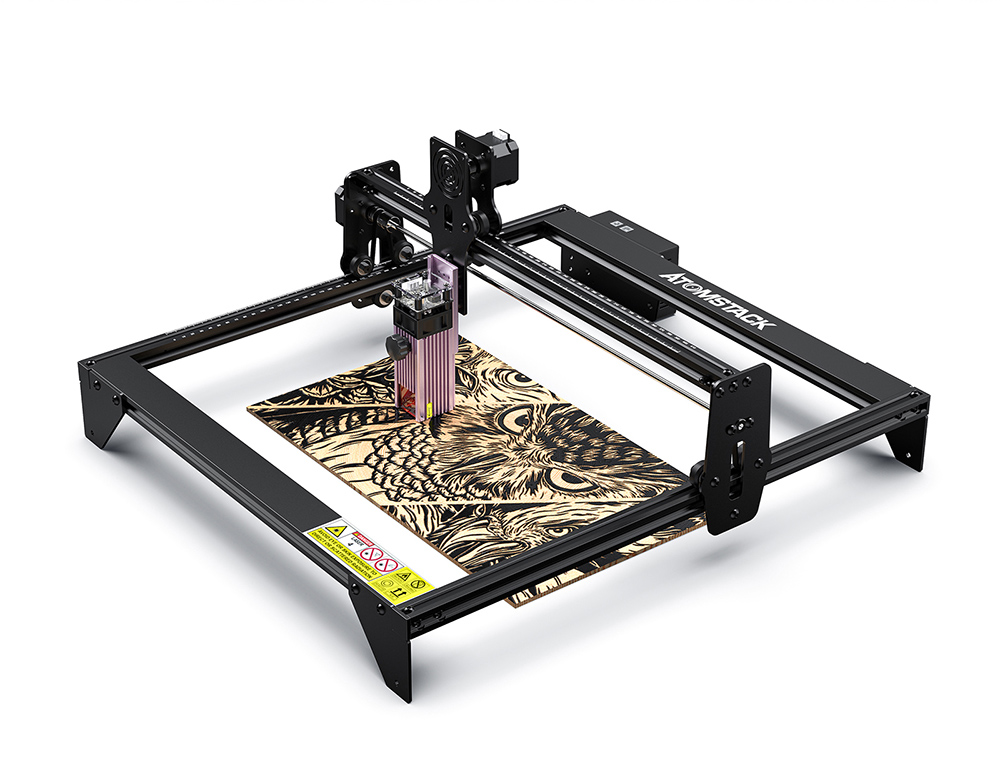

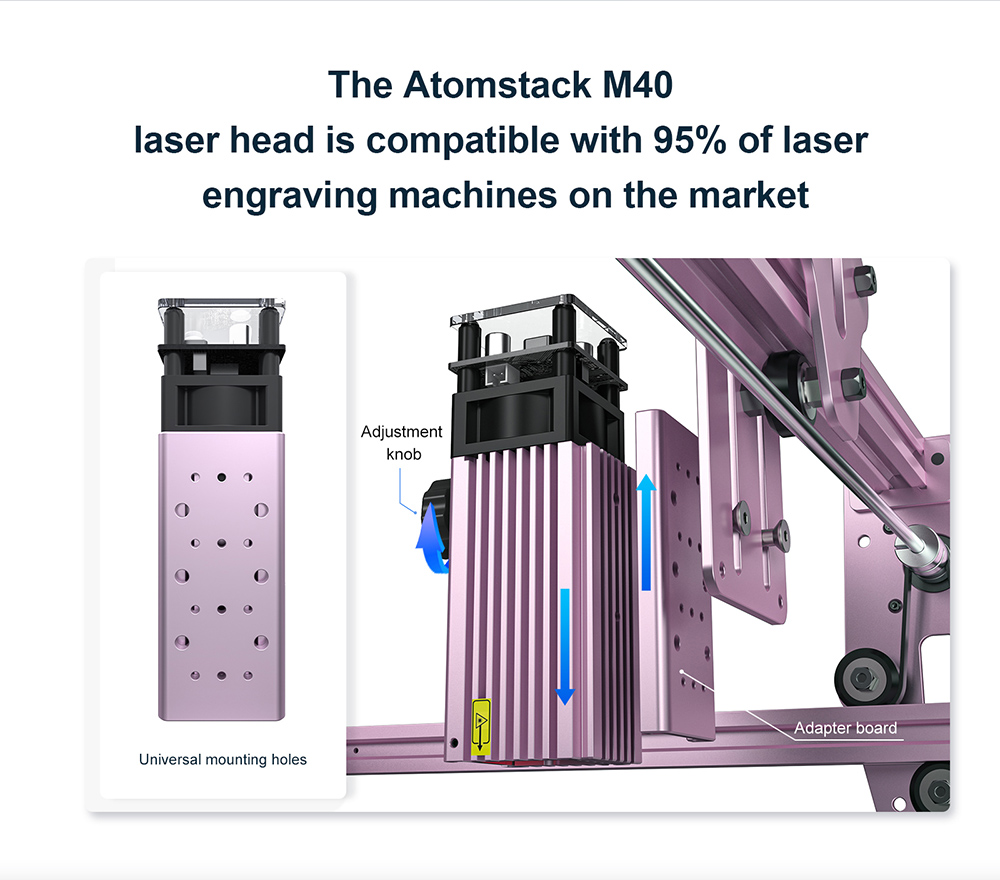

    It features a 12V PWM modulation board, 5W-5.5W optical power, and a dedicated adapter board, which can be compatible with 95% of laser engraving machines on the market, such as Atomstack, Ortur, NEJE, Twotree, etc.

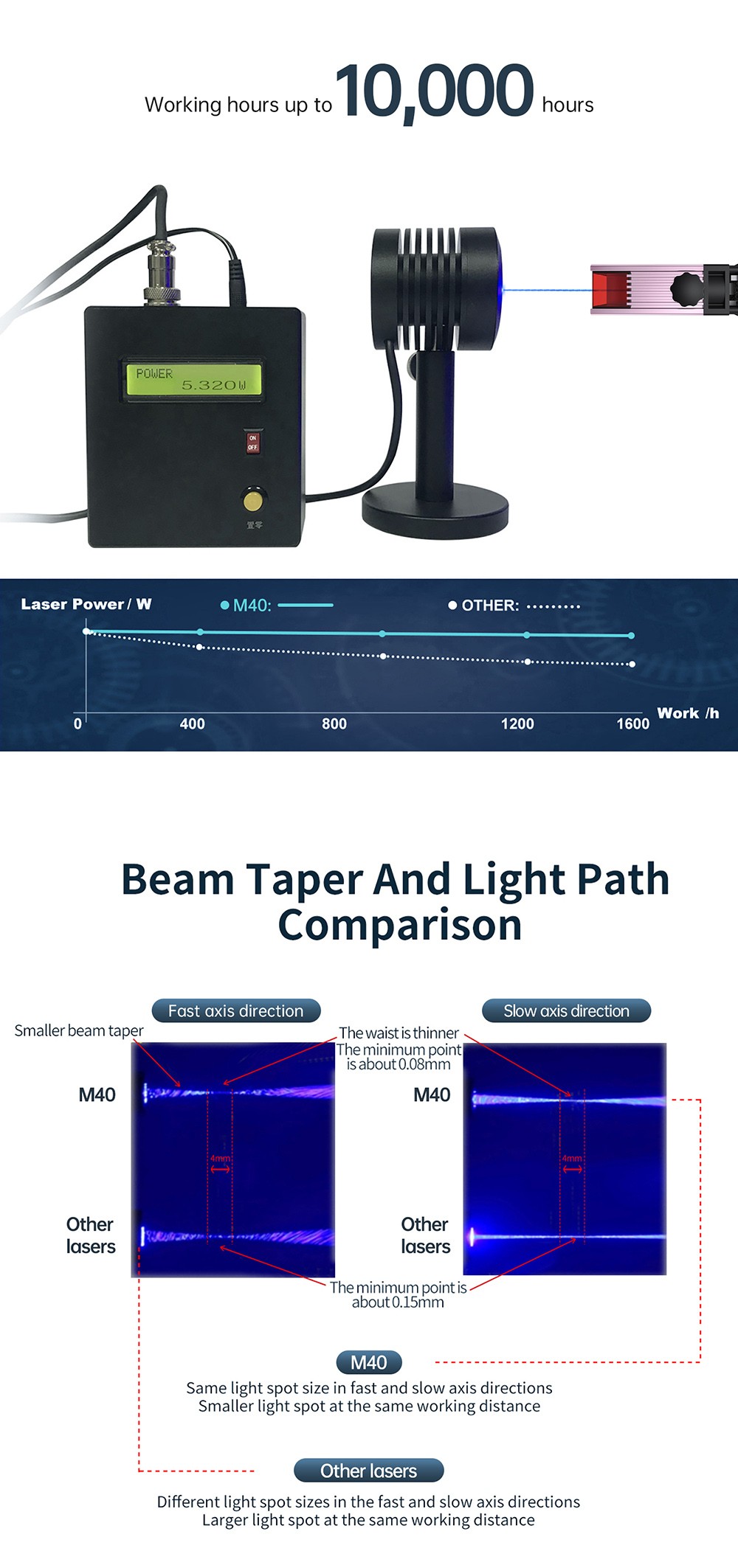

    Compressed Spot Technology
    The laser module adopts ultra-fine compression technology, the ultra-fine laser focus area is reduced to 0.16mm*0.19mm, and high-density laser energy can directly engrave smooth stainless steel, alumina, ceramics, and can easily cut 6mm thick wood and black acrylic.

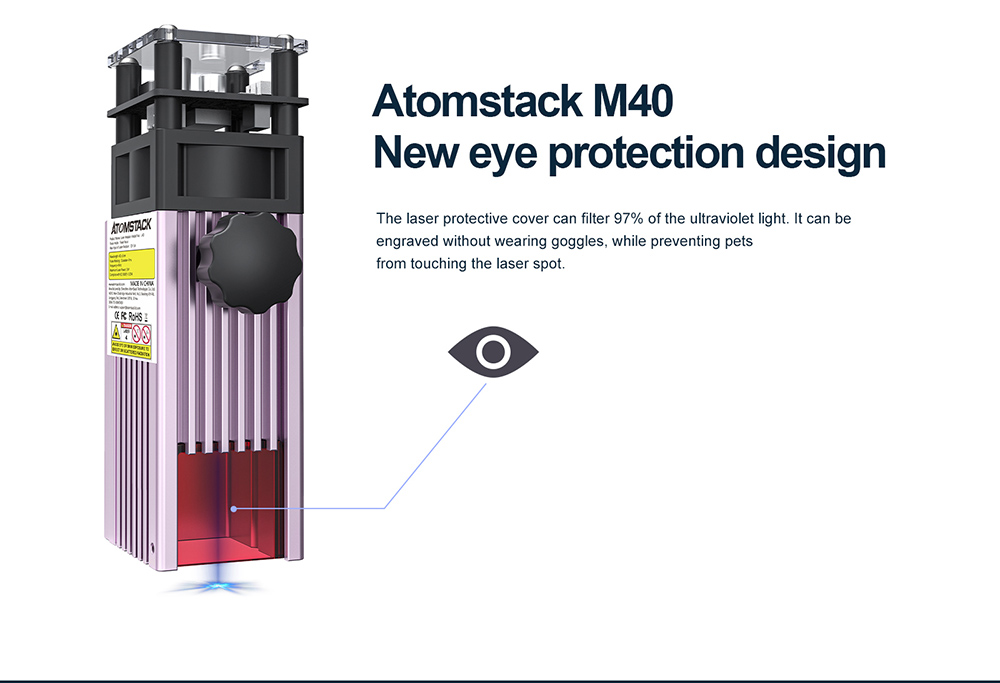

    Eye Protection Design
    The M40 laser module is equipped with a protective cover that can filter 97% of the ultraviolet light without the need to wear additional protective glasses.
    Wide Applicable Materials
    It is suitable for metal carving, wood carving, and cutting, bamboo carving and cutting, paper carving and cutting, acrylic carving and cutting, leather carving and cutting, etc.

    ATOMSTACK M40 40W Laser Module, Fixed Focus Laser, Ultra-Fine Compressed Spot, Eye Protection, Compatible with Atomstack, Ortur, NEJEATOMSTACK M40 40W Laser Module, Fixed Focus Laser, Ultra-Fine Compressed Spot, Eye Protection, Compatible with Atomstack, Ortur, NEJEATOMSTACK M40 40W Laser Module, Fixed Focus Laser, Ultra-Fine Compressed Spot, Eye Protection, Compatible with Atomstack, Ortur, NEJEATOMSTACK M40 40W Laser Module, Fixed Focus Laser, Ultra-Fine Compressed Spot, Eye Protection, Compatible with Atomstack, Ortur, NEJEATOMSTACK M40 40W Laser Module, Fixed Focus Laser, Ultra-Fine Compressed Spot, Eye Protection, Compatible with Atomstack, Ortur, NEJEATOMSTACK M40 40W Laser Module, Fixed Focus Laser, Ultra-Fine Compressed Spot, Eye Protection, Compatible with Atomstack, Ortur, NEJEATOMSTACK M40 40W Laser Module, Fixed Focus Laser, Ultra-Fine Compressed Spot, Eye Protection, Compatible with Atomstack, Ortur, NEJEATOMSTACK M40 40W Laser Module, Fixed Focus Laser, Ultra-Fine Compressed Spot, Eye Protection, Compatible with Atomstack, Ortur, NEJEATOMSTACK M40 40W Laser Module, Fixed Focus Laser, Ultra-Fine Compressed Spot, Eye Protection, Compatible with Atomstack, Ortur, NEJEATOMSTACK M40 40W Laser Module, Fixed Focus Laser, Ultra-Fine Compressed Spot, Eye Protection, Compatible with Atomstack, Ortur, NEJEATOMSTACK M40 40W Laser Module, Fixed Focus Laser, Ultra-Fine Compressed Spot, Eye Protection, Compatible with Atomstack, Ortur, NEJEATOMSTACK M40 40W Laser Module, Fixed Focus Laser, Ultra-Fine Compressed Spot, Eye Protection, Compatible with Atomstack, Ortur, NEJEATOMSTACK M40 40W Laser Module, Fixed Focus Laser, Ultra-Fine Compressed Spot, Eye Protection, Compatible with Atomstack, Ortur, NEJEATOMSTACK M40 40W Laser Module, Fixed Focus Laser, Ultra-Fine Compressed Spot, Eye Protection, Compatible with Atomstack, Ortur, NEJEATOMSTACK M40 40W Laser Module, Fixed Focus Laser, Ultra-Fine Compressed Spot, Eye Protection, Compatible with Atomstack, Ortur, NEJEATOMSTACK M40 40W Laser Module, Fixed Focus Laser, Ultra-Fine Compressed Spot, Eye Protection, Compatible with Atomstack, Ortur, NEJEATOMSTACK M40 40W Laser Module, Fixed Focus Laser, Ultra-Fine Compressed Spot, Eye Protection, Compatible with Atomstack, Ortur, NEJEATOMSTACK M40 40W Laser Module, Fixed Focus Laser, Ultra-Fine Compressed Spot, Eye Protection, Compatible with Atomstack, Ortur, NEJEATOMSTACK M40 40W Laser Module, Fixed Focus Laser, Ultra-Fine Compressed Spot, Eye Protection, Compatible with Atomstack, Ortur, NEJEATOMSTACK M40 40W Laser Module, Fixed Focus Laser, Ultra-Fine Compressed Spot, Eye Protection, Compatible with Atomstack, Ortur, NEJEATOMSTACK M40 40W Laser Module, Fixed Focus Laser, Ultra-Fine Compressed Spot, Eye Protection, Compatible with Atomstack, Ortur, NEJE

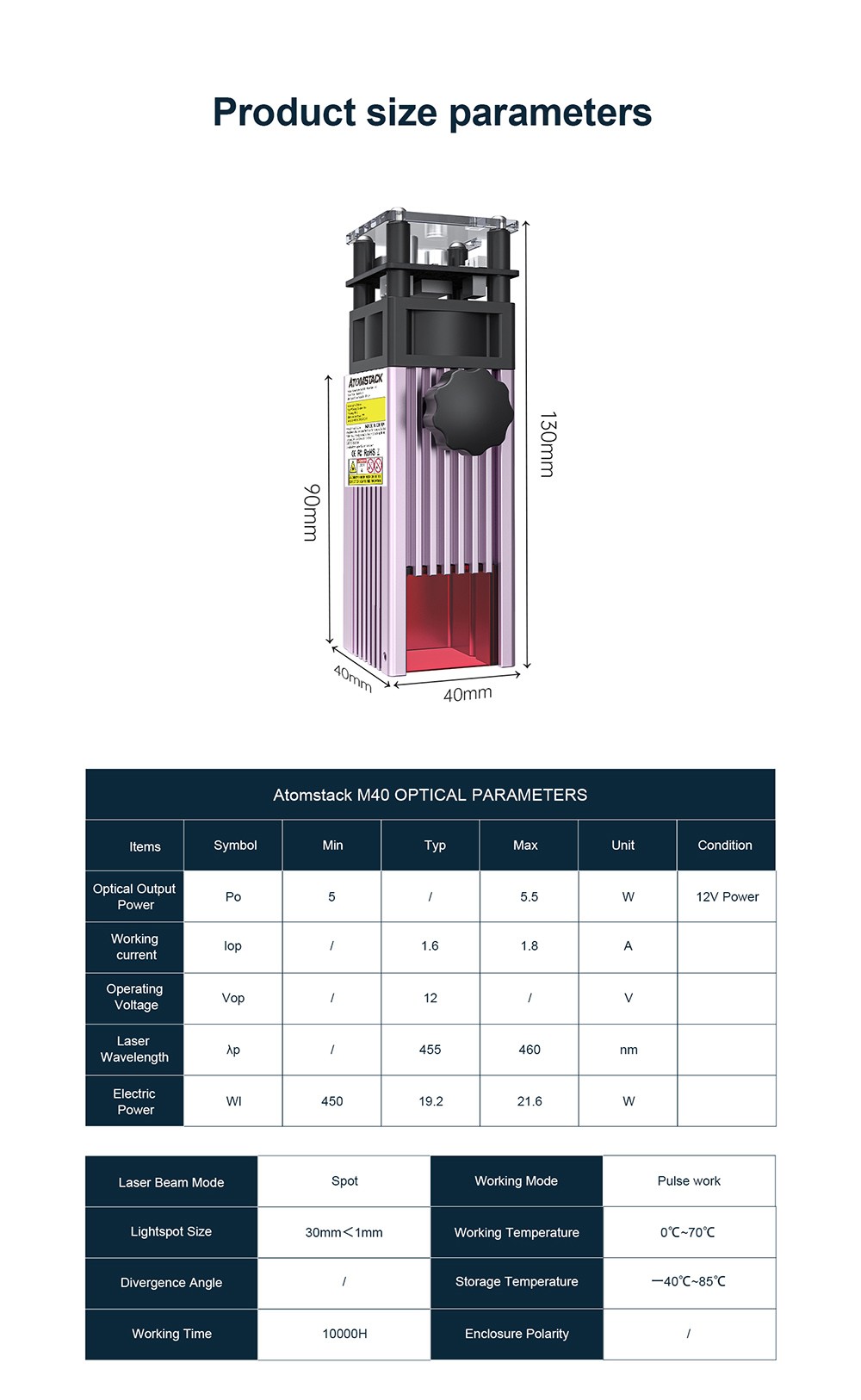

    Specification

    General

    Brand: ATOMSTACK
    Type: Laser Module
    Model: M40

    Specification

    Optical Output Power: 5W-5.5W
    Working Current: Max. 1.8A
    Operating Voltage: 12V
    Laser Wavelength: Max. 460nm
    Laser Beam Mode: Spot
    Working Mode: Pulse work
    Working Temperature: 0 - 70 Celsius
    Working Time: 10000H
    Storage Temperature: -40 - 85 Celsius
    Circuit Board: 12V/PWM modulation board
    Circuit Board Size: 40x40mm
    Engravable Materials: wood, bamboo, cardboard, plastic, leather, PCB board, aluminum oxide, non-reflective electroplating layer, and lacquered metal, after blackeningUtility knife.
    Cuttable Materials: cardboard, non-woven fabric, veneer, acrylic, and some thin plastic board.
    Cutting Speed: 2mm/s

    Weight & Size

    Package Weight: 0.6kg
    Product Size(L x W x H): 4x4x13cm
    Package Size(L x W x H): 15x6x6cm

    Package Contents

    1 x Laser Module
    1 x PCB Circuit Board
    1 x Fixed Focus Plate
    1 x Power Supply
    1 x Compatible Plate
    1 x Connection Line
    1 x Wrench and Screws
