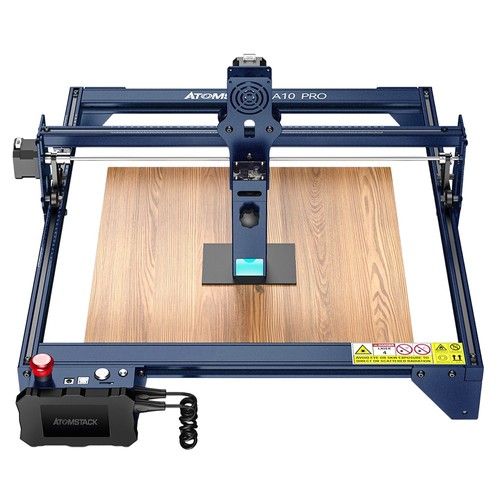

ATOMSTACK A10 Pro 10W Laser Engraver Cutter, 0.01mm High Accuracy, Fixed-Focus, Dual Compression Spot, 410*400mm

Highlights

Dual Compression Spot Coupling Technology

ATOMSTACK A10 Pro laser engraver features 50W electric power and 10W laser output power. The ultra-fine laser focus area is reduced to 0.08*0.08mm, so the high-density laser can easily cut 20mm thick wood, and 15mm thick black acrylic; can directly engrave mirrors, stainless steel metal, ceramics, and glass. The cutting speed is 40% higher than the ordinary model.

Support Offline Engraving

A10 Pro laser engraving machine configures the terminal control panel, supports offline engraving, and with an emergency stop button. After you install the software and upload the file, you can carry out engraving work anytime and anywhere without being restricted by the computer.

High-Performance Fixed-Focus Laser

The focal spot area of the new laser is only 1/3 of the spot area of other ordinary lasers. Features automatically fixed focus, the new laser combines precision engraving and high-energy cutting at the same time.

Precise Scale Lines Axis

There are precise scale lines on the X-axis and Y-axis to facilitate quick length measurement. 410x400mm large area engraving interval can meet your various engraving needs.

New Filter Panoramic Glass Eye Protection Design

The panoramic filter glass protective cover plays a very good role in protecting your eyes, filtering 97% of the ultraviolet light, you do not need to wear goggles and could watch the engraving clear.

Smart Limit Switch Design

Limit switches are installed on both X-axis and Y-axis. when the engraving machine stroke is at its maximum, the limit switch will be automatically triggered to protect the laser and avoid a collision.

Expandable Engraving Size

The modular design of the body mechanism enables you only need to replace the frame components to get a 410x850mm super large engraving size.

Sturdy & Easy-to-install Structural Design

The all-aluminum alloy anodized structure design and integral screw rod make the laser movement more accurate, the coupling more durable, and improve the engraving accuracy. The entire structure is designed for quick assembly, which can generally be completed within 10-20 minutes.

Wide Compatibility

The machine can be compatible with various mature engraving software, such as LaserGRBL and LightBurn. It supports Win XP / Win 7 / Win 8 / Win 10 / Win 11 and also supports Mac system (LightBurn). The engraving file format supports NC, BMP, JPG, PNG, DXF, etc.

Specification
