Highlights

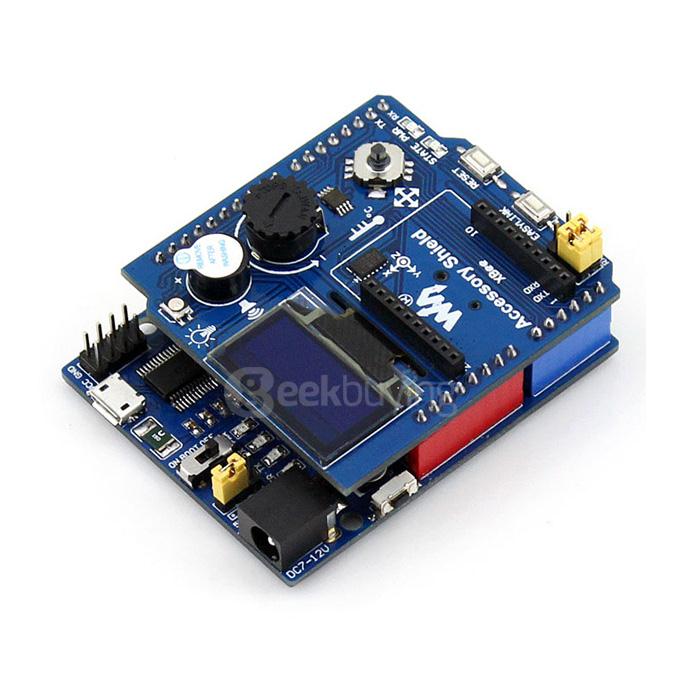

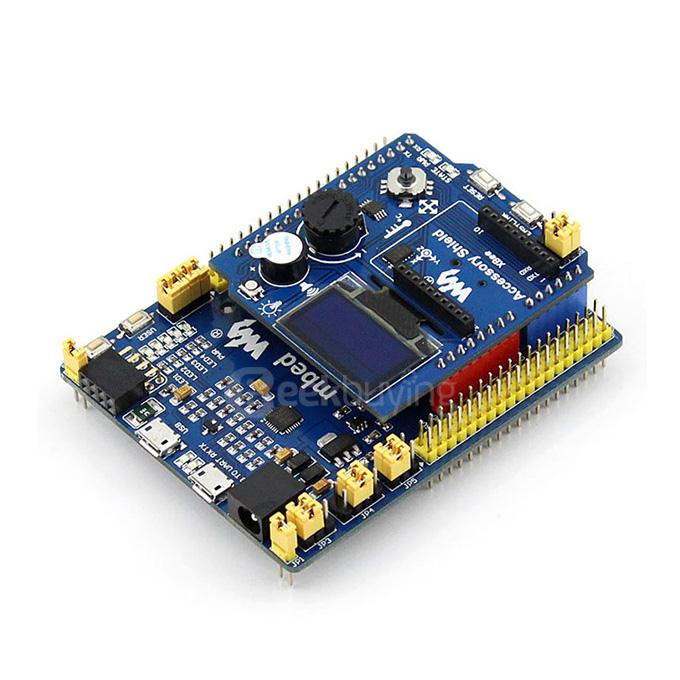

- Arduino standard interfaces, compatible with Arduino boards like Arduino UNO, Leonardo, NUCLEO, XNUCLEO
- Easy to use, comes with underlying function libraries for all of the onboard accessories, just call the related function

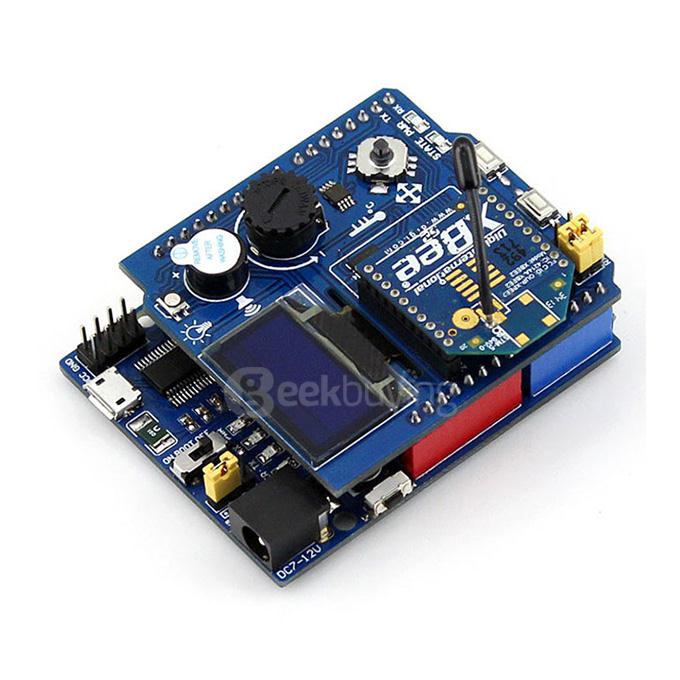

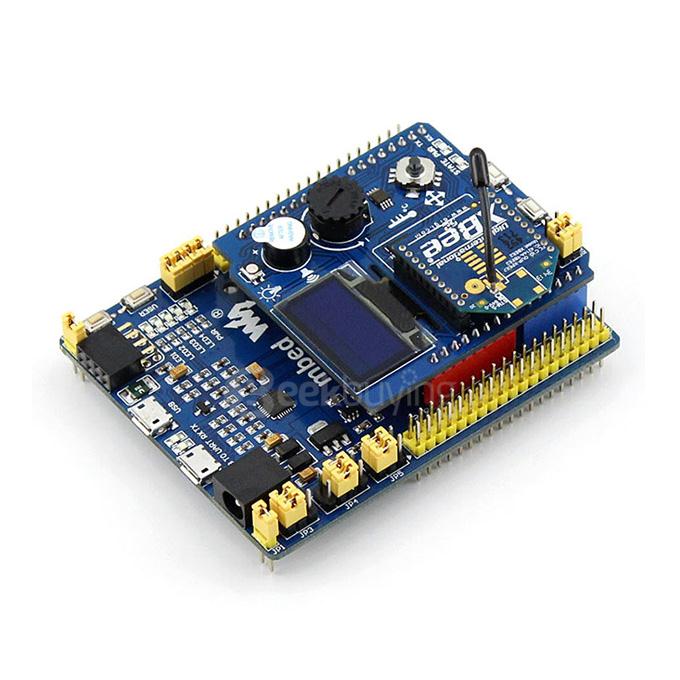

- Onboard XBee interface, supports connecting XBee wireless modules for remote communication
Specification
| General | |
|---|---|
| Type | Accessory Shield |
| Quantity | 1 Piece |
| Compatible | Arduino |
| Package Contents | |
| Accessory Shield x 1 | |

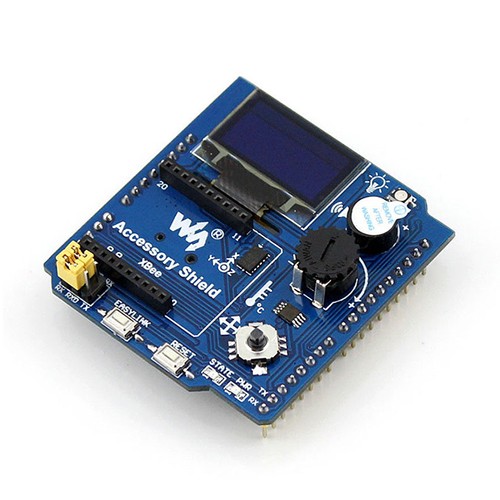

Overview
Accessory Shield integrates common used accessories/components listed as follows :
Joystick (5 directions)
Adjustable potentiometer
Buzzer
RGB LED
Temperature sensor
3-axis digital accelerometer
High precision RTC
0.96inch OLED
XBee interface

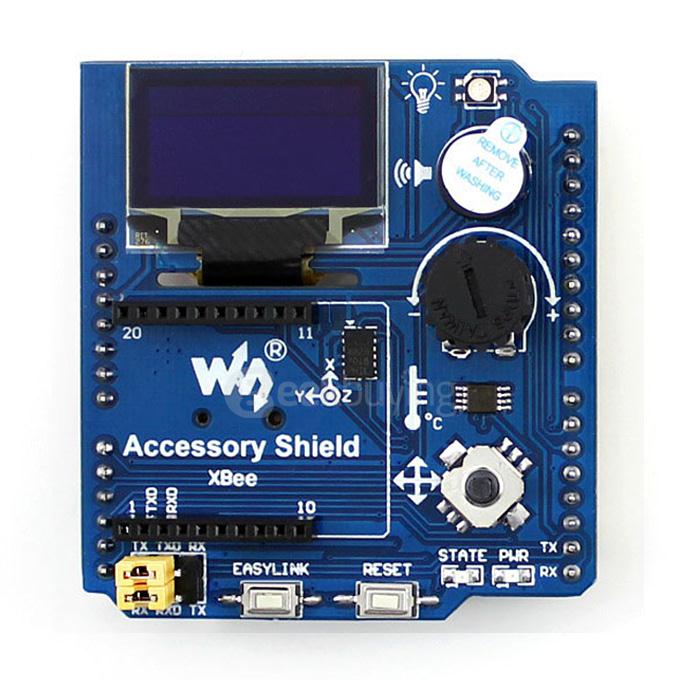

What's on Board
Arduino expansion headers : for connecting with an Arduino board
Bee connectors : connecting XBee wireless modules
0.96inch OLED : 128×64 resolution
RGB LED : 256×256×256 colors
Buzzer : controlled by PWM, capable of playing simple music
10K adjustable potentiometer
ADXL345 : 3-axis digital accelerometer, measuring range up to ±16g
LM75BDP : temperature sensor, resolution up to 0.125ºC
Joystick : 5 directions
XBee module state indicator
Power indicator
XBee module EASYLINK button
XBee module and Arduino RESET button
DS3231 : high precision RTC chip
CR1220 battery holder : for RTC battery
P9813 : RGB LED driver
Debugging/Communication selection jumper
When connecting TXD and TX, RXD and RX respectively, it's able to debug/config the XBee module through Arduino board serial port by using host computer software
When connecting TXD and RX, RXD and TX respectively, it's able to communicate with the XBee module through Arduino board serial port
