Highlights
Smaller Laser Spot
The COS module has a narrower divergence angle and longer depth of field, allowing for thicker and faster cutting.
Smarter Motherboard
Endowed with a smarter motherboard featuring dual-core CPU, Alpha can manage multiple files simultaneously, boosting work efficiency beyond your expectations. To upgrade the firmware, simply tap within the AlgoLaser App, eliminating the need for files and computers.
Stronger Accessory
Plug & Play with all of AlgoLaser accessories.
Specification
| General | Brand: AlgoLaser Type: Laser Engraver Model: 10W Color: Black |
| Specification | Laser Power: 10W Working Space: 400mm*400mm Max. Working Speed: Image Engraving Speed: 20000mm/min Movement Speed: 30000mm/min Laser Source: Diode Laser Laser Spot: 0.05mm*0.1mm Laser Head Life: >10000 Hours Laser Wavelength: 455±5nm Support File: jpg, svg, png, bmp, G code, dwg Support Systems: Android / iOS / iPad / Windows / macOS Software: AlgoLaser APP / Lightburn / LaserGRBL Input Voltage: 100-240~50/60Hz Output Voltage: 24V5A |
| Weight & Size | Product Weight: 4.834 kg Package Weight: 6.792kg Package Size(L x W x H): 72*24*20.5cm |

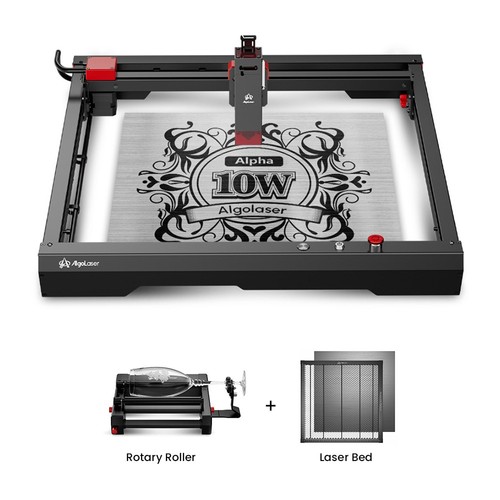

| Package Contents | 1 x Front Assembly 1 x Left Y-Axis Assembly 1 x Right Y-Axis Assembly 1 x Rear Panel Assembly 1 x X-Axis Assembly 1 x Motor Extension Shaft 17 x M4X12 Screw 2 x M4X16 Screw 1 x M2.5 Allen Key 1 x M3.0 Allen Key 1 x Machine Key Set 1 x USB Cable 2 x Coupling 1 x Power Cable 1 x Laser Goggle 1 x Power Adapter 1 x Brush 1 x ALM-10BD(10W) Laser Module 1 x Air Assist Nozzle 1 x Laser Shield 1 x Air Pipe 1 x Lens 1 x Focus Assist 1 x Plywood (340mm*220mm*3mm) 1 x Acrylic (175mm*122.5mm*3mm) 3 x Metal Card (86mm*54mm*0.2mm) 1 x User Manual 1 x Laser Bed 1 x Rotary Roller |
Videos
Customer Photos
Customer Videos
Customer Reviews
Questions & Answers
FAQ
How long does it take to assemble?
10-30 minutes (Depends on preparation).
Which engraving software is supported?
LaserGRBL, LightBurn and AlgoLaser App.
What kinds of materials does Alpha cut and engrave?
Cutting Material: All kinds of wood, (but be aware of oily wood or wood with very high resin content, as there is a high risk of fire.) plywood, MDF, cardboard, corrugated board, acrylic board, cork sheet, polycarbonate, Depron foam, non-woven fabric, bamboo chips, leather.
Carving Material: All kinds of wood, (but be aware of oily wood or wood with very high resin content, as there is a high risk of fire.) plywood, MDF, cardboard, corrugated board, acrylic board, cork sheet, polycarbonate, Depron foam, non-woven fabric, bamboo chips, leather, glass, ceramics, tiles, aluminum oxide, stainless steel, coating metal materials, darkstones.
Does it support engraving on stainless steel?
Yes, we support engraving on stainless steel with 500+ shades of color.
