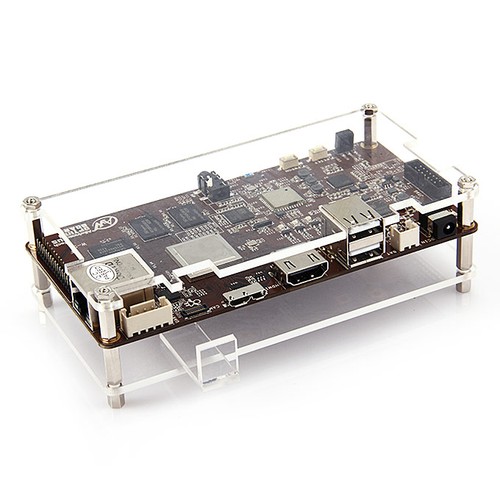

Allwinner A80 Optimusboard Octa Core ARM Cortex-A15/A7 A80 Android 4.4 Linux Development Board 2G/8G

0Answered Questions Item Code:332199
Price: US$ 176.99 US$ 282.25 37 % OFF
Ship from:
QTY:

Shipping:Free Shipping to United States via UPS Expedited

Sold Out
Add to Wishlist(15)
Price Match
Bulk Order Rebate
Ship to:
United States
Select the desired shipping method
Shipping Company Estimated Delivery Time Shipping Cost
*Please note: the shipping costs are only estimates; the actual shipping price will be shown on the order page.
0 item(s) added
View CartContinue Shopping
  • Description
  • Reviews
  • Q&A
  • Sold Out

Highlights

  • The main specifications of A80 UltraOcta -core mobile application processor are as following:
  • -Octa-core big.LITTLE Cortex?-A15/A7 CPU structure
  • -PowerVR G6230 GPU
  • -H.265/VP9 1080P@30fps video playback
  • -H.264/VP8 4K*2k@30fps 1080p@120fps or 720p@240fps video encoding.
  • -3840x1080@30fps 3D codec, support BD/SBS/TAB/FP format
  • -Built-in HDMI, an LVDS, etc
  • -The highest 16 m CMOS sensor
  • -Through Google CTS test, GMS in the grant application
  • -Support Android 4.4.2 operating system

If you have problems about how to use, please refer to technical support forum:

//bbs.merrii.com/zh/index.php

Specification

Allwinner A80 Optimusboard Octa Core ARM Cortex-A15/A7 A80 Android 4.4 Linux Development Board 2G/8G

Description Of Hardware Interface
Name Description
CPU Cortex-A15/A7    PowerVR G6230
PMU X-Power AXP806+AXP809 smart power management specialist  accessible to 12Vpower adapter  batteryUSB5V power input
DRAM 4*16 Bits DDR3 into 64bit 4096M Bytes DRAM
NAND Flash Hynix H27UCG8T2BTRBC 8G Bytes MLC 64bit ECC NAND Flash and Emmc Flash. It can act as system's boot device
TF card Support up to 32G card memory  support card test
WIFI Wifi BT two-in-one module
Ethernet 10M/100M/1000M IEEE802.3 use Realtek RTL8211D/E RJ45
USB Host/USB OTG 1 USB OTG 3.0/2.0 2USB Host
Headphone Support stereo headphone output/line in
HDMI output HDMI v1.4 support 4k at the most
UART Provide UART interface  TTL level
Keys RESET POWER_ON etc
IR IR only supports infrared remote control
DC 5V DC IN
CPU   Octa-core big.LITTLE ARM Cortex-A15/A7
GPU   PowerVR 64core G6230 GPU
 Comply with OpenGL ES 3.0/2.0/1.1 OpenCL 1.1 Direct 9.3
Video   UHD H.264/VP8 4k*2k@30fps video decoding
  Multi-format FHD video decoding, including Mpeg1/2, Mpeg4 SP/ASP GMC, H.263, H.264 BP/MP/HP, VP8, WMV9/VC-1, Jpeg/Mjpeg, etc.
 264 High Profile 4096*2048@30fps1080p@120fps or 720p@240fps encoding
 H.265/VP9 1080P@30fps video playback
 H.264/VP8 4K*2K@30fps video capture
  3840x1080@30fps 3D encoding/decoding, BD/SBS/TAB/FP supported
  Comply with RTSP, HTTP,HLS,RTMP,MMS streaming media protocols
    Support multi-channel HD display
    Integrated HDMI 1.4 transmitter
Display   RGB/LVDS/EDP LCD interface
    Dual-channel LVDS 1920*1080@60fps
Camera   Integrated parallel and MIPI I/F sensor
  Support 8/10/12-bit YUV/Bayer sensor
  Support 5M/8M/12M/16M CMOS sensor
Memory   RAW NAND Flash controller with 72-bit ECC
  Dual-channel DDR3/DDR3L/LPDDR3/LPDDR2 controller,up to 8G
Audio   Integrated digital audio interface
OS   Android 4.4.2 linux3.4.39
Size 136 x 86 x 44mm
Net Weight 145g

Allwinner A80 Optimusboard Octa Core ARM Cortex-A15/A7 A80 Android 4.4 Linux Development Board 2G/8GAllwinner A80 Optimusboard Octa Core ARM Cortex-A15/A7 A80 Android 4.4 Linux Development Board 2G/8GAllwinner A80 Optimusboard Octa Core ARM Cortex-A15/A7 A80 Android 4.4 Linux Development Board 2G/8GAllwinner A80 Optimusboard Octa Core ARM Cortex-A15/A7 A80 Android 4.4 Linux Development Board 2G/8GAllwinner A80 Optimusboard Octa Core ARM Cortex-A15/A7 A80 Android 4.4 Linux Development Board 2G/8GAllwinner A80 Optimusboard Octa Core ARM Cortex-A15/A7 A80 Android 4.4 Linux Development Board 2G/8GAllwinner A80 Optimusboard Octa Core ARM Cortex-A15/A7 A80 Android 4.4 Linux Development Board 2G/8GAllwinner A80 Optimusboard Octa Core ARM Cortex-A15/A7 A80 Android 4.4 Linux Development Board 2G/8GAllwinner A80 Optimusboard Octa Core ARM Cortex-A15/A7 A80 Android 4.4 Linux Development Board 2G/8G

What's in the box?

  • 1 x A80 Optimusboard
  • 1 x Power adapter(A right AC Adapter will be sent as your shipping country)
  • 1 x USB cable
