Highlights
7.6" Screen & Large Print Volume

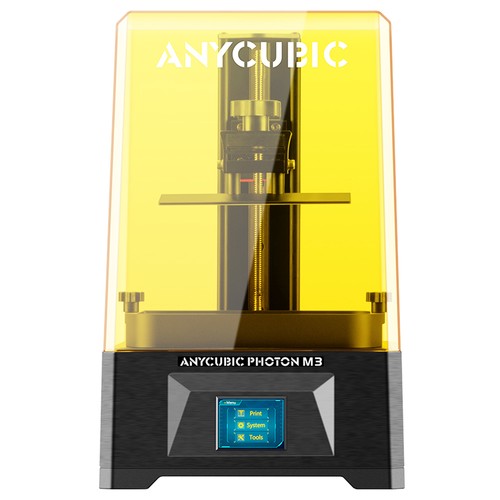

The ANYCUBIC Photon M3 resin printer features 7.6" screen and can print up to max volume of 7.08" x 6.45" x 4.03", giving you more possibilities for your creations. Adds a replaceable anti-scratch film (an extra protective film is included for replacement) to effectively prevent liquids from leaking to the LCD screen.
4K+ High Resolution & High Precision
Photon M3 4K+ monochrome resin printer help print clearer, finer surface textures. With a 400:1 screen contrast ratio, the fast printer perfectly prints models with sharp corners and delicate edges, and also greatly reduces residue in the resin tank.
Ultra-fast Printing
Photon M3 resin printer fastest printing speed can reach 50mm/h, and the single-layer exposure curing time is as low as 1.5s. It only takes 2.5 hours to print a 12cm model, which is 2.5 times faster than other 2k resin printers, help get models faster.
Power UV Light
Using the latest ANYCUBIBC Light Turbo light source system, the LED lamp beads arranged in a matrix provide a powerful ultraviolet light source. The new build plate has a texturized checkerboard pattern that dramatically improves adhesion and print success rate.
Adjustable UV Power
Compared with other LCD 3D printers, the ANYCUBIC Photon M3 printer can achieve 30%-100% power adjustment, not only supports ordinary 405nm UV resin, but also supports special resin, compatible with more materials, UV power can be adjust according to resin needs.
Specification
| General |
Brand: ANYCUBIC |
| Specification | Product Type: LCD Printing platform: Laser carving metal Platform area: 248.0 in² / 1,600 cm² Printing dimensions: 7.1 x 6.4 x 4.0 in. /18.0 x 16.3 x 10.2 cm (HWD) Printing volume: 101.19 oz. / 2.99 L Printing material: UV resin Exposure screen: 7.6inch monochrome Screen area: 25.6 in² / 167.28 cm² Light transmittance: 4% Anti-scratch film: Y Screen liftspan: 2,000 hr. Light source: Parallel matrix (LED x 28) Power density: 3,500 - 4,500 μw/cm² Uniformity: ≥ 90% Power regulation: Y Machine leveling: Manual (4-point) Screen resolution: 4K+ Screen pixels: 10,490,880 px Horizontal resolution: 40μm Vertical resolution: 10 μm Z axis: Rail x 1 Layer thickness: 10 - 150 μm Printing speed: ≤ 5 cm/hr. / 1.97 in./hr. Control panel: 2.8inch TFT touch-control Data input: USB-A 2.0 Cooling fan: 0 Power supply: 45W Body material: Plastic base + plastic cover |
| Weight & Size | Product Weight: 7 kg Product Size(L x W x H): 42.5 x 26.9 x 25.6 cm |
| Package Contents |
1 x Anycubic Photon M3 3D Printer |
Customer Photos
Customer Videos
Customer Reviews
Questions & Answers
FAQ
Q1: Why is there abnormal noise when the printer's Z-axis moves up and down?
A: Please apply an appropriate amount of grease to the lead screw, and control the motor to run up and down several times to make the grease adhere evenly. Please avoid using lubricating oil as much as possible, the lubricating oil with strong fluidity will flow to the inside of the motor along the motor screw.
Q2: Why is there nothing on the print platform after the printer finishes printing?
A: This problem is most likely caused by the large gap between the printing platform and the bottom of the trough. Please refer to the following steps to deal with it.
1. For the leveling problem, it is recommended that you re-leveling in strict accordance with the steps in the manual. When tightening the screws, it is recommended to press the printing platform by hand to make it fit the LCD screen as much as possible, and then tighten the screws.
Note: The force should not be too large to avoid damage to the LCD screen.
2. For the problem of printing parameters, it is recommended that you re-slice, adjust the printing parameters, and increase the bottom exposure time of 10S and the number of bottom layers of 5 layers on the original basis. These two parameters will affect the viscosity of the model on the printing platform and are also dynamically adjusted according to the model size, weight, and contact area with the printing platform.
3. Ambient temperature problem, the best printing temperature of the resin is around 23 degrees Celsius, the fluidity between 10-20 degrees Celsius will decrease, and it is difficult to cure, and it is necessary to increase the exposure time to make up. Below 10°C will not cure. If the temperature in your area is low, consider soaking the resin bottle in hot water for a while before printing.
