Arduino EL Inverter 3V DC 110V AC JST4.0 for EL shield - Black

Highlights

• High energy efficiency
• Eliminate the flashing phenomenon
• Stable output
• Output end employs JST PH Connectors
• Supports 4 3m lengths
• EL inverters allow you to drive EL wires,accepting 3V input and outputs 110VAC to drive EL wire. The wires both terminated with JST PH connectors which are designed to plug directly into EL Shield. You can drive EL wires with them directly,but you may need to re-terminate them.
• These work well because they accept anywhere from 2.7-4.2V, so you can use them with batteries quite easily.

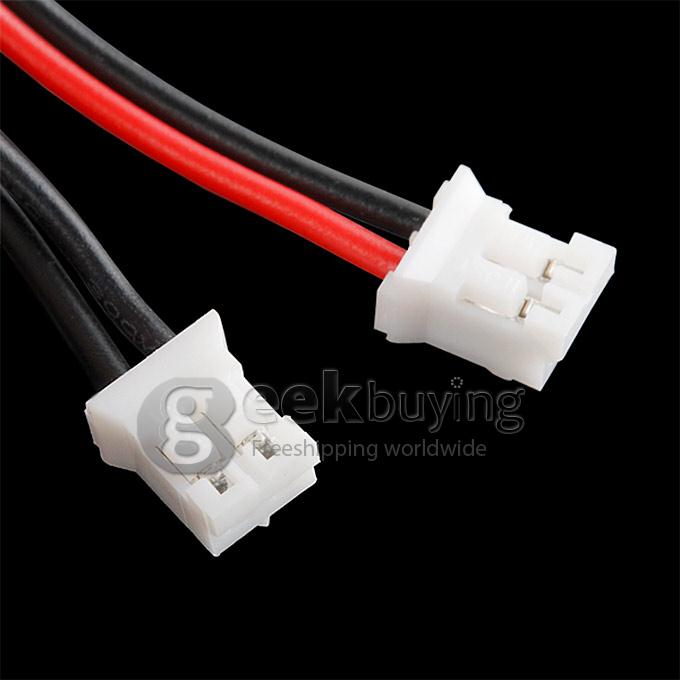

• The inverters we shipping are not labeled input/output on the body. Instead, the new units have a red/black pair (supply voltage) and a black/black pair (output voltage).
• Testing revealed that this inverter can easily drive a 3m length of EL wire. When adding a second 3m length, the two get a bit dimmer, but still close to full brightness. At 3 3m lengths, you can only tell all three wires are on if the room is dark. The inverter can light up 4 strands, but they are barely visible in normal light and very dim in the dark as well.

Specification
