Highlights
- Level control interface, power supply for 5V or 3.3V
- High level active, low drive current
- In accordance with the direction of the tube, it can be launched manually to adjust the actual application requirements

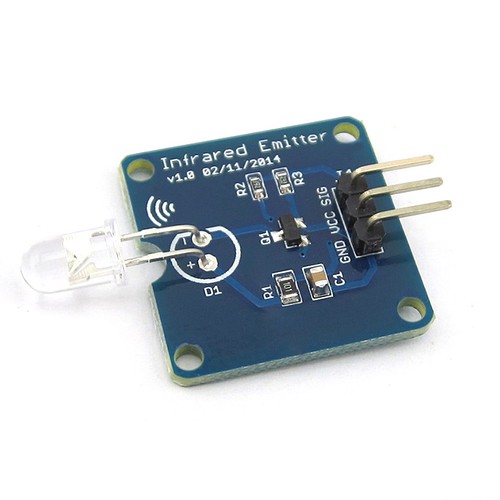

- Based on the infrared emission infrared emission control module 940
- Infrared signal emitted by the transmitter tube 940nm wavelength
- Signal can be acquired infrared receiver module is a few meters away
- Demodulation, encoding and decoding process can be achieved with the remote control function
Specification
| General | |
|---|---|
| Quantity | 1 Piece |
| Specification | |
| Power | 3.3-5.5V |
| Working Current |
0.7-1.6mA |
| Low Level Output | 250 mV |
| High Level Output | VCC-0.35~ VCC-0.1V |
| Dimensions & Weight (Main Product) | |
| Dimension | 24x24x11mm |
| Weight | 3g |
| Package Contents | |
| 1 xInfrared Emitter | |
