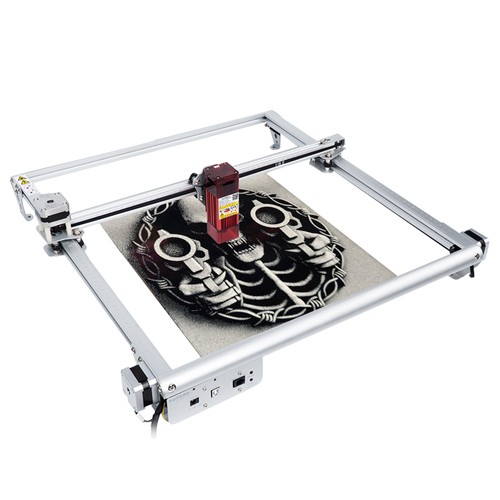

Aufero Laser 2 LU2-2 Laser Engraving Machine 10,000mm/min 24V/2A High Precision Engraving Area 390x390mm

Highlights

Advanced Motherboard

Aufero Laser engraver adopts the advanced motherboard (32-bit MCU) for fast and precise engraving; processes 32 instructions; up to 10,000mm/min engraving speed; LU2-2 Laser Module (real luminous power:1,000-1,600mw)

Excellent Mechanical Structure

Aufero Laser enraving machine is designed with low gravitity center of X-axis, providing more stability and ensuring accurate engraving even at high processing speed; 390mm×390mm large engraving range to meet various DIY needs

Broad Compatibility

Aufero Laser cutting engraving machine is compatible with mature engraving software-LaserGRBL(free), LightBurn(paid); supports Win XP / Win 7 / Win 8 / Win 10, Mac and Linux system; file types BMP, JPG, PNG, JPEG, SVG etc

4 Safety Protection

1: Active Position Protection; 2:Exposure Duration Detection and Limitation; 3:Laser Beam Safety Guard; 4:Current Safety Control System; full safety protection allows you to hook on your project without any worry

Dual Eye Protection

Aufero Laser engraver features a protective cover which effecitvely protects your eyes from dazzling beam; comes with a pair of goggles for more protection; works on food, MDF, paperboard, plywood, black acrylic, leather, power coated metal, stone, etc.



Specification

Specification	Motherboard: OLM-PRO-V1.2 Motherboard, with 32Bits ESP32MCU Firmware: V1.80 series Firmware Safety Precautions:   1. Active Position Protection 2. Exposure Duration Detection and Limitation 3. Laser Beam Safety Guard 4. 24V Power Delivery System 5. Power control system, if shut down the machine, it would cut the power Add-ons: 1. Aufero Control Box (Offline Controller) 2. Adjustable Z-axis Lifting   3. YRR 2.0 Rotary Roller 4. Detachable Cover Frame Materials:  Aluminum  + Acrylic Motors: NEMA 17 Stepper Motors Mechanical Precision: Y:12.5um X:12.5um Pixel Accuracy: Adjustable (Default: 300 pixels per inch, about 0.81um Pixel Accuracy) Engraving Area: 390mm x 390mm Available Laser Modules:(Luminous Power: 1,000-1,600mw) Wave Length:445±5nm Focus: Fixed Focus Default Focal Length: 50mm(from the heat sink to the object) Control Mode: PWM Power Rate: SO-S1.000 Engraving Speed:0-10,000MM/Min Baud Rate: 115200-921600 (Default: 115200) Computer OS: Win XP, Win 7, Win 8, Win 10 (LaserGRBL); Mac and Linux (LightBurn) Control Softwares: LaserGRBL (free), LightBurn (Paid Software) Input Format: JPG, JPEG, PNG, BMP, SVG, etc. Input Voltage: 10V-220V (Compatible). Power Adapter Output: 24V/2A Operating Temp: 0°C-65°C Supported Materials:  1.6mm plywood 2.8mm plywood 6mm pine board 9mm pine board 5mm acrylic Powder Coated Metals and Paint Sprayed Metal Plated Metal Anodized aluminum  - All the above materials can be engraved only. 3mm cardboard, cuttable 0.1mm A4 paper, cuttable 250g kraft paper, cuttable 0.7MM leather, cuttable 0.5mm black non-woven fabric, cuttable  - Above materials can be both engraved and cut. Tin wire, soluble Cobblestone, ceramic and stainless steel are not supported.
Weight & Size	Product Weight: 3.0kg Package Weight: 4.16kg Product Size(L x W x H):  582x580x140mm Package Size(L x W x H): 630x290x110mm
Package Contents	1× LU2-2 Laser Module 1× Thumb Screw 1× Laser Shield 2× Screws + Nuts  1× Focal Gauge  1× Y-axis Left Part 1× Y-axis Right Part 1× X-axis Upper Part 1× X-axis Front Part 1× X-axis Rear Part 1× Laser Wire 4× M5 Cap Nuts 4× M5x25mm Screws 4× M5x8mm Screws  4× ।M5 Spacers  4× Wrench  1× 3.0mm Allen Wrench 12× Cable Ties 1× Anodised Aluminum Plate for Adjusting Focus 1× Acrylic Plate for Testing 4× Wooden Plates for Testing  1× Power Adapter 1× USB Cable 1× Brush 1× Laser Goggles 1 x User Manual
