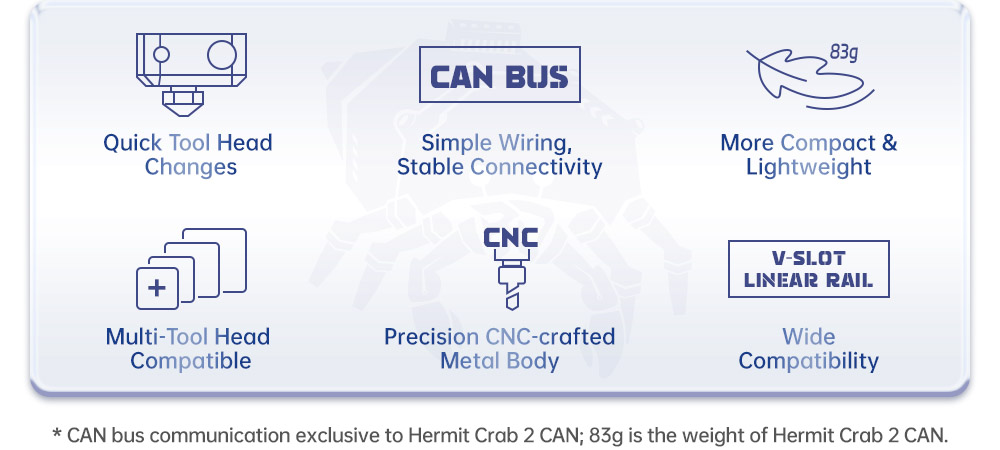

Highlights

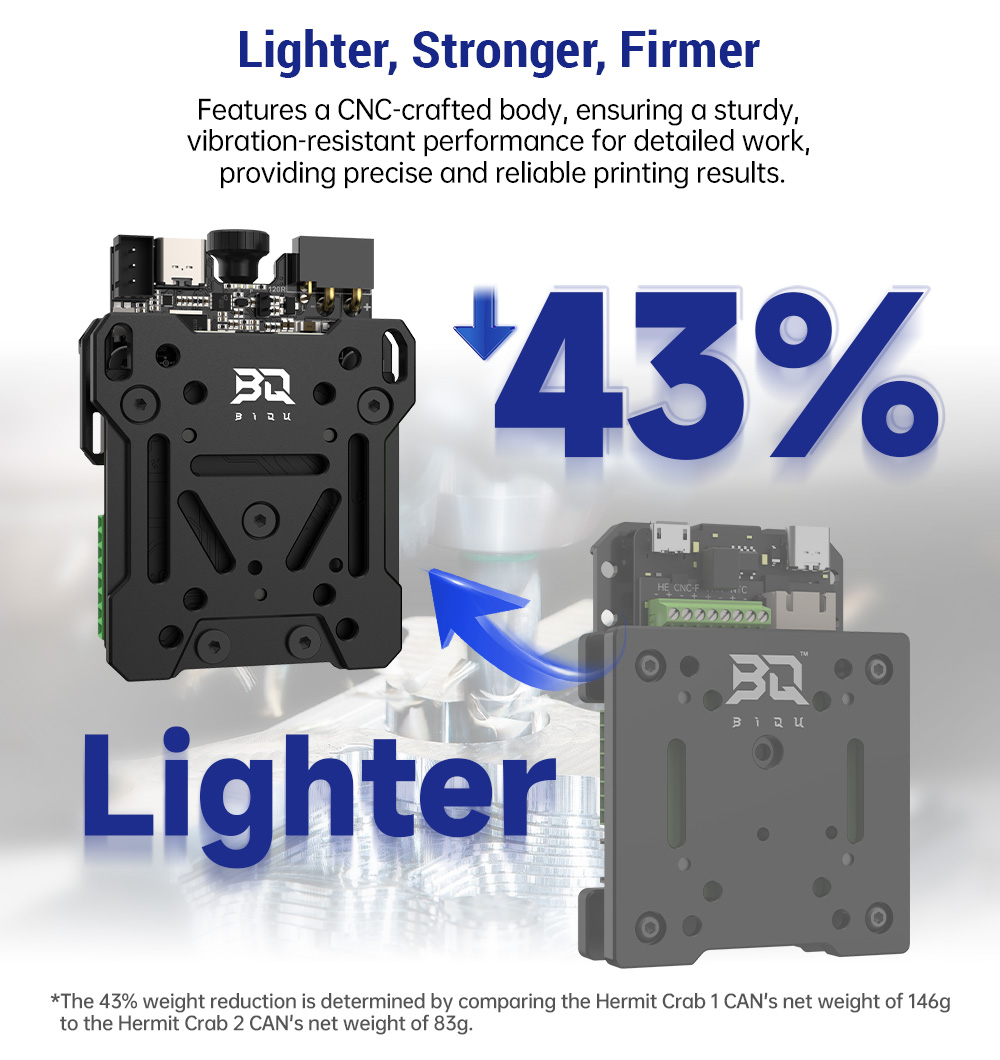

Lightweight Innovation
Through the careful optimization design of the metal structure, the weight of the fixed plate has been successfully reduced, and a more compact configuration of components has been achieved, reducing the overall weight by 63g. At the same time, the connecting parts are upgraded to ensure a perfect and seamless connection between the tool plate and the fixed plate.

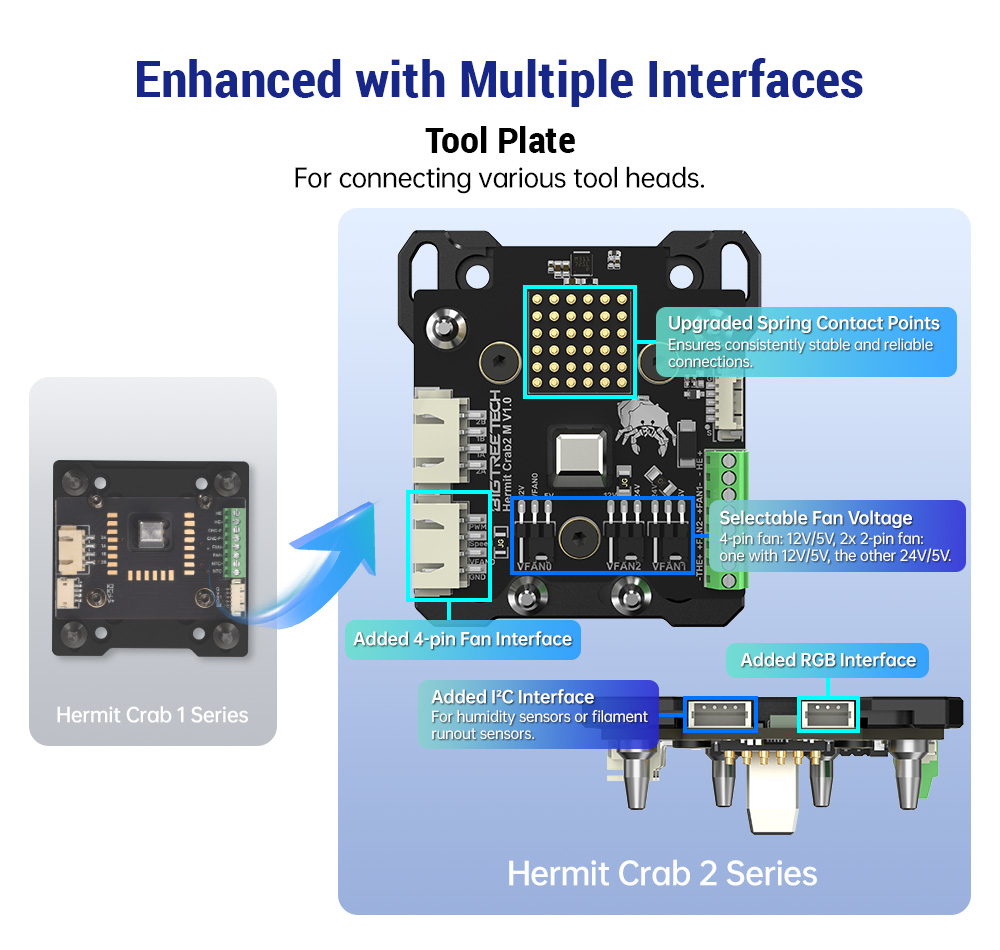

Strong Scalability

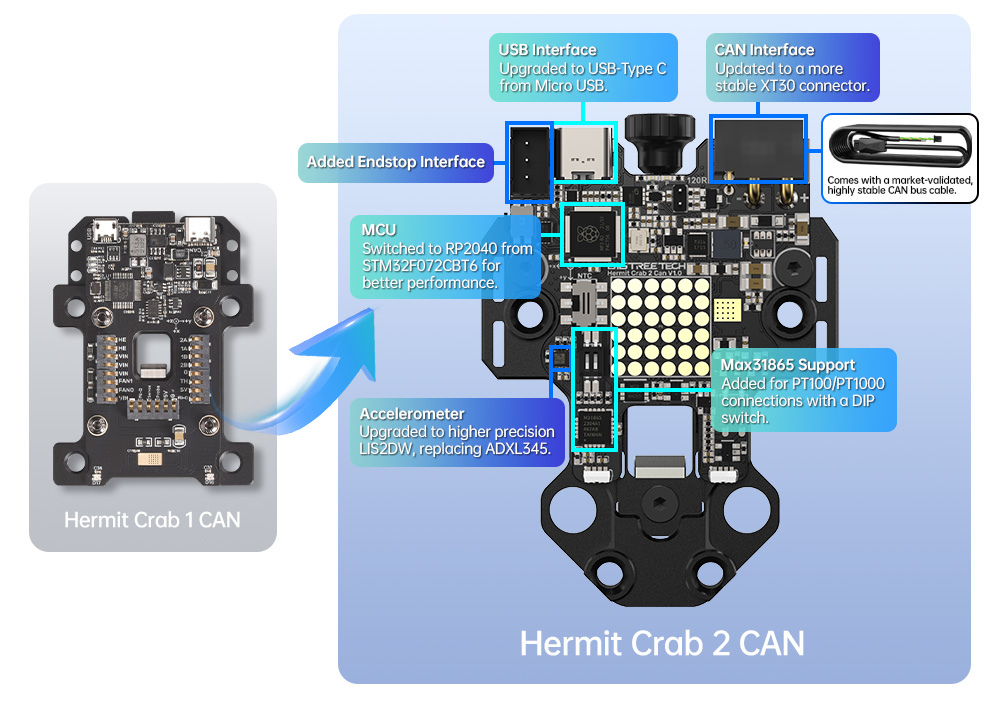

The Hermit Crab V2 CAN version specially designed for Klipper firmware users introduces the latest LIS2DW accelerometer, X-axis limit switch, Max31865, and upgrades to the USB interface and CAN interface to provide users with a smarter and more efficient 3d printing experience.

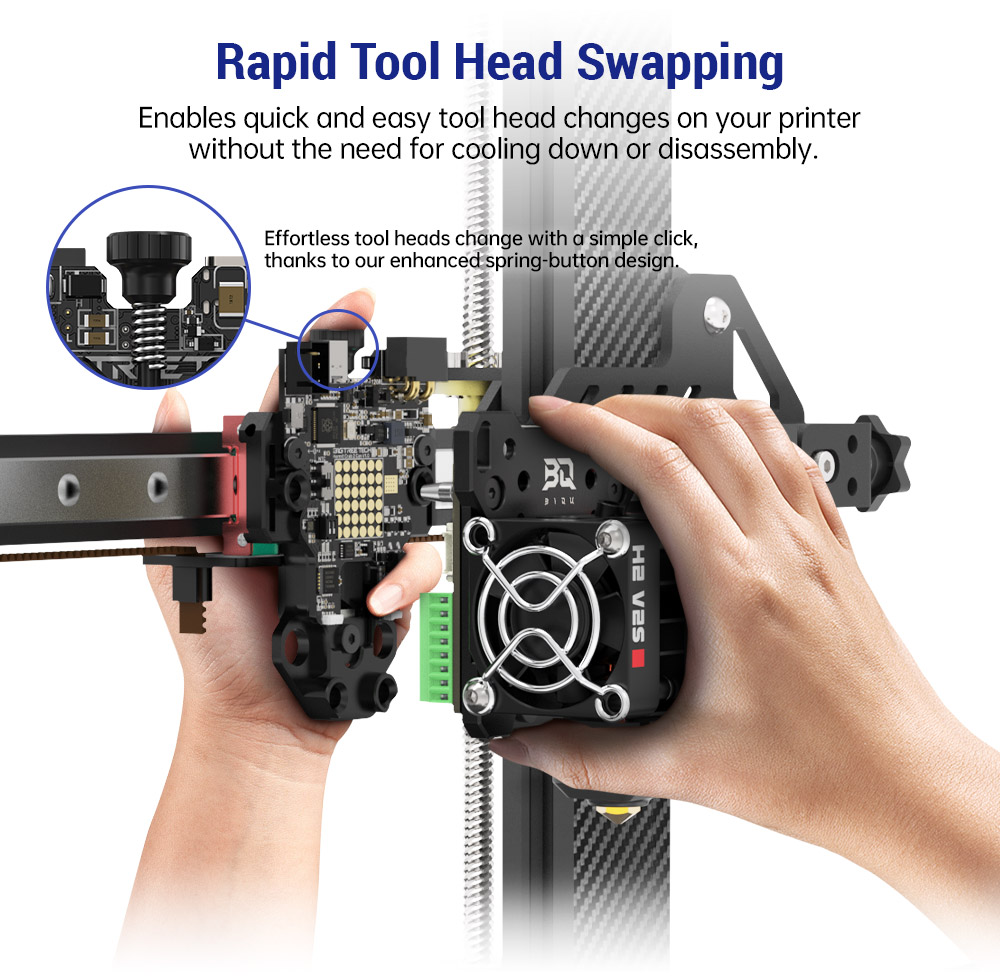

Easy to Disassemble
The circular buckle structure and the spring contact on the tool plate complement each other. The extrusion head can be easily removed by simply pressing the spring, making the operation simple and fast.

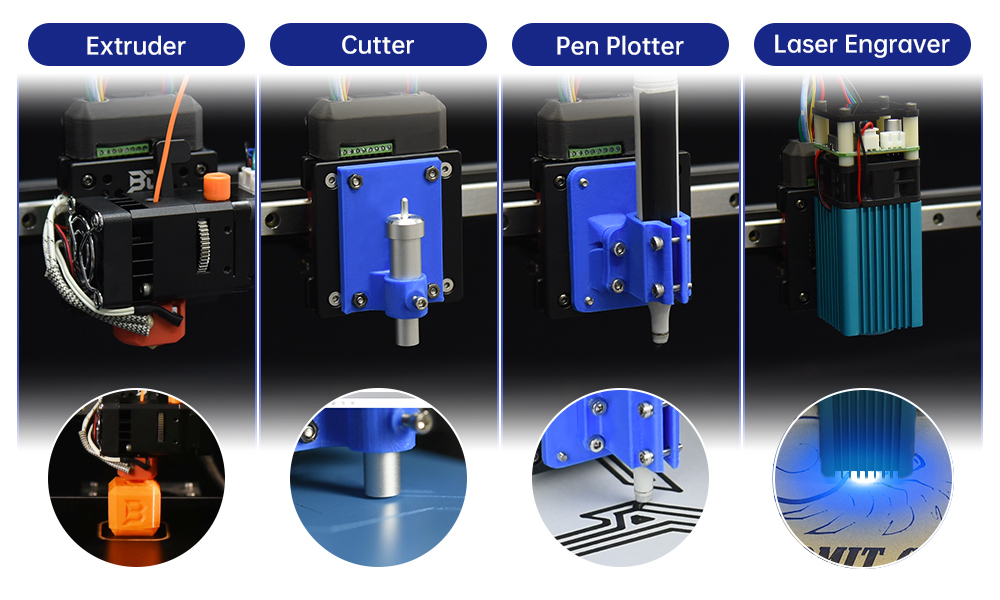

Multi-Tool Head Compatibility
Compatible with a variety of tool heads. Flexible adaptation to various types of tool heads, including different types of print heads (such as H2, E3D Hemera, etc.), laser cutting machine tool heads, pen plotter tool heads, etc., to meet the diverse printing needs of users.

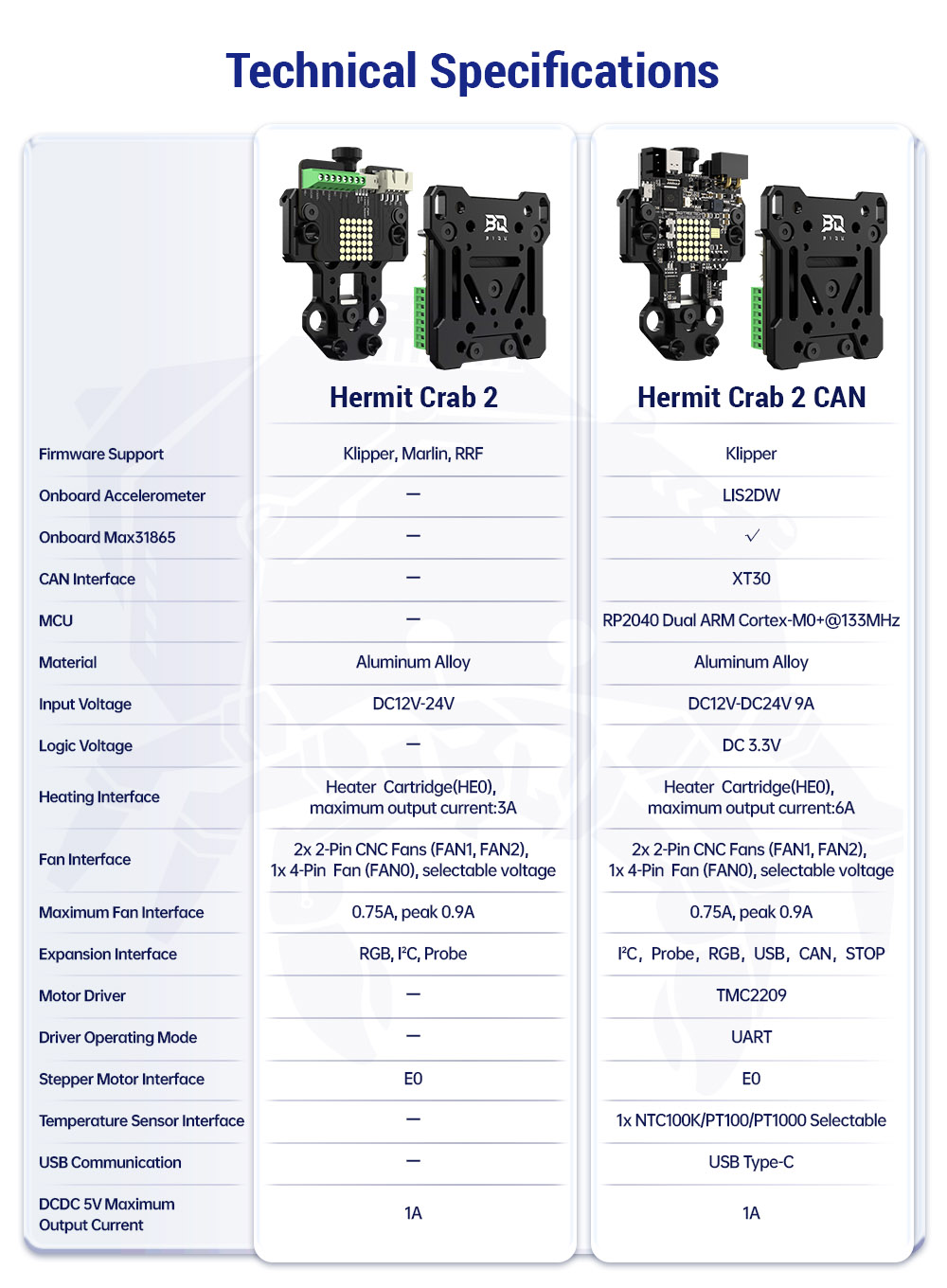

Specification
| General | Brand: BIQU Type: Extruder Hotend Tool Model: Hermit Crab V2.0-CAN Version Color: Black |
| Specification | Firmware Support: Klipper Onboard Accelerometer: LIS2DW Onboard Max31865: Yes CAN Interface: XT30 MCU: RP2040 Dual ARM Cortex-MO+@133MHz Input Voltage: DC12V-DC24V 9A Logic Voltage: DC 3.3V Heating Interface: Heater Cartridge(HEO), Maximum Output Current: 6A Fan Interface: 2x 2-Pin CNC Fans(FAN1, FAN2), 1x 4-Pin Fan(FAN0), Selectable Voltage Maximum Fan Interface: 0.75A, Peak 0.9A Expansion Interface: I²C, Probe, RGB, USB, CAN, STOP Motor Driver: TMC2209 Driver Operating Mode: UART Stepper Motor Interface: E0 Temperature Sensor Interface: 1x NTC100K/PT100/PT1000 Selectable USB Communication: USB Type-C DCDC 5V Maximum Output Current: 1A |
| Weight & Size | Package Weight: 0.726kg Package Size(L x W x H): 8x6x2.5cm |

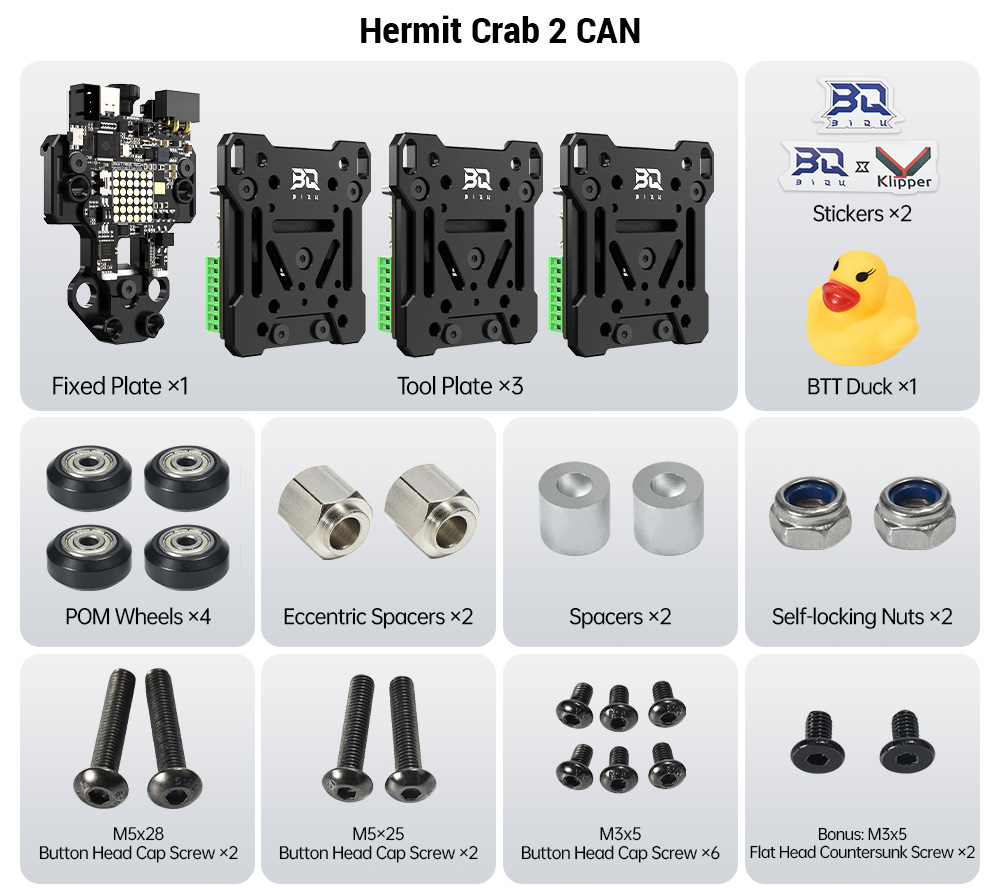

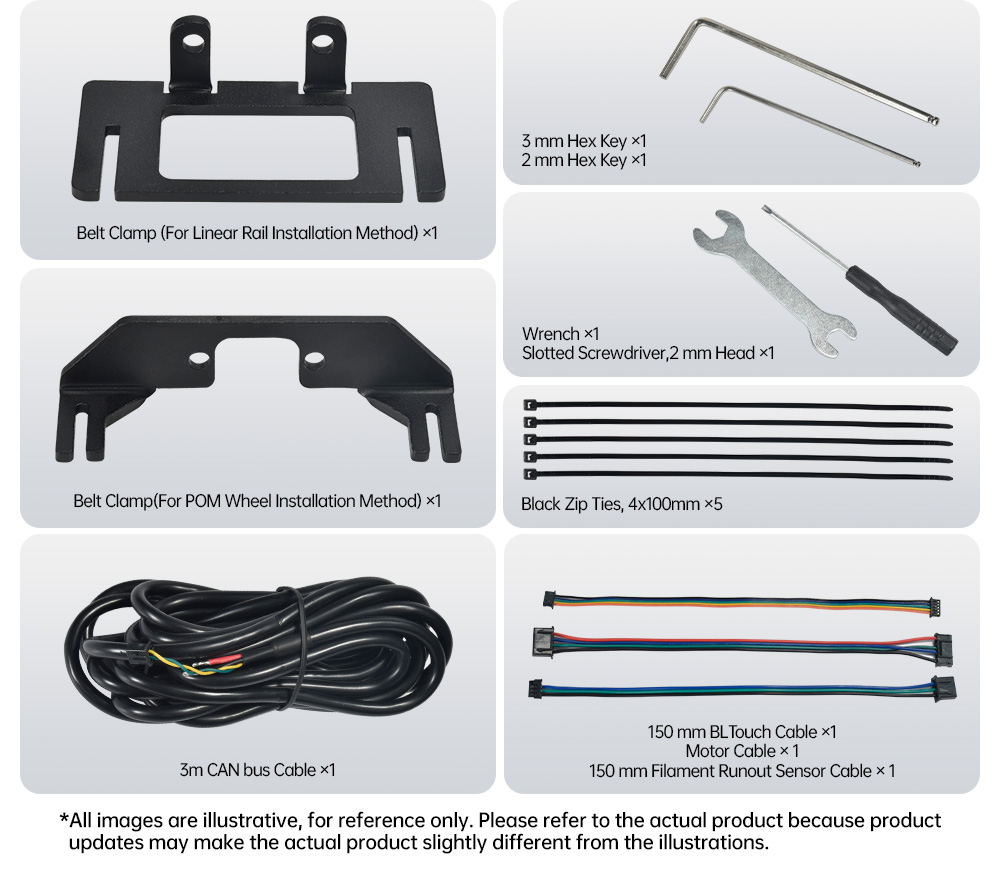

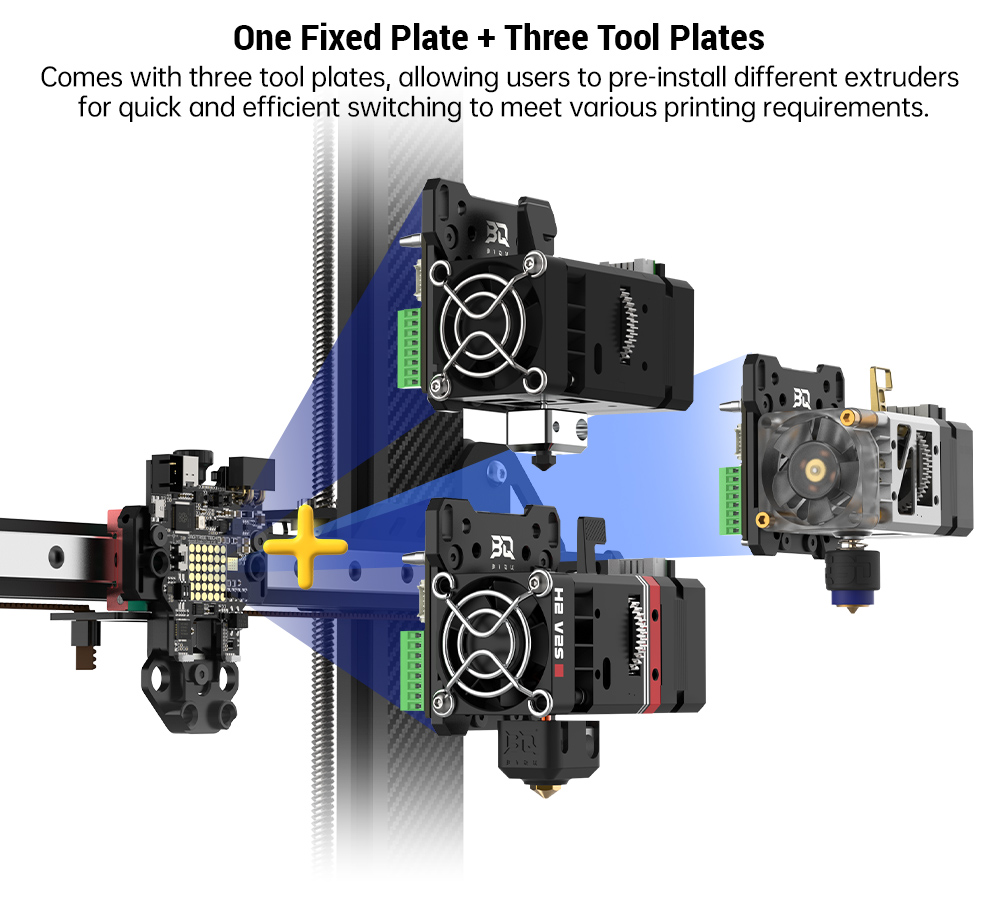

| Package Contents | 1 x Fixed Plate 3 x Tool Plate 1 x BTT Duck 1 x Belt Clamp(For Linear Rail Installation Method) 4 x POM Wheels 2 x Eccentric Spacers 2 x Spacers 2 x Self-locking Nuts 1 x Belt Clamp(For POM Wheel Installation Method) 2 x M5x28 Button Head Cap Screw 2 x M5x25 Button Head Cap Screw 6 x M3x5 Button Head Cap Screw 2 x Bonus:M3x5 Flat Head Countersunk Screw 1 x 3m CAN Bus Cable 1 x 3 mm Hex Key 1 x 2 mm Hex Key 1 x Wrench 1 x Slotted Screwdriver, 2 mm Head 5 x Black Zip Ties, 4x100mm 1 x 150 mm BLTouch Cable 1 x Motor Cable 1 x 150 mm Filament Runout Sensor Cable |
