Highlights
NFe-Probe/Eddy Current
The paint depth tester can measure the thickness of nonconductive coating layers covering the nonferrous substrate, such as enamel, rubber, paint, varnish, and plastic anodic-oxide layer covered on the nonferrous substrates (aluminum, brass, zinc, tin, and nonmagnetic stainless steel).
Fe-Probe/Magnetic Induction
The car paint mill thickness gauge can measure the thickness of non-magnetic coating layers on magnetic substrates, such as aluminum, chrome, copper, enamel, rubber, and paint on magnetic substrates (steel, iron, alloy, and magnetic stainless steel).
High Precision
Mearsuring range: 0-1500µm (0-59.1mils); Resolution: 0.1µm/0.01mils; Accuracy: Fe-probe ±(3%+2µm), NFe-probe ±(3%+2µm). µm and mil units are switchable.
Wide Application
The digital coating thickness meter is widely used in manufacturing companies, shipbuilding, aircraft industries, metal machinery industries, chemical industry, and especially in automobile/car trading.
Rechargeable and Convenient
The BSIDE rechargeable coating thickness gauge comes with a rechargeable battery and a charging cable, ensuring that you never have to worry about running out of power during your measurements.
Specification
| General | Brand: BSIDE Type: Coating Thickness Gauge Model: T2X Color: Black |
| Specification | Display: LCD screen Battery pressure indication: LCD screen Power supply: built-in 3.7V 400mA battery Working altitude: maximum 2000 meters Fe probe (iron base): electromagnetic induction NFe probe (aluminum/copper and other non-magnetic substrates): eddy current effect Test range: 0 to +(3%+2μm) Accuracy: +(3%+2μm) Resolution: 0.1μm Minimum substrate thickness: 0.5mm Calibration: Zero calibration, multi-point calibration Units: μm microns, mil mils Minimum convex radius of curvature: 1.5mm Minimum concave radius of curvature: 25mm Minimum measurement area diameter: 6mm Temperature: 0-40°C(32-104°F) Humidity: 20%~90%RH; No strong magnetic field |
| Weight & Size | Product Weight: 109.3g Package Weight: 241g Package Size(L x W x H): 135*87*45mm |

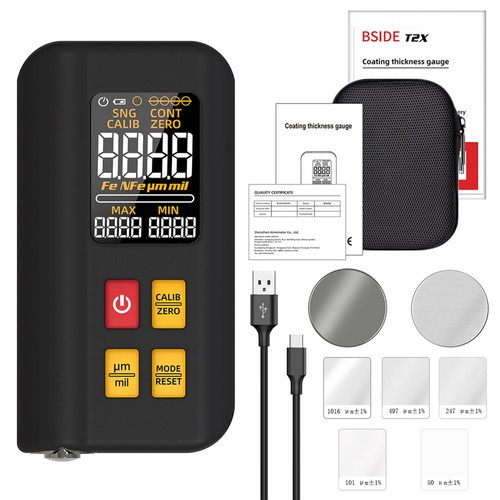

| Package Contents | 1 x Coating Thickness Gauge 1 x EVA Bag 1 x User Manual |
