Highlights

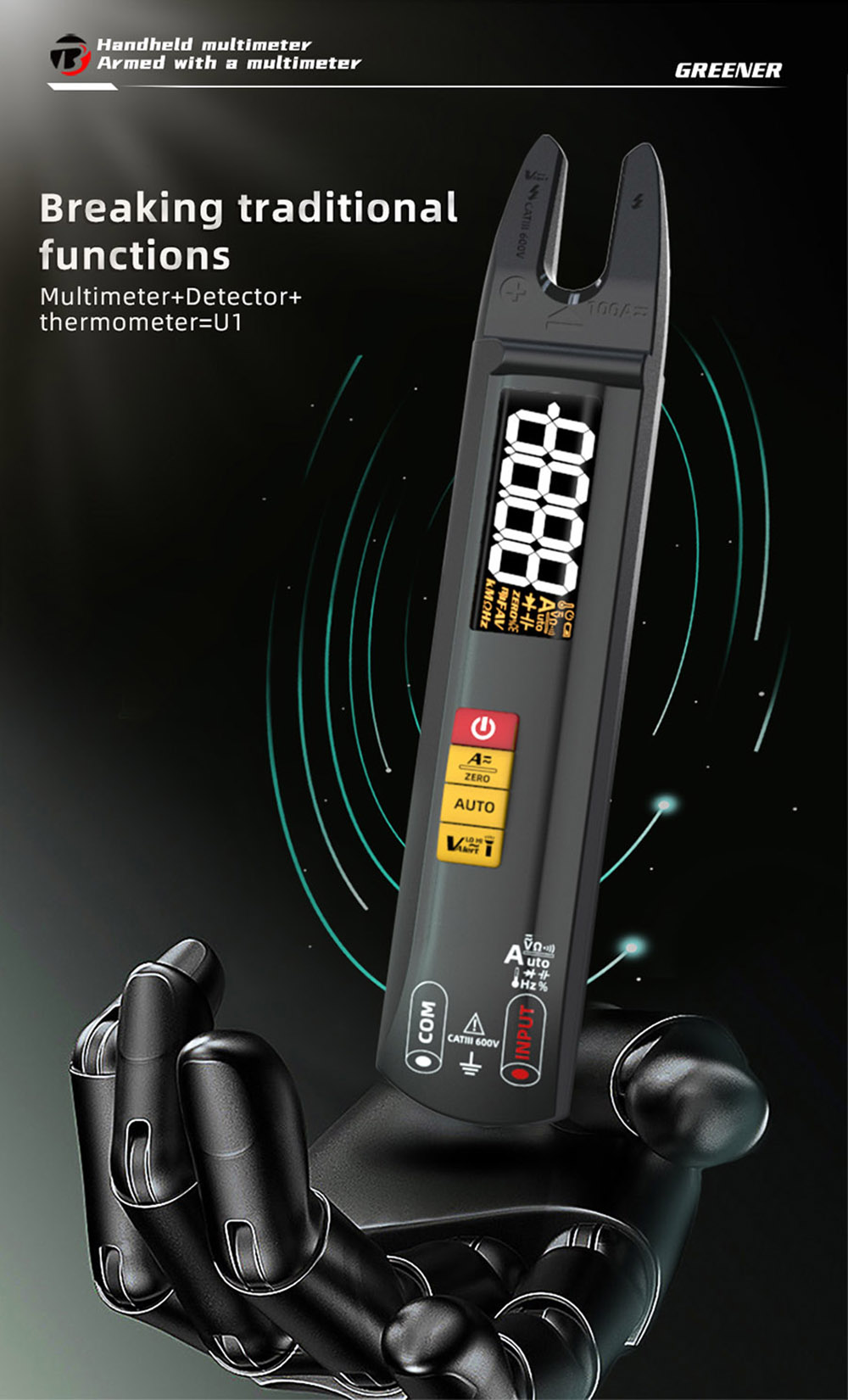

1. Electric pen current multimeter 3-in-1 function electric pen + current clamp + multimeter.

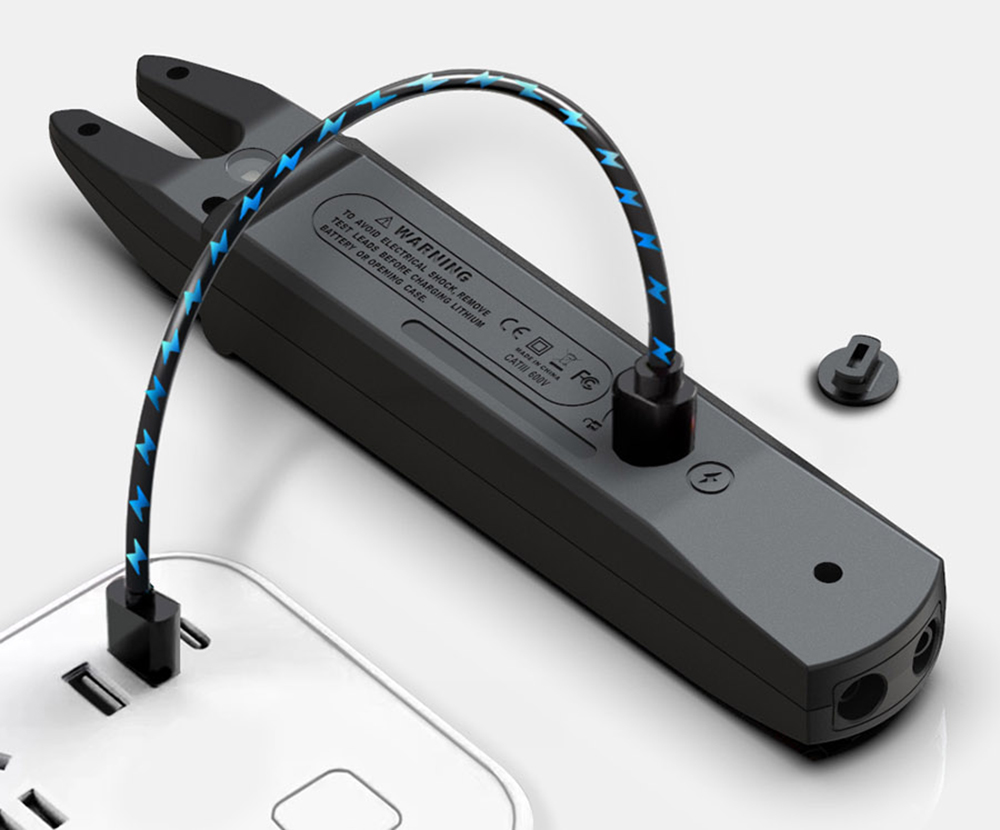

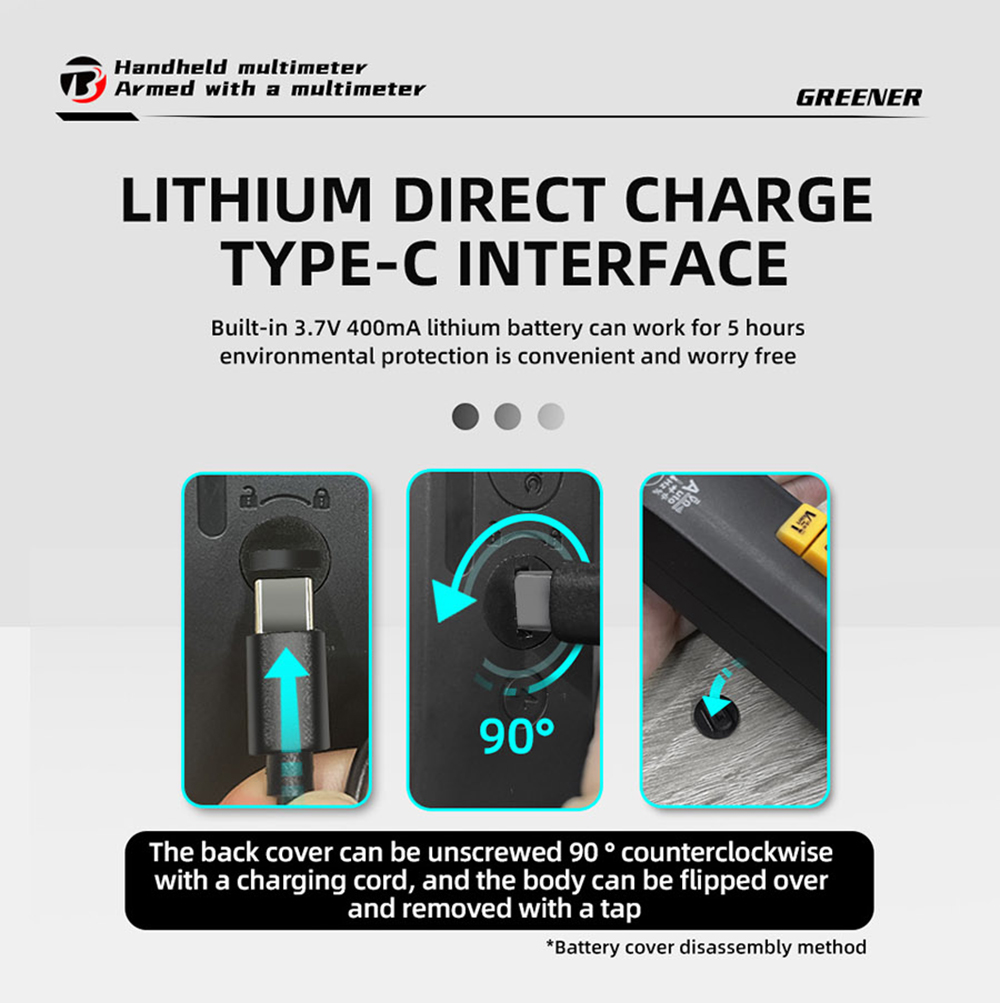

2. Lithium battery power supply is convenient and lasts longer to use.

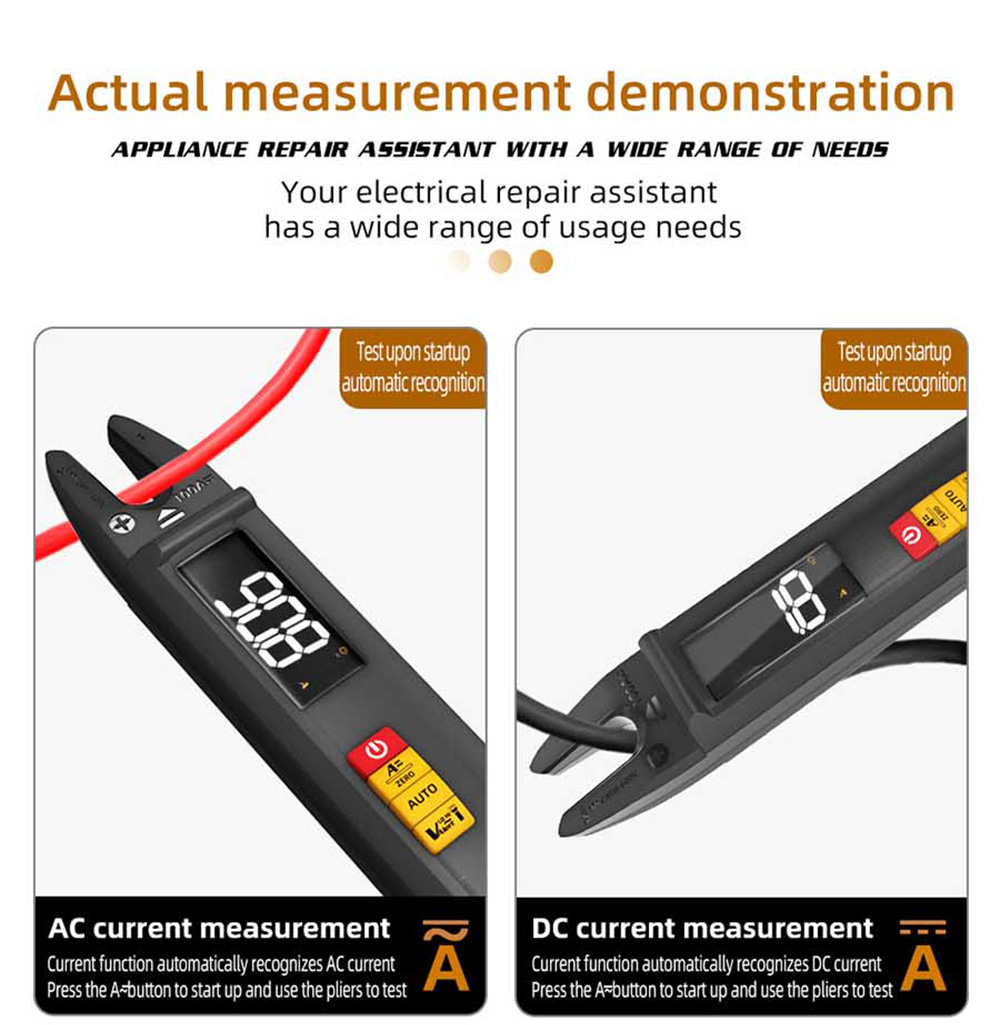

3. The current sensor supports the range of 0.5 to 100 amps, can automatically identify AC and DC currents, and can also be switched manually.
4. Support DC manual zero mode.

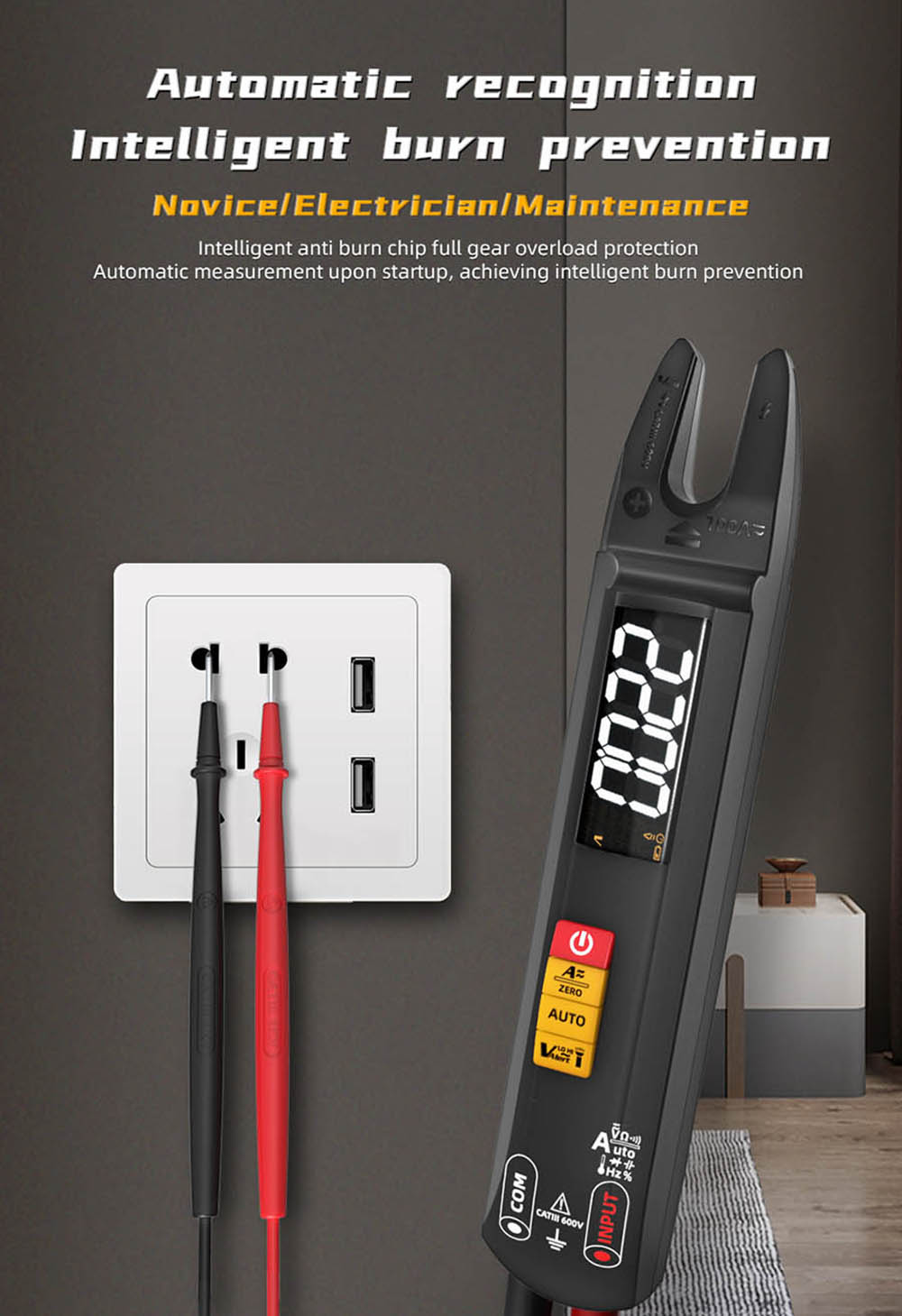

5. Support voltage/resistance/on/off automatic identification.

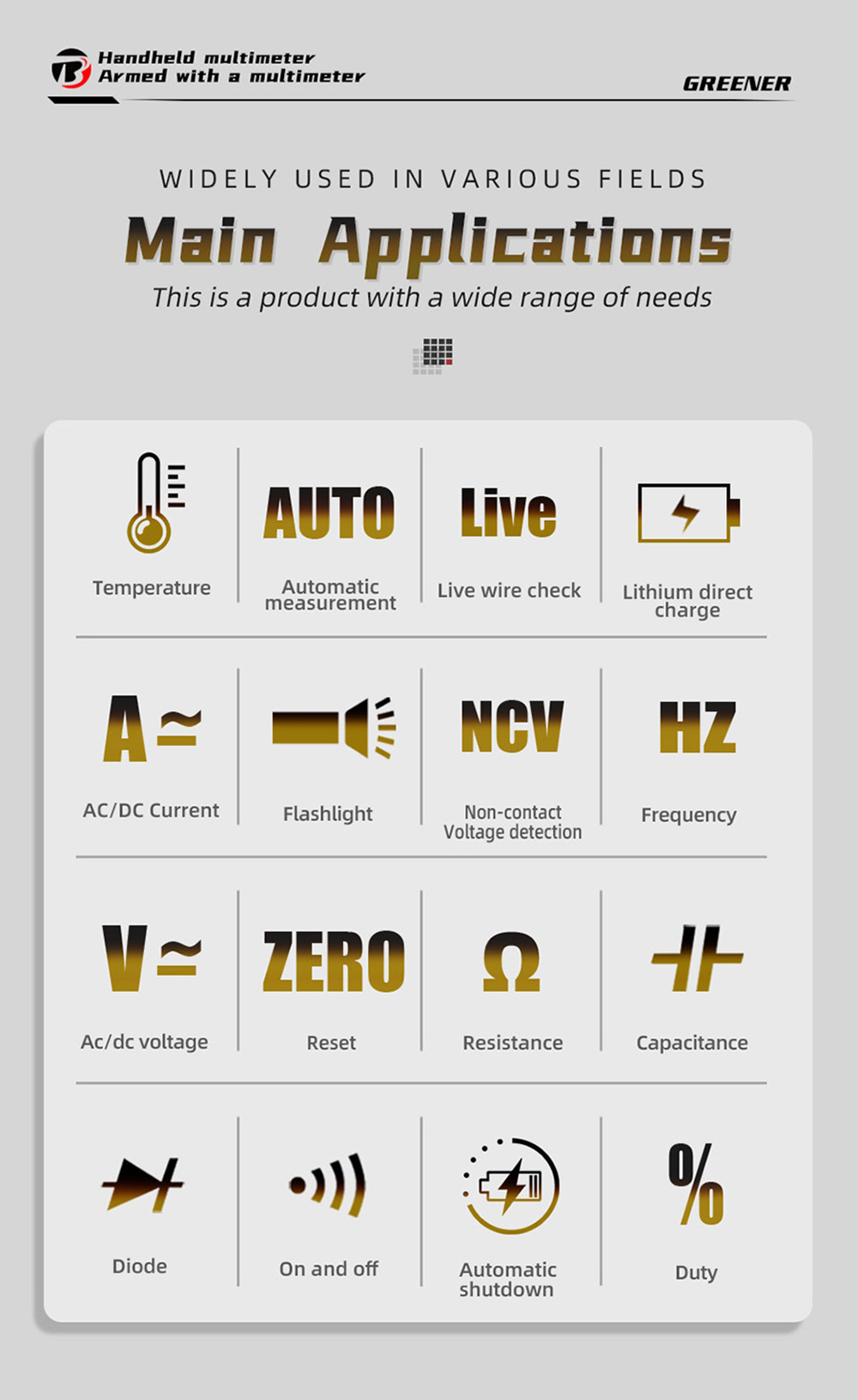

6. Multimeter function supports voltage, resistance, on/off, diode, capacitance, frequency, duty cycle, temperature.

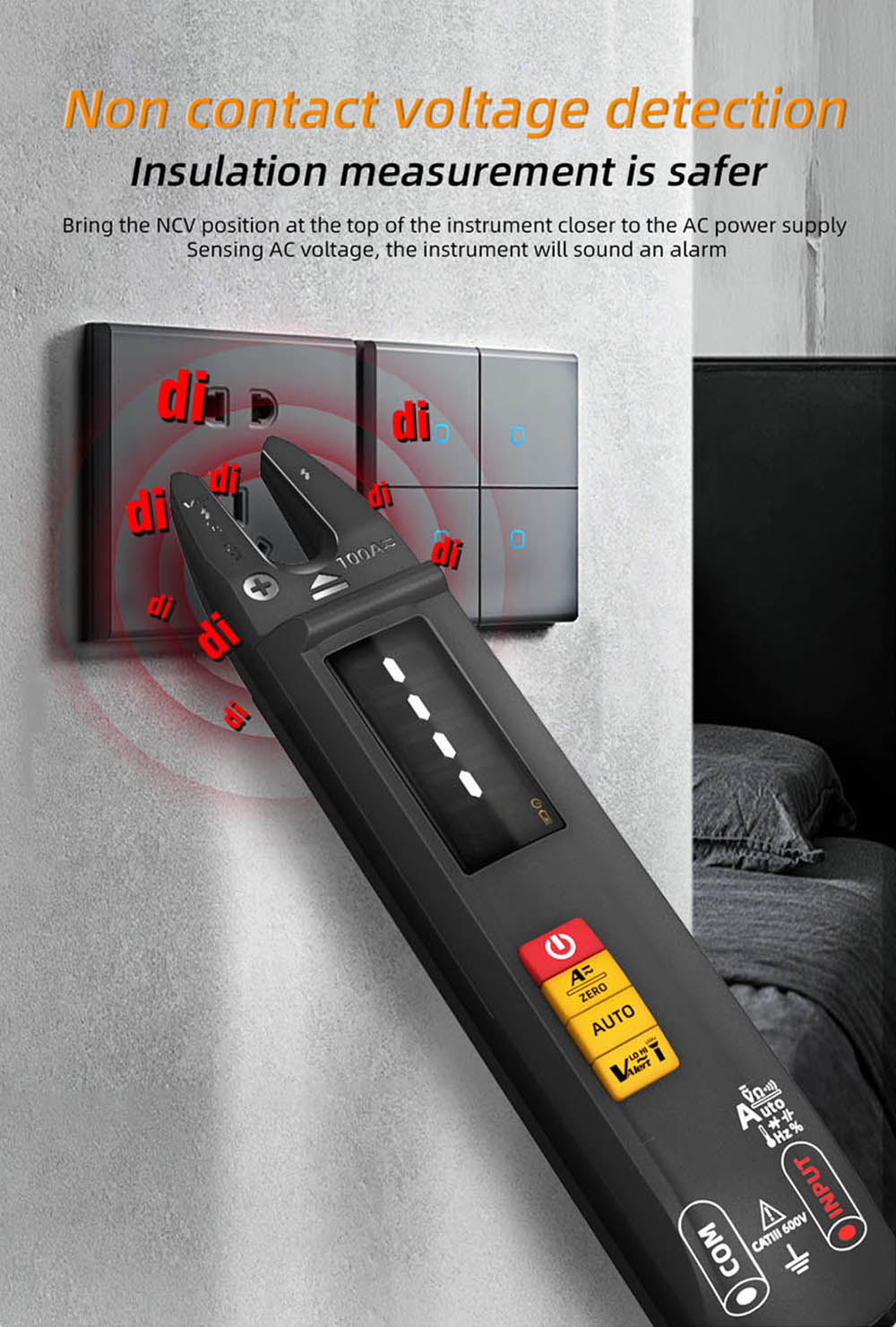

7. Non-contact testing current and non-contact detection of AC voltage (low sensitivity mode).
8. Night light function.
9. Support to turn on and cancel the auto-off function.
Specification
| General | Brand: BSIDE Type: Clamp Multimeter Model: U1 Color: Black |
| Specification | DC Voltage: 0-610V, 0.001±(0.8%+3) AC Voltage: 0-610V, 0.001±(1.0%+3) DC current: 1-100A, 0.1A±(2.5%+5) AC current: 1-100A, 0.1A±(2.5%+5) Resistance: 0.1Ω-60MΩ, 0.1Ω±(1.2%+3) Capacitance: 0.01μF-60mF, 0.1Ω±(1.2%+3) Frequency: 1Hz-9.999MHz, 0.001Hz±(2.0%+10) Duty cycle: 10.0-95.0%, 0.1%±3.0% Temperature K-type thermocouple: -50-1000°C, 1°C±(2.0%+3) Ambient Temperature : 0-50°C, 1°C±2.0°C Continuity: If the resistance <50Ω, the buzzer sounds and red blacklight on. Diode: Measure diodes within 3V V~Alert: Yes Live Wire Check: Yes Flashlight: Yes Auto power off: 15 minutes Power: 3.7V 400mA Lithium Battery |
| Weight & Size | Product Weight: 0.14kg Package Weight: 0.30kg Package Size(L x W x H): 200*85*43mm |

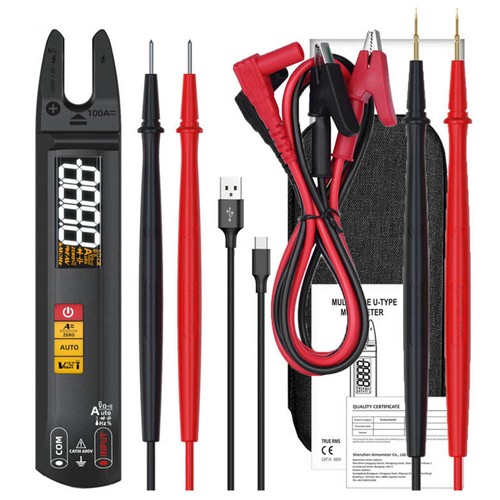

| Package Contents | 1 x Clamp Multimeter 1 x User Manual |
