Highlights

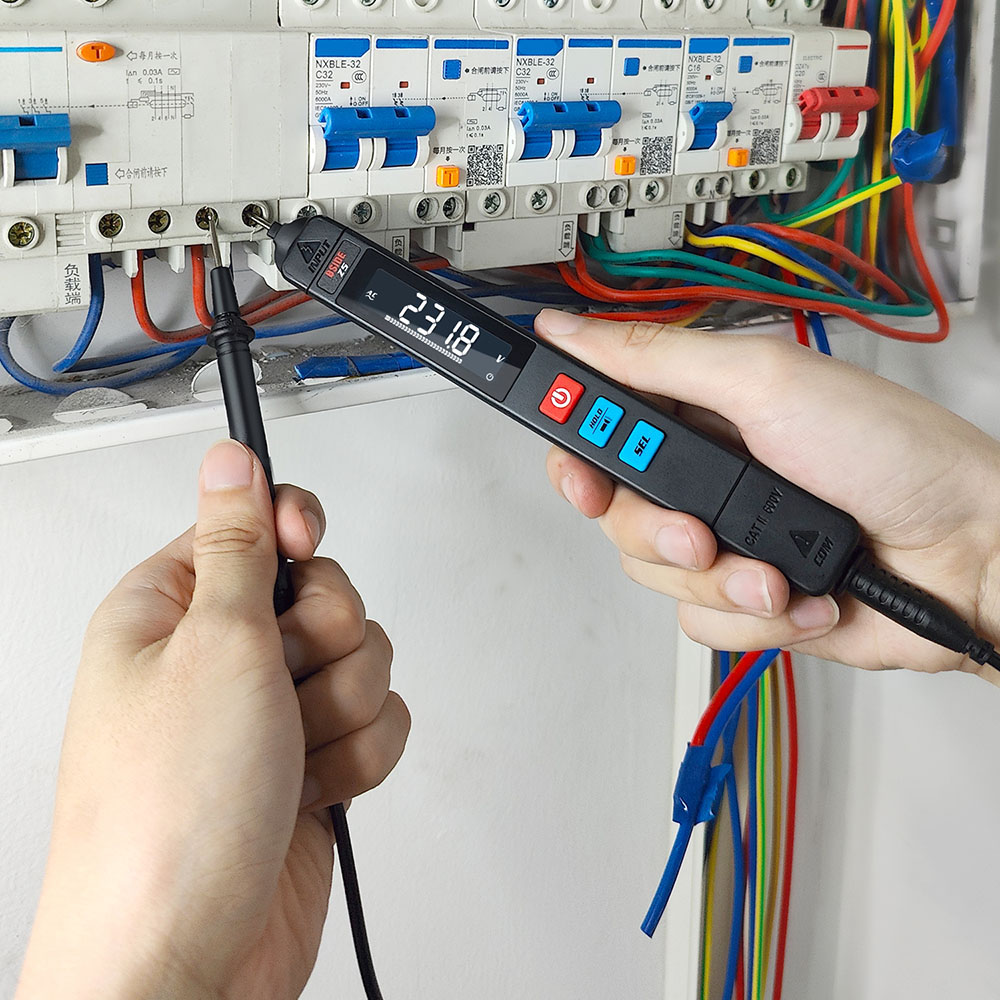

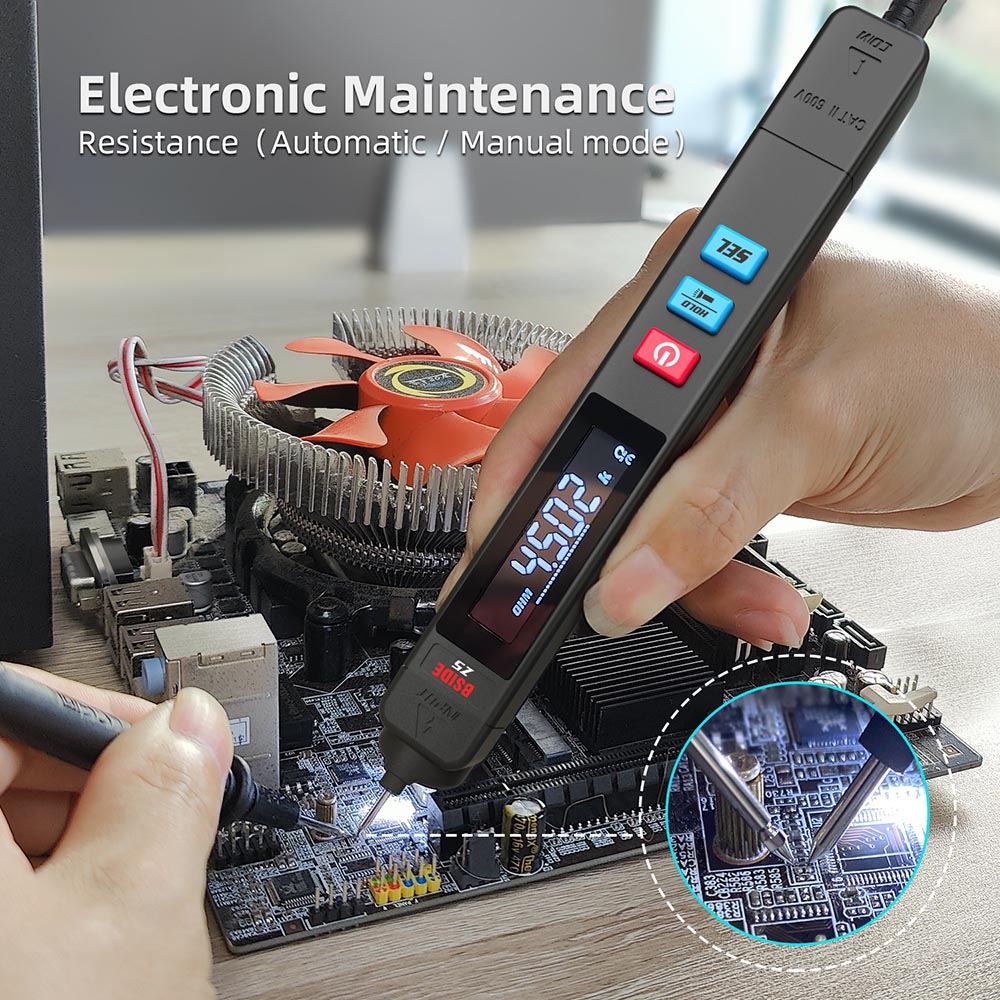

Handheld portable pen-shaped multimeter for electrician maintenance, mainboard detection, line breakpoints, zero fire line identification, voltage resistance, capacitance, diode inspection.
Specification

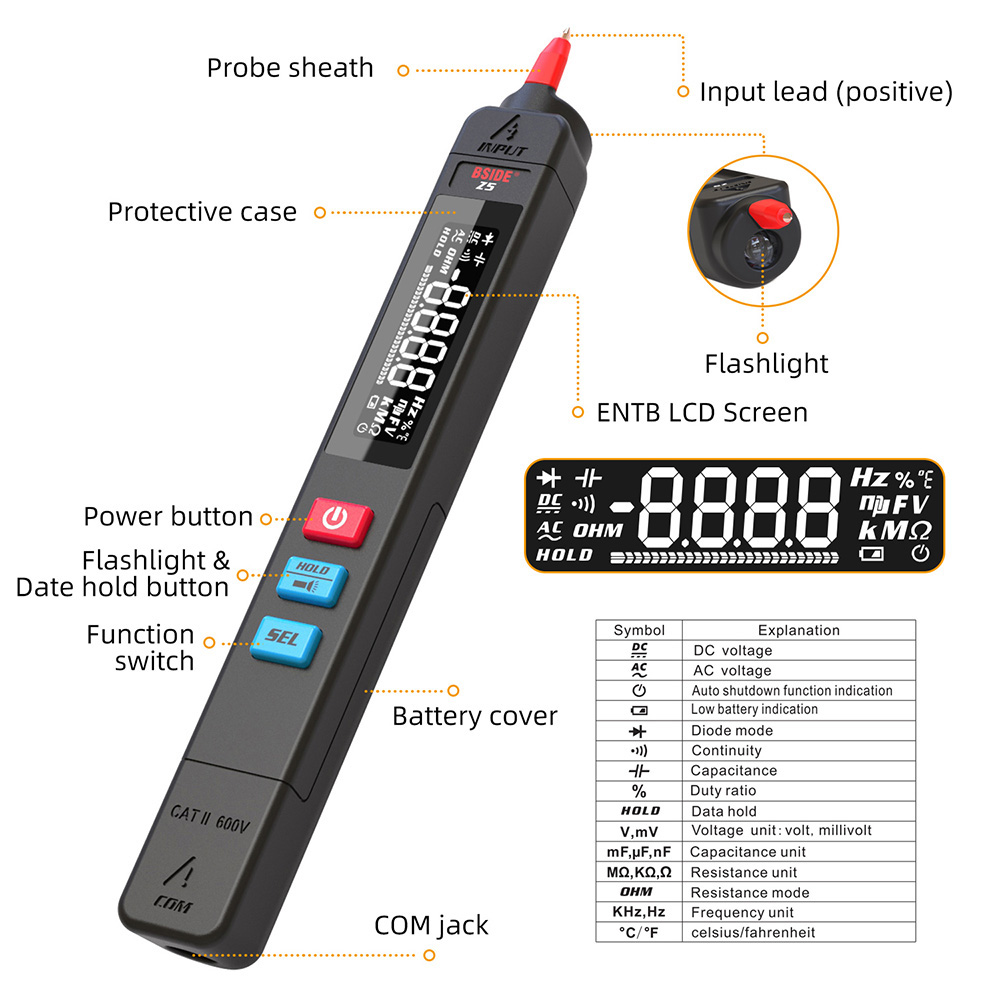

| General | Brand: BSIDE Type: Digital Multimeter Model: Z5 Color: Black |

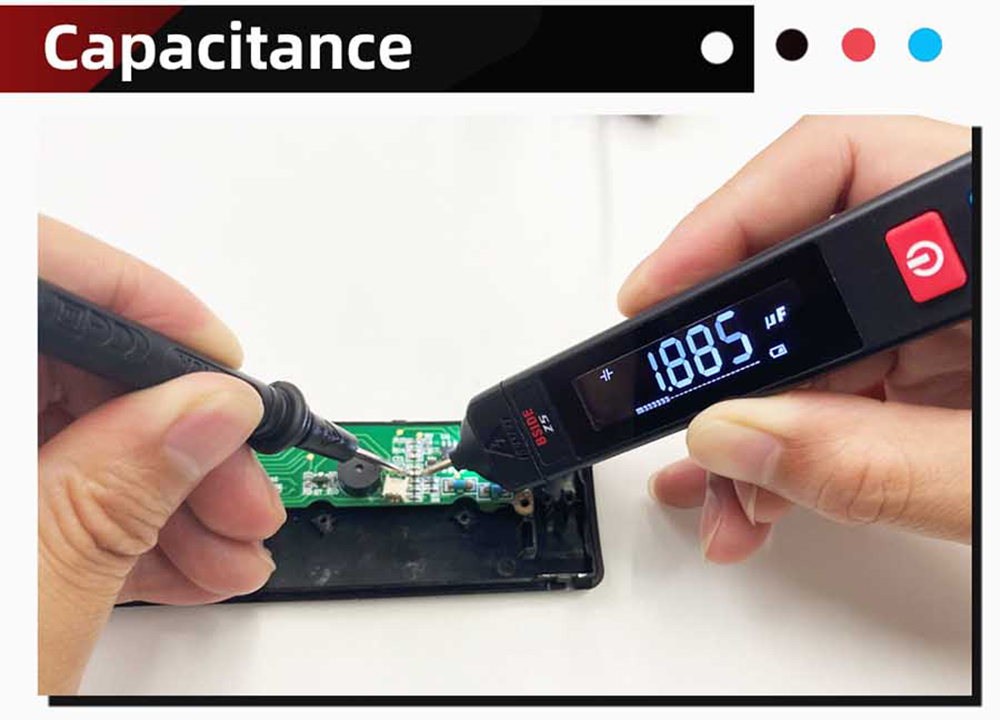

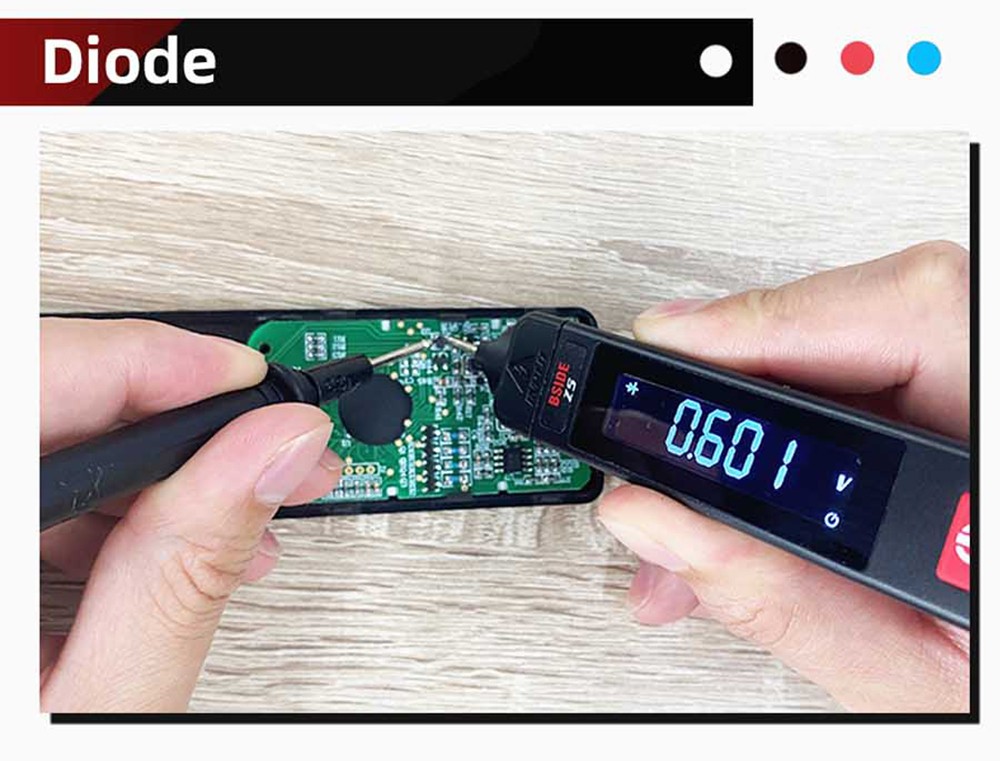

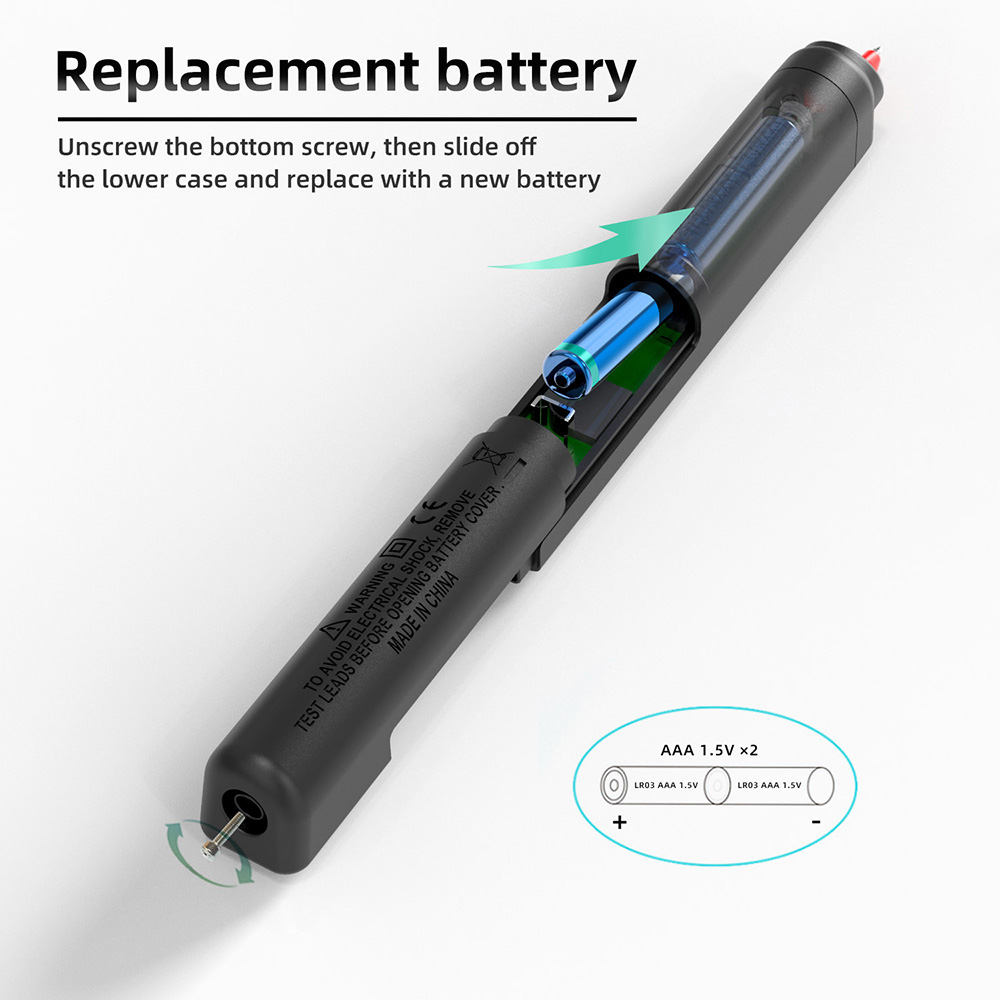

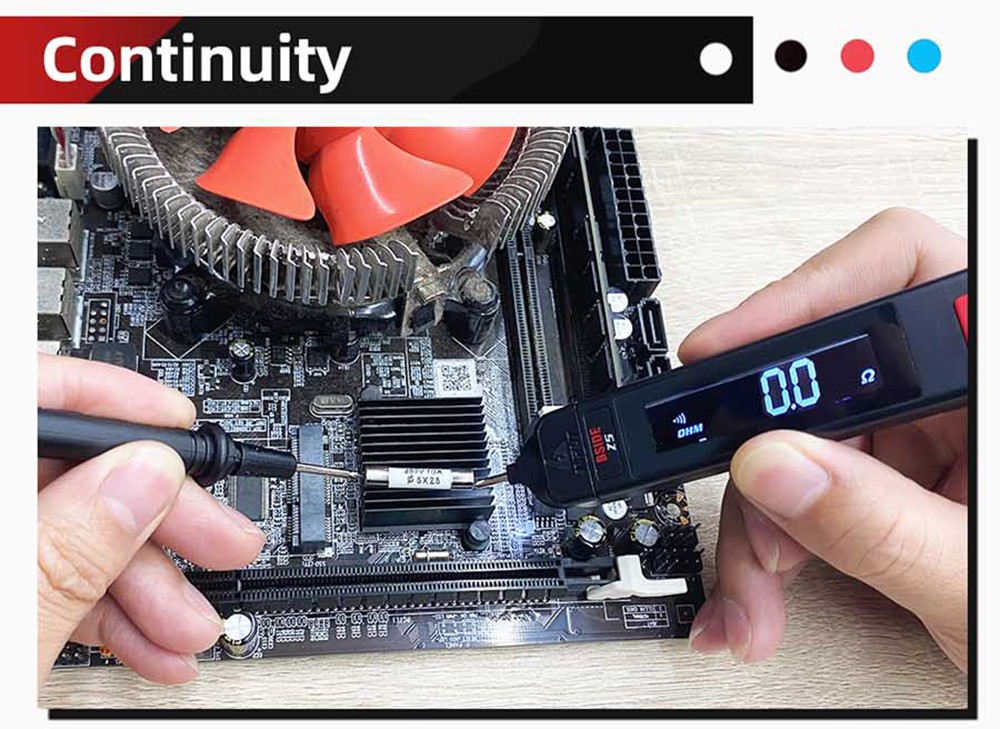

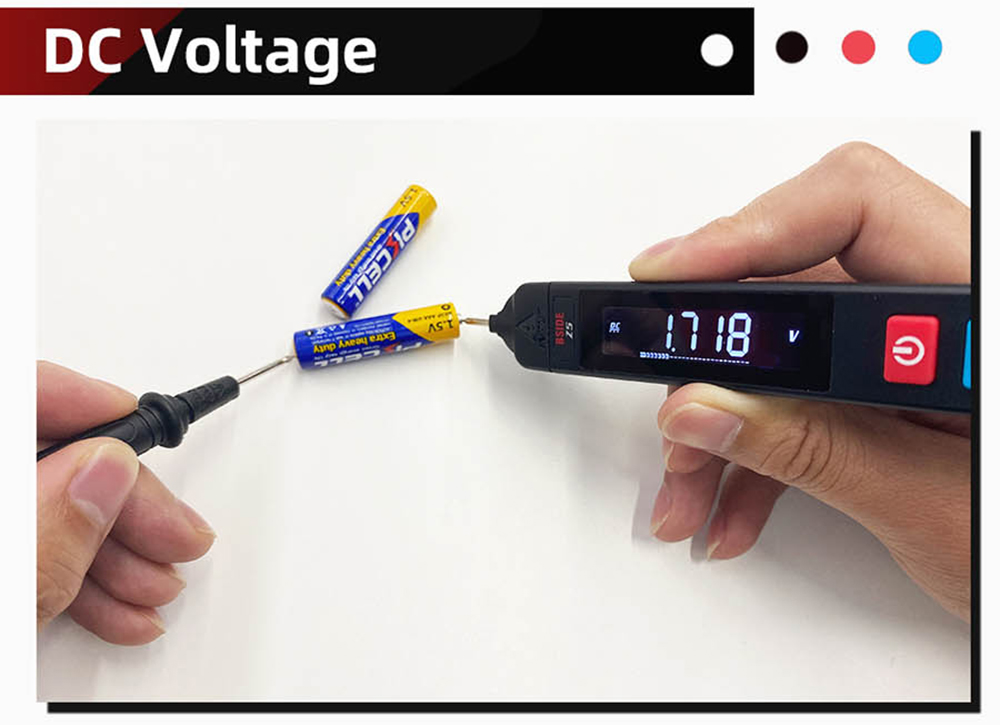

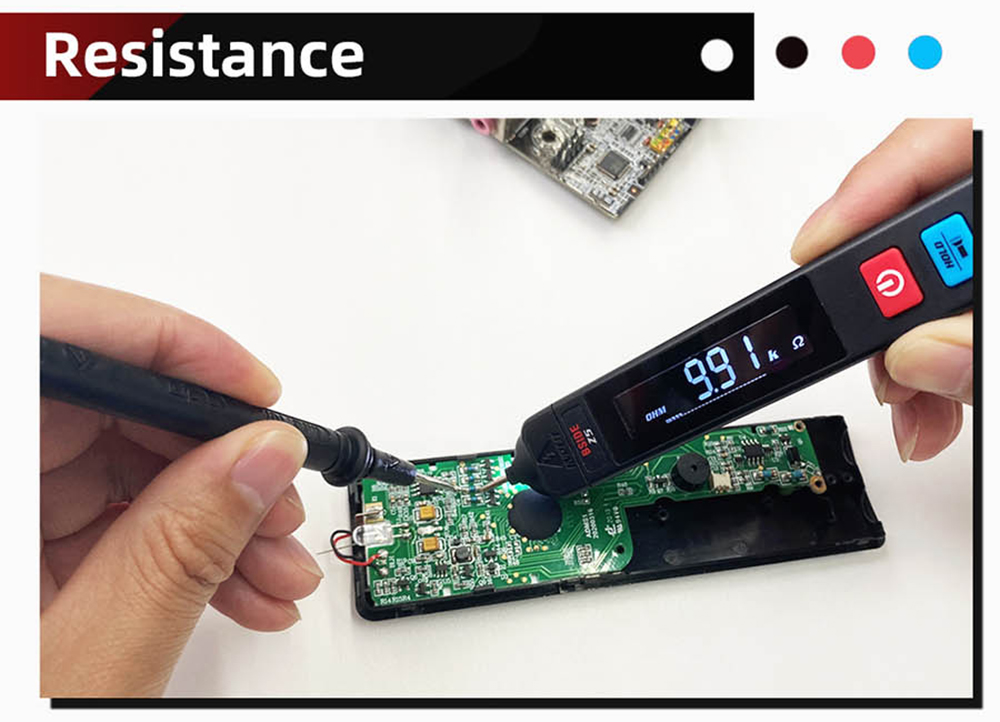

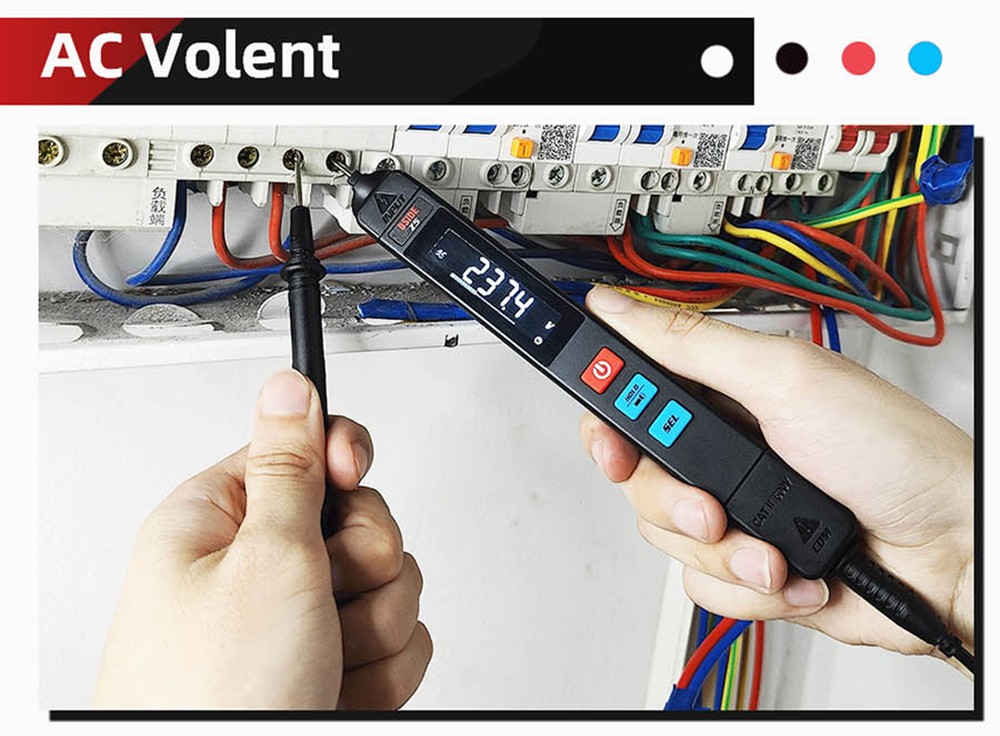

| Specification | Max Display: 6000 counts Display Type: digital screen Screen: 1.9 inch DC Voltage: 0.1V-600V ±(0.8%+3); Resolution: 0.001V AC Voltage: 0.1V-600V ±(1.2%+5); Resolution: 0.001V Resistance: 0.1Ω-10MΩ ±(1.2%+3), 10MΩ-60MΩ ±(2.0%+10); Resolution: 0.1Ω Capacitance: 1nF-1.00mF ±(3.5%+8), 1mF-60.00mF ±(4.5%+10); Resolution: 0.001nF Frequency: 10Hz-10MHz ±(2.0%+10) (ACV: 3V-600V); Resolution: 0.1Hz Duty Cycle: 0.1%-99.9% ±(1.5%+5) ; Resolution: 0.1% Power: 2*1.5V AAA battery (Not included) Diode: Auto-identify diode if less than 3.0V V-Alert(non-contact voltage detection): alarm beep sounds, LCD screen display stripe Live Check: alarm beep sounds, LCD screen display stripe Continuity: If the resistance is less than 50Ω, the beeper sounds |
| Weight & Size | Product Weight: 52g Package Weight: 213g Package Size(L x W x H): 21.5x7x4.5cm |
| Package Contents | 1 x Digital Multimeter 1 x User Manual |
