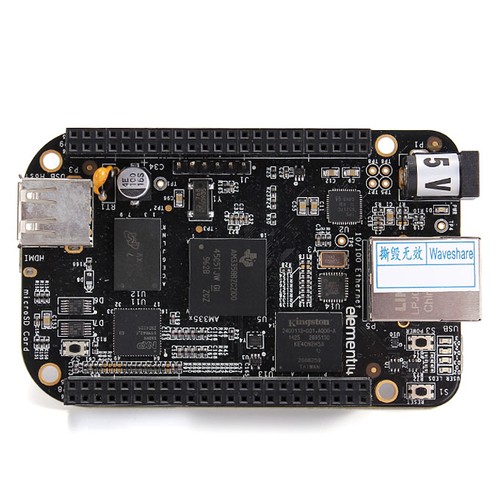

BeagleBone BB Black TI AM335x Cortex A8 Development Board (REV C) from BeagleBoard Family

Highlights

• BeagleBone Black is an MSRP community-supported development platform for developers and hobbyists. Boot Linux in under 10 seconds and get started on development in less than 5 minutes with just a single USB cable.

Specification

• Processor: TI Sitara AM335x, 1GHz, 2000 MIPS
  • 1 GHz ARM® Cortex™-A8
  • SGX530 Graphics Engine
  • Programmable Real-Time Unit Subsystem
• Memory
  • SDRAM: 512MB DDR3L 800MHZ
  • eMMC Flash:
    • Rev B: 2GB (discontinued)
    • Rev C: 4GB (as of 2014.05.21)
• SD/MMC Connector for microSD
• Power management: TPS65217C PMIC is used along with a separate LDO to provide power to the system
• Debug Support: Optional Onboard 20-pin CTI JTAG, Serial Header
• Power Source
  • miniUSB USB or DC Jack
  • 5VDC External Via Expansion Header
• Connectivity
  • High speed USB 2.0 Client port: Access to USB0, Client mode via miniUSB
  • High Speed USB 2.0 Host port: Access to USB1, Type A Socket, 500mA LS/FS/HS
  • Serial Port: UART0 access via 6 pin 3.3V TTL Header. Header is populated
  • 10/100M Ethernet (RJ45)
• User Input / Output
  • Reset Button
  • Boot Button
  • Power Button
  • LED power indicator
  • 4 user configurable LEDs
• Video/Audio Interfaces
  • HDMI D type interface
  • LCD interface
  • Stereo audio over HDMI interface
• Expansion Interfaces
  • LCD,  UART, eMMC
  • ADC, I2C, SPI, PWM
• Operating Power: 5V@0.35A
• Board Size: 3.4” x 2.1”
• Net Weight: 43g

What's in the box?

• 1 x BB Black
• 1 x USB type A plug to mini-B plug cable
• 1 x User manual
