Highlights

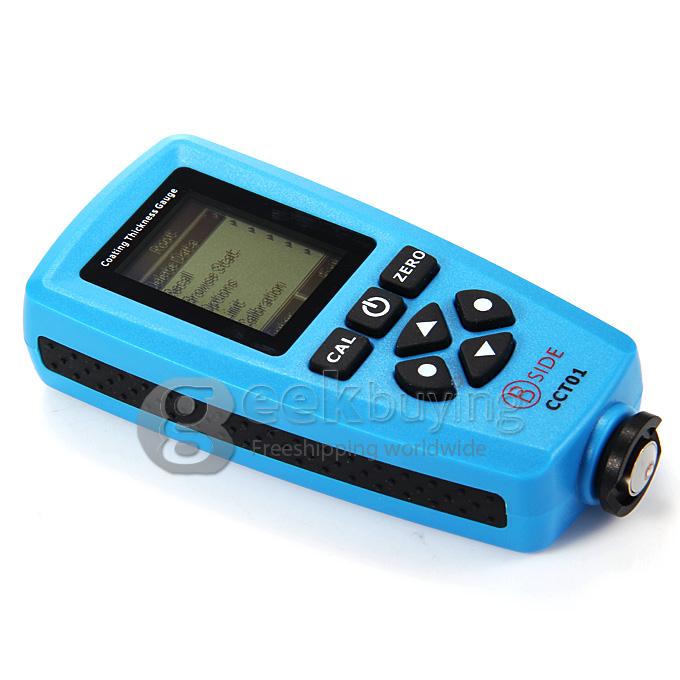

- A. 128*128 dot matrix LCD display, standard menu operations;
- B. Two measure mode: single and continuous;
- C. Two group mode: direct (DIR) and general(GEN), readings will be lost when power off in direct mode, and not be lost in general mode. 80 readings can be stored for each group;
- D. Zero point calibration and multi-point calibration(up to 4 points) for each group;
- E. User can recall, delete specified readings, or delete group readings;
- F. Statistics display: mean, minimum, maximum and standard deviation;
- G. Three probe mode: auto, magnetic and eddy current;
- H. User can set high or low limit alarm for each group;
- I. Power off automatically;
- J. USB interface to data transmission;
- K. Low battery and error indication;
Specification
| Brand | Bside |
| Model | CCT01 |
| Measuring principle | Magnetic induction (F-probe) and eddy current (N-probe) |
| Measuring range | 0 to 1300um (0 to 51.2mils) |
| Accuracy | ± (3% of readings+2um) ± (3% of readings+0.078mils) |
| Resolution | 0um~999um (1um), 1000um~1300um (0.01mm) 0mils~39.39mils (0.01mils), 39.4mils~51.2mils (0.1mils) |
| Calibration | One to four point calibration, zero calibration |
| Data Group | One direct group (readings not be stored to memory), four general group (readings can be stored), and each group have individual statistics, alarm settings and calibration; |
| Statistics | No. of readings, mean, minimum, maximum and standard deviation; |
| Units | um, mm and mils |
| Alarm | User can set the high/low alarm, and alarm icon displayed on LCD when over the limit; |
| Minimum curvature radius | convex 1.5mm(59mils) and concave 25mm(984mils) |
| Minimum measuring size | Diameter 6mm(236mils) |
| Minimum thickness of substrate | F-probe: 0.5mm(0.02"), N-probe: 0.3mm(0.012") |

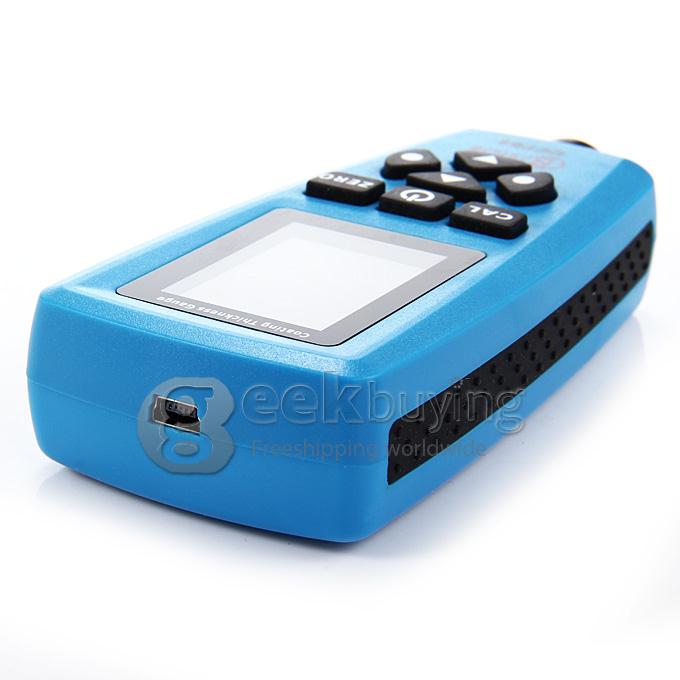

| Computer interface | Download data via USB interface |

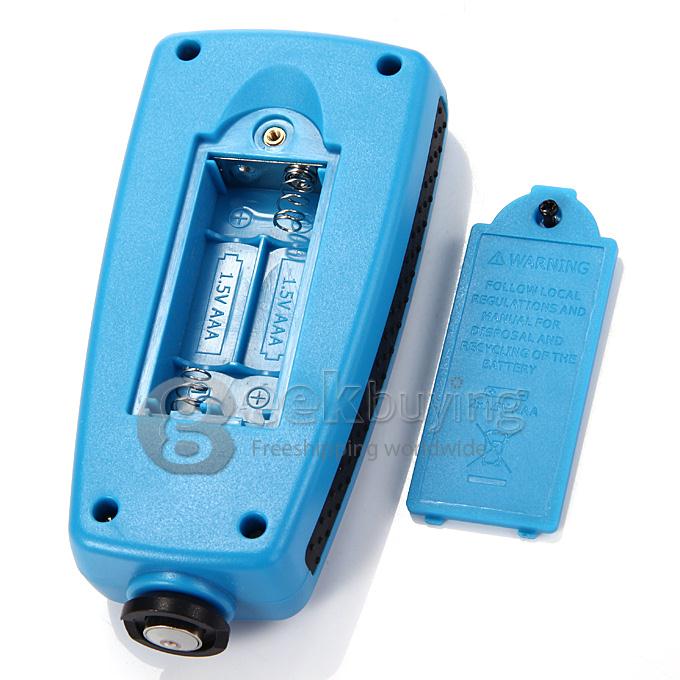

| Power supply | 2 x 1.5v AAA battery (not inclided) |
| Operation temperature | 0°C to 40°C(32Fto 104F) |
| Storage temperature | -20°C to 70°C(-4F to 158F) |
| Size | 110mm*53mm*24mm (4.33"*2.09"*0.94") |
| Weight | 86g (3.03oz) |

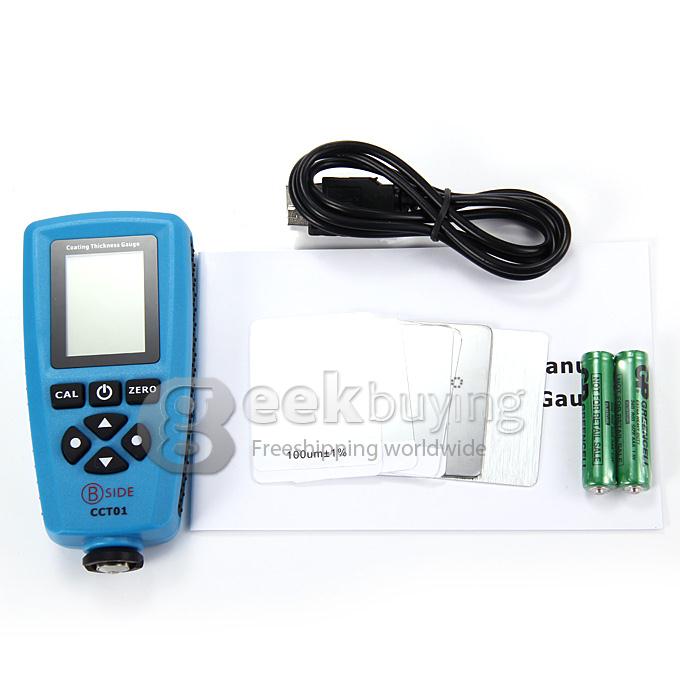

| Package cintent | 1 x Gauge 2 x Substrate 5 x Standard foil 1 x User Manual 1 x USB cable |
