Highlights
- General description CAN-BUS is a common industrial bus because of its long travel distance, medium communication speed and high reliability.
- It is commonly found on modern machine tools and as an automotive diagnostic bus.

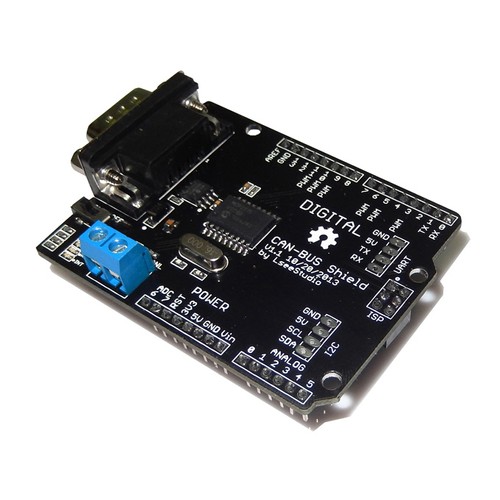

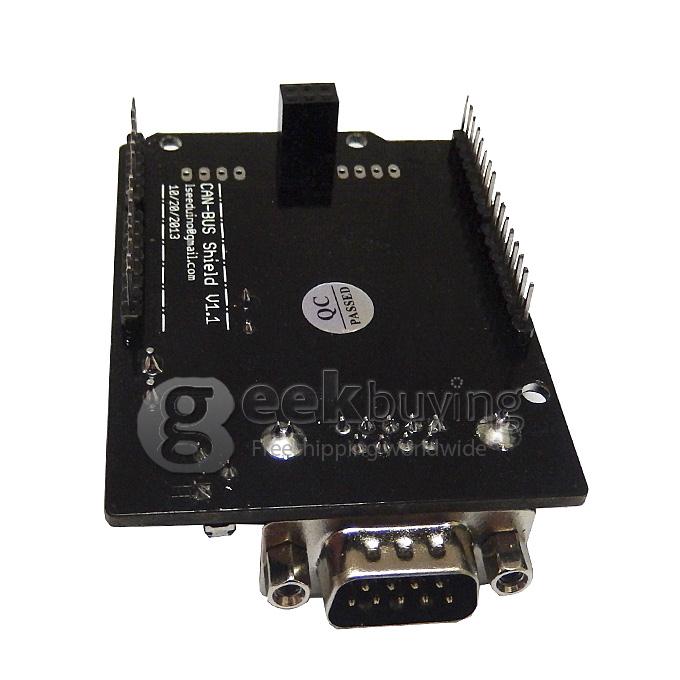

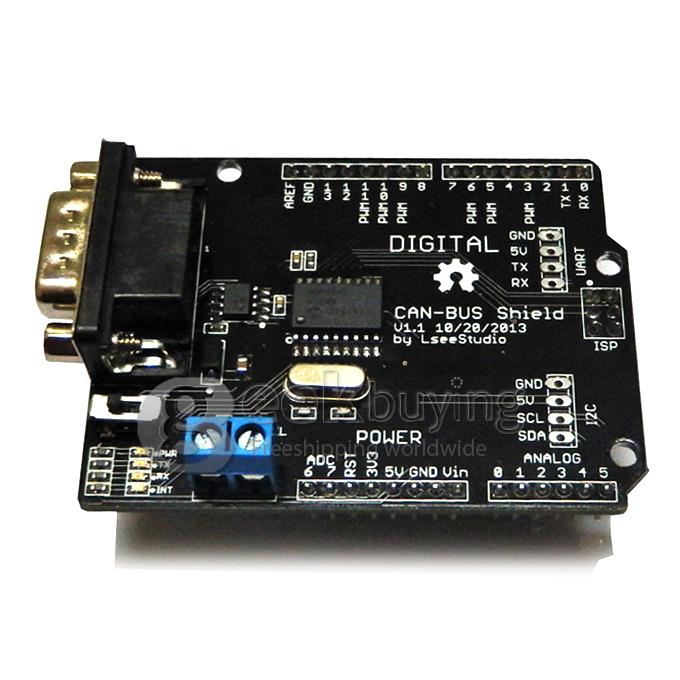

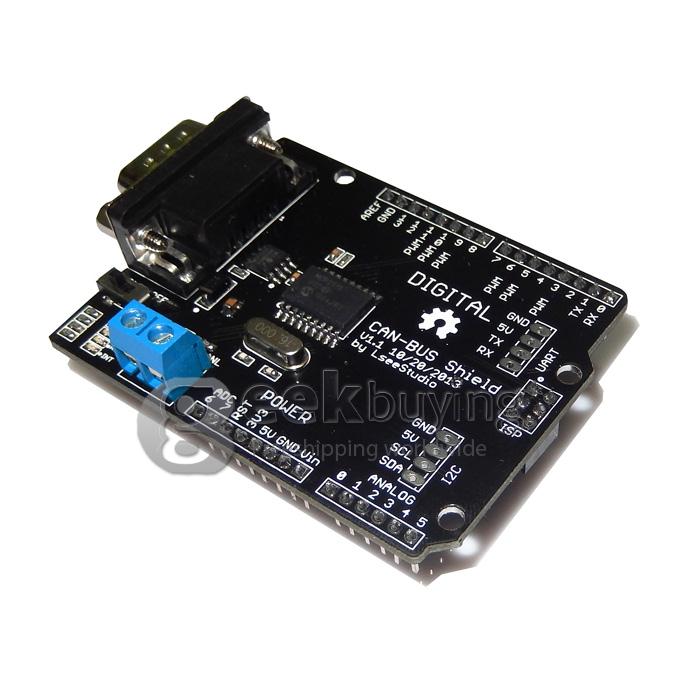

- This CAN-BUS Shield adopts MCP2515 CAN Bus controller with SPI interface and MCP2551 CAN transceiver to give your Arduino / Seeeduino CAN-BUS capability.
- With an OBD-II converter cable added on and the OBD-II library imported, you are ready to build an onboard diagnostic device or data logger. Applications Industrial control Automotive control
Specification
| Model | CAN-BUS Shield |
| Quantity | 1Piece |
| Color | Black |
| Material | CCL + PCB board |
| Chipset | MPC2515 |
| English Manual / Spec | No |
| Operating voltage | 1.5, 100, 2000mA |
| Power Supply Current | 1.5, 100, 2000mA |
| High Level Input Voltage | 3, 3.3, 3.6V |
| Low Level Input Voltage | -0.3, 0, 0.5V |
| Other Features | Implements CAN V2.0B at up to 1 Mb/s; SPI Interface up to 10 MHz; Arduino / Freaduino completely compatible; Standard (11 bit) and extended (29 bit) data and remote frames; Industrial standard 9-pin sub-D connector; Two receive buffers with prioritized message storage; Electrical Characteristics: PARAMETER MIN. TYP, MAX. UNIT: Power Supply Voltage: 5~12V; |
| Dimensions | 2.95 in x 2.09 in x 0.63 in (7.5 cm x 5.3 cm x 1.6 cm) |
| Weight | 0.88 oz (25 g) |
| Package content | 1 x CAN-BUS Shield |
