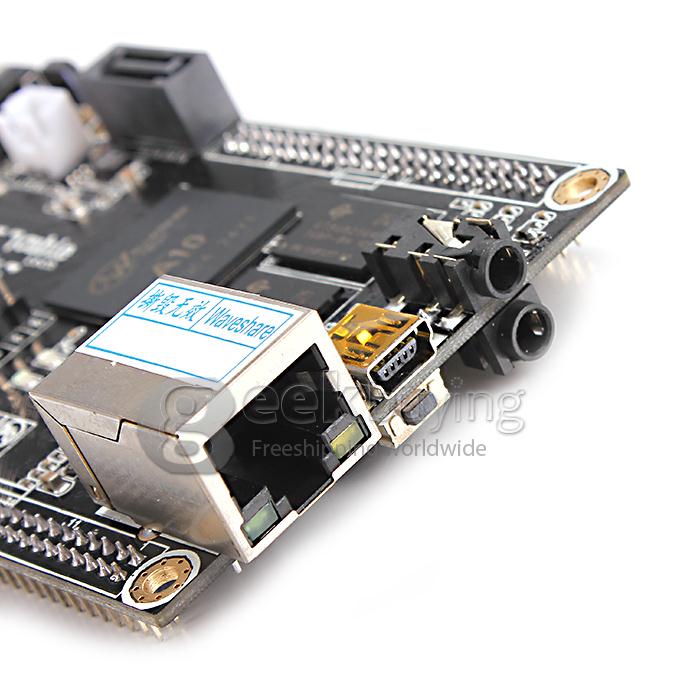

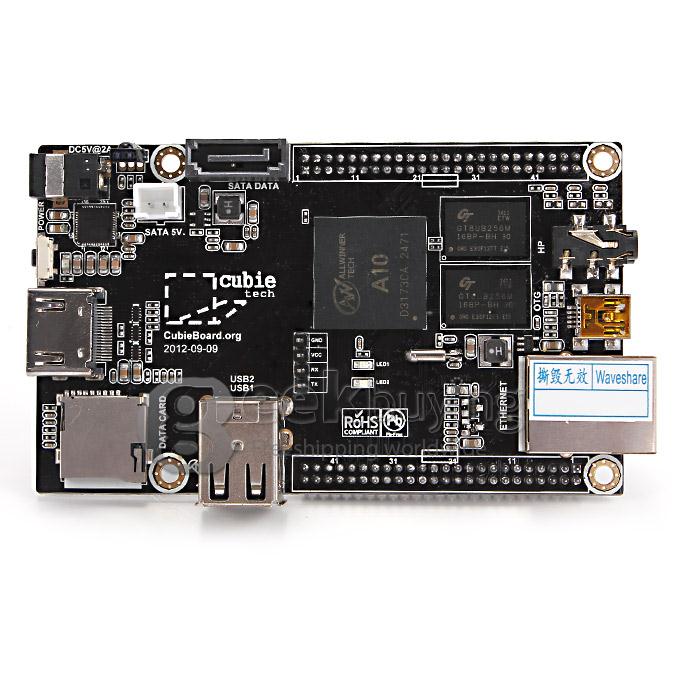

Cubieboard RPi-like Development Board Mini PC A10 ARM Cortex-A8 /DDR3/HDMI/Ethernet/Nand Flash/USB/Micro SD/SAT/IR

Highlights

• The Cubieboard is a RasPi-like development board, features a 1G ARM cortex-A8 processor. It's a credit-card sized computer which is capable of running Android, Ubuntu and other Linux distros.

Specification

Overview

• Processor
  • Allwinner A10
• Features
  • 1GB DDR3@480MHz
  • HDMI 1080p Output
  • 10/100M Ethernet
  • 4Gb Nand Flash
  • 2 USB Host
  • 1 micro SD slot
  • 1 SATA
  • 1 IR
• Others
  • 96-pin expansion pinheaders including I2C, SPI, RGB/LVDS, CSI/TS, FM-IN, ADC, CVBS, VGA, SPDIF-OUT, R-TP...
  • Running Android, Ubuntu and other Linux distros. Pre-loaded Android 4.0.

Processor Features

• CPU
  • ARM Cortex-A8
  • 32KB I-Cache
  • 32KB D-Cache
  • 256KB L2 Cache
• GPU
  • ARM Mali-400
• Video
  • UHD 2160P video decoding
  • 3D video decoding
  • Support various video decoding formats, including VP8, AVS, H. 264 MVC, VC-1, MPEG-1,2,4, etc
  • H.264 HP video encoding up to 1080p @ 30 fps or dual-channel 720p @ 30 fps
• Display
  • Multi-channel HD display
  • Integrated HDMI 1.4
  • YPbPr, CVBS, VGA
  • Multiple LCD interfaces, including CPU, RGB, LVDS up to Full HD
• Memory
  • 32-bit DDR2/DDR3 Memory capacity up to 16G bits
  • SLC/MLC/TLC/DDR NAND
    - 8 flash chips, 64-bit ECC
    - Memory capacity up to 64GB
    - Support NAND of 5xnm, 4xnm, 3xnm, 2xnm, etc
    - Support NAND of Samsung, Toshiba, Hynix, etc
• Boot Devices
  • NAND Flash
  • SPI NOR Flash
  • SD Card
  • USB
• Size and Weight
  • Size: 105 x 60 x 20mm
  • Net Weight: 48g

What's in the box?

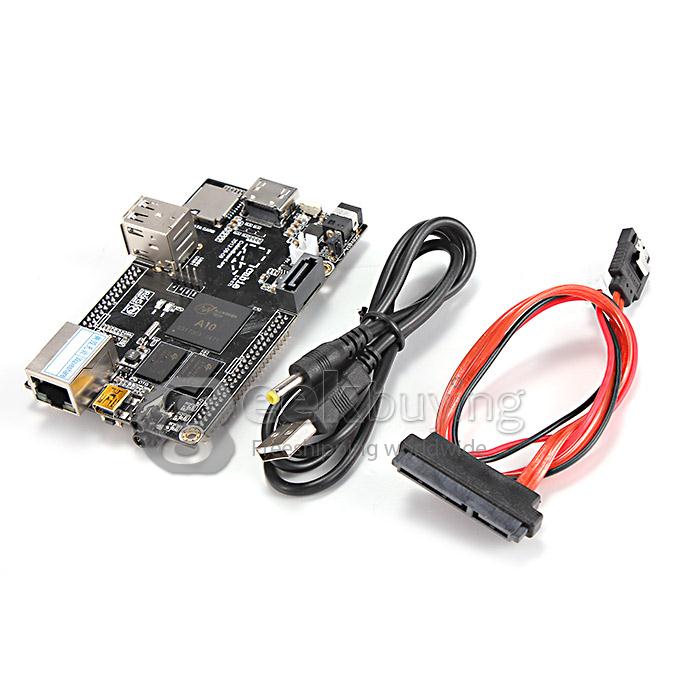

• 1 x Cubieboard
• 1 x SATA Cable for Cubieboard
• 1 x USB Power Cable
