Cubietruck Board (Package A) ARM Mini PC + DVK570 + USB Camera + GPS + AT45DBXX + MAG3110 + RS485

Highlights

• This package A includes:
• Cubietruck board
• Cubietruck Case A
• Cubietruck SATA cable
• Cubietruck OTG cable
• DVK570
• USB Camera OV7670

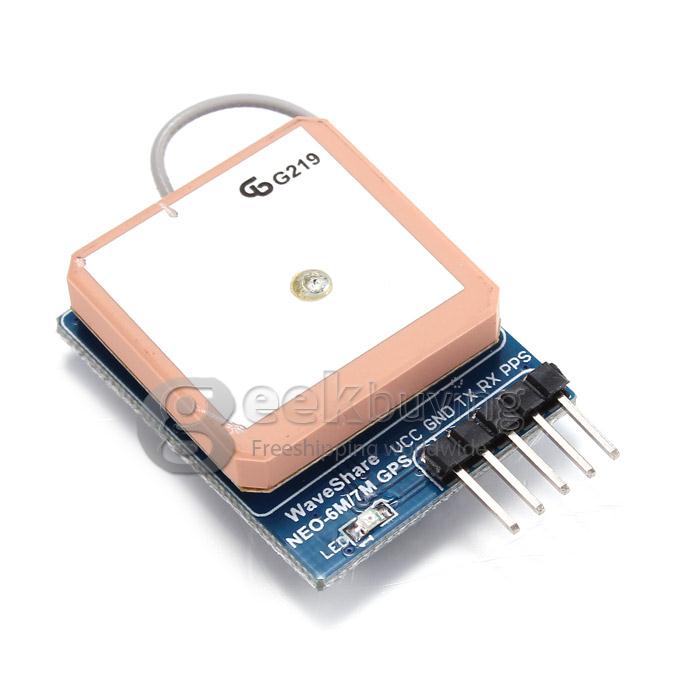

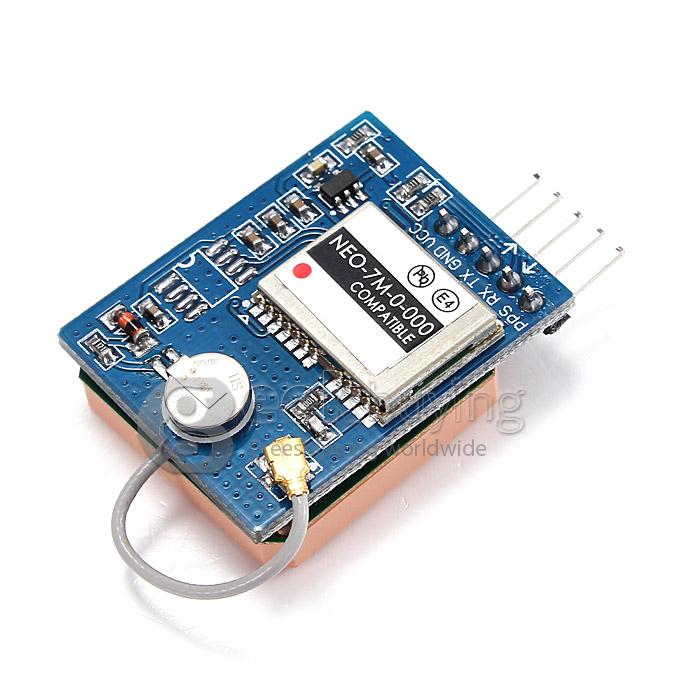

• UART GPS
• AT45DBXX DataFlash Board
• MAG3110 Board
• RS485 Board (3.3V)
• DS18B20
• and other accessories.

Specification

Overview

The Cubietruck (also named Cubieboard3) is the 3rd board of Cubieteam. It's an ARM mini PC running various Linux distros and/or Android system.

As the cubieboard2, Cubietruck features the Allwinner A20 (ARM cortex-A7 dual-core processor) onboard. What's more, it provides many enhancements like: 2GB DDR3 memory, 10M/100M/1G Ethernet PHY, WiFi+Bluetooth, VGA output, etc.

Cubietruck Product introduction

• Processor
  • AllWinner SOC A20, ARM® Cortex™-A7 Dual-Core, ARM® Mali400 MP2 Complies with OpenGL ES 2.0/1.1
• Features
  • 2GB DDR3@480MHz
  • Power input 5V@2.5A with HDD, supports Li-battery & RTC
  • SATA 2.0 interface support 2.5' HDD (for 3.5' HDD, another 12V power supply is required)
  • Wifi + BT wireless connection with antenna on-board BCM AP6210
  • RTL8211E 10M/100M/1G Ethernet PHY
  • HDMI&VGA 1080P display output
  • Storage solution: NAND + MicroSD or TSD+ MicroSD or 2 x MicroSD
  • 2 x USB HOST, 1 x OTG, 1 x SPDIF, 1 x IR, 4 x LEDs, 1 Headphone, 3 x Keys
  • 54 expansion pinheaders including I2S, I2C, SPI, CVBS, LRADC x2,UART, PS2, PWMx2, TS/CSI, IRDA, LINEIN&FMIN&MICIN, TVINx4 with 2.0 pitch connectors
• Misc
  • Size: 11cm x 8cm x 1.4mm
  • Running Android, Ubuntu and other Linux distros. Pre-installed Android 4.2.2.

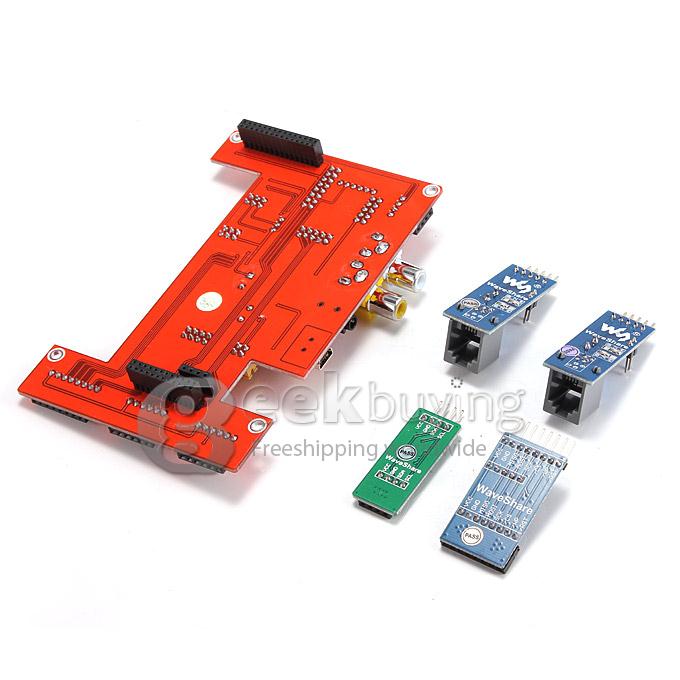

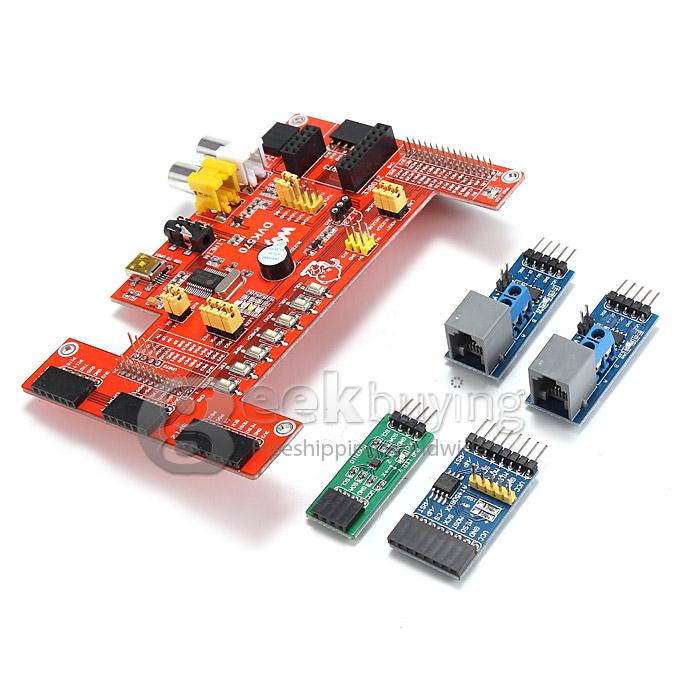

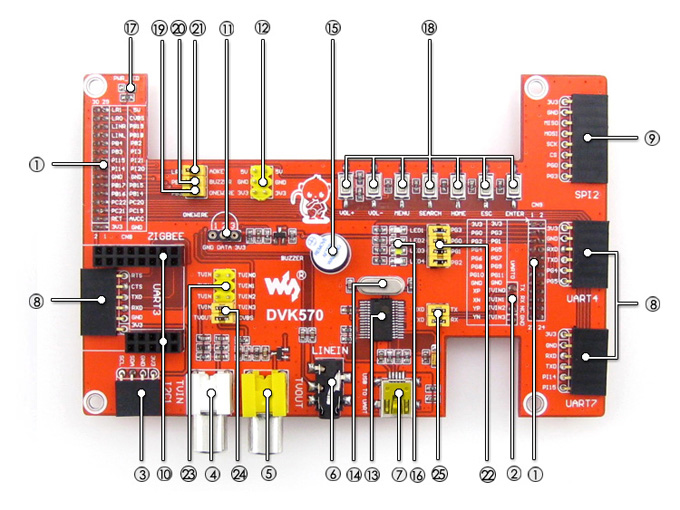

DVK570 Product introduction

• 1.Cubietruck connector
• 2.UART0 interface: for connecting serial debugging module
• 3.I2C interface: easily connects to I2C modules such as PCF8563 RTC Module, MAG3110 Board, etc.
• 4.TVIN interface: video input
• 5.TVOUT interface: video CVBS output, for connecting display devices like TV
• 6.LINEIN interface: audio input
• 7.USB interface: USB TO UART (PL2303TA)
• 8.UART interface: easily connects to UART modules such as RS485 Board (3.3V), GPS module, etc.
• 9.SPI interface: easily connects to SPI modules such as AT45DBXX Dataflash, etc.
• 10.ZigBee connector: for connecting ZigBee modules like Core2530, supports working with ZB501
• 11.ONE-WIRE interface: easily connects to ONE-WIRE devices (TO-92 package), such as temperature sensor (DS18B20), electronic registration number (DS2401), etc.
• 12.5V/3.3 V power input/output: usually used as power output, also common-grounding with other user board
• 13.PL2303TA: onboard USB TO UART convertor
• 14.12M crystal: for PL2303TA
• 15.Buzzer
• 16.User LEDs: 4 colorful LEDs
• 17.Power indicator
• 18.AD keys: 7 common Android keys
• 19.ONE-WIRE jumper
• 20.Buzzer jumper
• 21.AD Keysjumper
• 22.User LEDs jumper
• 23.TVIN jumper
• 24.TVOUT jumper
• 25.UART0 jumper

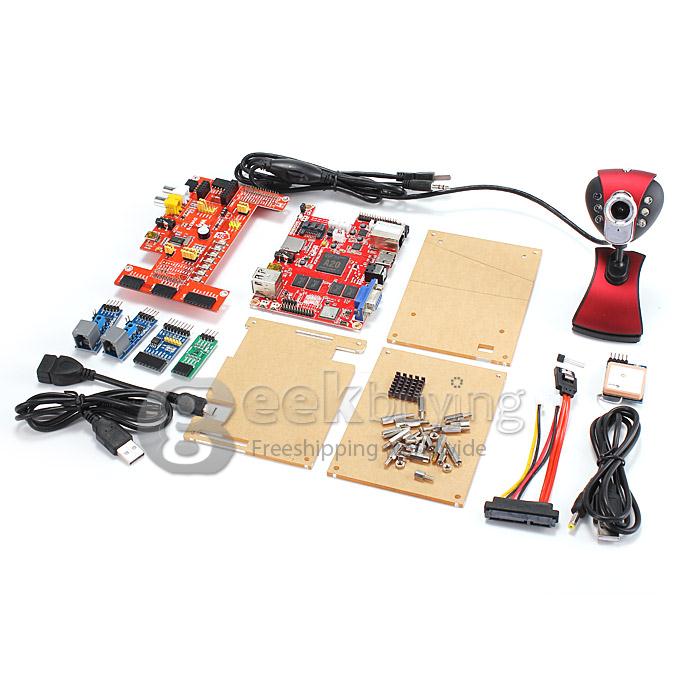

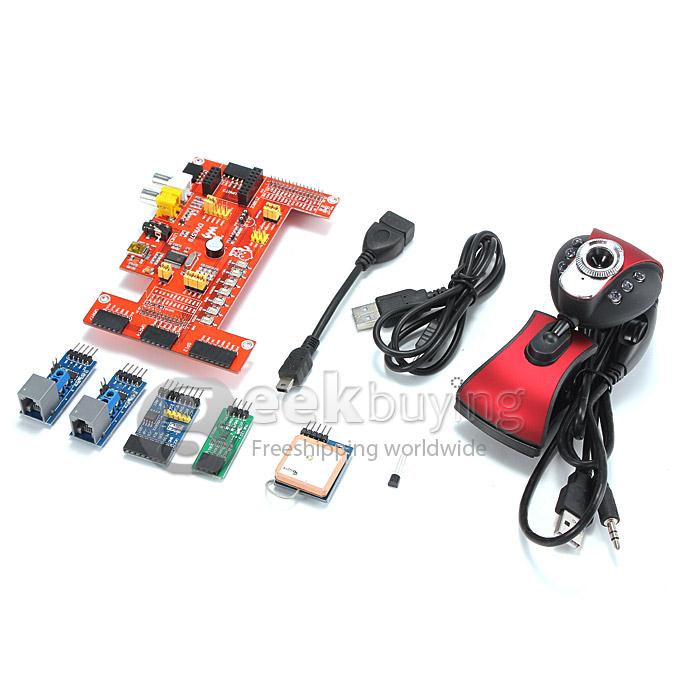

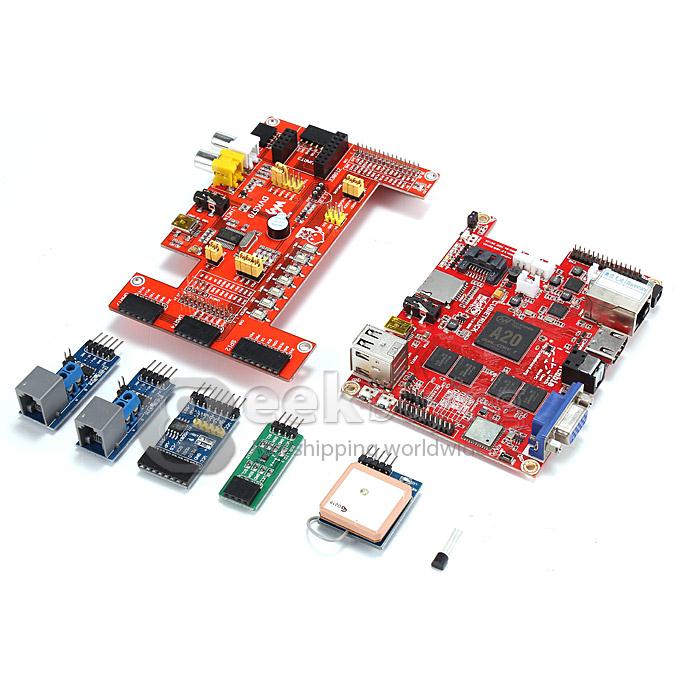

What's in the box?

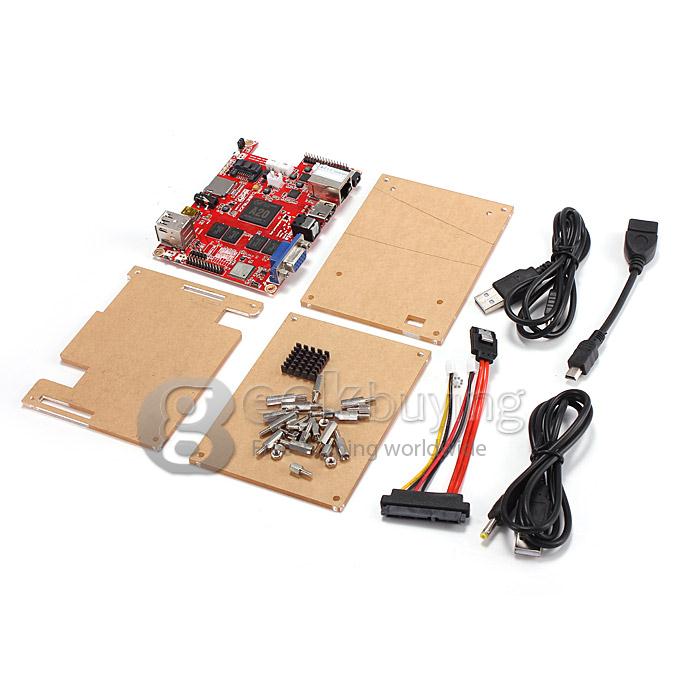

• 1 x Cubietruck
• 1 x Cubietruck Case A
• 1 x Cubietruck SATA cable
• 1 x Cubietruck OTG cable
• 1 x USB power cable
• 1 x USB type A plug to mini-B plug cable
• 1 x Heat sink
• 1 x Screws pack
• 1 x DVK570
• 1 x USB Camera OV7670
• 1 x UART GPS
• 1 x AT45DBXX DataFlash Board
• 1 x MAG3110 Board
• 2 x RS485 Board (3.3V)
• 1 x DS18B20
