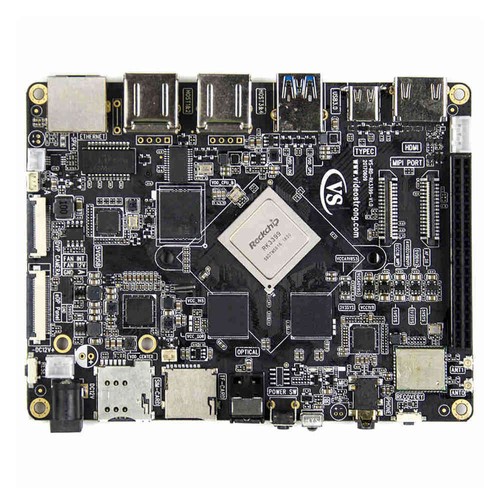

DIY BOX RK3399 Super Development Board Mali-T864 2GB 16GB 4K 10 Bit VP9 Android 7.1 Type C USB3.0

0Answered Questions Item Code:411278
Price:
Ship from:
QTY: Bulk Order Rebate
Shipping:
Price Match
Ship to:
United States
Select the desired shipping method
Shipping Company Estimated Delivery Time Shipping Cost
*Please note: the shipping costs are only estimates; the actual shipping price will be shown on the order page.
0 item(s) added
View CartContinue Shopping
  • Description
  • Reviews
  • Q&A
  • Sold Out

DIY BOX RK3399 Super Development Board  Mali-T864 2GB 16GB 4K 10 Bit VP9  US UK EUDIY BOX RK3399 Super Development Board  Mali-T864 2GB 16GB 4K 10 Bit VP9  US UK EUDIY BOX RK3399 Super Development Board  Mali-T864 2GB 16GB 4K 10 Bit VP9  US UK EUDIY BOX RK3399 Super Development Board  Mali-T864 2GB 16GB 4K 10 Bit VP9  US UK EUDIY BOX RK3399 Super Development Board  Mali-T864 2GB 16GB 4K 10 Bit VP9  US UK EUDIY BOX RK3399 Super Development Board  Mali-T864 2GB 16GB 4K 10 Bit VP9  US UK EUDIY BOX RK3399 Super Development Board  Mali-T864 2GB 16GB 4K 10 Bit VP9  US UK EUDIY BOX RK3399 Super Development Board  Mali-T864 2GB 16GB 4K 10 Bit VP9  US UK EUDIY BOX RK3399 Super Development Board  Mali-T864 2GB 16GB 4K 10 Bit VP9  US UK EUDIY BOX RK3399 Super Development Board  Mali-T864 2GB 16GB 4K 10 Bit VP9  US UK EUDIY BOX RK3399 Super Development Board  Mali-T864 2GB 16GB 4K 10 Bit VP9  US UK EU

Specification

Parameters

CPU

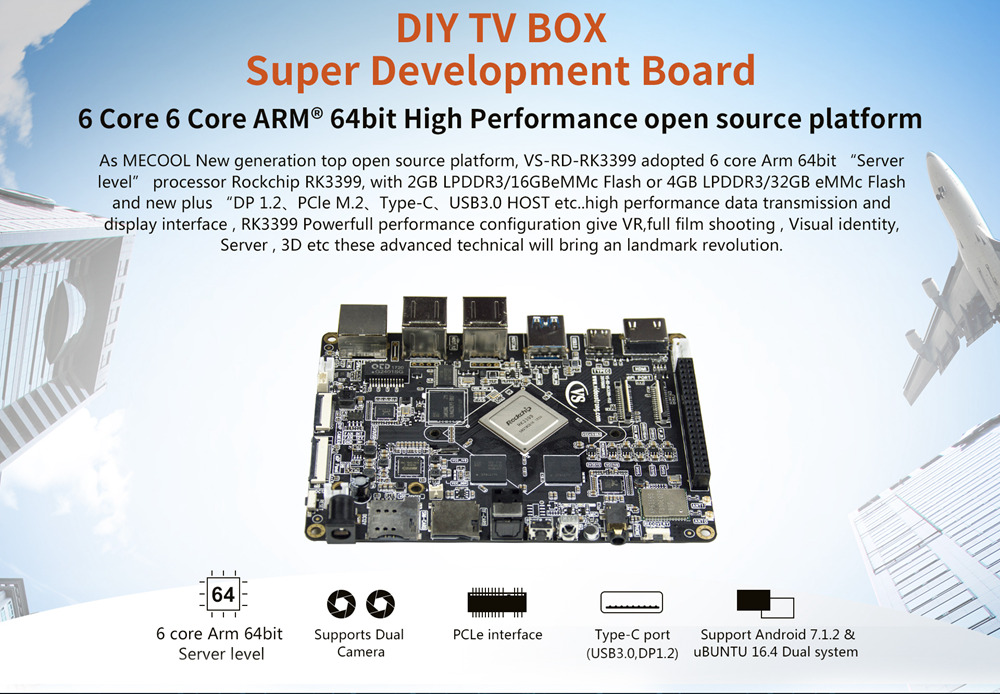

Rockchip RK3399 (28nm HKMG processing)
 6 Core ARM® 64bit ,frequency up to 2.0GHz
Big.Little architecture: Dual Cortex-A72 + Quad Cortex-A53, 64-bit CPU

GPU

Mali-T864 GPU, OpenGL ES1.1/2.0/3.0/3.1, OpenVG1.1, OpenCL, DX11;
Supports AFBC (ARM Frame Buffer Compression)

Video Decode

4K VP9 and 4K 10bits H265/H264 video decoders, up to 60fps
1080P other video decoders (VC-1, MPEG-1/2/4, VP8)
1080P video encoders for H.264 and VP8
Video post processor: de-interlace, de-noise, enhancement for edge/detail/color

Power management

RK808 PMU Chip

Audio Format

Support MP3/AAC/WAV/WMA/Dolby True HD/DTS-HD/LPCM/H264/VP8/MVC/Double track 4Ω/3W,8Ω/2W output

Video format

Supports  RMVB,FLV,MPEG1/2/4,AVI,WMV,MOV,MP4,TS,etc

Photo format

Supports JPG/BMP/GIF/TIFF/PNG

    DDR

2G LPDDR3

Flash

High speed eMMC 16G

Display Resolution

Max up to 3840X2160 resolution ratio,and HDMI2.0

OS

Android 7.1

Hardware Features

Ethernet

10/100/1000Mbps Ethernet ( Realtek RTL8211E )

Wifi

WiFi module:(AP6356S) 2.4GHz/5GHzdual band WiFi Supports 802.11a/b/g/n/ac protocol ,2x2 MIMO technology

Bluetooth 4.1(supports BLE)

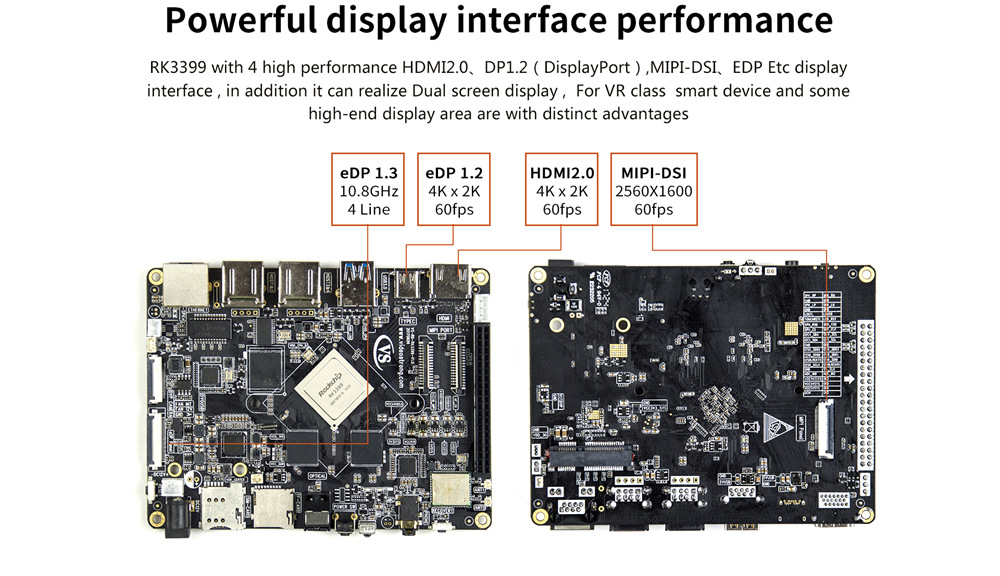

Output

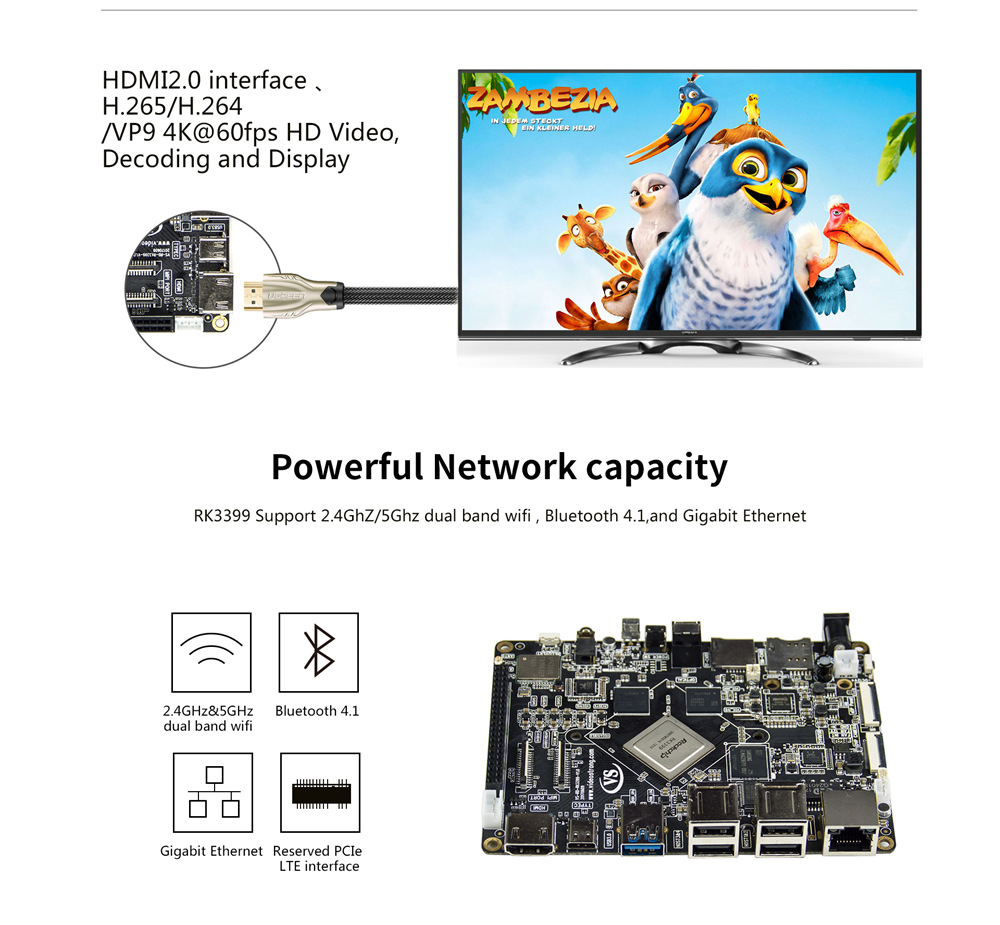

1 x HDMI 2.0 ( Type-A ), Supports 4K@60fps

1 x DP 1.2 (DisplayPort) , Supports 4K@60fps

1 x MIPI , Supports Dual channels 2560x1600@60fps

1 x eDP 1.3 ( 4 lanes with 10.8Gbps )

Audio

1 x HDMI or  1 x DP ( DispalyPort ) , Audio output

1 x Headset , Audio input/output

1 x LINEOUT , Audio output

1 x SPEAKER , 3G/4GCommunicate speaker output ( 1.8W 8Ω/3.1W 4Ω )

2 x SPEAKER , Speaker output ( 1.5W 8Ω/2.5W 4Ω )

1 x SPDIF Digital audio ports,used for audio output

1 x 3G/4Gconmunicate by microphone

1 x Microphone,on-board audio input

1 x I2S , support 8 channels

USB ports

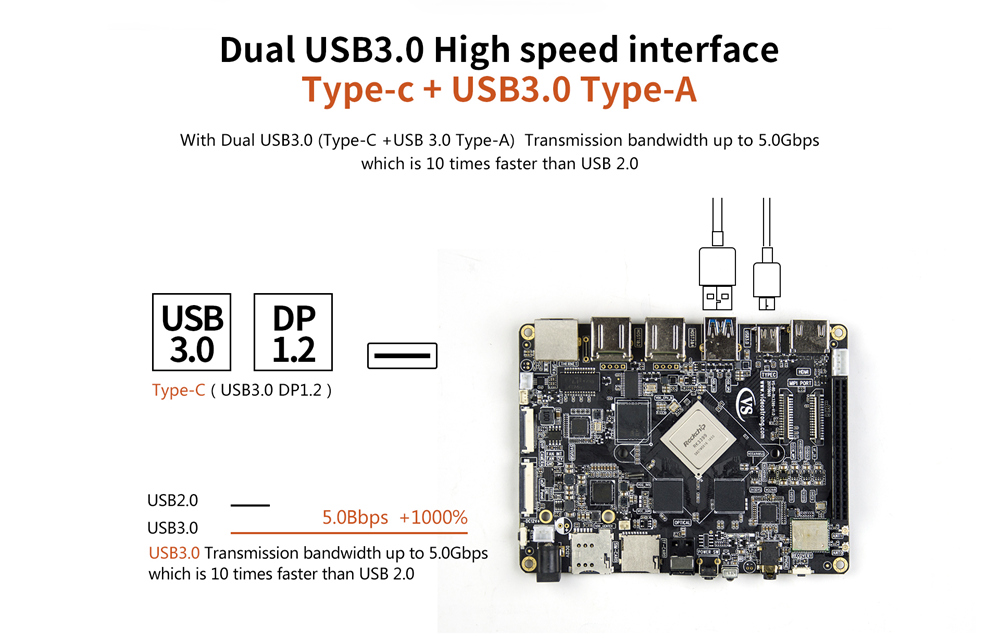

4 x USB2.0 HOST,1 x USB3.0 HOST,1 x USB3.0 Type-C

Serial Ports

1 x debug serial Ports(2pin 2.54mm DIP socket),used for developing and debugging

Camera

2 x MIPI-CSI Camera port ( Max up to single 13Mpixel Or Dual 8Mpixel )

1 x DVP Camera port(Max up to 5Mpixel)

PCIe

1 x Mini PCIe,for LTE

SIM

1 x SIM slot,use for Mini PCIe extend LTE module

    Touch screen

1X Support I2C touch pad

LED

1 x Power state LED (Red) ,1 x user defined LED (Blue)

Infrared

1 x IR receiver ,Supports IR remote controller

RTC

Support RTC,on-board standby battery port

Button

1 x Reset ,1 x Power,1 x upgrade

Power

1 x  DC12V - 3A ( DC 5.5*2.1mm )

1 x  2pin 2.54mm DIP Socket

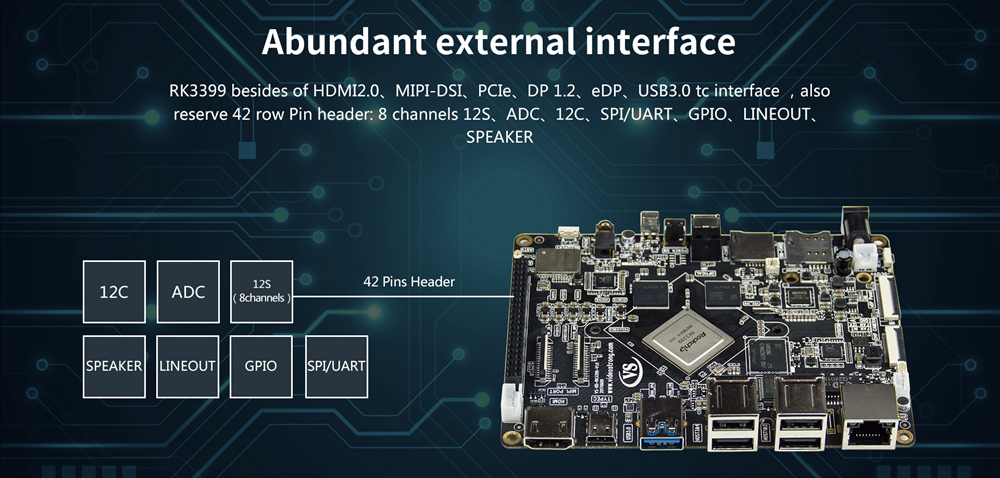

Reserved Port

42pin 2.54mm pin:

1 x I2S
2 x ADC
2 x I2C
1 x SPI/UART
2 x GPIO
1 x LINEOUT
1 x SPEAKER

System Upgrade

USB Upgrade
TF Upgrade
