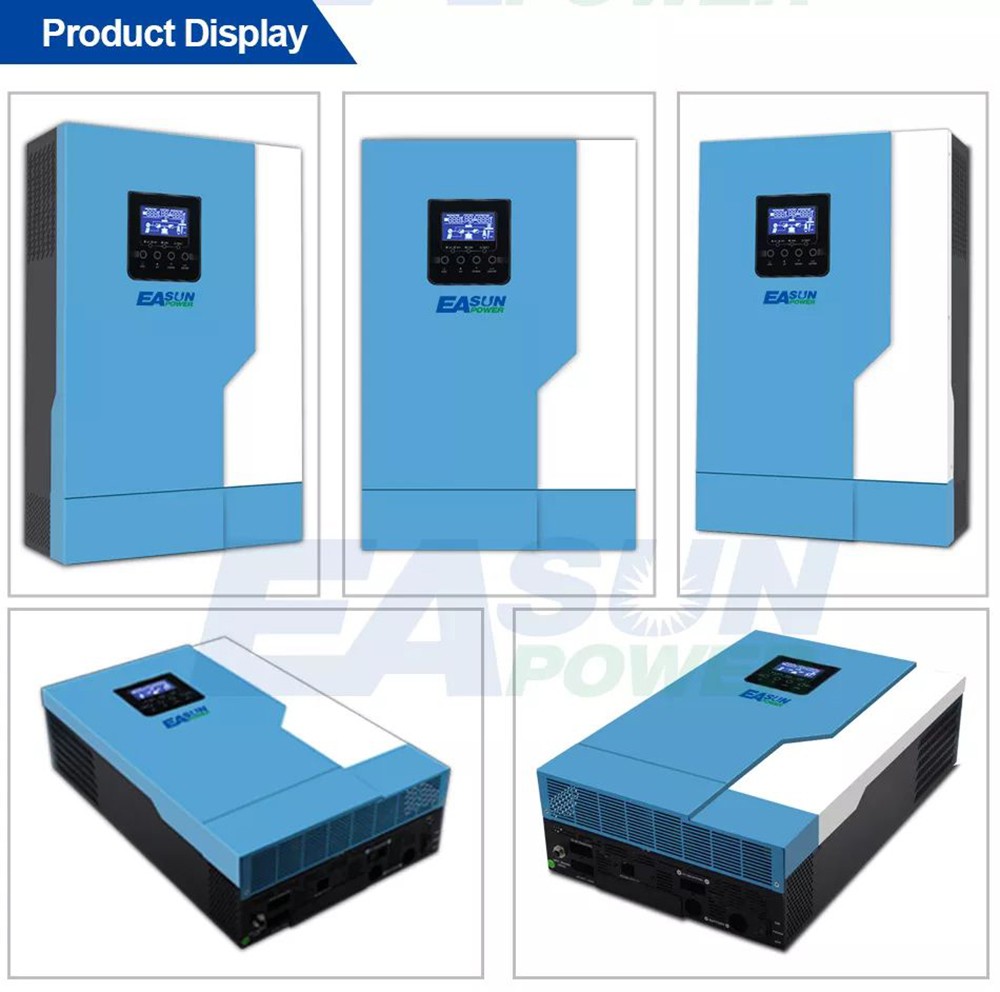

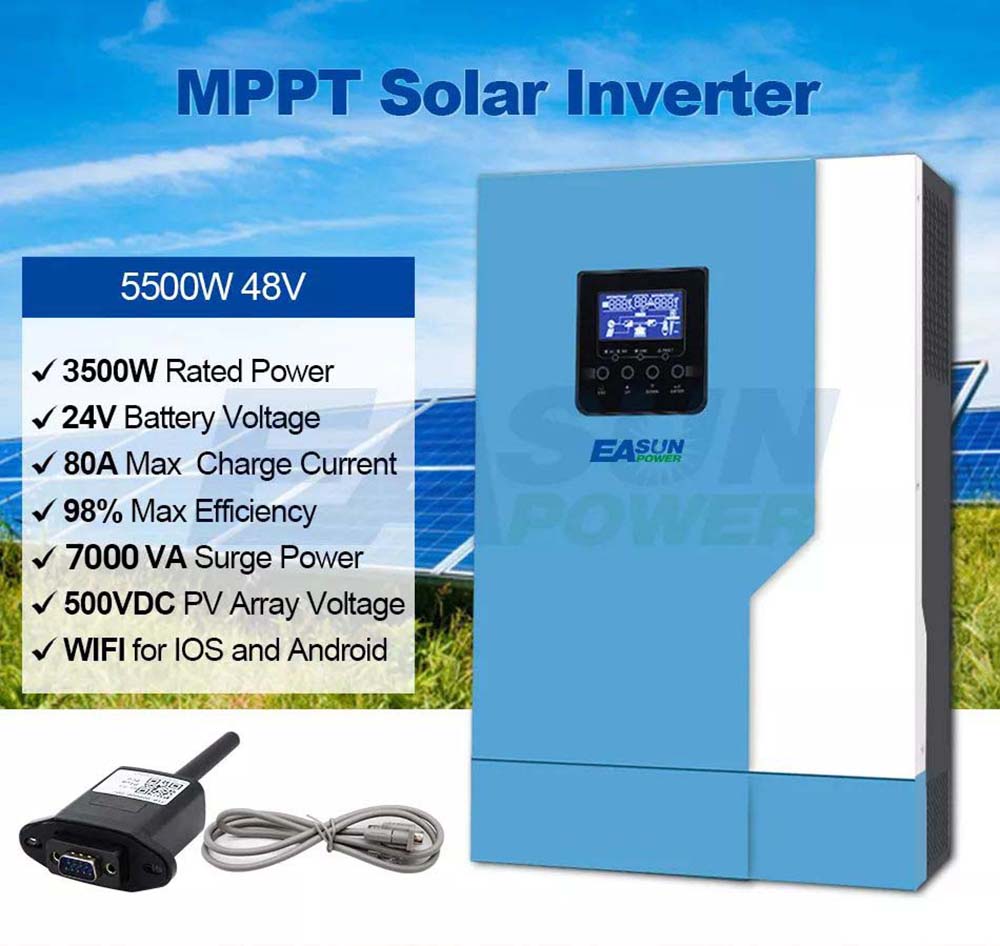

EASUN POWER 3500W Solar Inverter, MPPT 100A Solar Charger, 500V DC PV Array Voltage, 230V AC Off Grid Inverter, Built-in WiFi

General

Brand: EASUN POWER
Type: Solar Inverter
Model: BA-ISOLAR-SML-III-3.5KW-WIFI
Color: Blue

Specification

Rated Power: 3500VA/3500W

Input
Voltage: 230V AC
Selectable Voltage Range: 170-280V AC (For personal Computer); 90-280V AC (For Home Appliances)
Frequency: 50/60Hz (Auto sensing)

Output
AC Voltage Regulation (Batt.Mode): 230VAC±5%
Surge Power: 7000VA
Peak Efficiency (PV to INV): 97%
Peak Efficiency (Battery to INV): 94%
Transfer Time: 10Ms (For personal Computer); 20Ms (For Home Appliances)

Battery & AC Charger
Battery Voltage: 24V DC
Floating Charge Voltage: 27V DC
Over Charge Protection: 33V DC
Maximum Charge Current: 80A

Solar Charger

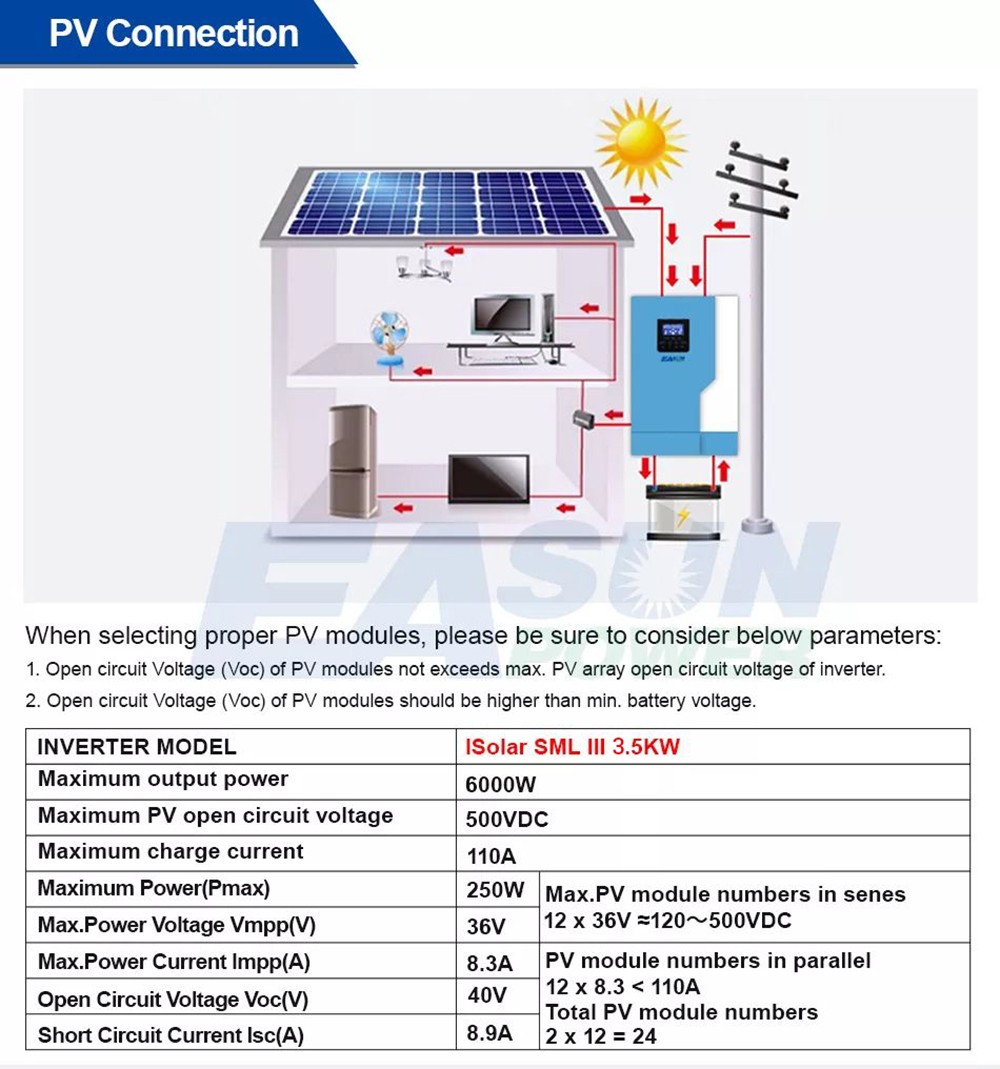

Max.PV Array Power: 5000W
MPPT Range @ Operating Voltage: 120 - 450VDC
Maximum PV Array Open Circuit Voltage: 500VDC
Maximum Charging Current: 100A
Maximum Efficiency: 98%

Environment
Operating Temperature Range: 0 - 55 Celsius
Storage Temperature: -15 to 60 Celsius
Humidity: 5% to 95% Relative Humidity (Non-condensing)
Communication Interface: WiFi

Weight & Size

Product Weight: 11kg
Package Weight: 11kg
Product Size(L x W x H): 44x30x10cm
Package Size(L x W x H): 50x38x19cm

Package Contents

1 x Off-grid Solar Power Inverter

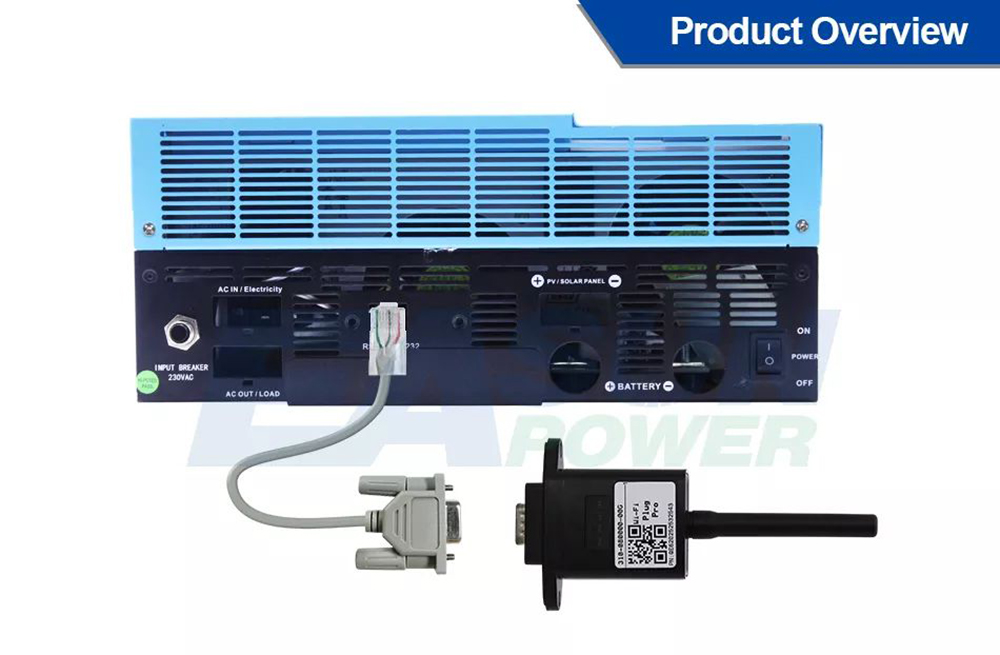

1 x Communication Cable
1 x User Manual
