Highlights

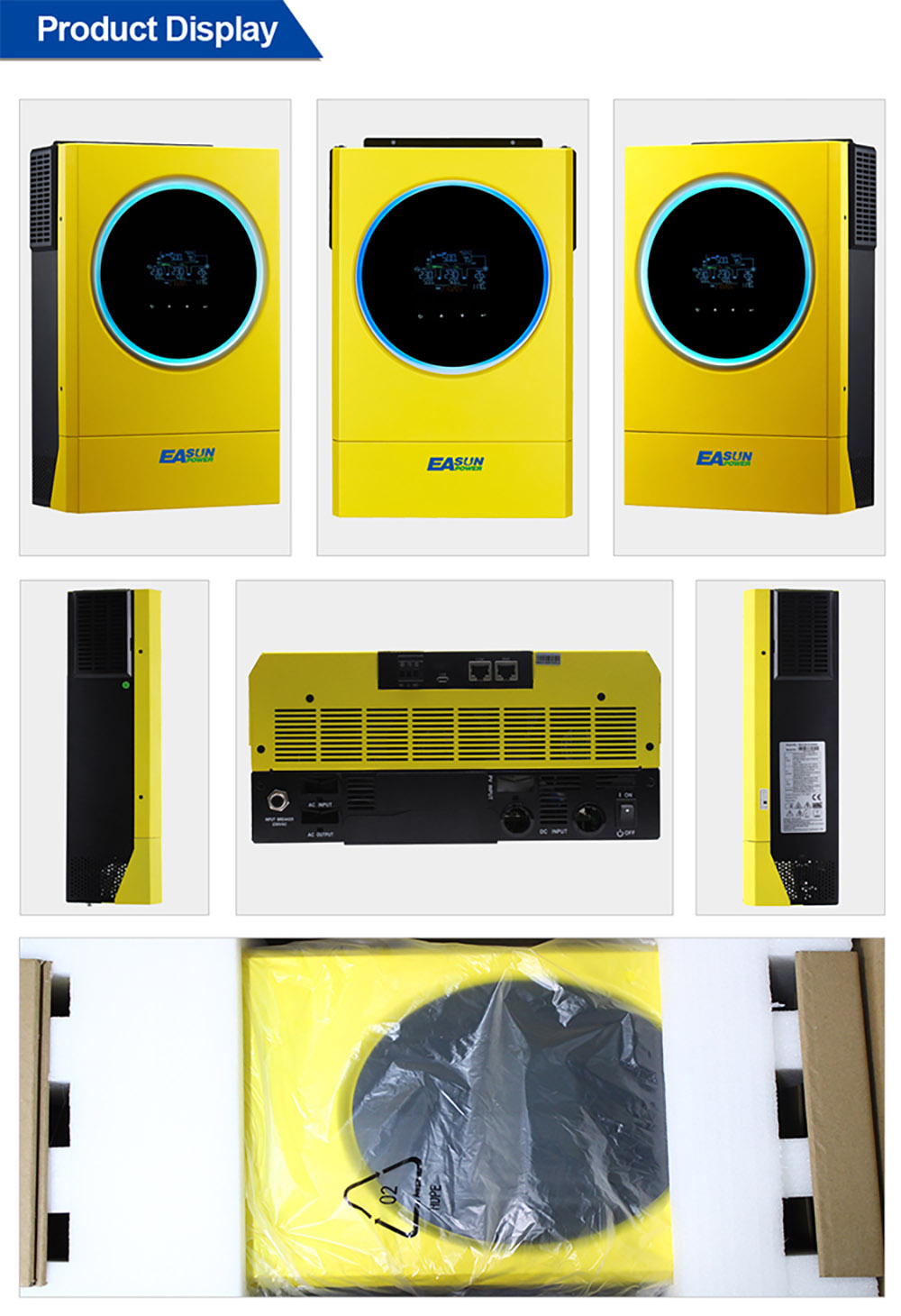

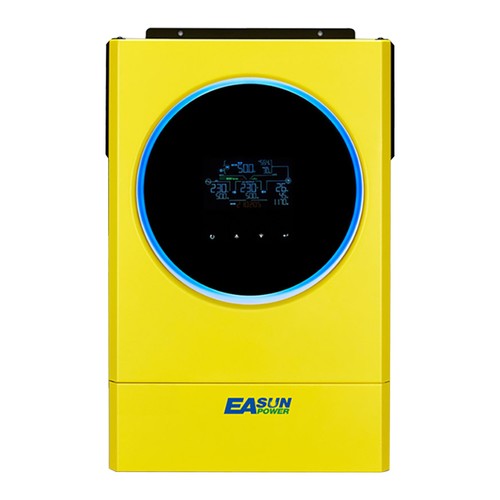

Easun Power 5.6KW Solar Inverter 230V 48V 120A 6000W LED is a hybrid solar inverter suitable for home, commercial, and industrial use.

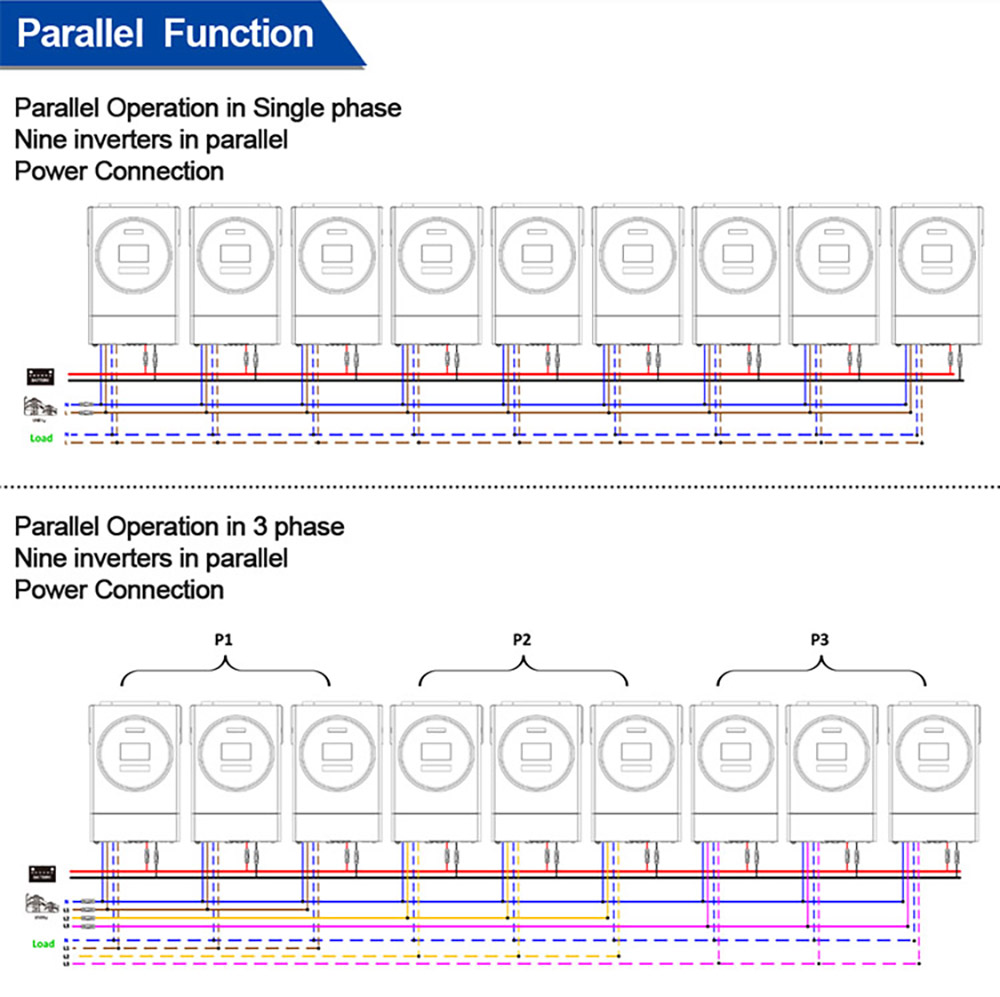

· Allows parallel operation with up to 9 devices for a three-phase power supply.
· Built-in Wi-Fi module for monitoring and control via mobile application.

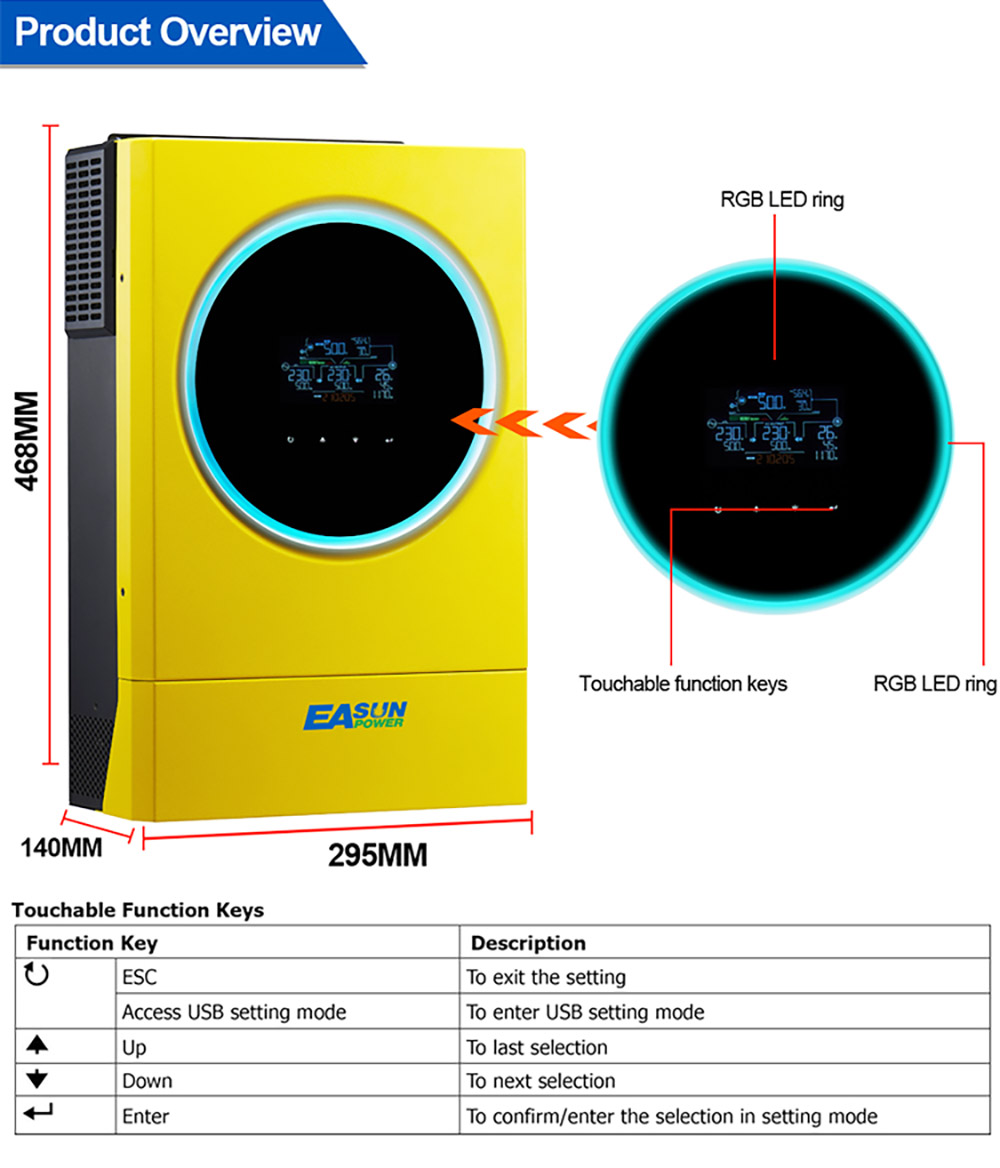

· Adjustable status LED ring with RGB lights for displaying system status.
· Touch button and 4.3" color LCD display for easier setup and management.
· Programmable supply priority for PV, battery, or grid power source.

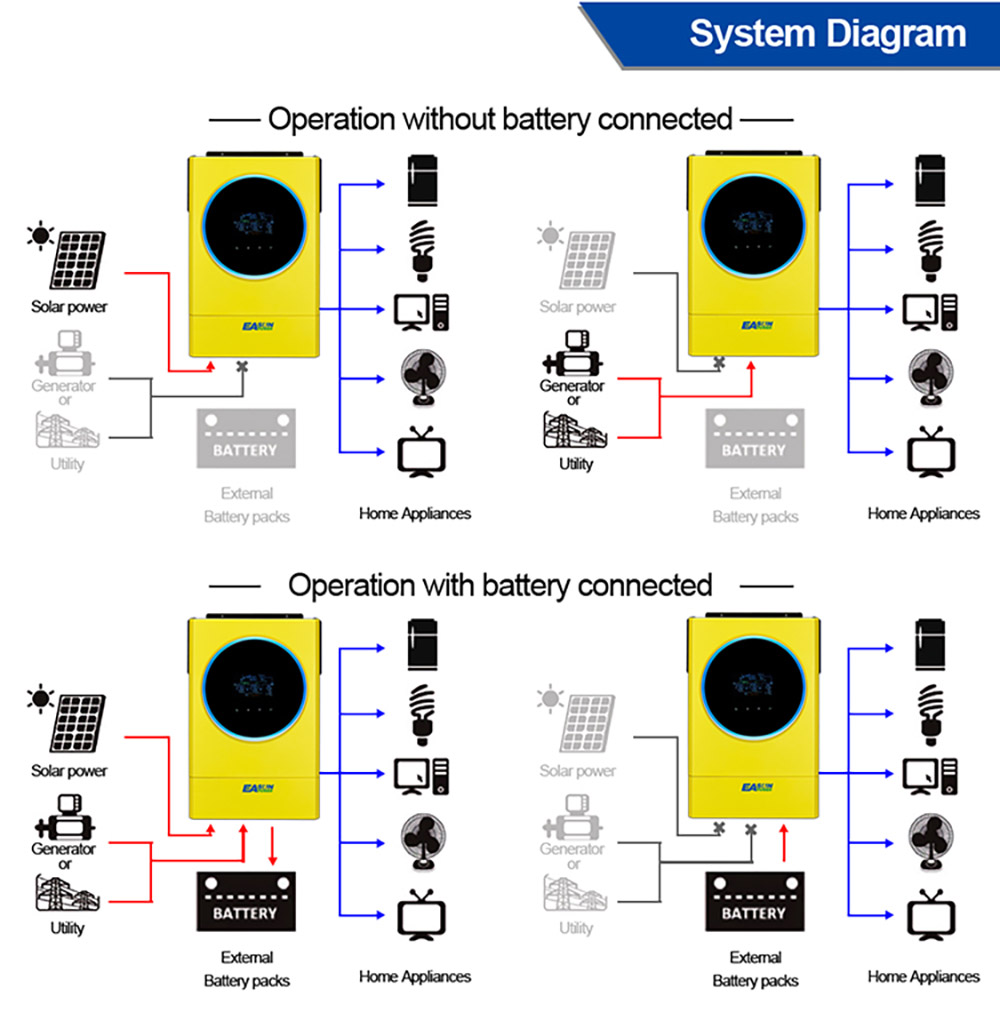

· Various operating modes available: mains, isolated operation, mains backup.
· Maximum solar charge current: 120A for faster battery charging.

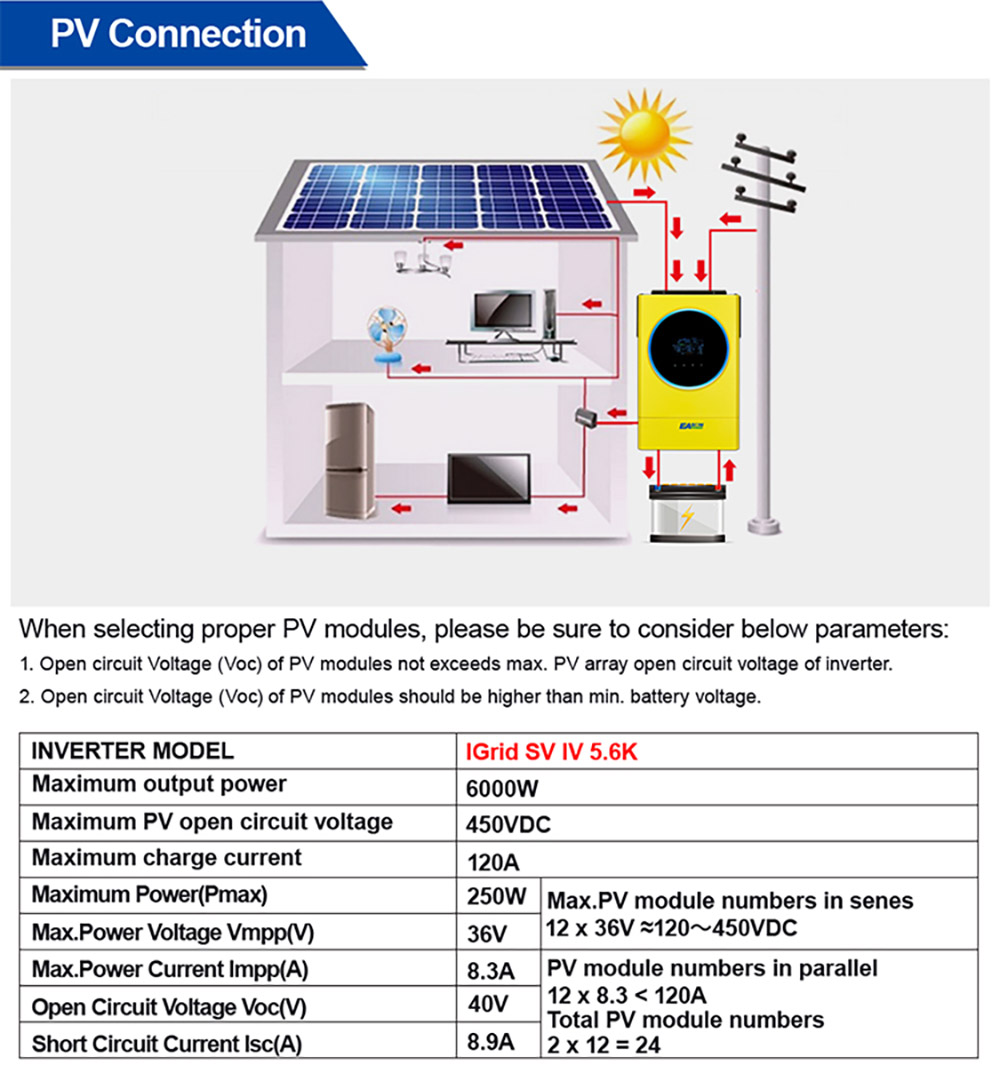

· Maximum solar input power: 6000W.

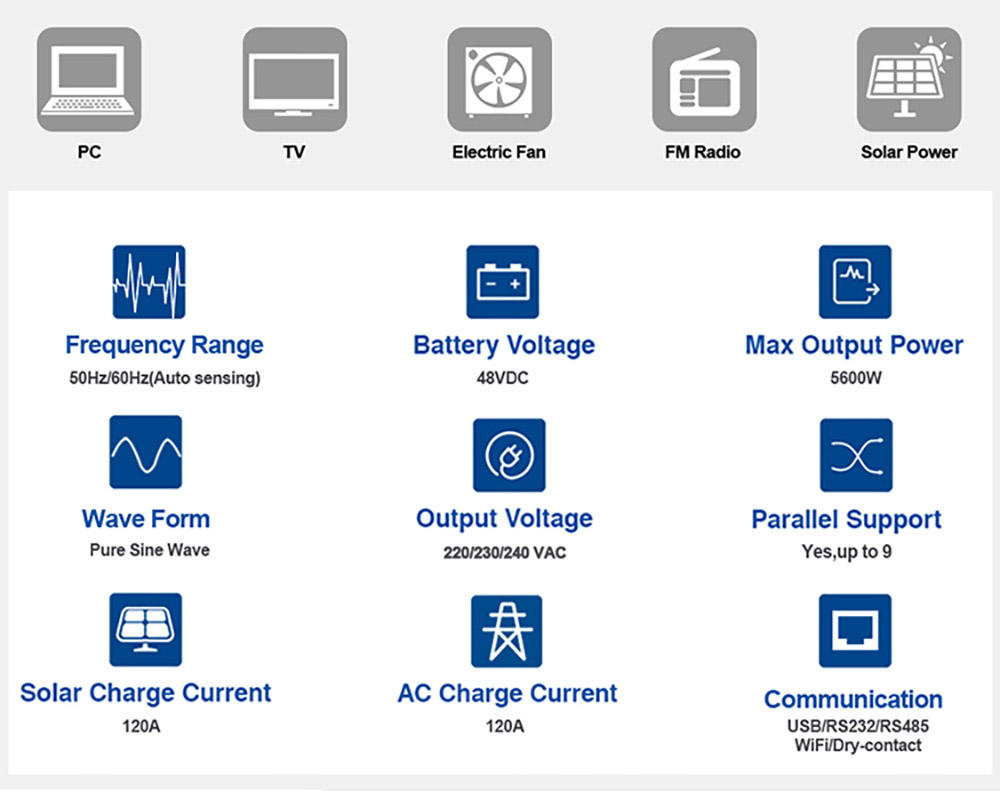

Specification
| General | Brand: EASUN POWER Type: Hybrid Solar Inverter Model: IGrid SV IV 5.6K Color: Yellow |
| Specification | Maximum PV Input Power: 6000W Rated Output Power: 5600W Maximum Charging Power: 6000W Grid-Tie Operation PV Input (DC) Nominal DC Voltage/Maximum DC Voltage: 360 VDC / 450 VDC Start-Up Voltage/Initial Feeding Voltage: 110VDC / 120 VDC MPP Voltage Range: 120 VDC - 430 VDC Number Of MPP Trackers/Maximum Input Current: 1 / 27 A Grid Output (AC): Nominal Output Voltage: 220/230/240 VAC Output Voltage Range: 184 - 264.5 VAC or 195.5 - 253 VAC (Selectable) Nominal Output Current: 24.3A Power Factor: > 0.9 Efficiency: Maximum Conversion Efficiency (DC/AC): 96% Off-Grid Operation: AC Input: AC Start-Up Voltage/Auto Restart Voltage: 120 - 140 VAC / 180 VAC Acceptable Input Voltage Range: 90 - 280 VAC or 170 - 280 VAC Maximum AC Input Current: 40 A PV Input (DC): Maximum DC Voltage: 450 VDC MPP Voltage Range: 120 VDC - 430 VDC Number Of Mpp Trackers/Maximum Input Current: 1 / 27 A Battery Mode Output (AC): Nominal Output Voltage: 220/230/240 VAC Output Waveform: Pure sinewave Efficiency(DC To AC): 93% Hybrid Operation: PV Input (DC): Nominal DC Voltage/Maximum DC Voltage: 360 VDC / 450 VD Start-Up Voltage/Initial Feeding Voltage: 110VDC / 120 VDC MPP Voltage Range: 120 VDC ~ 430 VDC Number Of Mpp Trackers/Maximum Input Current: 1 / 27 A Grid Output (AC): Nominal Output Voltage: 220/230/240 VAC Output Voltage Range: Nominal Output Current: AC Input: AC Start-Up Voltage/Auto Restart Voltage: 120 - 140 VAC / 180 VAC Acceptable Input Voltage Range: 90 - 280 VAC or 170 - 280 VAC Maximum Ac Input Current: 40A Battery Mode Output (AC): Nominal Output Voltage: 220/230/240 VAC Efficiency(DC To AC): 93% Battery & Charger: Nominal DC Voltage: 48 VDC Maximum Solar Charging Current: 120A Maximum AC Charging Current: 120A Maximum Charging Current: 120A Interface: Parallel Function: Yes, 9 units Communication Port: USB/RS232/RS485/WIFI/Dry-contact Environment: Humidity: 0 ~ 90% RH (Non-condensing) Operating Temperature: -10 to 50ºC |
| Weight & Size | Product Weight: 15.16kg Package Weight: 15.16kg Package Size(L x W x H): 60x39x21cm |
| Package Contents | 1 x Hybrid Solar Inverter 1 x User Manual |
