Highlights
Hybrid Solar Inverter

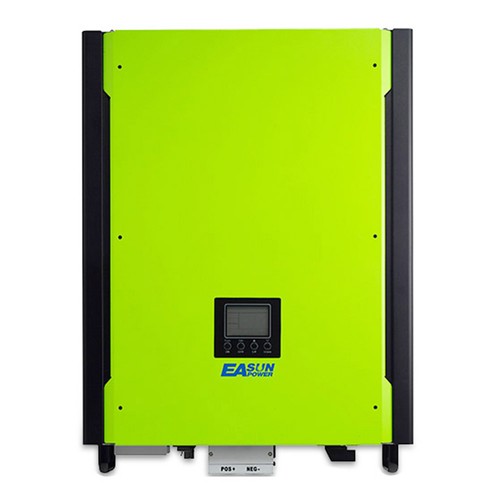

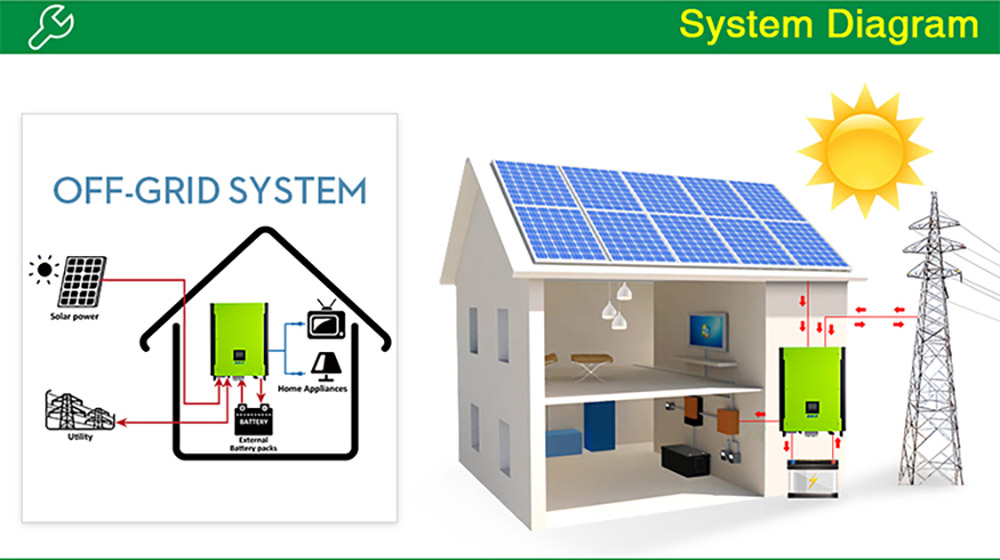

Easun Power 10KW Solar Inverter 48V 380V 3 Phase is a hybrid inverter that can connect to solar panels, batteries, and the power grid. This means you always have power, whether it's sunny or cloudy. This inverter can automatically switch between different energy sources for the most optimal operation.
Multiple High-performance MPPT Controllers

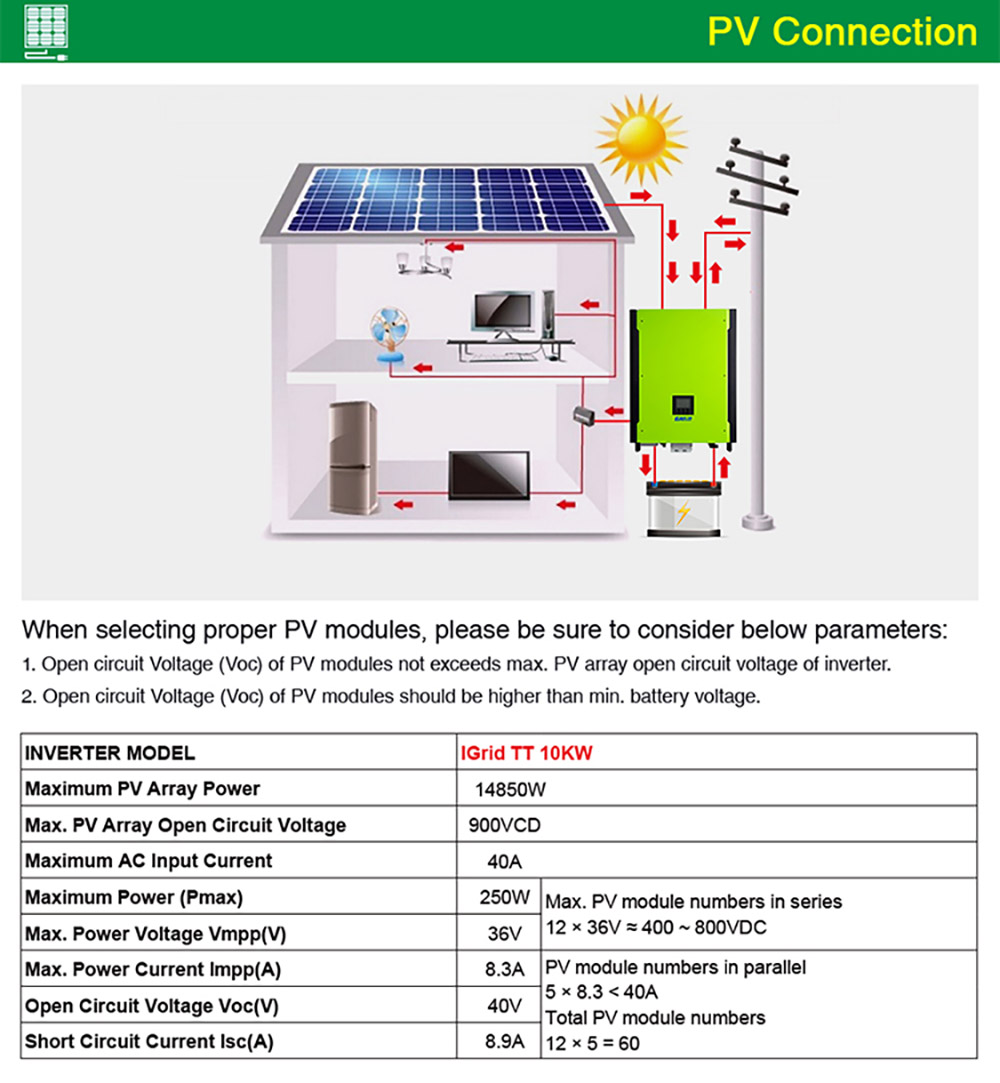

Another advantage of the Easun Power 10KW Solar Inverter 48V 380V 3 Phase is that it has multiple high-performance MPPT (Maximum Power Point Tracking) charge controllers that maximize the power from the solar panels. This inverter can manage up to 96 solar cells at the same time and can provide more than 100A charging current to the batteries.
WiFi Connectivity
Easun Power 10KW Solar Inverter 48V 380V 3 Phase also offers additional features such as WiFi connectivity, which allows you to remotely control and monitor the operation of the inverter via a smartphone or computer. So you can easily monitor energy consumption, set priorities, and change settings anytime, anywhere.
· Self-consumption and feed-in to the grid
· Programmable supply priority for PV, Battery, or Grid

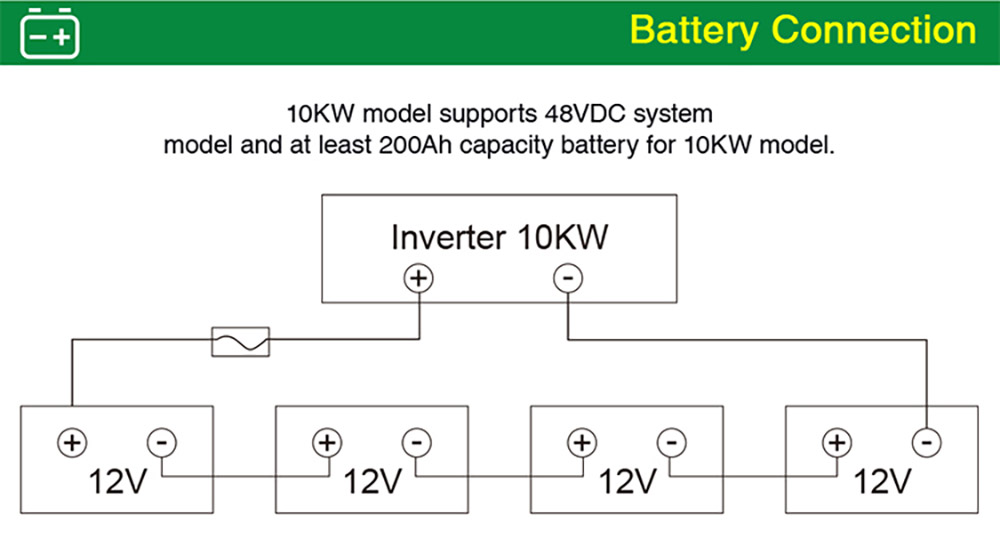

· User-adjustable battery charging current suits different types of batteries
· Programmable multiple operations modes: Grid tie, Off grid, and grid-tie with backup
· Built-in Timer for various modes of on/off operation.

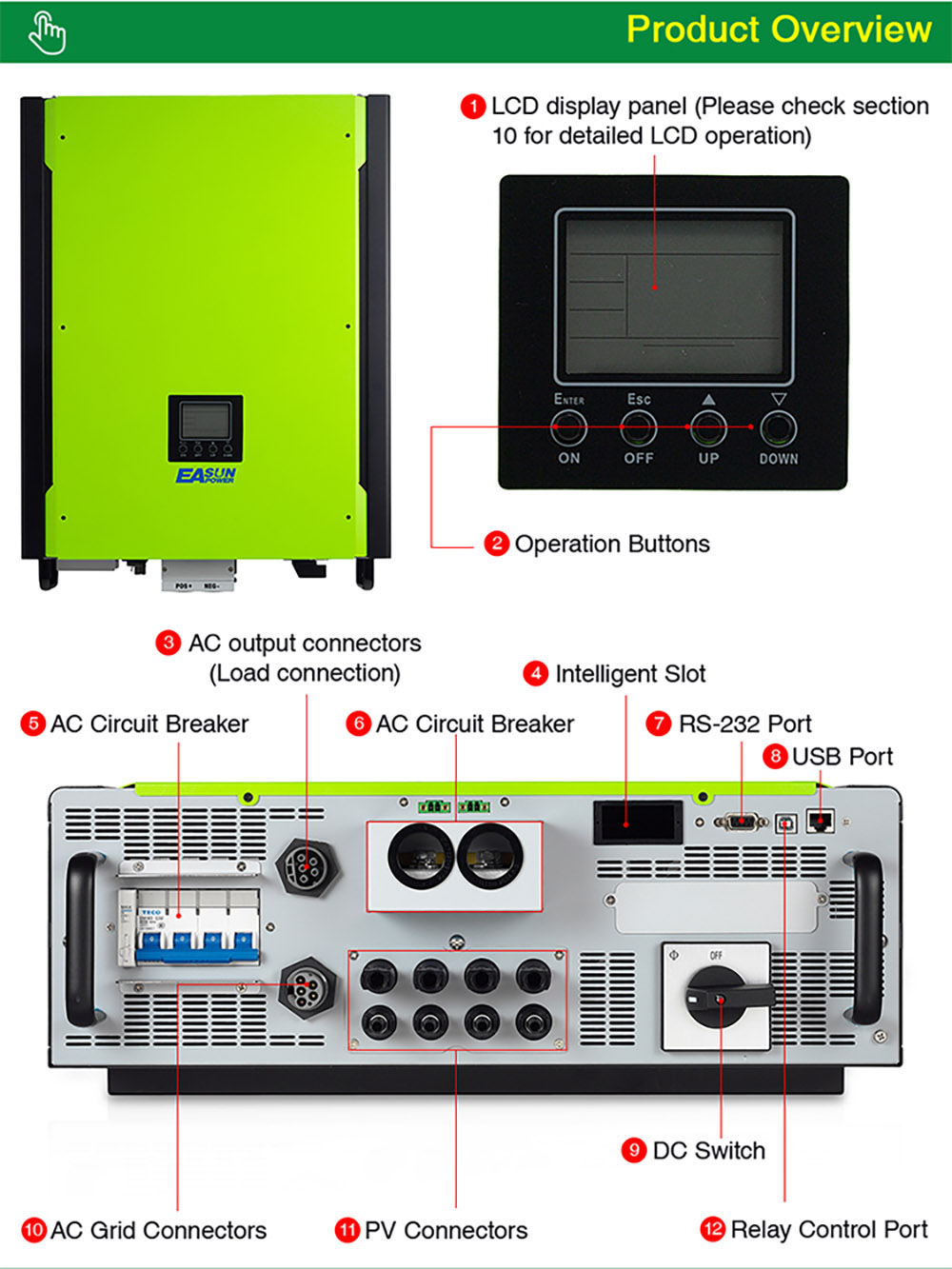

· Multiple communication for USB, RS-232, Modbus and SNMP *monitoring software for real-time status display and control
· Custom-made firmware by ODM contract

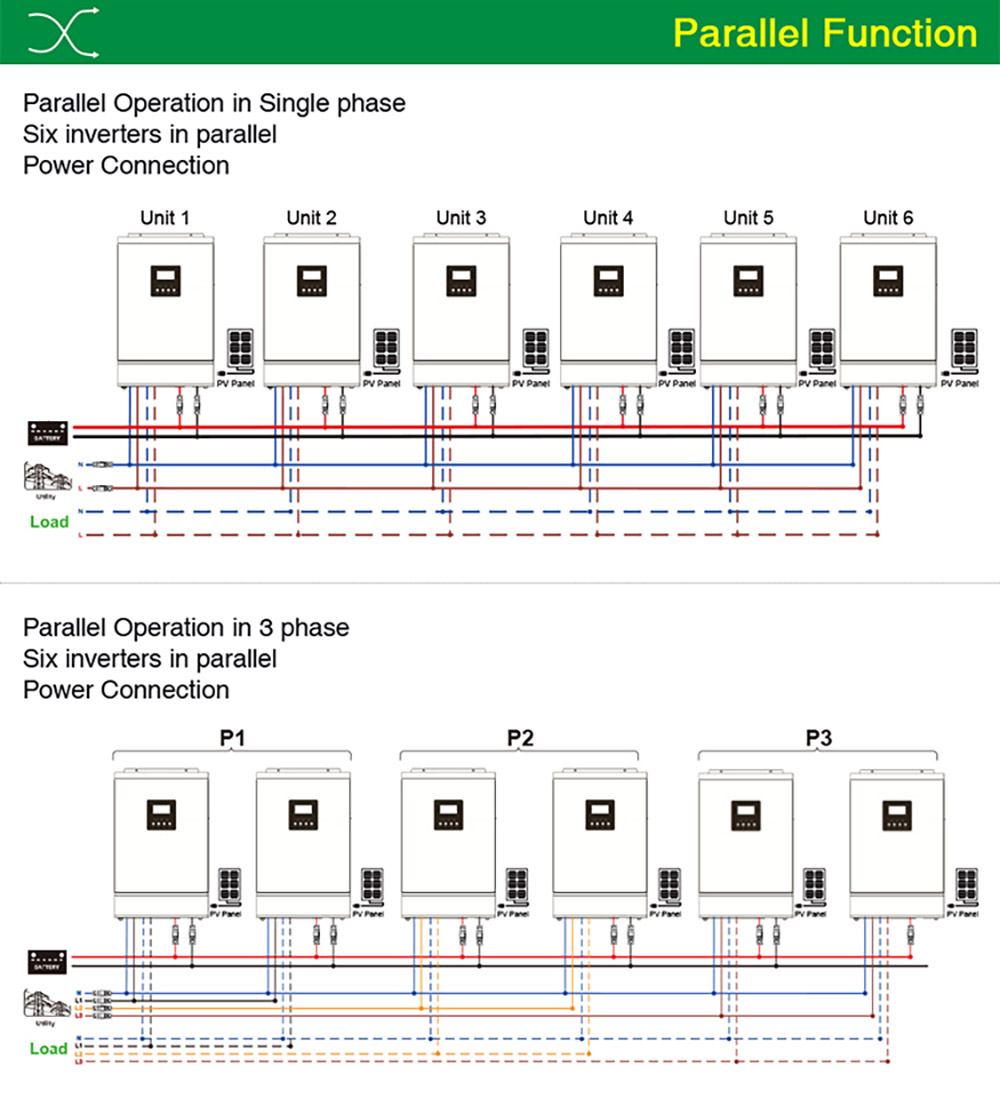

· Parallel operation up to 6 units for 5KW/10KWand 15KW
Specification
| General | Brand: EASUN POWER Type: Hybrid Solar Inverter Model: IGrid TT 10K Color: Green |
| Specification | Rated Power: 10000 W PV Input (DC) Maximum DC Power: 14850 W Nominal DC Voltage: 720 VDC Maximum DC Voltage: 900 VDC Working DC Voltage Range: 300 VDC - 900 VDC Start-up Voltage / Initial Feeding Voltage: 320 VDC / 350 VDC MPP Voltage Range: 350 VDC ~ 850 VDC Maximum Input Current: 2*18.6 A Isc PV (absolute maximum): 25 A Max. inverter back feed current to the array: 0 A Grid Output (AC) Nominal Output Voltage: 230 VAC (P-N) / 400 VAC (P-P) Output Voltage Range: 184 - 265 VAC per phase Output Frequency Range: 47.5 - 51.5 Hz or 59.3 - 60.5Hz Nominal Output Current: 14.5 A per phase Inrush Current/Duration: 17 A per phase / 20ms Maximum Output Fault Current/Duration: 51 A per phase / 1ms Maximum output Overcurrent Protection: 51 A per phase Power Factor Range: 0.9 lead – 0.9 lag AC Input AC Start-up Voltage: 120-140 VAC per phase Auto Restart Voltage: 180 VAC per phase Acceptable Input Voltage Range: 170 - 280 VAC per phase Nominal Frequency: 50 Hz / 60 Hz AC Input Power: 10000VA/10000W Maximum AC Input Current: 25 A Inrush Input Current: 25 A / 1ms Battery Mode Output (AC) Nominal Output Voltage: 230 VAC (P-N) / 400 VAC (P-P) Output Frequency: 50 Hz / 60 Hz (auto sensing) Output Waveform: Pure sine wave Output Power: 10000VA/10000W Efficiency (DC to AC): 91% Battery & Charger (Lead-acid/Li-ion) DC Voltage Range: 40 – 60 VDC Nominal DC Voltage: 48 VDC Maximum Battery Discharging Current: 275 A Maximum Charging Current: 200 A |
| Weight & Size | Product Weight: 47.04kg Package Weight: 47.04kg Package Size(L x W x H): 79x60x30cm |

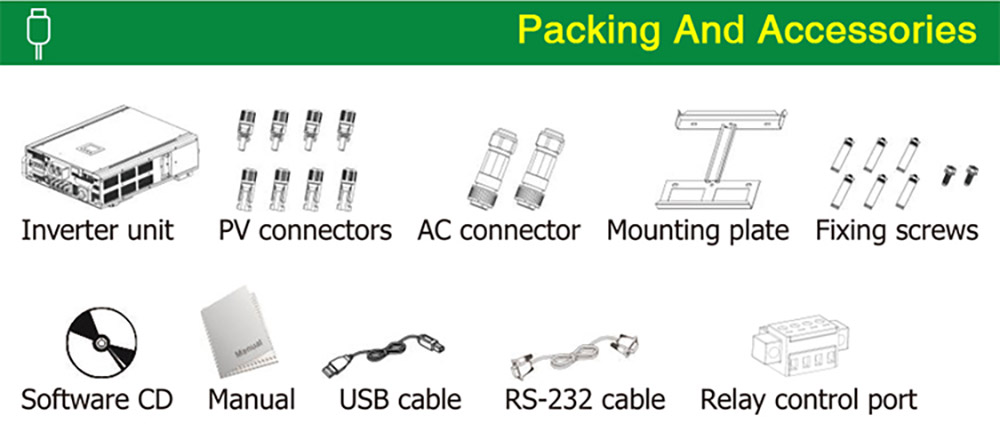

| Package Contents | 1 x Hybrid Solar Inverter 8 x PV Connectors 2 x AC Connectors 1 x Mounting Plate 1 Set of Fixing Screws 1 x Software CD 1 X USB Cable 1 x RS-232 Cable 1 x Relay Control Port 1 x User Manual |
