Highlights

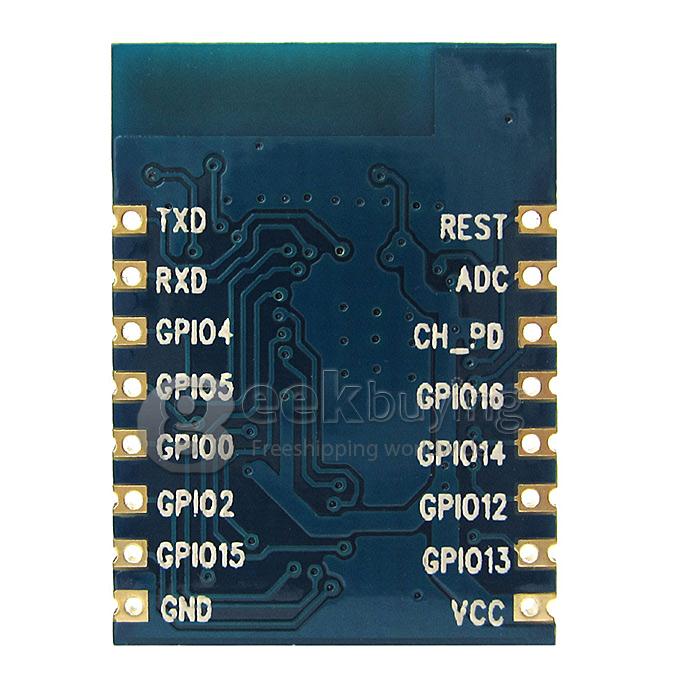

- WiFi serial transceiver module based on ESP8266 SoC
- Integrated TCP/IP protocol stack
- TTL serial communication interface,parameters can be set by AT command
- Widely used in networking, smart home project when being connected to the wifi router. It can be used for remote monitoring of home appliances, bedroom temperature and humidity, and controlling home appliances by the mobile phone
- Easy to develop projects with AT command
Specification
| General | |
|---|---|
| Quantity | 1 Piece |
| Specification | |
| Communication Interface Voltage | 3.3V |
| IO Port Package | SMD, all IO ports are led out |
| Antenna Type | Built-in ceramic antenna is available, and you can also use an external antenna |
| Wireless Network Mode | Station / softAP / SoftAP + station |
| Wireless Criteria | 802.11 b / g / n,@ 2.4 GHz, support for WPA / WPA2 security mode |
| Application | Home automation, sensor networks, industrial wireless control |

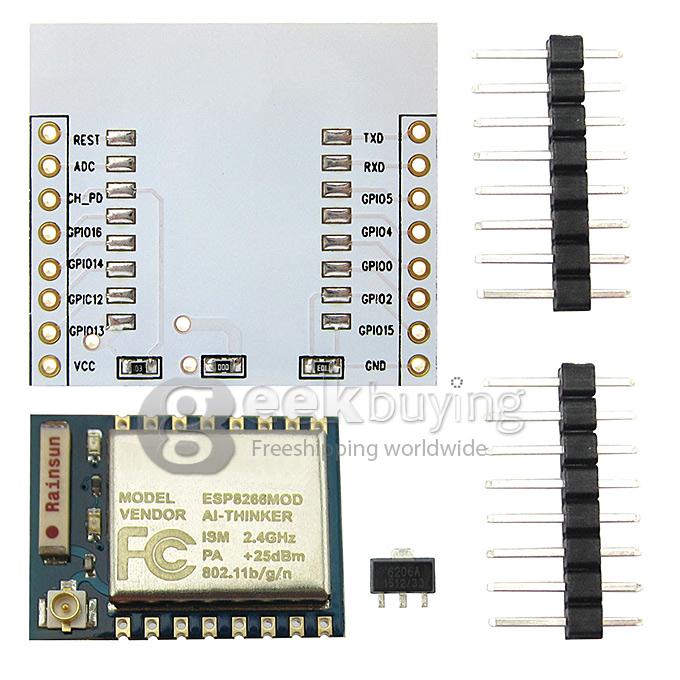

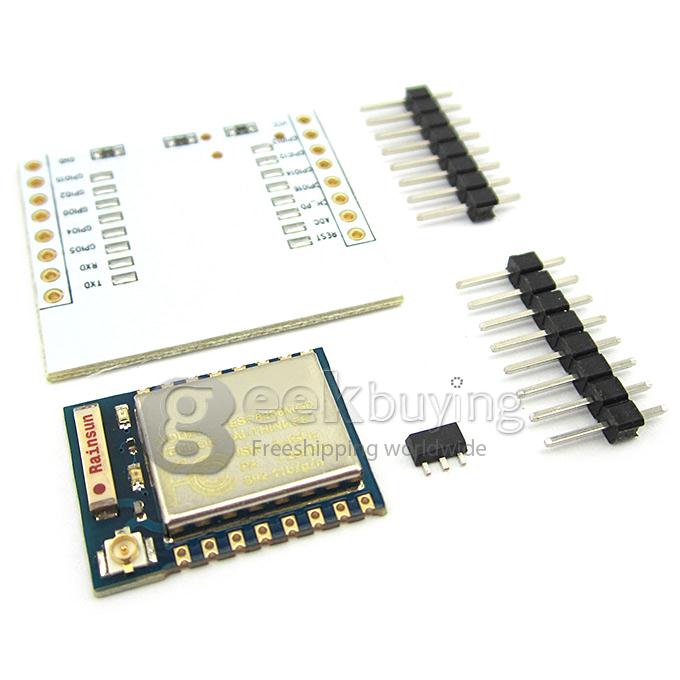

| Package Contents | |
| 1x ESP8266 Wifi module(ESP-07) | |
| 1x Adapter Board | |
| 2x 1X8P pin headers | |
| 1x XC6206P332PR sot89 | |
Rayfile link ://pan.baidu.com/s/1o6OFQ5c

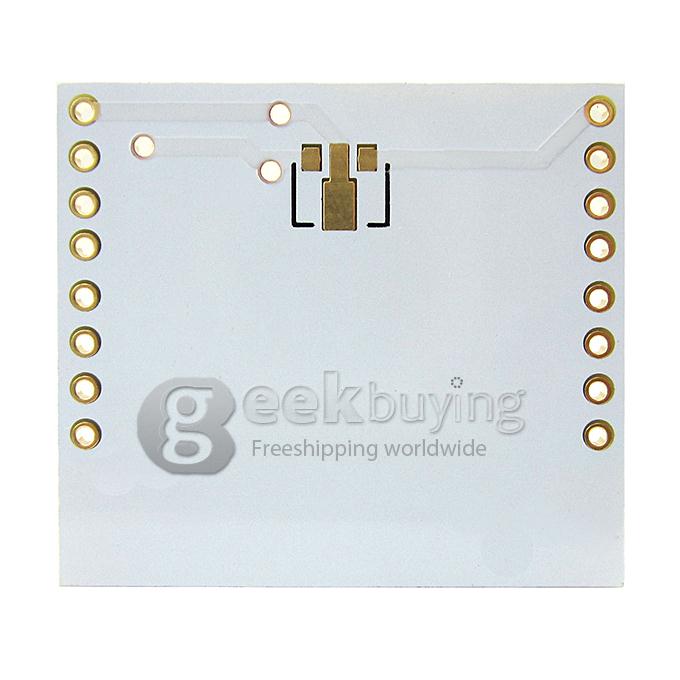

About the Adapter Board: It is used to convert the IO ports of ESP-07 to 2.54mm pitch pin headers, so it is easy for the beginner to test ESP-07 and learn wifi controlling.
Before using it, the user should first follow these steps:
Firstly, Solder the ESP-12 to the adapter board;
Secondly, Solder the 3.3V regulator to the bottom of the adapter board;
Thirdly, Solder the 1X8P pin header to the adapter board;
Because there is a 3.3v regulator onboard, the range of VCC pin on the adapter board can be 3.3V to 5V.
