Highlights
- Specially supply for Arduino lover
- Compatible with Arduino, you can use the Arduino IDE directly
- It makes you easier and faster to complete the project of Wifi remote home appliances
- Wireless Upload Program available
- It is built based on the mature and popular ESP8266 technology. You can take advantage the abundant resources available on the web.
- It has built-in USB-TTL serial with super reliable industrial strength CH340G for superior stability on all supported platforms.
- This is multifunctional advanced kit based on ESP-12E UNO Wi-Fi development board. It is a new version of the high-performance 2.4G wifi development board based on the ESP-12E and CH340G. After installing the hardware package for this development board on Arduino-1.6.5 IDE, you can use the IDE to program and design.
- It includes many of the most popular accessories for DIY projects : like Breadboard, Jumper wires, Color LEDs, Resistors, Buzzer, etc. When you get the kit, you can follow the tutorial to do experiments without buying any other additional components. The kit can help you learn simple Arduino programming and learn how to make interesting projects. The tutorial consists several experiments, such as Button Controlled LED, Light Controlled LED, 1602 LCD Display, uploading humidity and temperature to Sparkfun Website, etc., and it is easy to start.
Specification
| General | |
|---|---|
| Type | BreadBoard |
| Model | ESP8266 ESP-12E |
| Antenna Type | Built-in PCB antenna is available |
| Wireless | Wireless Network Mode: station / softAP / SoftAP + station Wireless criteria: 802.11 b / g / n WIFI @ 2.4 GHz, support for WPA / WPA2 security mode |
| Power Supply | Working voltage: 3.3V IO logic level: 3.3V DC jack input voltage: 6-24VDC DC jack input current: 800mA(MAX) Micro USB socket input current: 500mA(MAX) ADC pin (A0) input voltage: 0-3.3V |
| Flash Capacity | 4M Bytes |
| Clock Frequency | 80MHz or 160MHz |
| Compatible | Arduino IDE |

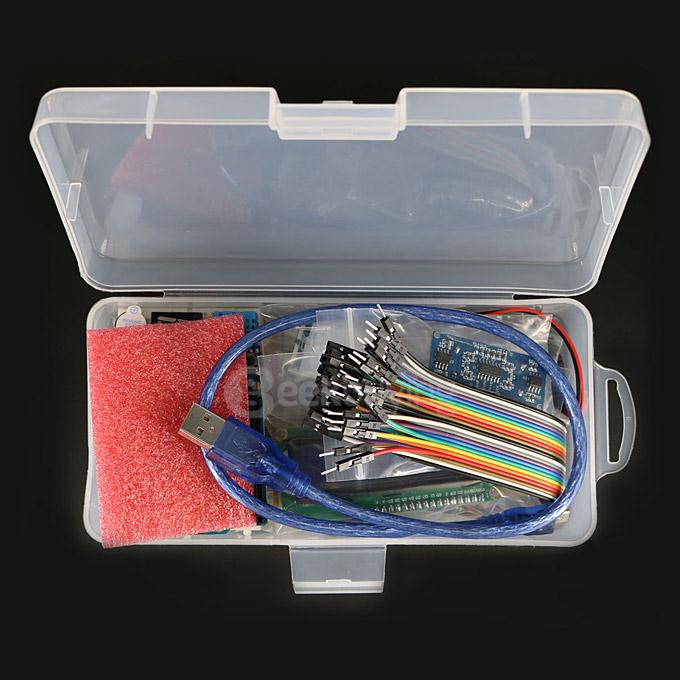

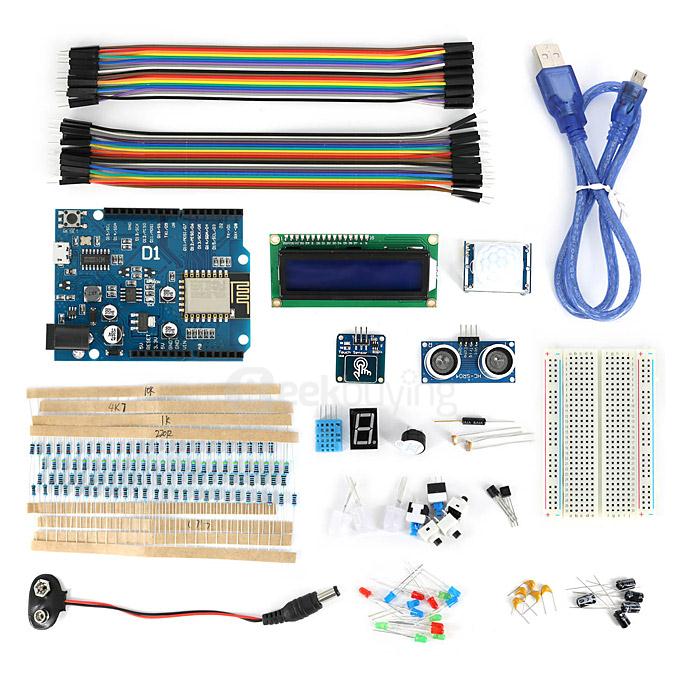

| Package Contents | |

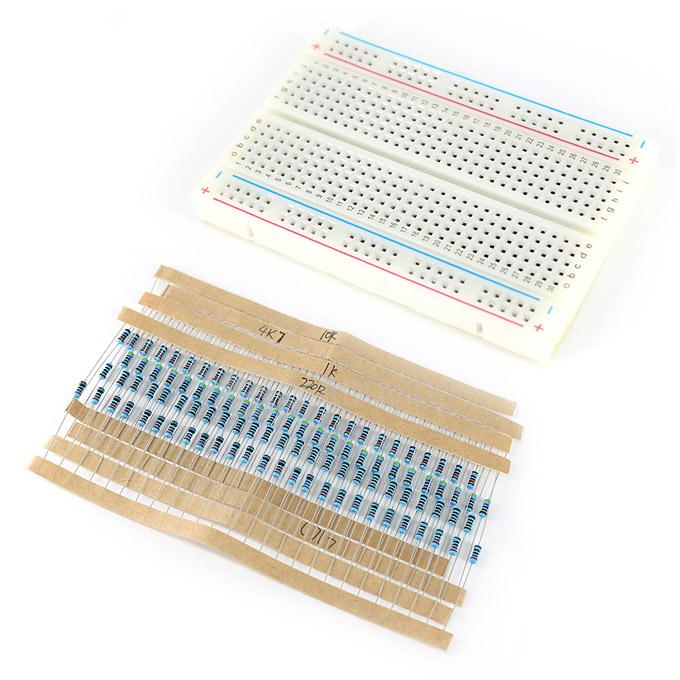

| 1 x ESP-12E UNO Wi-Fi Board 1 x Micro USB Cable (50cm) 1 x Breadboard 83x55mm |
|
| 25 x Resistor, 220ohm 1% 1/4W 25 x Resistor, 1k 1% 1/4W 25 x Resistor, 4.7k 1% 1/4W 25 x Resistor, 10k 1% 1/4W |
|
| 3 x Button 2 x Self-locking button 5 x Aluminum electrolytic capacitor 47uF 5 x Monolithic capacitor 100nF |
|

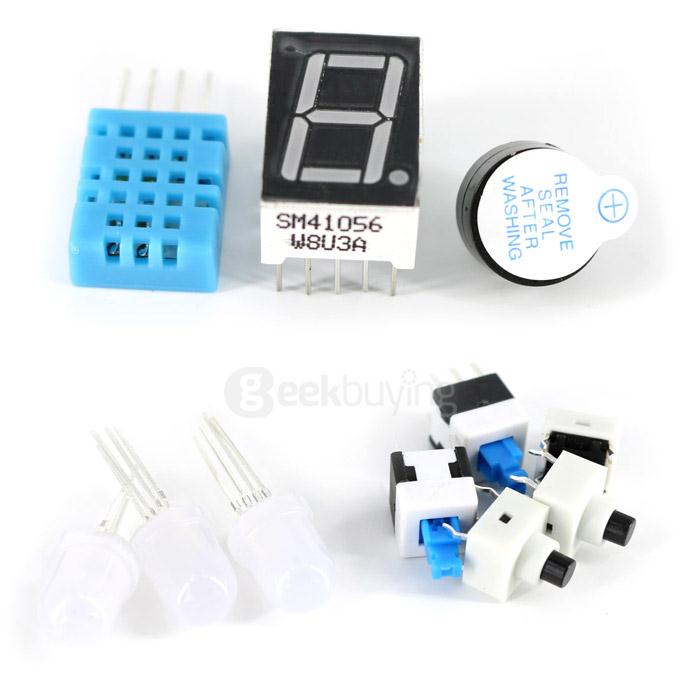

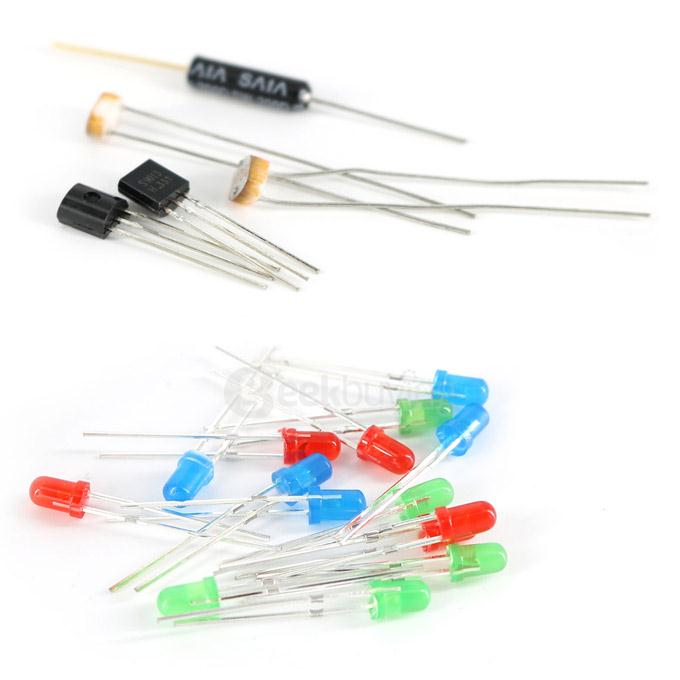

| 2 x Transistor S9013 2 x Photo-resistor 1 x Temperature and humidity sensor (DHT11) |
|

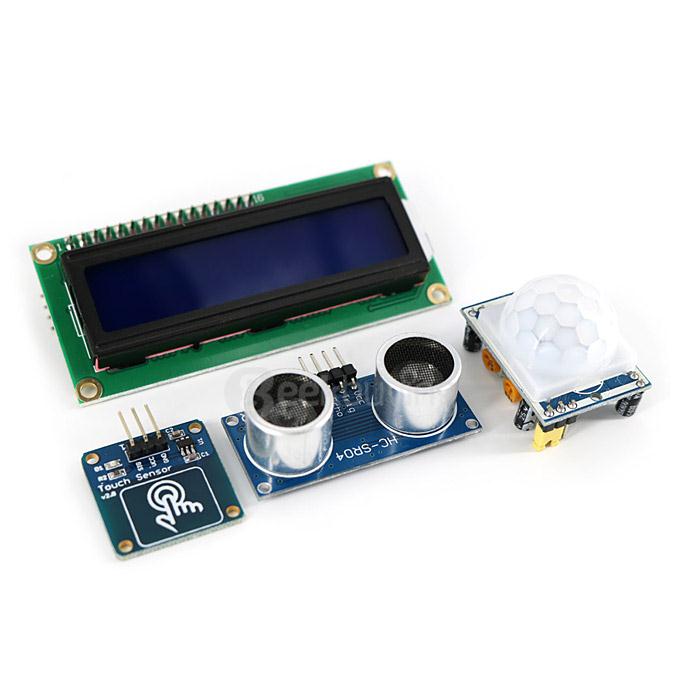

| 1 x Touch Sensor 1 x PIR motion sensor 1 x Ultrasonic sensor 1 x Tilt sensor |
|
| 5 x 5mm red LED 5 x 5mm green LED 5 x 5mm blue LED |
|
| 3 x 8mm common-anode RGB LED 1 x 0.56" common-anode 7-Segment LED 1 x 1602 LCD 1 x 5V Active buzzer |
|

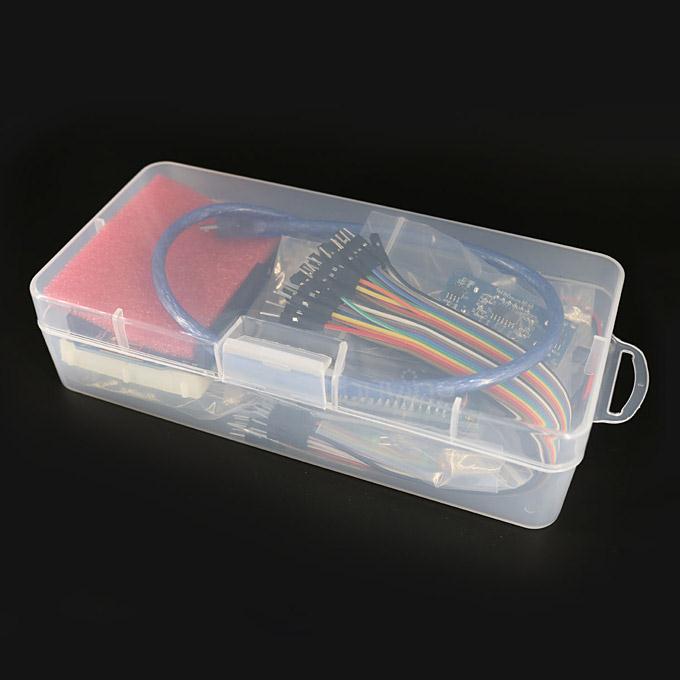

| 1 x 20P Male-to-Male Breadboard Wires (20cm) 1 x 20P Male-to-Female Breadboard Wires (20cm) 1 x 9V Battery Connector(wire length is 15cm) 1 x Box |
|
