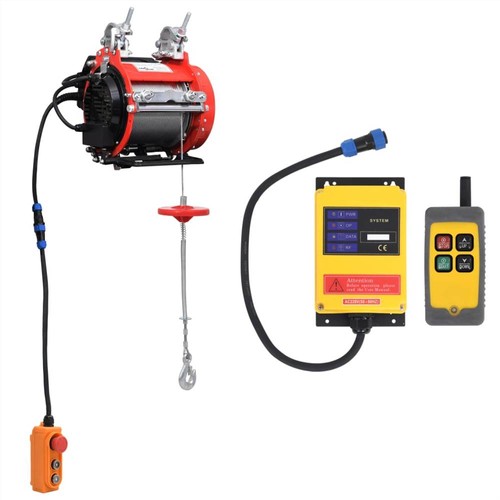

Electric Scaffold Hoist 500 kg with Remote Control

This electric hoist is easy to attach to scaffolding with its unique design and elegant shape. It makes the transport of building material, etc. to upper floors and roofs much easier and safer. Its powerful and maintenance-free motor is ideal for a wide range of lifting jobs. It is built to last, thanks to its robust construction and the improved gearbox. It has a 1,9 m cable remote control and an air socket for connecting the wireless remote control. The wireless remote control is included so that you can remain on the ground and do your heavy lifting with one hand. The steel rope is designed to reduce twisting. It has two using methods: You can use a single cable to lift a maximum 250 kg, or a double cable to lift a maximum 500 kg. Additionally, this electric hoist is also equipped with an emergency stop switch, an automatic brake and a thermal protection device to ensure your safety in lifting work.

• Scaffold hoist:
• Colour: Red
• Housing material: Steel
• Dimensions: 32 x 29 x 25 cm (L x W x H)
• Motor power: 1000 W
• Rated voltage: 230 V
• Rated frequency: 50 Hz
• Steel rope diameter: 4 mm
• Steel rope length: 18 m
• Hand control cable length: 1,9 m
• Avg. Lifting speed: Single cable 8 m/min, double cable 4 m/min
• Max. Lifting height: Single cable 30 m, double cable 15 m
• Load capacity: Single cable 250 kg, double cable 500 kg
• Protection class: IP 54
• With emergency stop switch, automatic brake function and thermal protection device
• Wireless control:
• Hosing material: PP
• Control distance: 100 m
• Control box cable length: 55,5 cm
• Protection class: IP65
• Includes a control box and remote control
• Required 2xAA battries (not included)
• Can be connected to winches with an air socket
• Red button: Stop or cut off the power
• Green button: Start or turn on the power
• Direction button: Up and down button
• Indicator light: Red light flashing (wrong operation)/green light flashing (right operation)
• Please note the hoist frame is not included
