Highlights

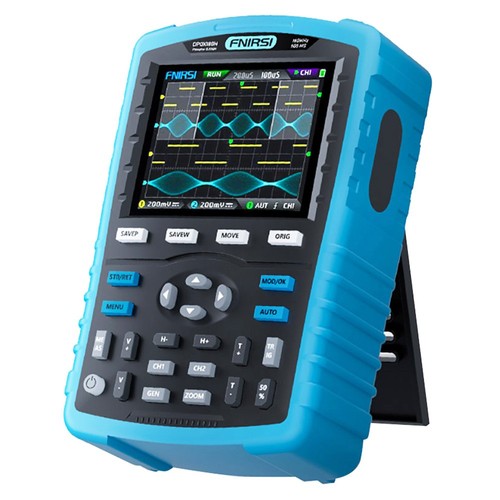

DPOX180H is a cost-effective handheld 2-channel digital phosphor oscilloscope with a signal generator function. The oscilloscope has a real-time sampling rate of 500MSPS and an analog bandwidth of 180MHz. In terms of display, a high-contrast 2.8-inch IPS full-vision LCD screen and digital fluorescent technology are used. The waveform display effect is good, and the colorways are grayscale and color temperature.
50000wfm/s, ZOOM Scaling Time Base
With a waveform refresh rate of up to 50000wfm/s, displaying abnormal signals with low probability is easier. The time base system includes a ZOOM time base for easy analysis of digital protocol signals. It has three-time base modes of YT, XY, and rolling. With a vertical sensitivity as low as 5mV, it can better measure small signals of 5mVPP.
Adaptive Adjustable Trigger Suppression
Ultra-high signal-to-noise ratio, fully sealed shielding measures, stable circuit feedback design, making the waveform clean and clear. The original adjustable automatic bandwidth limit and adaptive adjustable trigger suppression are suitable for analyzing and measuring signals with relatively large noise.
20M Hardware Bandwidth Limit
It can filter out noise above 20MHz. The trigger adopts digital trigger technology with high precision. It has three trigger modes: automatic/single/normal. Also, it has a strong ability to capture periodic signals, burst signals, and protocol signals.
DDS Signal Generator
The DDS signal generator has 14 kinds of function signal waveforms and a free-customized chopping waveform. The frequency of the sine wave can reach up to 20MHz, and the other waveforms can reach up to 10MHz. The original chopping output function can store up to 500 customized signals.
Save Waveforms and Screenshots with One Key
Up to 250 sets of waveform data or 90 pictures can be stored, and 500 intercepted wave data can be stored at the same time. The data browser can browse and view the currently saved waveform data and pictures, and the waveform data supports operations such as zooming and moving.
Safe Protection, Fast Charging
With high voltage anti-burning protection, all gears can withstand high voltage up to 400V. USB data export, you can connect to a computer to copy picture files and copy system files to the oscilloscope for system upgrades. 5V2A fast charging and 1 hour can charge to 80%.
Specification
| General | Brand: FNIRSI Type: Digital Oscilloscope Model: DPOX180H Color: Blue |
| Specification | Number of Channels: 2 Analog Bandwidth: 180MHz Maximum Sampling Rate: 500MSPS Input Coupling: DC/AC Rise Time: 2.5ns Storage Depth: 120Kpts Input Impedance: 1MQ-18PF Vertical Sensitivity: 5mV-10V (1X) Time Base Range: 5nS-50S DC Accuracy: ±2% Time Accuracy: ＋0.01% Trigger Detection: digital trigger Trigger Mode: auto/single/normal Trigger Edge: rising/falling Measurement Range: 40mV-80V (1X) Screenshot Storage: 90 Capture Signal: 500 Roll Mode: Supported X-Y Mode: Supported Auto-Adjustment: Supported Waveform Manager: Supported High-Voltage Burnout Protection: Supported Screen Size: 2.8 inches Screen Resolution: 320x240 Display Technology: IPS full view Expansion Interface: USB transmission interface Auto Power-Off: 5 minutes - 2 hours Firmware Upgrade: supported iOS image upgrade Charging Requirements: 5V 2A Battery Capacity: 3000mAh Standby Time: 3.5 hours at full charge Signal Generator: 14 standard function signals Waveform Storage: 250 groups Parameter Measurement: 12 kinds Cursor Measurement: Frequency / Period / Amplitude 20m Hardware Bandwidth Limitation: Supported Digital Phosphor Technology: Supported Color Temperature Display: Supported Zoom Scaling Time Base: Supported Waveform Output: Supported Adjustable Automatic Bandwidth Limitation: Supported |
| Weight & Size | Product Weight: 0.54kg Package Weight: 0.68kg Product Size(L x W x H): 13.5x9x4cm Package Size(L x W x H): 24.3x14.7x18cm |
| Package Contents | 1 x Digital Oscilloscope 2 x 200m probe 1 x Charger 1 x USB Data Cable 1 x User Manual |
