FNIRSI DSO-TC2 2 in 1 Digital Oscilloscope, Transistor Tester, 1 Channel, 200Khz Bandwidth, 2.5MS/s Sampling Rate, PWM Square Wave Output

Highlights

2-in-1 Digital Oscilloscope

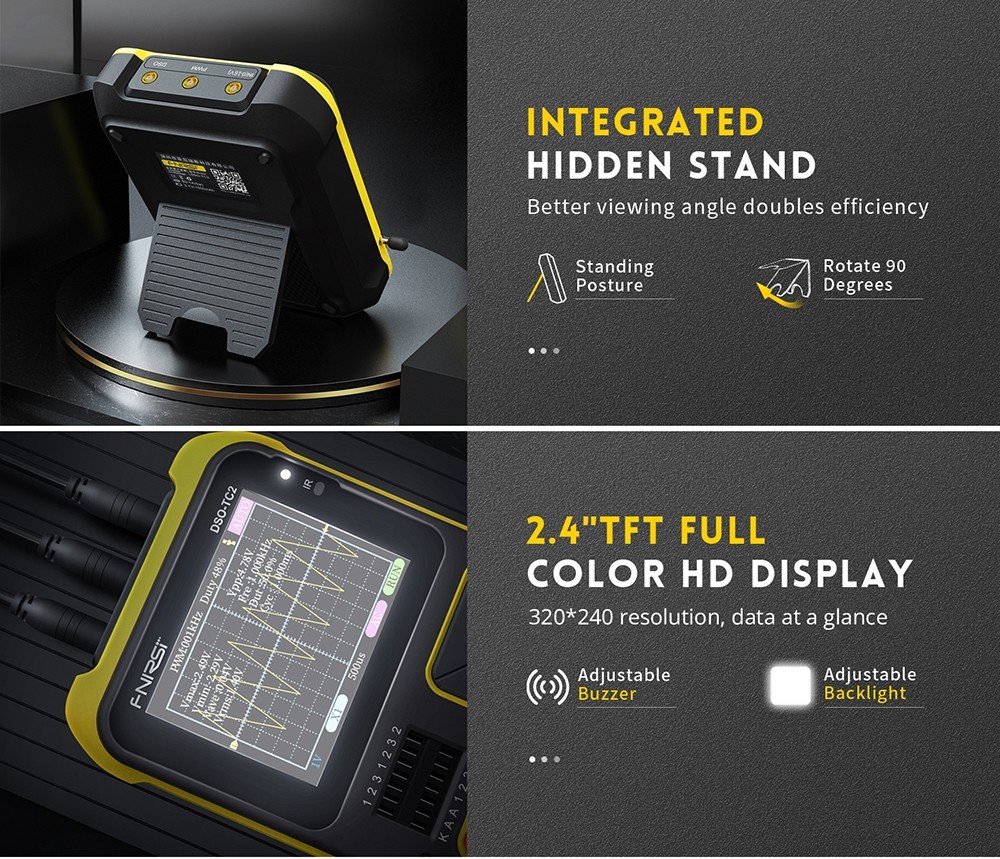

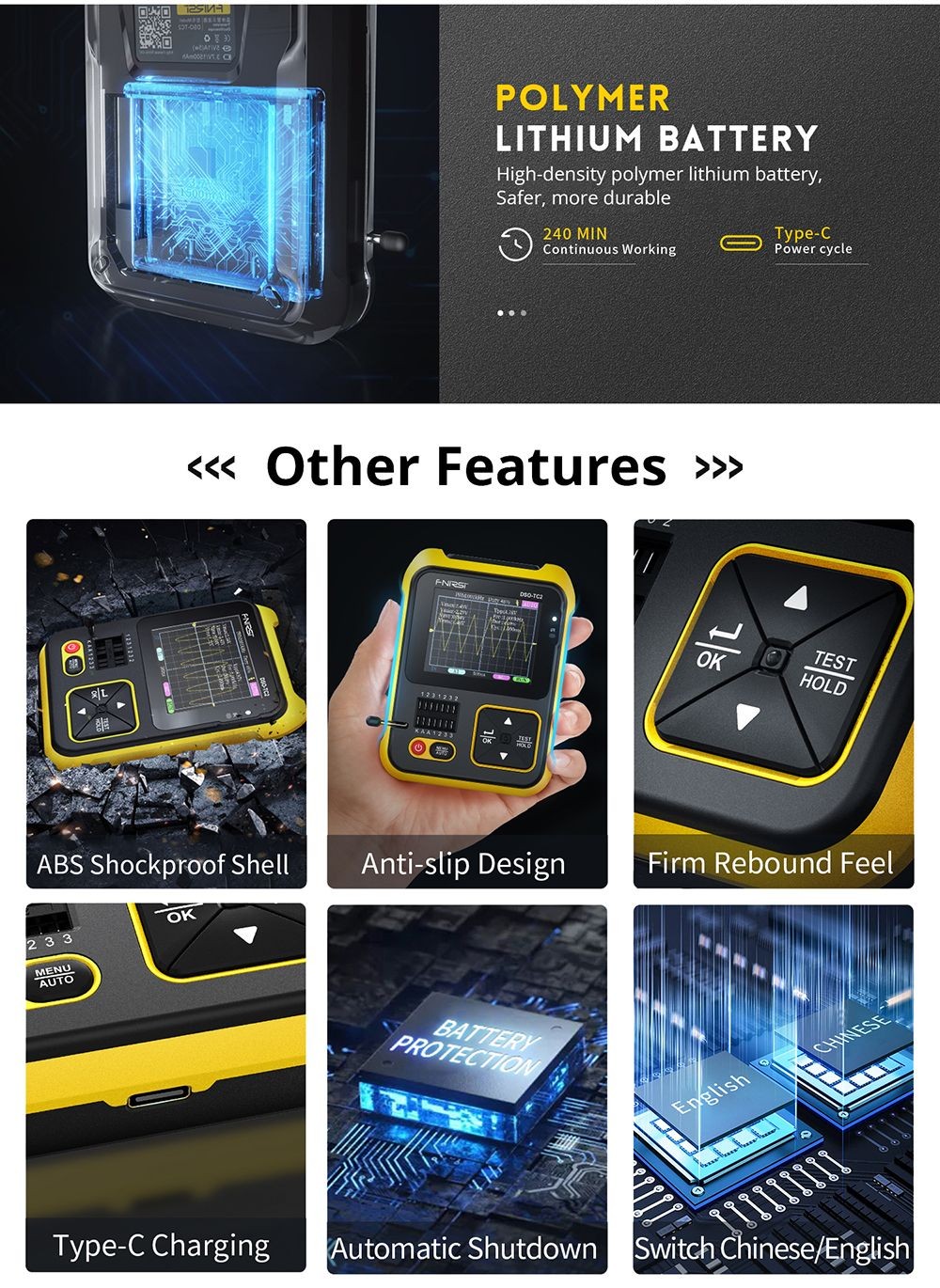

FNIRSI DSO-TC2 ingeniously integrates a digital oscilloscope, electronic component tester and other functions into one. Equipped with 2.4 inches TFT color screen and a built-in rechargeable lithium battery, it can bring more practical functions to users with a small size.

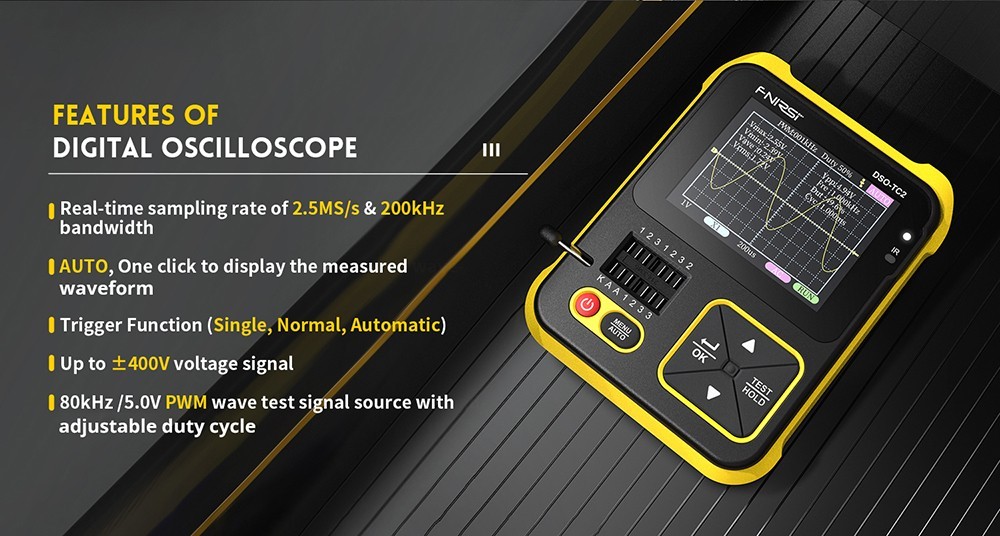

Handheld Oscilloscope
DSO-TC2 handheld oscilloscope has a real-time sampling rate of 2.5MS/s and a 200kHz bandwidth. With a complete trigger function (Single, Normal, Automatic), it can be used freely for both periodic analog signals and aperiodic digital signals. Equipped with efficient one-key AUTO, the measured waveform can be displayed without cumbersome adjustment.

Transistor Tester
DSO-TC2 transistor tester can automatically identify and measure various transistors, including NPN and PNP transistors, N-channel and P-channel field effect transistors, junction field effect transistors, diodes, double diodes, thyristors, etc., and passive components such as resistors, inductors, capacitors, etc.

Other Functional Modes

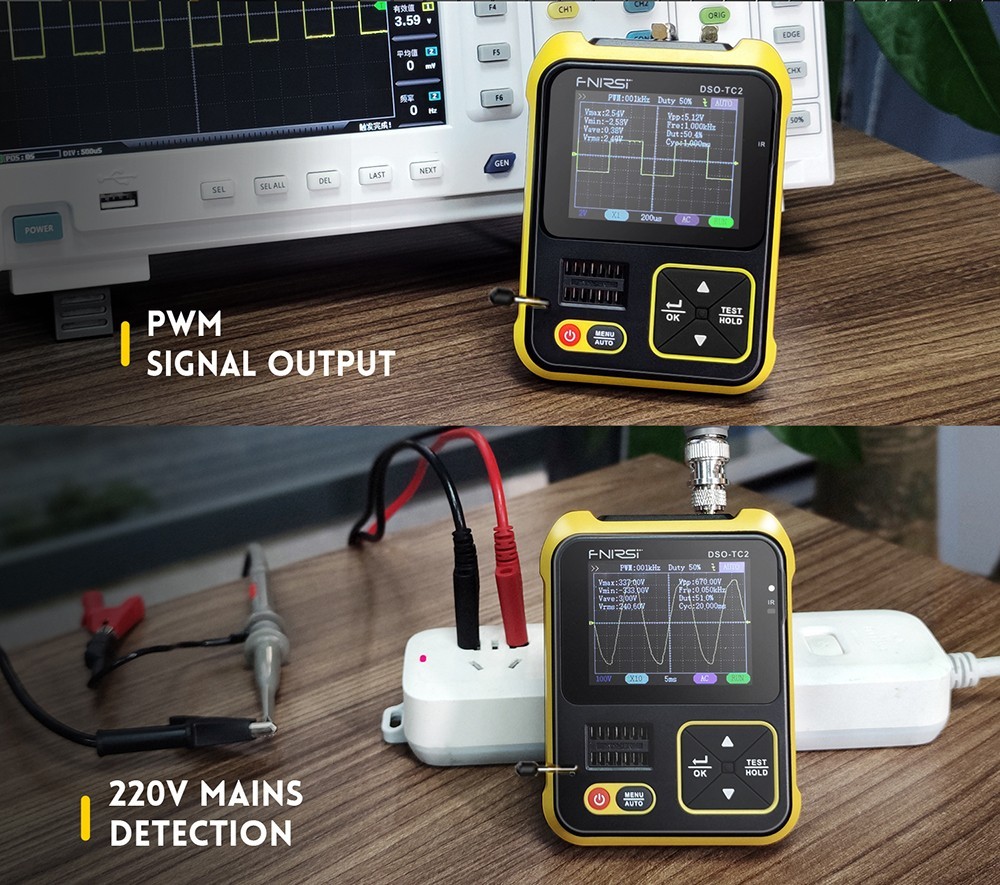

Including circuit continuity test, 0-16V input voltage measurement, PWM output, 0-24V Zener diode measurement, DS18B20 temperature sensor measurement, DHT11 temperature, and humidity sensor measurement, etc.
