Highlights
Versatile Tester
FNIRSI LCR-P1 measures transistors, capacitors, resistors, inductors, diodes, MOSFETs, and batteries.
User-Friendly Design
It features a replaceable patch seat, a 1.44-inch color screen, a 300mAh battery, and a Type-C charging/data port.
Anti-Burn Protection
Automatically discharges undischarged capacitors to prevent accidental damage.
Infrared Analysis
Supports NEC infrared protocol analysis for remote control debugging and maintenance.
Smart Identification
Automatically detects component pins, parameters, and specifications for faster work efficiency.
Specification
| General | Brand: FNIRSI Type: Transistor Tester Model: LCR-P1 Color: Black |
| Specification | Display Type: Digital Only Power Supply: Battery
Transistor range: 10 < B < 600
Capacitance Range: 25pF-100mF
Inductance range: 10μh-1000μh
Resistance Range: 0.01Ω-50MΩ
Diode: Forward voltage < 4.5V
Voltage Regulator Diode: 0.01-4.5V / 0.01-32V
Field-Effect Transistor: JFET / IGBT / MOSFET
Bidirectional Thyristor: Turn-on voltage < 5V, Gate trigger current < 6mA
IR Decoding: NEC protocol IR code
Display: 1.44'' Color Screen
Power Supply: 300mAh lithium battery
Operating Temperature: 0~40℃
Charging: USB Type-C, 5V/1A
Anti-burn protection: supported
Data Export: supported
Firmware upgrade: supported
|
| Weight & Size | Product Weight: 0.079kg Package Weight: 0.136kg Package Size(L x W x H): 12.9x8.4x4.6cm |

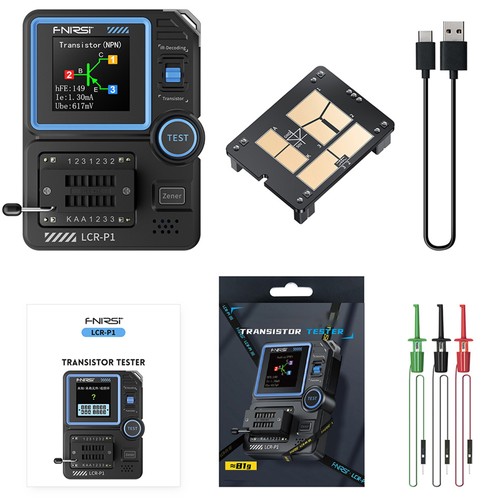

| Package Contents | 1 x LCR-P1 Host 1 x Replaceable Test Board 1 x USB Data Cable 1 x User Manual 1 x Packing Box 3 x Test Hook |
