Highlights
- Never lose data, clear warning
- Intelligent uploading; can choose to upload data of last scans and resume uploading from breakpoints
- No-messy-code programmed, data counting, repeated code and out of the base range warning, ID display
- Beeper and light indicates if the scanner is out of the base range and scanning will automatically switch to storage mode
- Support one to one, one to many, many to one operation; and each base can respond to up to 254 scanners
- Rechargeable lithium battery enables 6-10 hours continuous use after full charge and avoids trouble of returning to factory for replacing battery
- Supports USB interface
Specification
| Light Source | 650nm (visible) |
| Scan Rate | 100 scans per second |
| Resolution | 0.10mm (4mil) PCS0.9 |
| Reading Distance | 2.5 - 600mm (100% UPC/EAN) |
| Print Contrast | 30% minimum reflective difference |

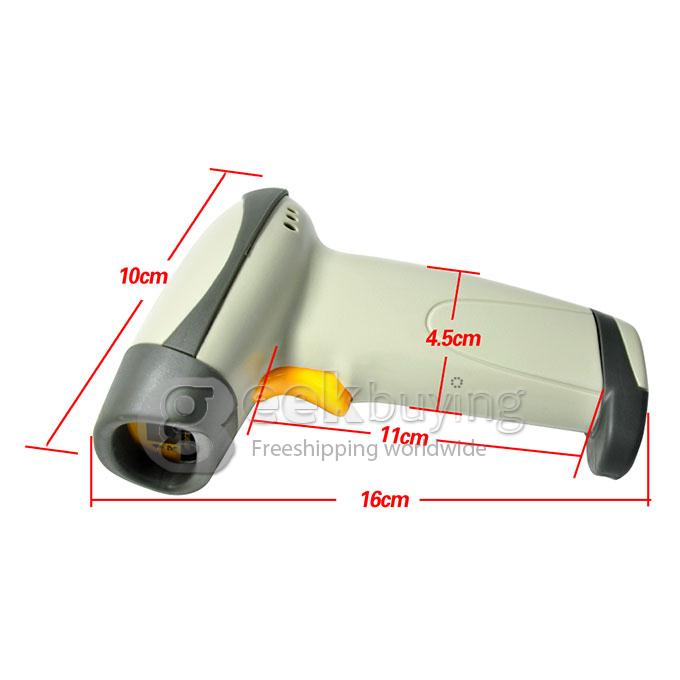

| Dimension | L160mm × W65mm × H85mm |
| Weight | 204g |
| Scanning angle | Inclination angle 45°, Elevation angle 60° |
| Decode Capability | UPC/EAN, UPC/EAN with Supplementals, UCC/EAN 128, Code 39, Code 39 Full ASCII, Trioptic Code 39, Code 128, Code 128 Full ASCII, Codabar, Interleaved 2 of 5, Discrete 2 of 5, Code 93, MSI, Code 11, RSS variants, Chinese 2 of 5 |
| Interfaces | Keyboard Wedge, RS232, USB |
| Current Consumption | 100mA (Idle Current < 40mA) |
| Voltage Requirement | 5VDC ± 5% |
| Operating Temperature | 0°C - 50°C / 32°F to 122°F |
| Storage Temperature | -40°C - 70°C / -40°F to 158°F |
| Relative Humidity | 5% - 95% (non condensing) |
| Shock | 1.5m drop on concrete surface |
| Ambient Light Immunity | Immune to direct exposure of normal office and factory lighting conditions, as well as direct exposure to sunlight |
| Electrostatic Discharge | Conforms to ±15KV air discharge and ±8KV of contact discharge |
| Safety | CORH class 2 laser product, FCC class B and CE |
| Housing material | ABS plastic+PVC+PC |
What's in the box?
- 1 x Barcode scanner
- 1 x English user manual
- 1 x USB cable
