Highlights
Ultra-Portable & Plug-and-Play Design

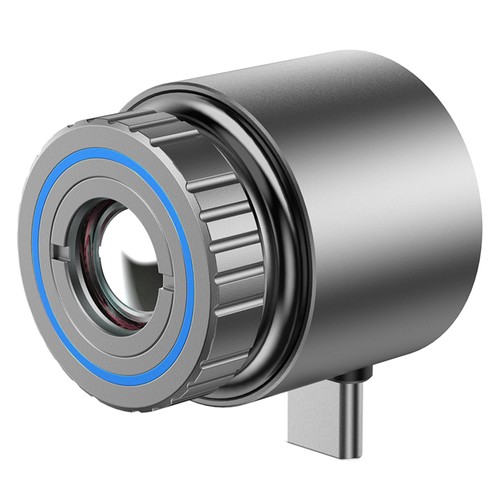

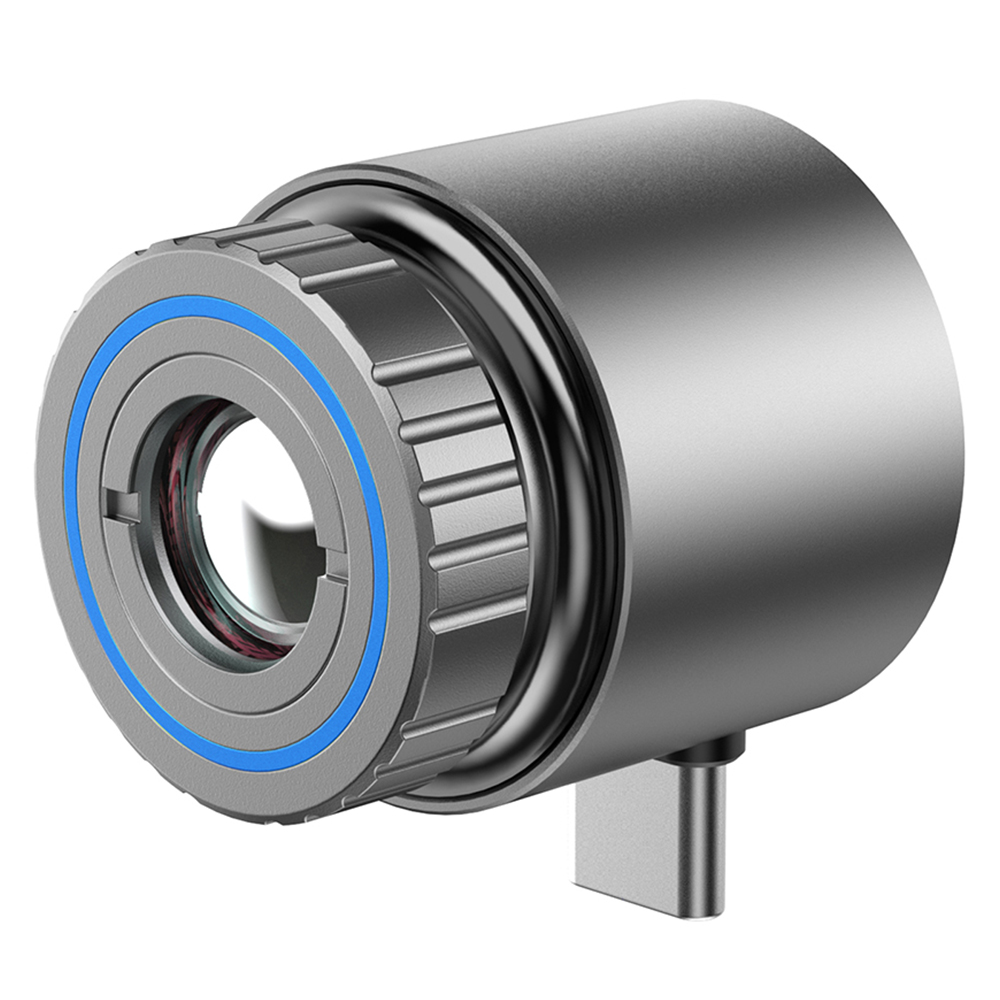

Weighing only 26g with a compact pocket-sized body, this thermal camera is easy to carry anywhere. The Type-C connector enables direct connection with Android smartphones, requiring no external power supply for quick outdoor inspections and on-the-go thermal imaging.
Manual Focus & Enhanced Thermal Imaging
Equipped with a manual-focus lens for precise imaging at different distances, it delivers clear thermal details from near and far targets. Super Resolution technology enhances the native 256×192 resolution up to 512×384, while 1×–8× digital zoom provides flexible viewing and analysis.
Professional Thermal Imaging Features
Offers 6 color palettes, 10 customizable reticles, PIP (Picture-in-Picture) mode, and hot spot tracking to meet various inspection needs. With a 50Hz refresh rate, it provides smooth real-time thermal previews and supports image and video capture.
High-Sensitivity Sensor & Reliable Performance in Extreme Conditions
Powered by a high-sensitivity thermal sensor with NETD ≤40mK, it captures subtle temperature differences with accuracy. The wide operating temperature range of -20°C to 55°C ensures stable performance in cold, hot, and demanding environments.
Powerful GTGuard App Without Account Registration
The free GTGuard App is available on Google Play with no login required. It provides advanced adjustment options, including screen rotation, flat-field correction (FFC), brightness and contrast tuning, allowing you to customize your thermal imaging experience with ease.
Specification
| Brand | GTGUARD |
| Type | Mobile Phone Thermal Imager |
| Model | ClearView C210 |
| Appearance | Mobile Module |
| Usage Type | Observation |
| Detector Type | Uncooled Vanadium Oxide Focal Plane Array (VOx) |
| Detector Resolution | 256 × 192 |
| Pixel Pitch | 12 μm |
| Spectral Response | 8 μm–14 μm |
| NETD | ≤40 mK @ f/1.0 |
| Objective Lens | 10 mm |
| Field of View (FOV) | 17.5° × 13.1° |
| Focus Mode | Manual Focus |
| Image Enhancement | Supports Super Resolution Function, Equivalent Pixel Resolution Up to 512 × 384 |
| Digital Zoom | 1×–8× |
| False Color Palettes | 6 Modes (White Hot, Black Hot, Red Hot, Iron Red, Amber, Jade) |
| Image Modes | General Mode, Original Mode, Jungle Mode, Sketch Mode |
| Video Compression Standard | H.264 |
| Supported Resolution (Normal) | 256 × 192 |
| Supported Resolution (Super Resolution) | 512 × 384 |
| Video Frame Rate | 50 fps |
| Interface | Type-C |
| Power Supply | Powered by Smartphone |
| Power Consumption | 0.36W |
| Operating Temperature | -20℃ to +50℃ |
| Operating Humidity | 93% RH @ 40℃ |
| Storage Temperature | -30℃ to +60℃ |
| Product Weight | 26g |
| Package Weight | 170g |
| Product Size (L x W x H) | 28.2 × 33.5 × 26mm |
| Package Size (L x W x H) | 110 × 110 × 60mm |
| Package Contents | 1 x ClearView C210 1 x Carry Bag 1 x Backpack Hook 1 x User Manual 1 x Gift Box |
