Highlights

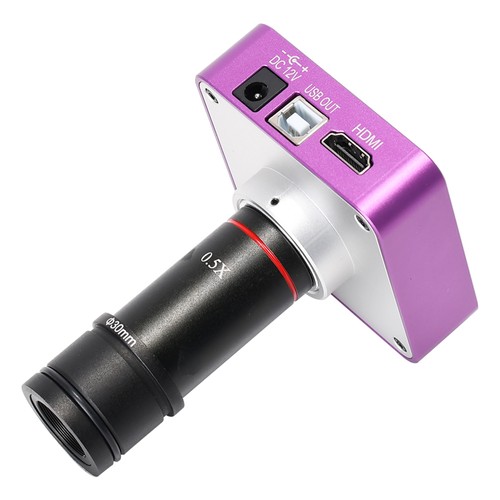

0.5X Reducing Lens

This microscope camera has a 0.5x reducing lens, which expands the camera's field of view.

Expand Field of View

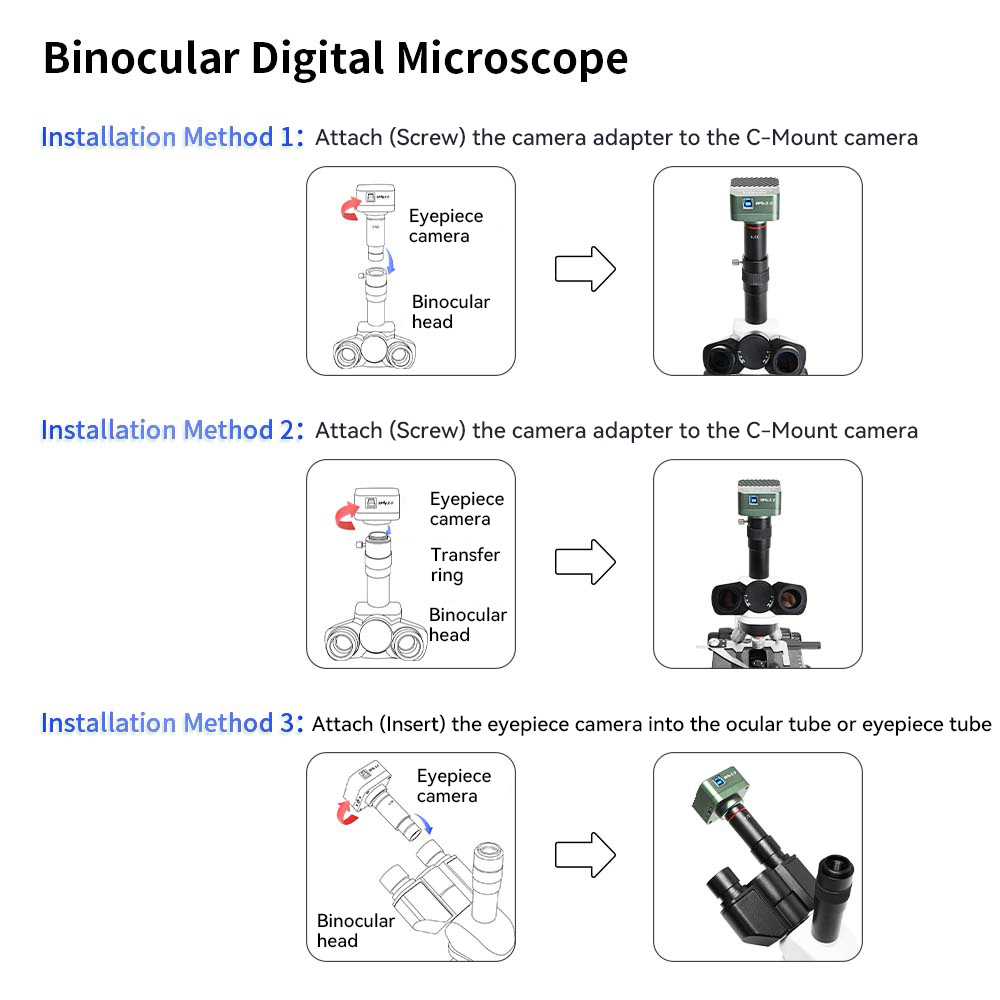

It can be used with a C-Mount or CS-Mount camera in any pixel and placed in a binocular or trinocular microscope to expand its field of view. This microscope camera can be installed directly in the biological or stereo eyepiece camera.

PC Support

Windows XP/7/8/10 system can be supported. When connecting the camera to a computer, just plug the USB line is OK (no need to use the power supply).

Note:

1. For USB output, the white balance, exposure, and color adjustment are automatic, they can't be adjusted. For HDMI output, the functions can only be adjusted while connecting with a monitor, if you connect the camera to a computer, the functions also can not be adjusted.
2. When using the USB connection, please make sure no TF card in the camera, TF card storage is only for HDMI output. USB output will be stored in the PC.

HAYEAR 2K 51MP 1080P 60FPS HDMI USB Electronic Industrial Microscope Camera 0.5X Eyepiece Adapter 30mm/30.5m Ring for Phone PCB RepairHAYEAR 2K 51MP 1080P 60FPS HDMI USB Electronic Industrial Microscope Camera 0.5X Eyepiece Adapter 30mm/30.5m Ring for Phone PCB RepairHAYEAR 2K 51MP 1080P 60FPS HDMI USB Electronic Industrial Microscope Camera 0.5X Eyepiece Adapter 30mm/30.5m Ring for Phone PCB Repair

Specification

General Brand: HAYEAR
Type: Microscopic Camera
Model: HY-5130-0.5X-30-30.5
Specification Model: Camera with HDMI USB2.0 two output
Image format: JPG
Image resolution: 51 MegaPixel (take a picture For HDMI)
Video format: MP4(for TF card)
Video recorder: 2K@30FPS, 1080P@60FPS
HDMI video resolution: 1920*1080 @ 60FPS
USB video resolution: 1920*1080@30FPS, 1280*720@30FPS, 640*480@30FPS, 320*240@30FPS
White balance: Auto/manual
Light: Auto/manual
Exposure: Auto/manual, value adjustable
Mirror: Left/right, Up/down
Freeze: Support
OSD: English/Chinese/French/Spanish/Japanese/German
Line: different color, 5 horizontal lines, 5 vertical lines, any positions
Image sensor: 51 megapixel Panasonic CMOS sensor 1/2.33 inch
Effective pixel: 51 megapixels
Pixel size: 1.335μm x 1.335μm
Frame rate: 60fps
Definition: Full HD
Housing: metal
Lens: C/CS
Video format: MOV
Digital zoom: Support
Brightness control: Auto/manual
Color: R/G/B adjustable
Film and record: Support
Cross cursor: Support multi-color, size adjustable
Transverse and vertical line: Support multi-color, 5pcs of transverse lines/vertical lines, moveable different color, 5 horizontal lines, 5 vertical lines, any positions
TF card interface: Max 64G
HDMI interface: Standard HDMI output (Type A)
USB interface: Standard USB2.0 interface (Type B)
Input voltage: DC 12V
Magnification: 0.5X
Mounting size: 23.2mm, 30mm, 30.5mm
C-mount thread: 32TPI-UN-2A
Suit microscope: biological microscope and stereo microscope
0.5X magnification to get a wider view of the microscope
C-MOUNT adapter to connect the CCD camera or digital eyepiece to the microscope
Weight & Size Product Weight: 0.6kg
Package Weight: 0.7kg
Package Size(L x W x H): 21x14.5x8cm

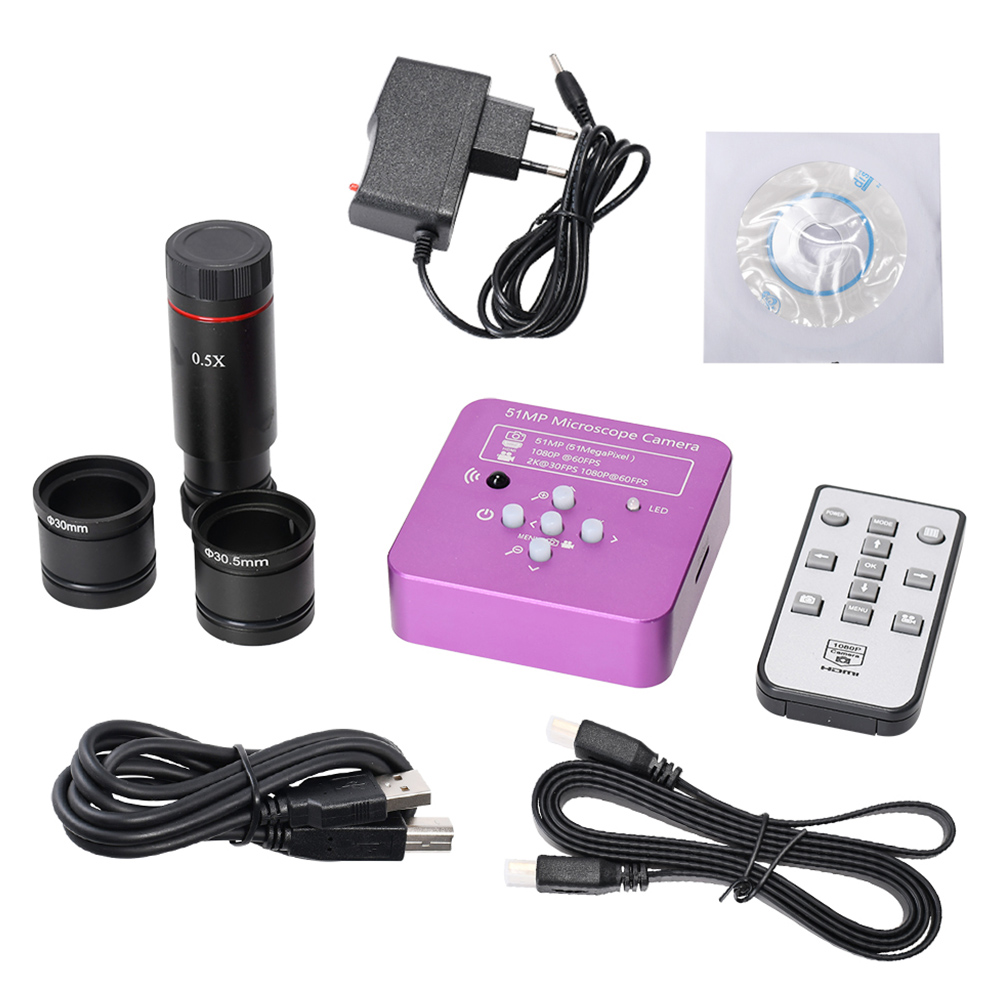

Package Contents 1 x 51MP Microscope Camera
1 x Power Supply
1 x USB Line
1 x Software Disc
1 x Remote Control
1 x 0.5X C-Mount Adapter
1 x 23.2mm to 30mm Adapter Ring
1 x 23.2mm to 30.5mm Adapter Ring
