Highlights
Up to 480Mb/s Type-C USB2.0 Interface
The microscope camera has a high-speed Type-C USB2.0 interface that can reach up to 480Mb/s.
Large CMOS Image Sensor
The microscope camera features a large area array of CMOS progressive scan image sensors, and it supports static and dynamic image capture.
Multifunctional Microscope Camera
The electronic digital eyepiece has an adjustable exposure time, and features 8-bit uncompressed raw image data, software implementation Bayer color conversion, and plug-and-play installation.
Wide Compatibility

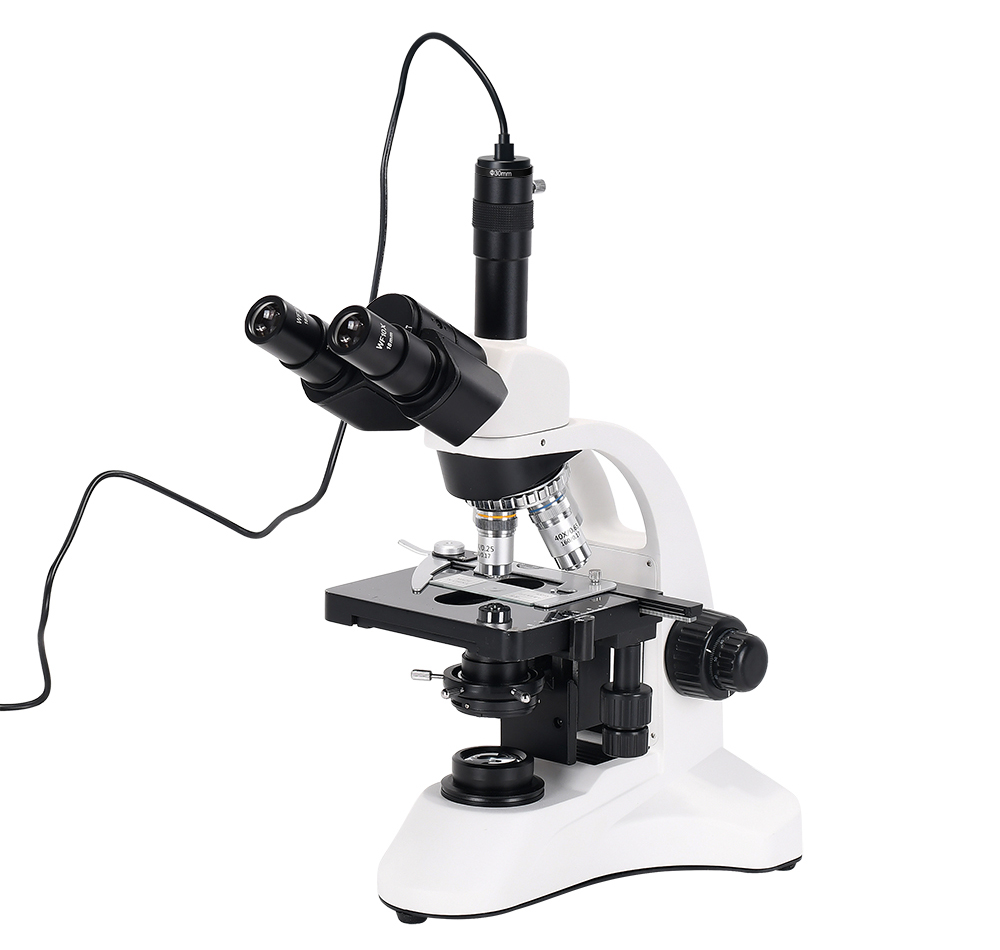

Support for Windows 2000, XP, and WIN7 operating systems. The electronic digital eyepiece can be widely used in pattern recognition, industrial testing, medical microscopy, traffic management, machine vision, and other fields. It is more widely used in various fields of microscope and image acquisition on various occasions.
Stable Image
The image is stable and reliable after a long period of rigorous testing performance indicators.
Specification

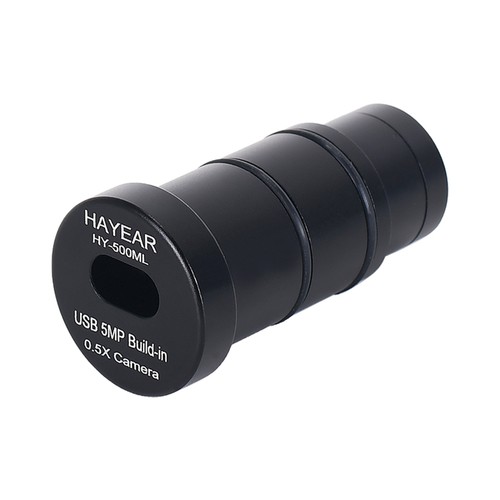

| General | Brand: HAYEAR Type: 5MP Digital Eyepiece Model: HY-500ML Color: Black |
| Specification | Resolution: 640X480, 1280x1024, 1600x1200, 1920x1080, 2048x1536, 2592x1944@30fps Shutter: Digital Shutter SNR: 39dB Pixel size: 2.2um x 2.2um Shutter type: Rolling shutter Scan: Progressive scan White balance: Auto/Manual Working temperature: 0-50 degrees Celsius Interface: USB 2.0 480 Mbit/s Sensitivity: 18.8 ke-/lux*sec Depth of pixel bit: 10bit Exposure time range (ms): 0.02-155.5 ms Filter: Standard 650nm IR cut-off filter Software function: Image display, Image shooting, video recording, measurement, etc. Working current: 200mA Application: Microscope imaging, General image acquisition, macro imaging, etc. Support OTG to Android Phone (OTG Cable is not included) Double the working distance, meanwhile, the field of view is increased by 6mm. (Compare to HY-500M) |
| Weight & Size | Product Weight: 150g Package Weight: 180g Package Size(L x W x H): 16x8x10cm |

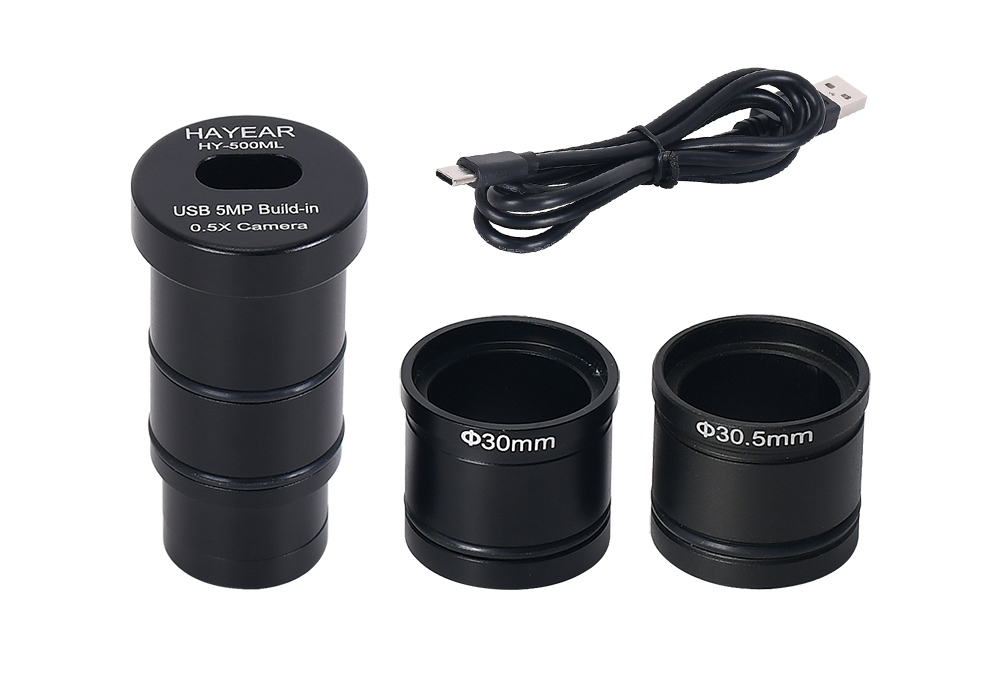

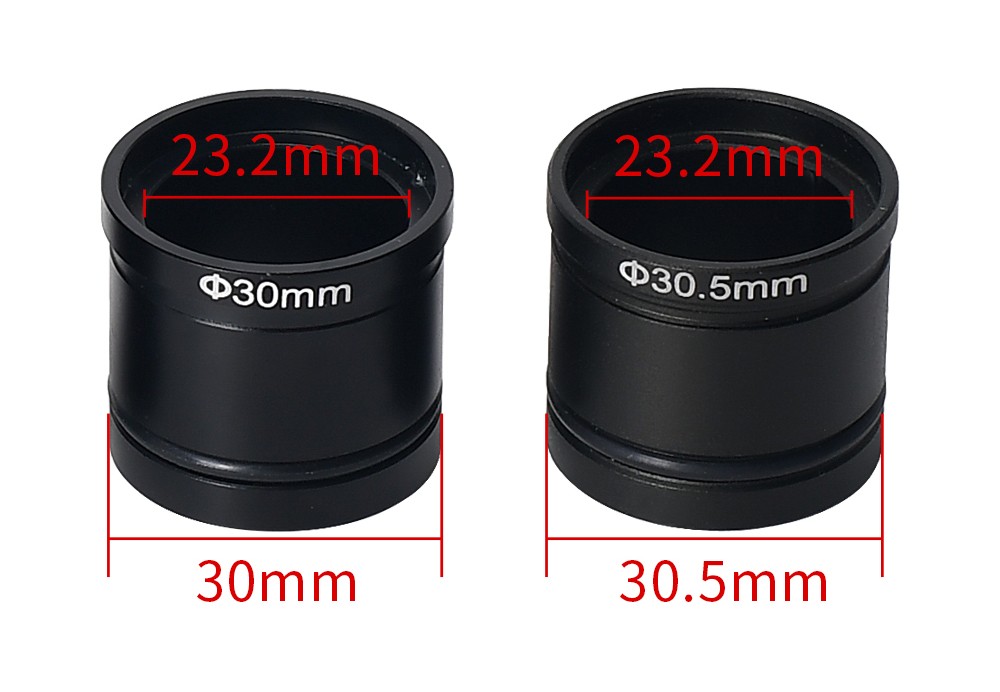

| Package Contents | 1 x 5MP Digital Eyepiece 1 x TYPE-C Line 1 x Measurement Software (Online Download) 1 x 30/30.5mm Adapter |
