| Specification |
Microscope Camera Specification:

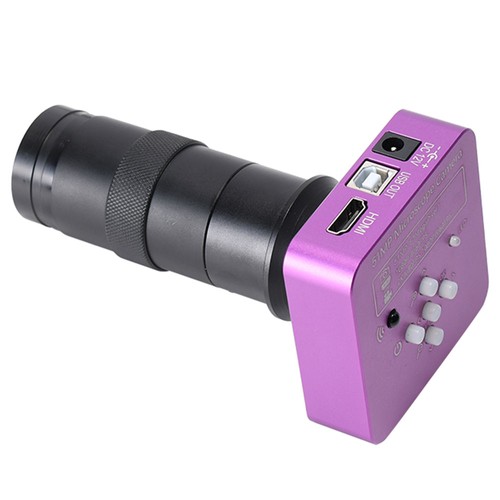

Model: High Definition Multimedia Interface USB2.0 Dual Output Camera
Image Format: JPG
Image Resolution: 51MP
Video Format: MP4 (for Memory Card)
Video Recorder: 1080P @ 60FPS
High Definition Multimedia Interface Video Resolution: 1920x1080 @ 60FPS (For HDMI)
USB Video Resolution: 1920x1080 @ 30FPS; 1280x720 @ 30FPS; 640x510 @ 30FPS; 320x240 @ 30FPS
White Balance: Automatic / Manual
Light: Automatic / Manual
Exposure: Automatic / Manual, Value Adjustable
Direction: Left / Right, Up / Down
Freeze: Support
OSD: English / Chinese / French / Spanish / Japanese / German
Lines: Different colors, 5 horizontal lines, 5 vertical lines, any position
Image Sensor: 51MP CMOS Sensor 1/2.33 Inches
Effective Pixels: 51MP
Pixels Size: 1.335μm x 1.335μm
Frame Rate: 60FPS
Definition: Full High Definition
Housing: Metal
Lens: C/CS
Video Format: MOV
Digital Zoom: Support
Brightness Control: Automatic / Manual
Color: R / G / B Adjustable
Film and Records: Support
Cross Cursor: Support multi-color, adjustable size
Horizontal and Vertical Lines:
Support multi-color, 5 horizontal/vertical lines, movable different colors, 5 horizontal lines, 5 vertical lines, any position
Memory Card Interface: Up to 64G (Not Included)
High Definition Multimedia Interface: Standard High Definition Multimedia Interface Output (Type A)
USB Interface: Standard USB2.0 Interface (Type B)
Input Voltage: DC 12V
Language: English/Simplified Chinese/French/Spanish/Japanese/German And other languages.
130X C-MOUNT Lens Specification:
Magnification Power by 0.12 - 2X (about 8X - 130X on the display)
Work Distance: 100mm
Visual Field: 2.4mm-32mm
Size: 115mm(L) * 40mm(DIA)
Weight: 210g
Working Distance: 5-25cm
|
