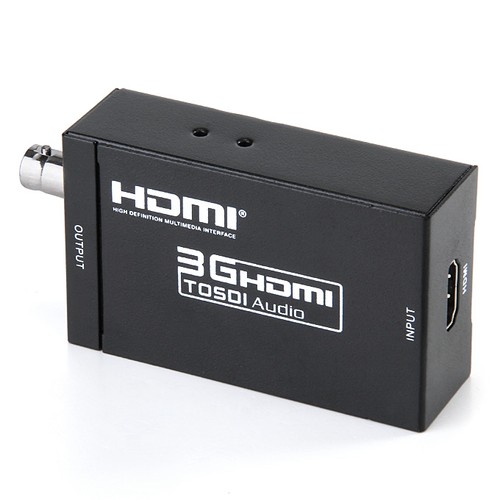

Highlights
- HDMI source display on SDI
- SDI interface operates at bitrates of 2.970 Gbit/s, 2.970/1.001 Gbit/s, 1.485 Gbit/s, 1.485/1.001 Gbit/s and 270 Mb/s
- Converts HDMI signal to SDI:
- 480i/576i to SD-SDI (SMPTE 259M-C, at bitrates of 270 Mbit/s)
- 720p/1080i to HD-SDI (SMPTE 292M, at bitrates of 1.485 Gbit/s or 1.485/1.001 Gbit/s)
- 1080p to 3G-SDI (SMPTE 424M/425M-AB, at bitrates of 2.970 Gbit/s and 2.970/1.001 Gbit/s)
- Supports SDI output distance up to 100 meters (3G-SDI), 200 meters (HD-SDI), or 300 meters (SD-SDI)
Specification
| General | |
|---|---|

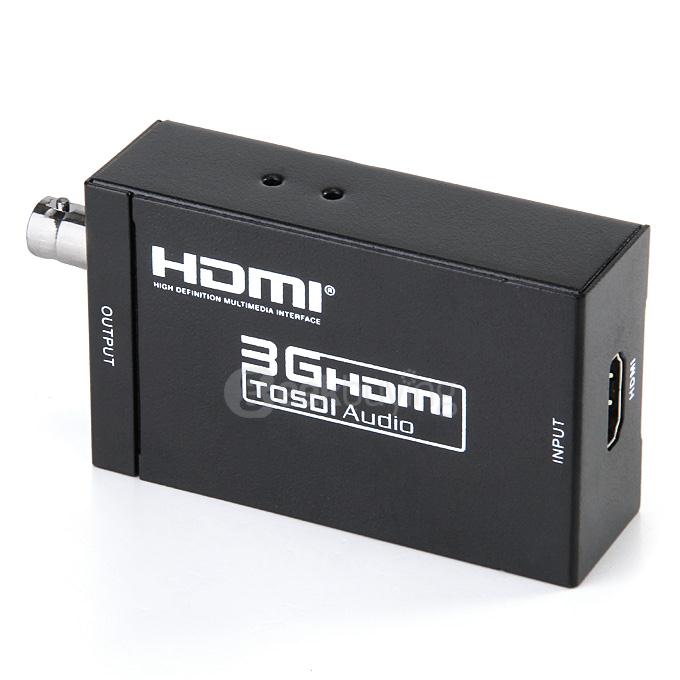

| Model | HDV-S009 |
| Quantity | 1 Piece |
| Color | Black |
| Material | Metal |
| Specification | |
| SDI Transmission Rates | 2.970 Gbit and 2.970/1.001 Gbit/s |

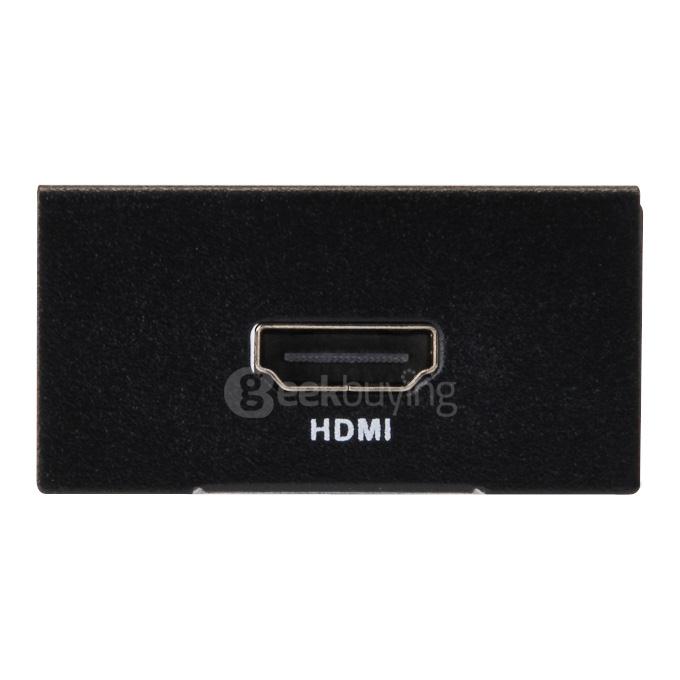

| Input Ports | 1x HDMI |

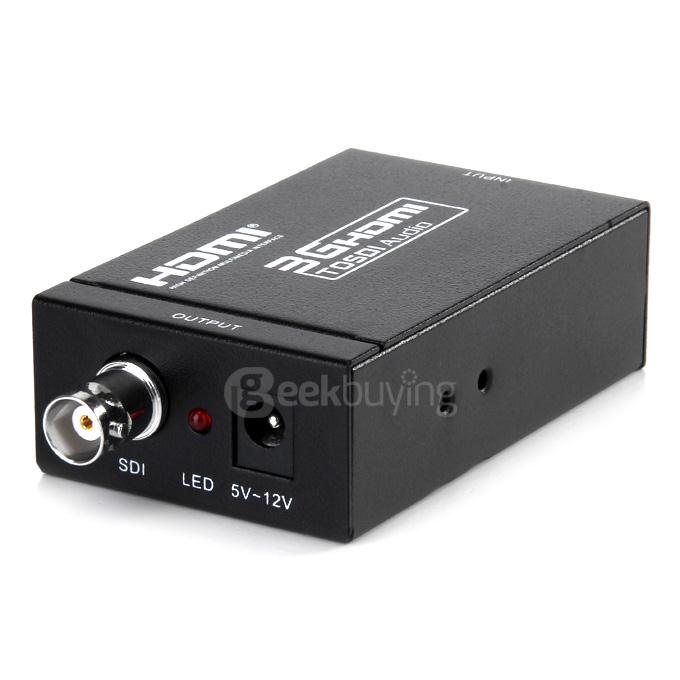

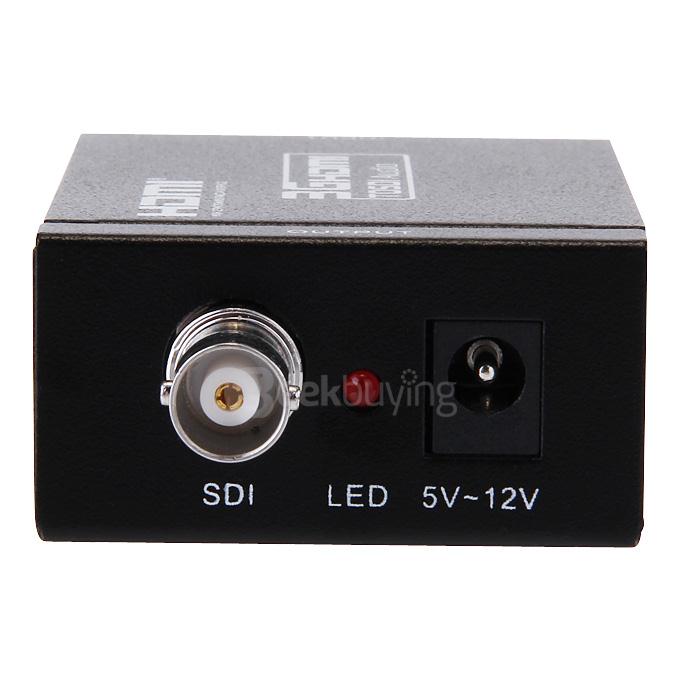

| Output Ports | 1 x BNC(SDI/HD-SDI/3G-SDI) |
| Power Supply | DC 5V -12V |
| ESD Protection Human Body Model | ± 8kV (air-gap discharge) ± 4kV (contact discharge) |
| Operating Temperature | 0ºC ~ 40°C / 32°F ~ 104°F |
| Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F |
| Power Consumption (Max) | 5W |
| Dimensions & Weight (Main Product) | |
| Dimension | 80*41*25mm |
| Weight | 150g |

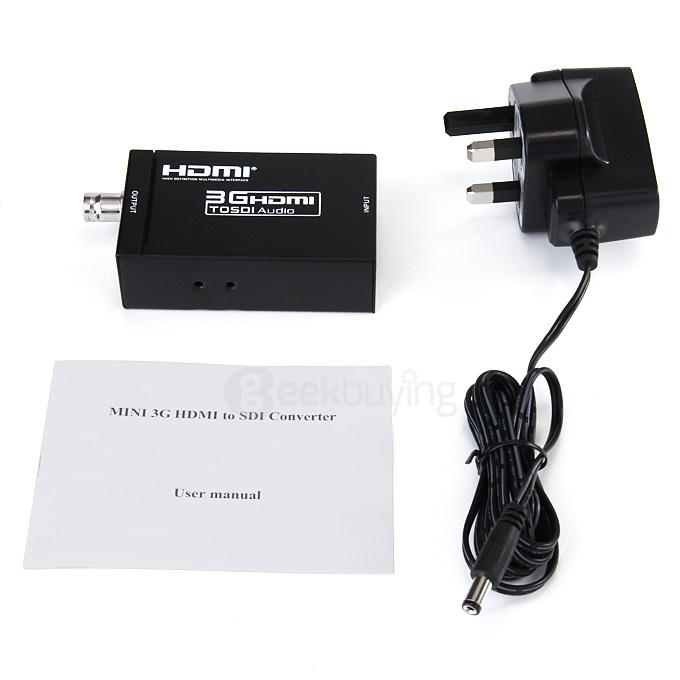

| Package Contents | |
| 1 x HDV-S009 Converter | |

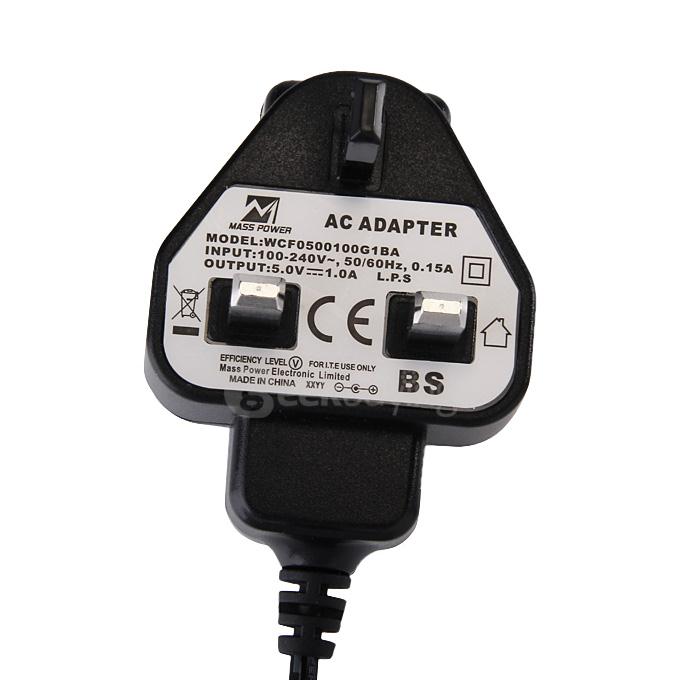

| 1 x Charger (UK plug - 5V 1A) | |
| 1 x English User Manual | |
