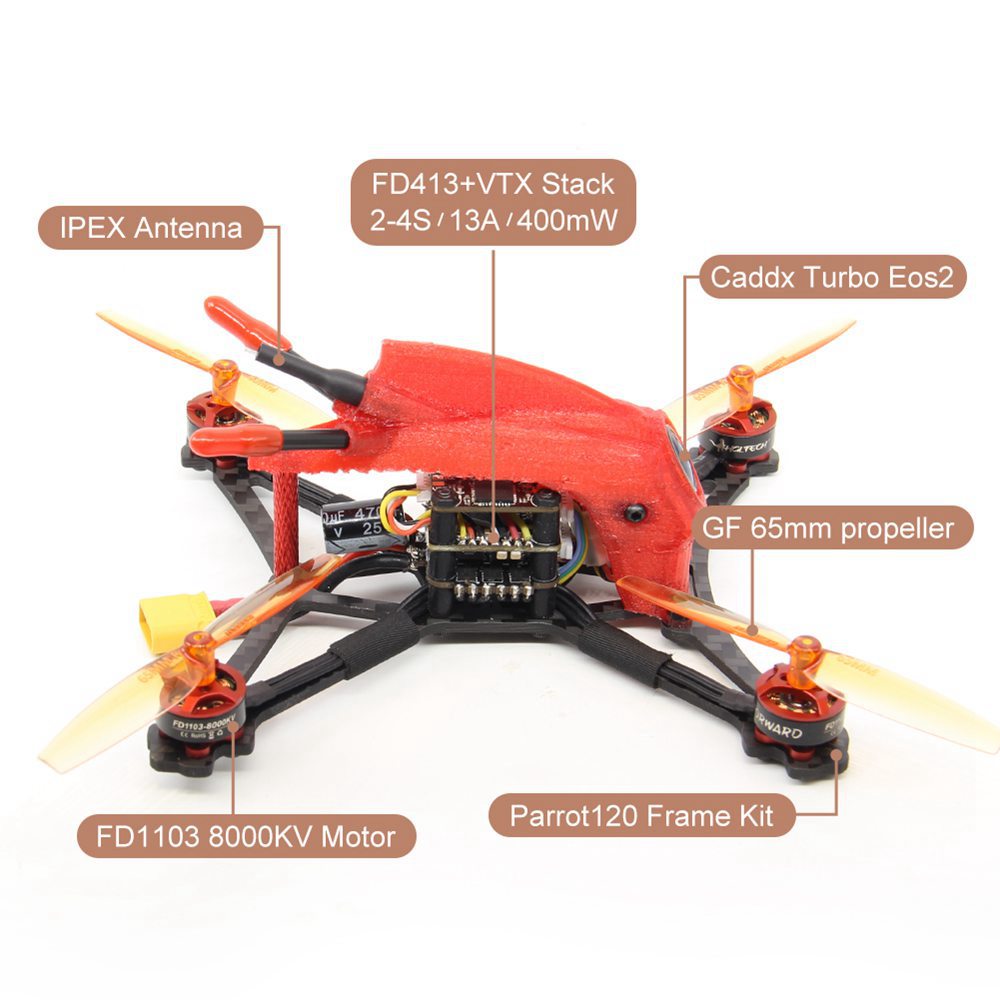

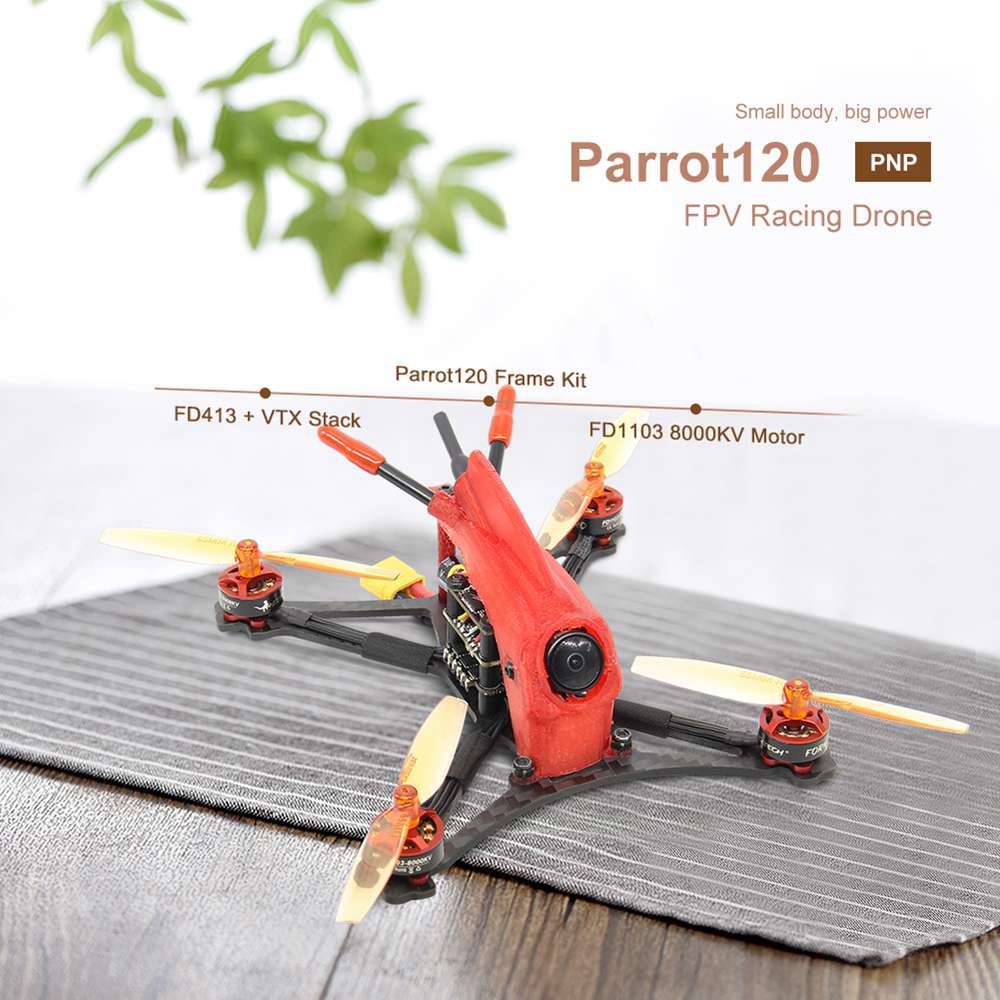

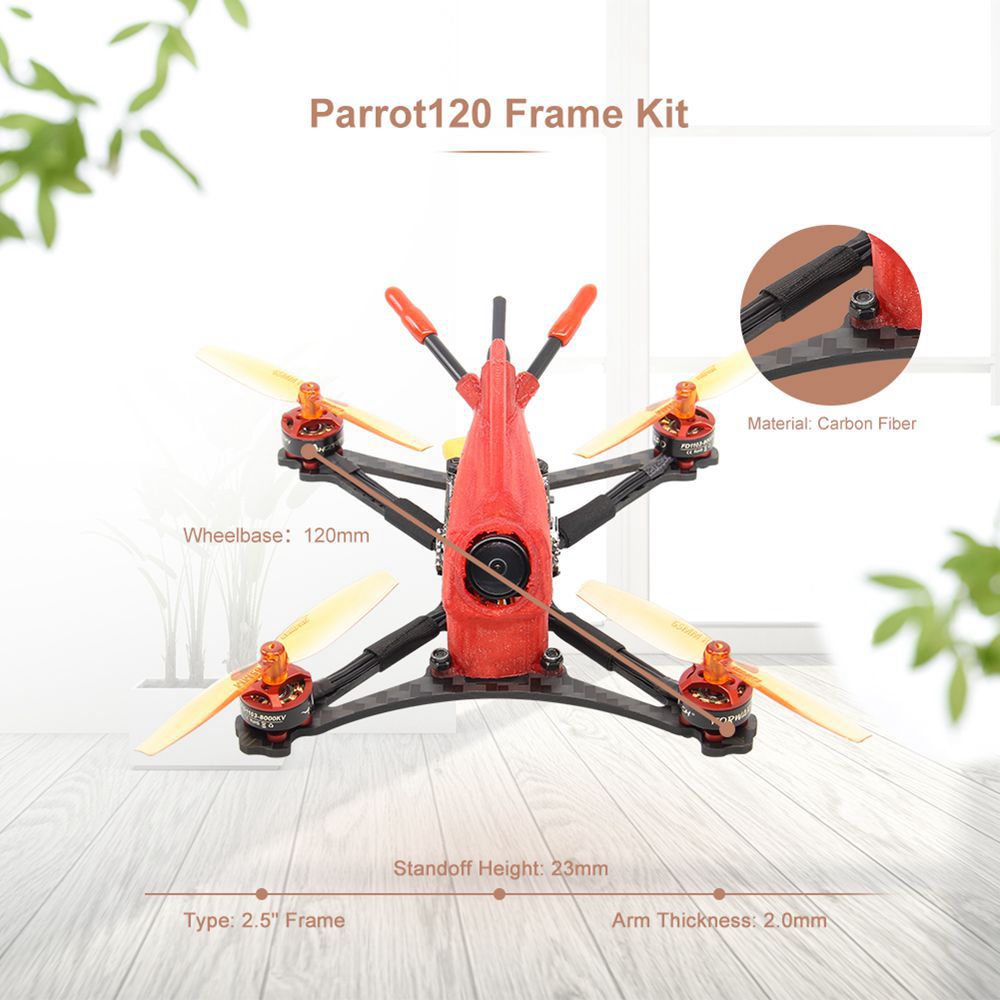

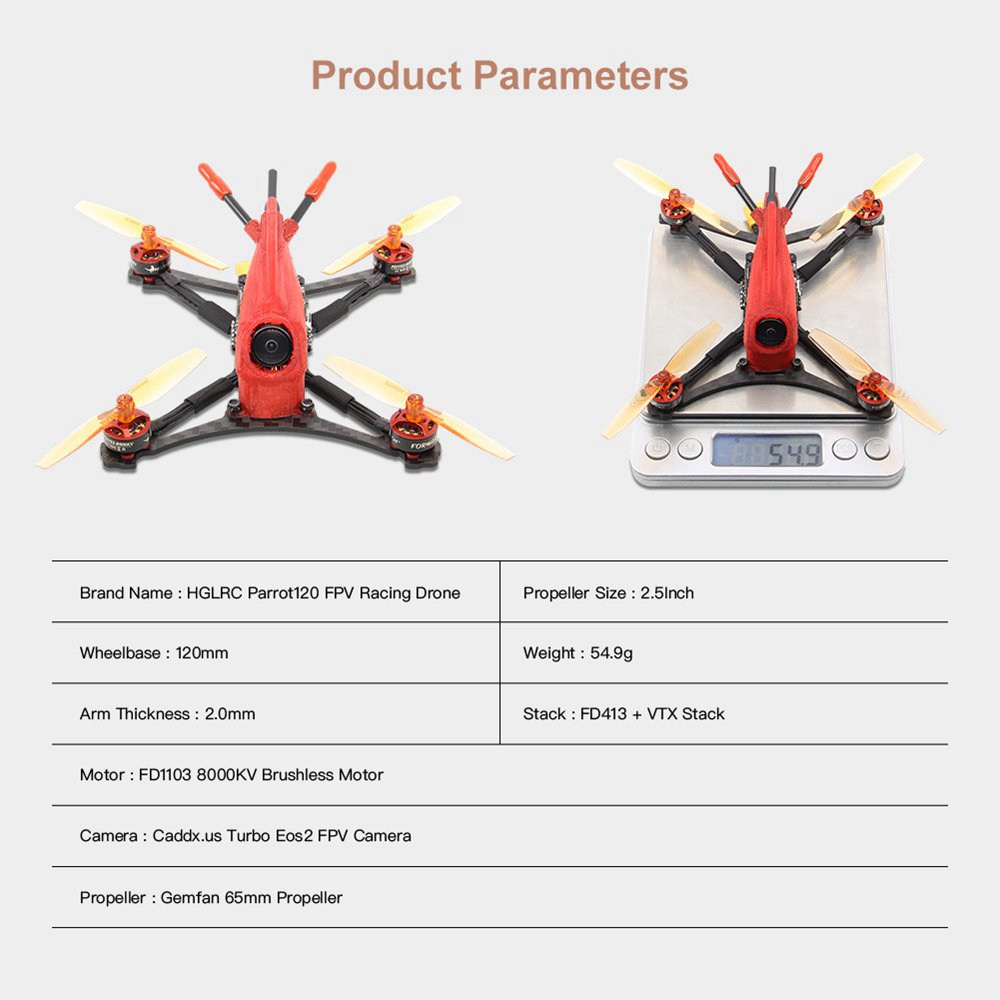

Frame Kit
Material: Carbon Fiber
Wheelbase: 120mm
Type: 2.5" Frame
Arm Thickness: 2.0mm
Standoff Height: 23mm
Flight control installation holes: 16*16mm
Support camera: 14X14mm
Weight: 15g

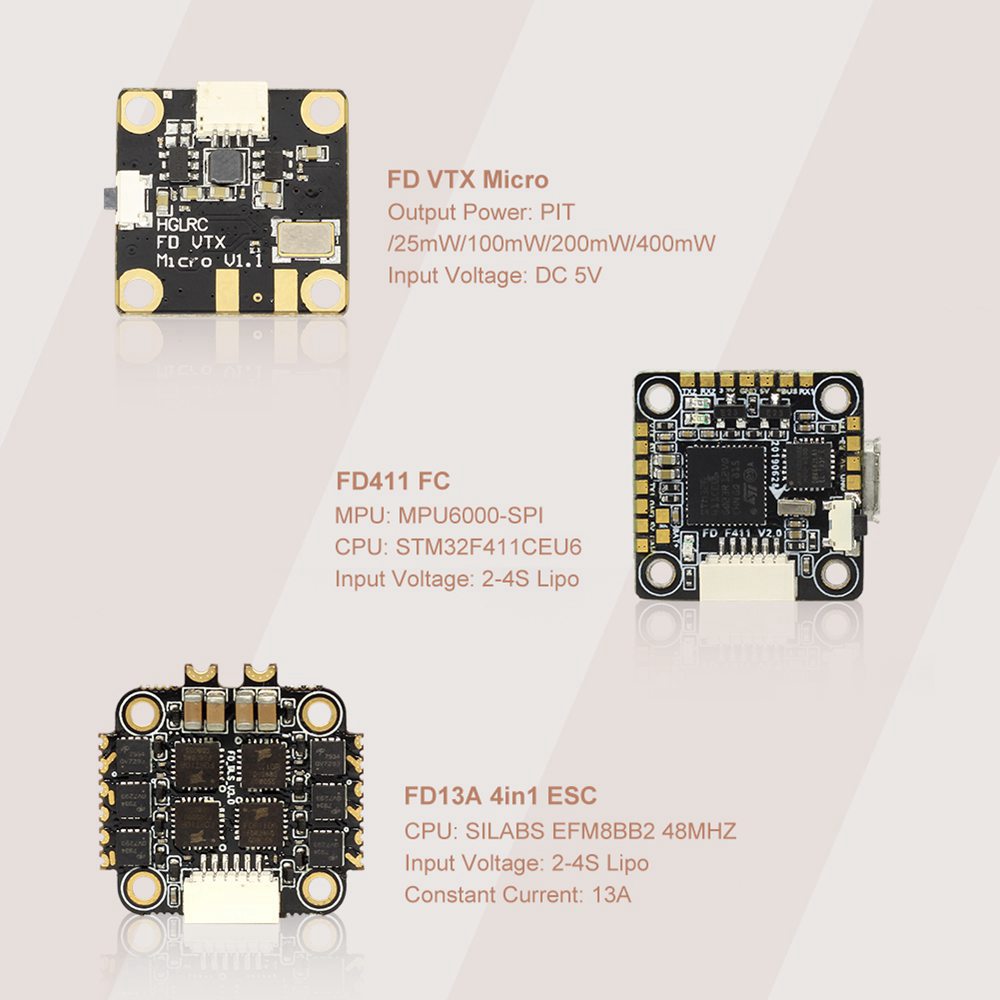

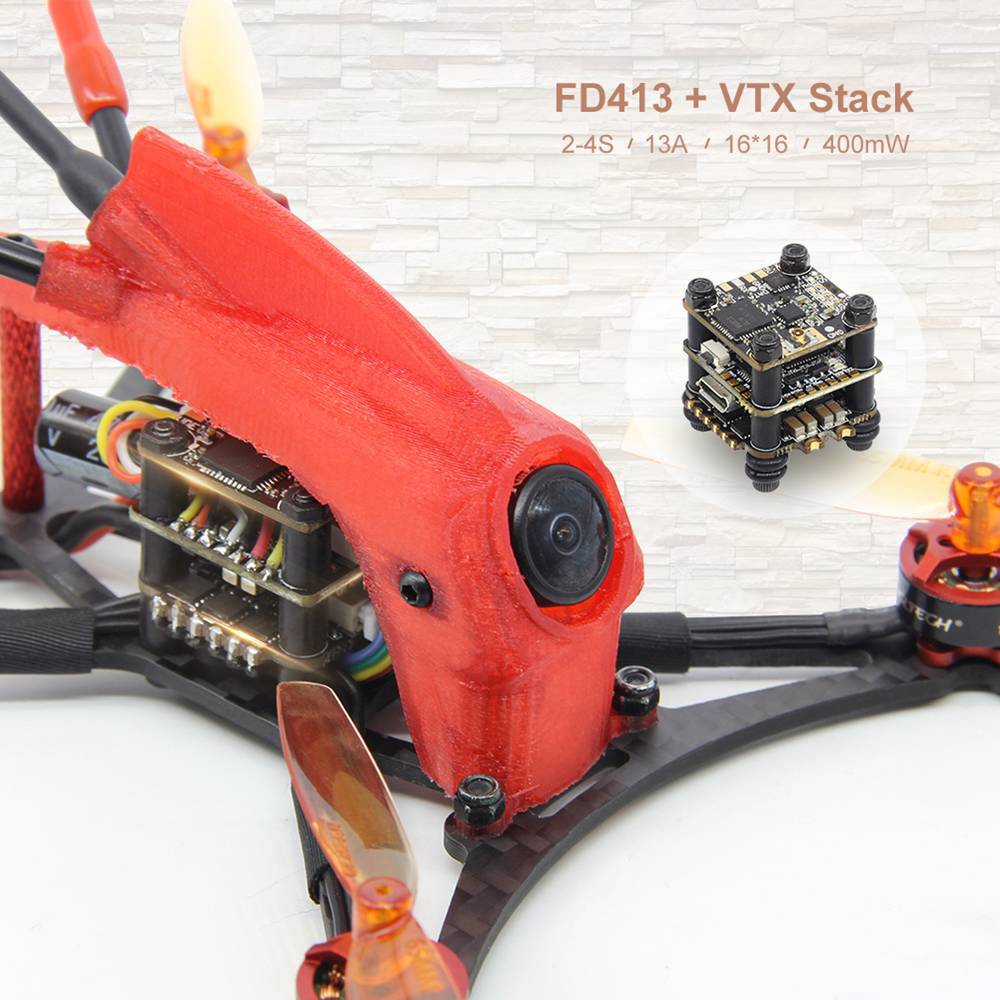

Flight Controller
MPU: MPU6000-SPI
CPU: STM32F411CEU6
Black Box: NO
Input Voltage: 2-4S Lipo
Built-in Betaflight OSD to adjust PID
BEC Output: 5V 2A
Size: 21x21mm
Installing Hole: 16x16mm, M2
Support SBUS/PPM/DSMX/iBUS receiver
Weight:2.7g
ESC
Item Name: FD13A 4in1 2-4S ESC
Input Voltage: 2-4S Lipo
Constant Current: 13A
Peak Current: 15A(5S)
BEC Ouput: NO
Size: 23x24mm
Installing Hole: 16x16mm, M2
Weight: 3.2g
CPU: SILABS EFM8BB2 48MHZ
MOS Tube: TOP QUALITY MOSFET
Support Damped Mode: DSHOT600/300/150/Oneshot125/42,MultiShot,PWM
VTX
Item Name: FD VTX Micro
Output Power: PIT/25mW/100mW/200mW/400mW Switchable
Input Voltage: DC 5V
PIT---------0dBm------70mA
25mW-----14dBm-----150mA
100mW----20dBm-----210mA
200mW----23dBm-----280mA
400mW----26dBm-----360mA
Installing Hole: 16x16mm, M2
Size: 20x20mm
Antenna: IPEX
Weight: 1.5g
Camera
Brand: Caddx
Item Name: Turbo EOS2
Image Sensor: 1/3" CMOS
Horizontal Resolution: 1200 TVL
TV System: NTSC/PAL option
IMAGE: 16:9
Synchronization: Internal
Electronic Shutter: PAL: 1/50-100,000
NTSC: 1/60-100,000
S/N Ratio: >52dB (AGC OFF)
Video Output: CVBS
Lens: 2.1mm
Auto Gain Control: YES
BLC: YES
WDR: Global WDR
DNR: 2 DNR
Dimensions: 14mm"14mm*16mm
Input Power: DC 3.3-6V
Working Temperatur: -20 - +60 Celsius
Work Humidity: 20%-80%
Net weight: 3.5g

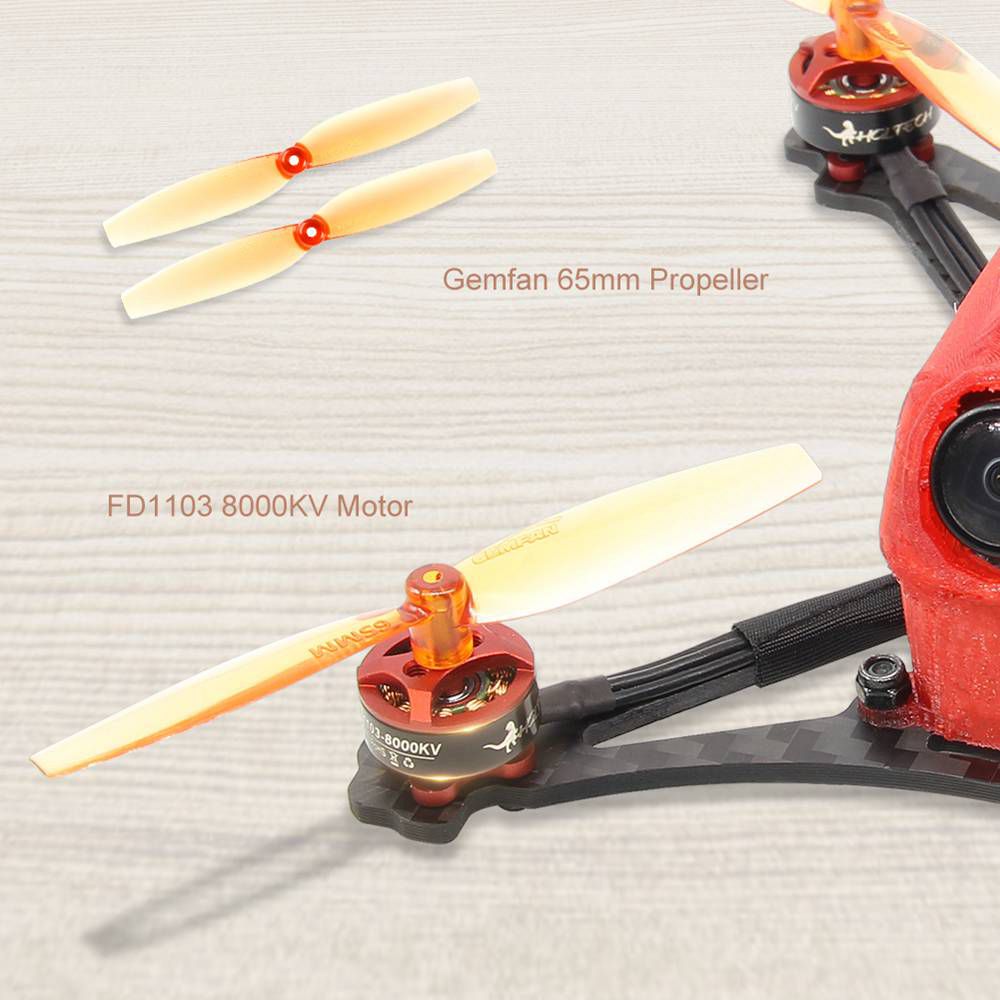

Motor
Model: FD1103
KV: 8000
Stator Diameter: 11mm
Stator Thickness: 3mm
No.of Stator Arms: 9S
No.of Rotor poles: 12P
Motor Resistance: 330mΩ
Max Continuous Current: 5.46A
No.of Cells(Lipo): 2-3S
Wire type: 28AWG x 40mm
Weight: 4g
Prop:
Brand: Gemfan
Item Name: 65mm 2.5Inch 2-Blade Propeller
Quantity: 3 CW & 3 CCW
|
