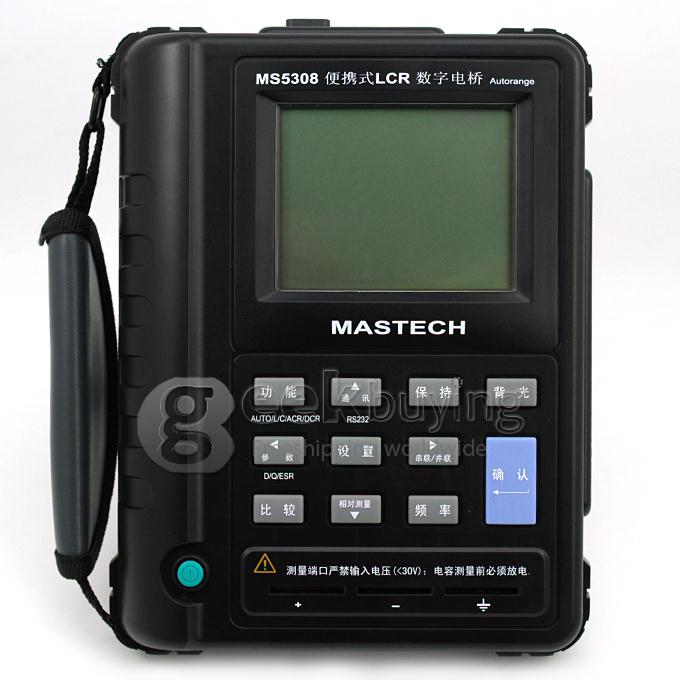

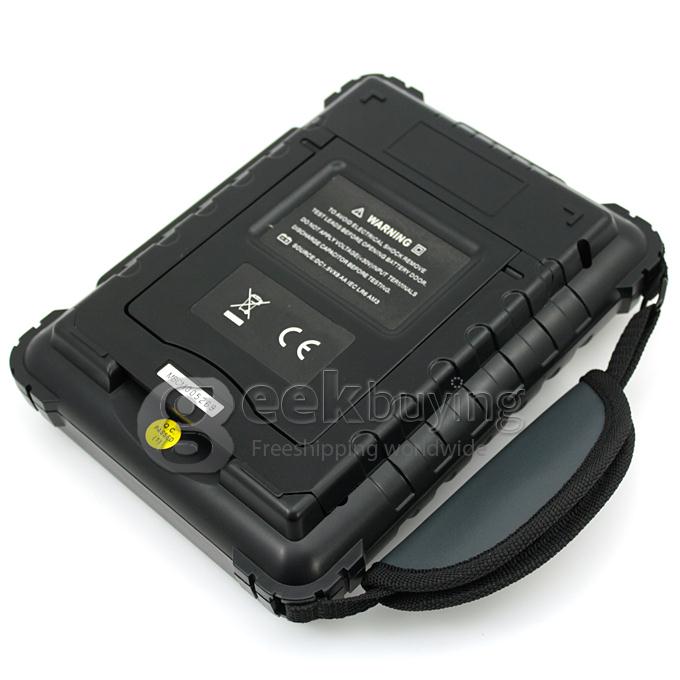

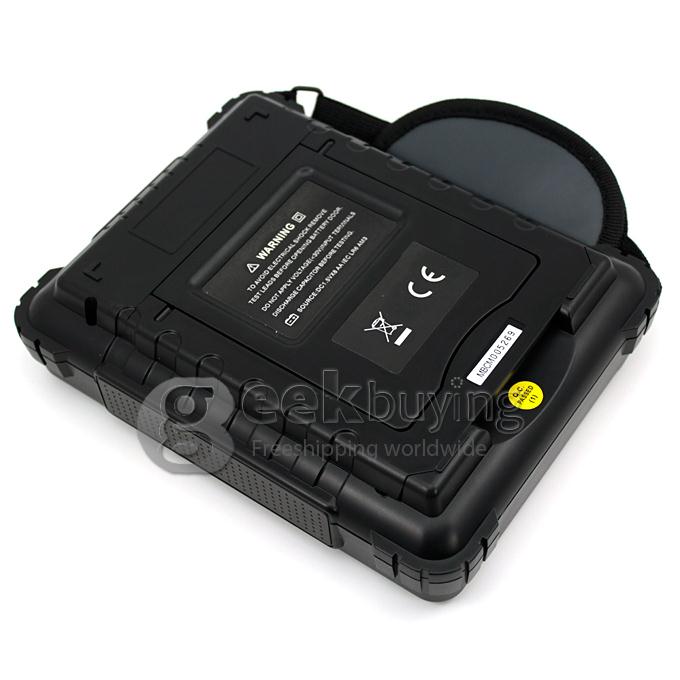

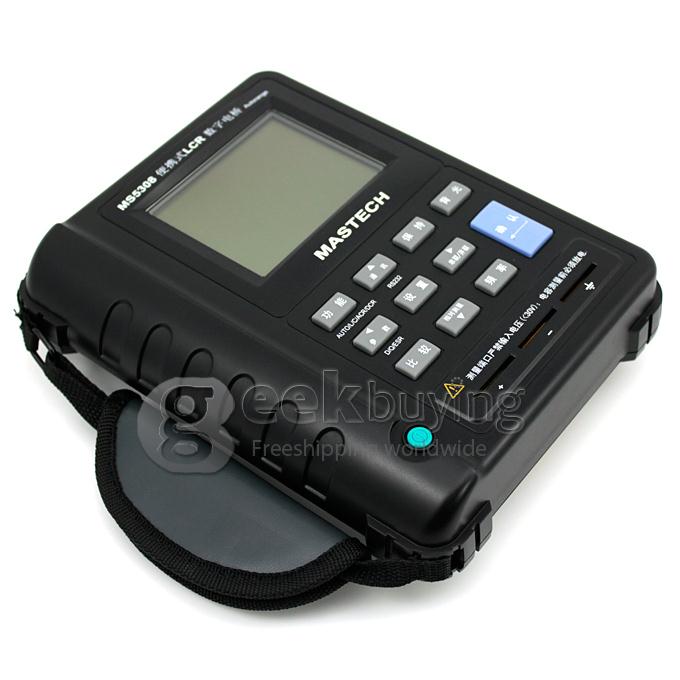

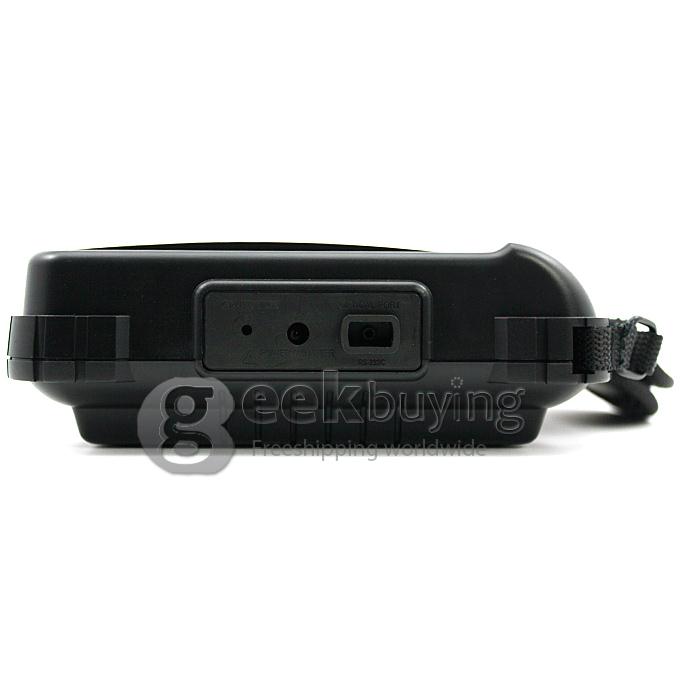

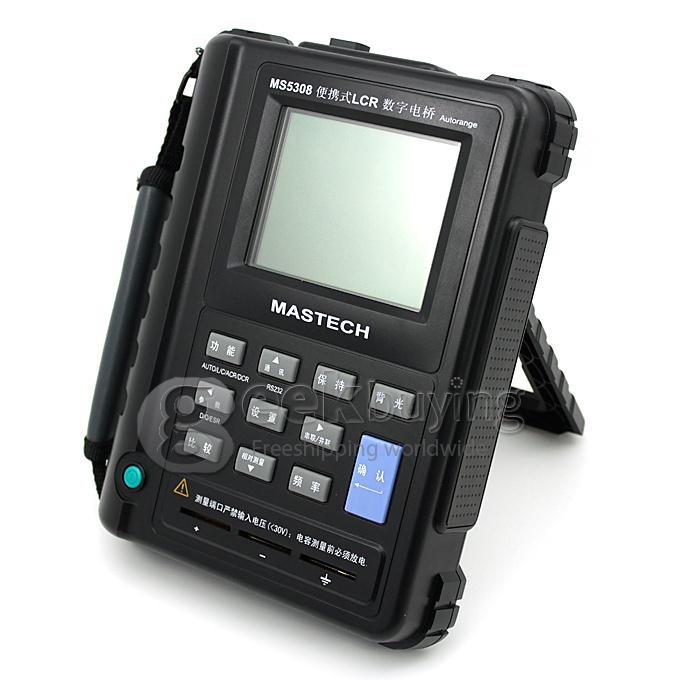

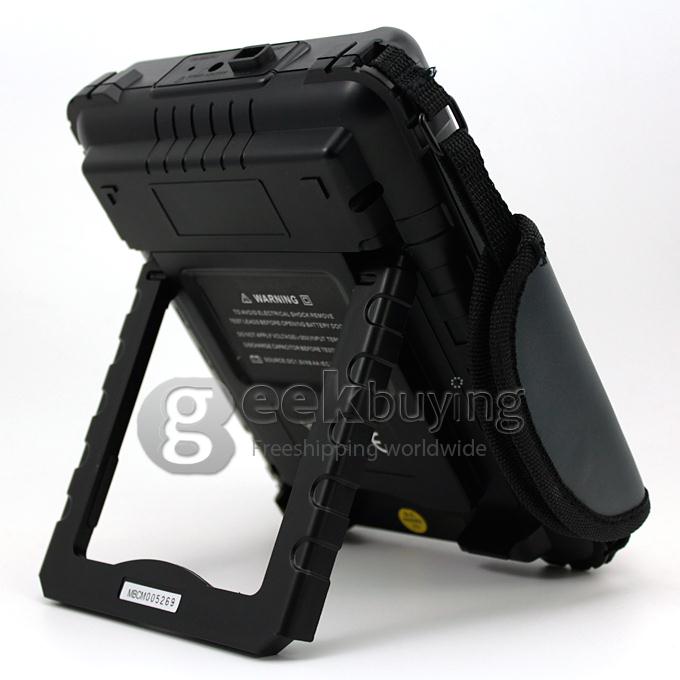

High-Performance Portable Mastech MS5308 Handheld Autorange LCR Meter

Highlights

• The MS5308 LCR digital bridge meter is a professional instrument for measuring inductance,capacitance and resistance It has many features, such as automatic identification, automatic measurement range, high measurement accuracy and speed, wide measuring range and so on
• An ordinary multimeter only provides DC mode for resistance measurement, while the MS5308 provides both AC and DC measurement modes. A variety of test frequencies up to 100Khz can be provided for inductance, capacitance and resistance in AC mode to meet the actual needs better
• Correct usage can ensure that the instrument will work precisely for a long time. Please read the instructions carefully before using and operate the instrument strictly in accordance with the instructions

Specification

Operating environment and condition:

● Elevation ＜2000 m

● Relative humidity (RH) ≦ 80%RH

● Operating temperature 0 – 40°C

Note: DO NOT input voltage at the measurement port. When measuring capacitance, please discharge first then measure, otherwise, the meter will be damaged.

Storage and maintenance: Do not use alcohol or other solvents to clean the meter. If it will not be used for long time, please remove battery and put the meter in a dry and clean environment.

3. Description:

3.1 Definition Description

APO: Auto power off

LCR: This character showing on the LCD means that the tester works in automatic identification mode

LP: Inductance parallel connection measurement mode

Ls: Inductance series connection measurement mode

CP: Capacitance parallel connection measurement mode

Cs: Capacitance series connection measurement mode

RP: Resistance parallel connection measurement mode

Rs: Resistance series connection measurement mode

DCR: Resistance DC measurement mode

D: Wastage factor

Q: Quality factor

θ: Phase angle value

ESR: Equivalent resistance

DUT: Object for measuring

What's in the box?

• 1 x MS5308 LCR Digital Bridge Meter
• 1 x Kelvin Test Clip
• 1 x Upper Computer Program CD
• 1 x External Power Supply
• 1 x SMD Test Probe
• 1 x IR Data Line
